Description

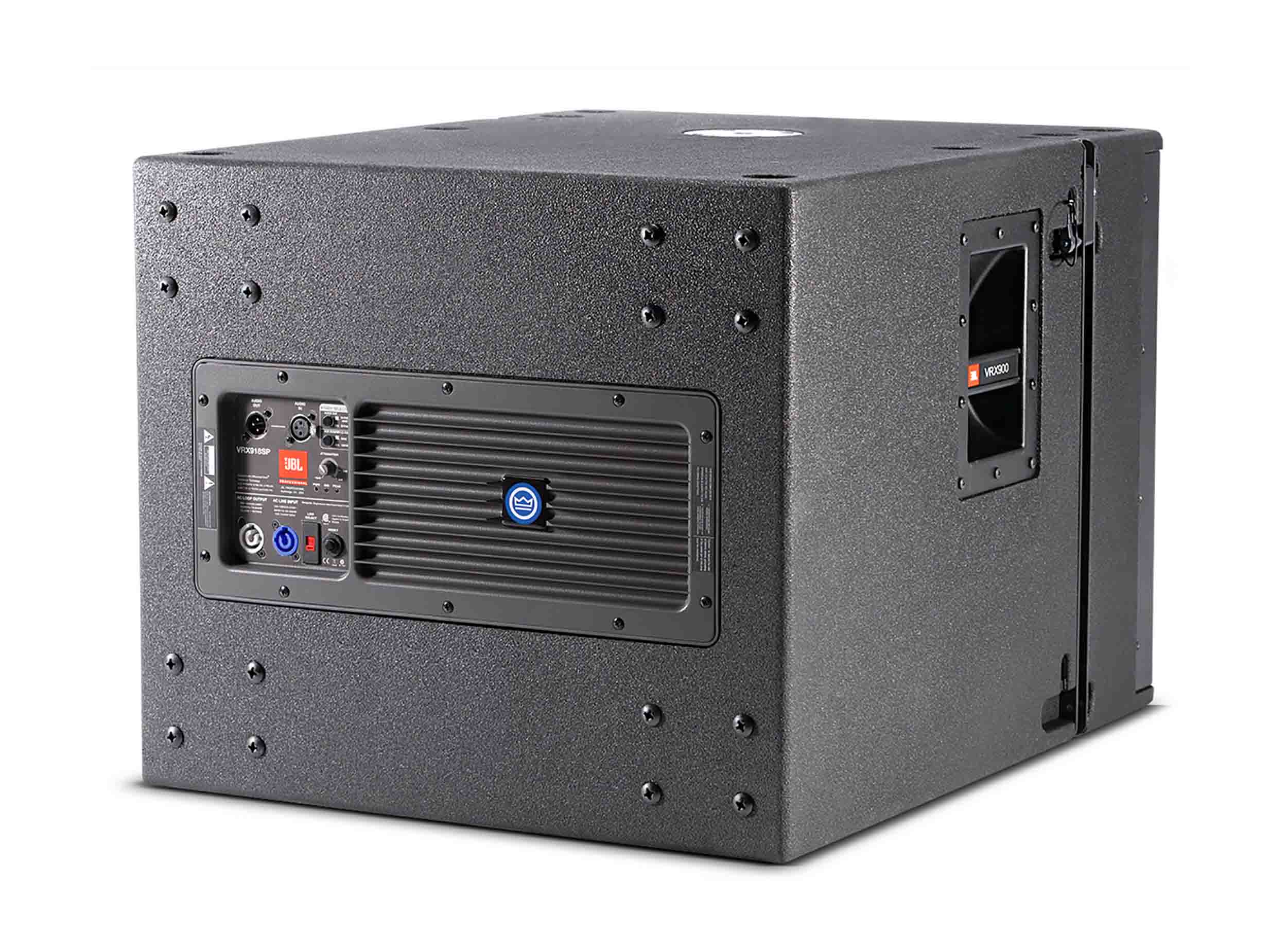

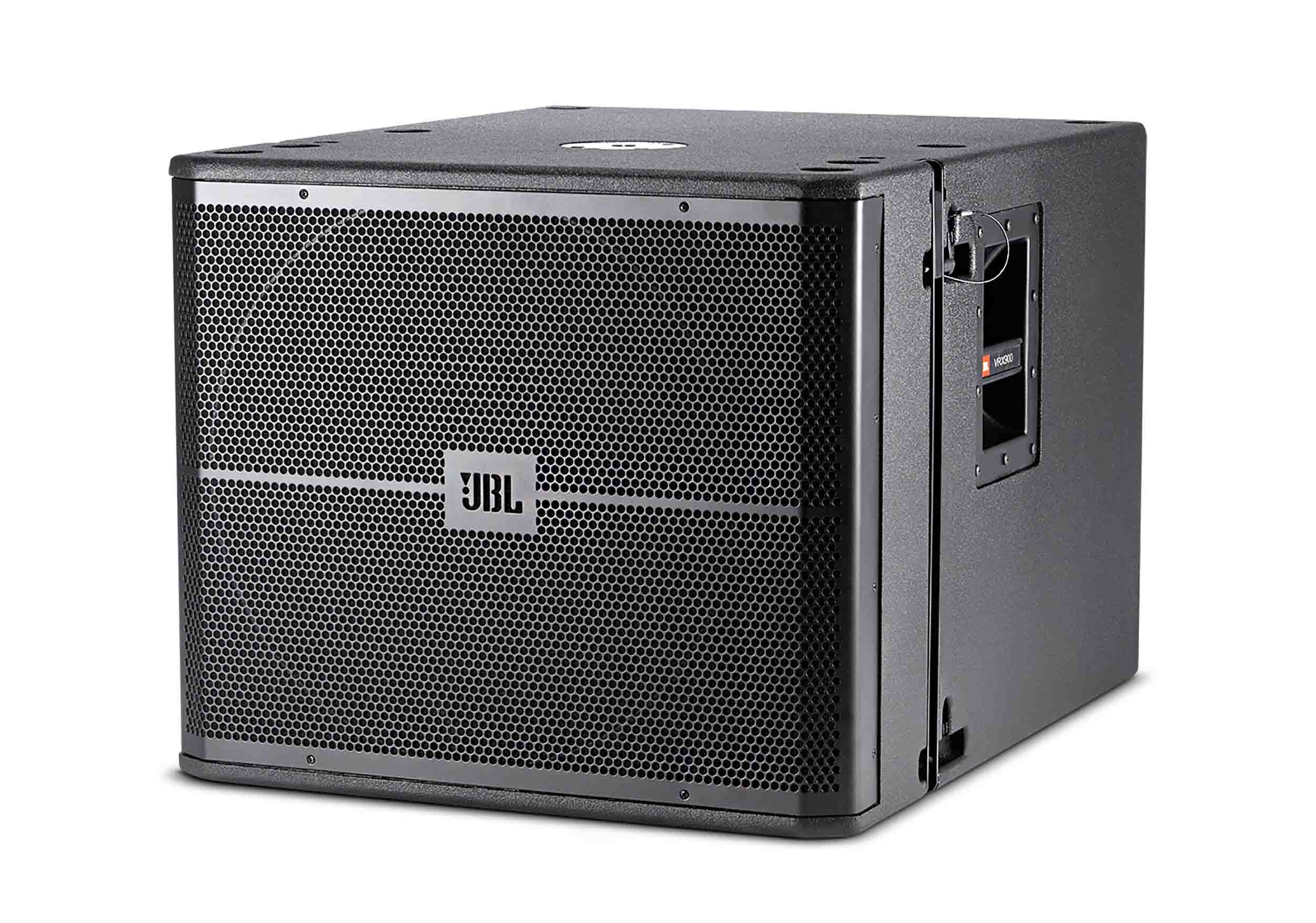

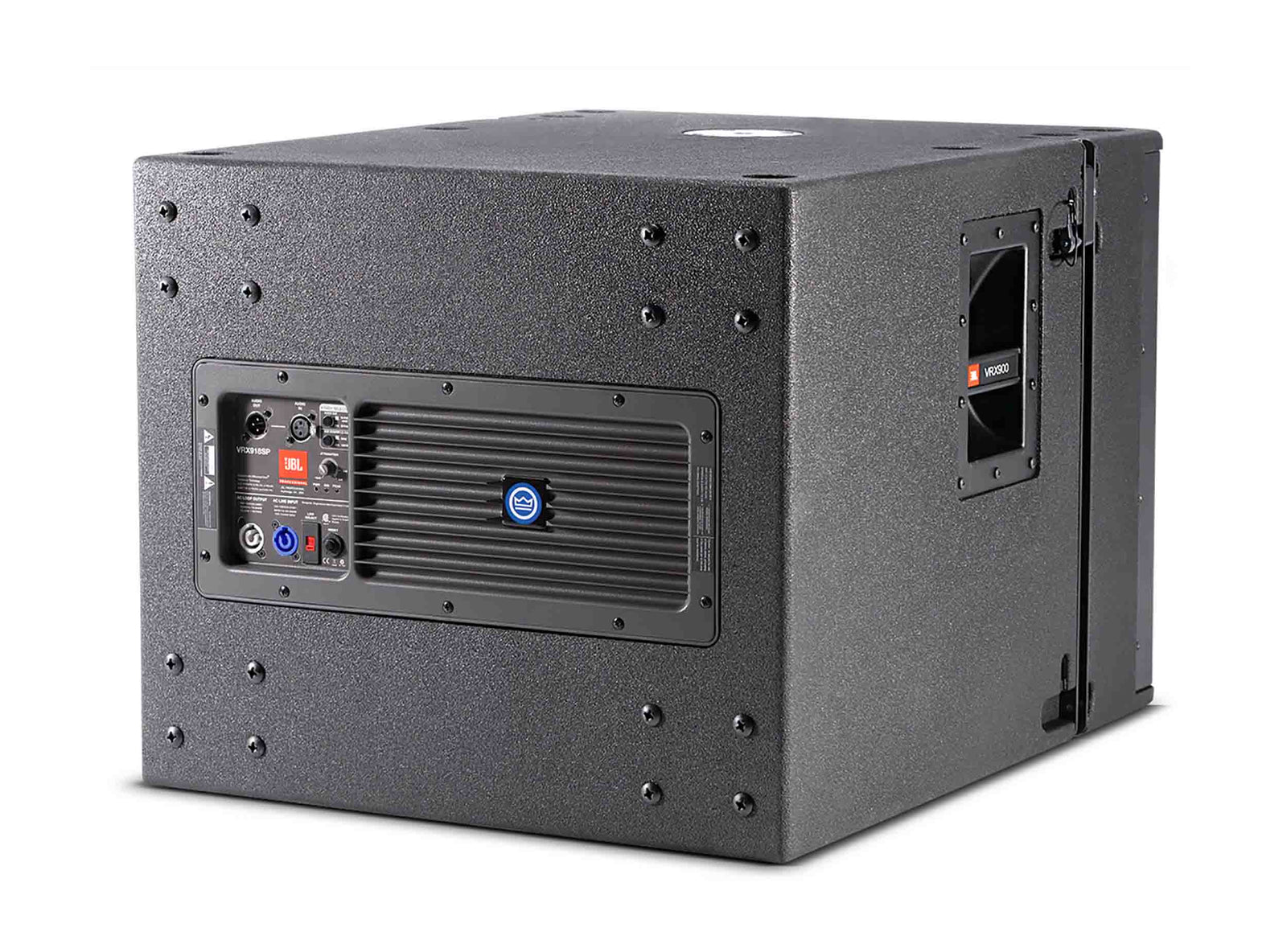

The JBL VRX918SP is a powered, suspendable subwoofer system containing a 2268FF neodymium magnet, patented Differential Drive, 18" woofer in a front-loaded, vented enclosure. The VRX918SP was designed specifically for use in arrays with the VRX932LAP Line Array speaker and VRX-AF Array Frame. In addition it may also be used in arrays consisting entirely of VRX918SP subwoofers.
Product Specification:
Power Rating: 1500 Watts PeakLF: Dual-Bridged Technology, Class D
Frequency Range: 31 Hz – 220 Hz
Dimensions (H x W x D): 508 mm x 597 mm x 749 mm (20.0 in x 23.5 in x 29.5 in)
Frequency Range (-10dB): 31 Hz – 220 Hz
Maximum Peak Output: 126 dB SPL at 1m
Bandpass Nominal Impedance: LF: 2 x 2 ohms
LF Driver: 1 x JBL 2268FF 457 mm (18 in) dual voice coil Differential Drive woofer with neodymium-magnet
Inputs: XLR with loop through
User Controls: Input Attenuator (0-16 dB)Selectable 80 Hz or 120 Hz Low Pass 80 Hz High-Pass enable/disable for XLR loop thru.
System Processing: DSP based, resident in Input Module
System Management: DSP based limiters for mechanical and thermal protection
AC Power Operating Range: 90-132 VAC or 216-264 VAC, 50/60Hz
AC Line Voltage: User selectable: 120V/240V (-15%, +10%)
AC Input Connector: Neutrik PowerCon (NAC 3MPA)
AC Loop Through Connector: Neutrik PowerCon (NAC 3MPB)
AC Current Requirements: 6A per system at 120V, 3A per system at 240V
Enclosure: 18 mm birch plywood.
Suspension / Mounting: Optional VRX-AF line-array frame kit or 10 mm forged eyebolts
Finish: Black DuraFlex finish
Grille: Powder coated, black, 16-gauge perforated steel with acoustically transparent foam
Net Weight (each): 38.5 kg (85 lb)
Outputs:1 x XLR
Nominal Impedance: LF: 2 x 2 ohms
