Description
The JG11-15A Power Distribution Center from Juice Goose is intended for use in 19-inch rackmount environments. It features 11 NEMA 5-15R outlets: 10 on the back, 1 on the front. The front outlet is unswitched, as is one of the outlets on the back. All other outlets are rotated to better accommodate "wall wart" power supplies. The outlets draw power via the unit's 15-foot NEMA 5-15P power cord. To protect your installation from electrical damage, the JG11-15A features a front-mounted circuit breaker and surge protection fail-safe.
Connectivity

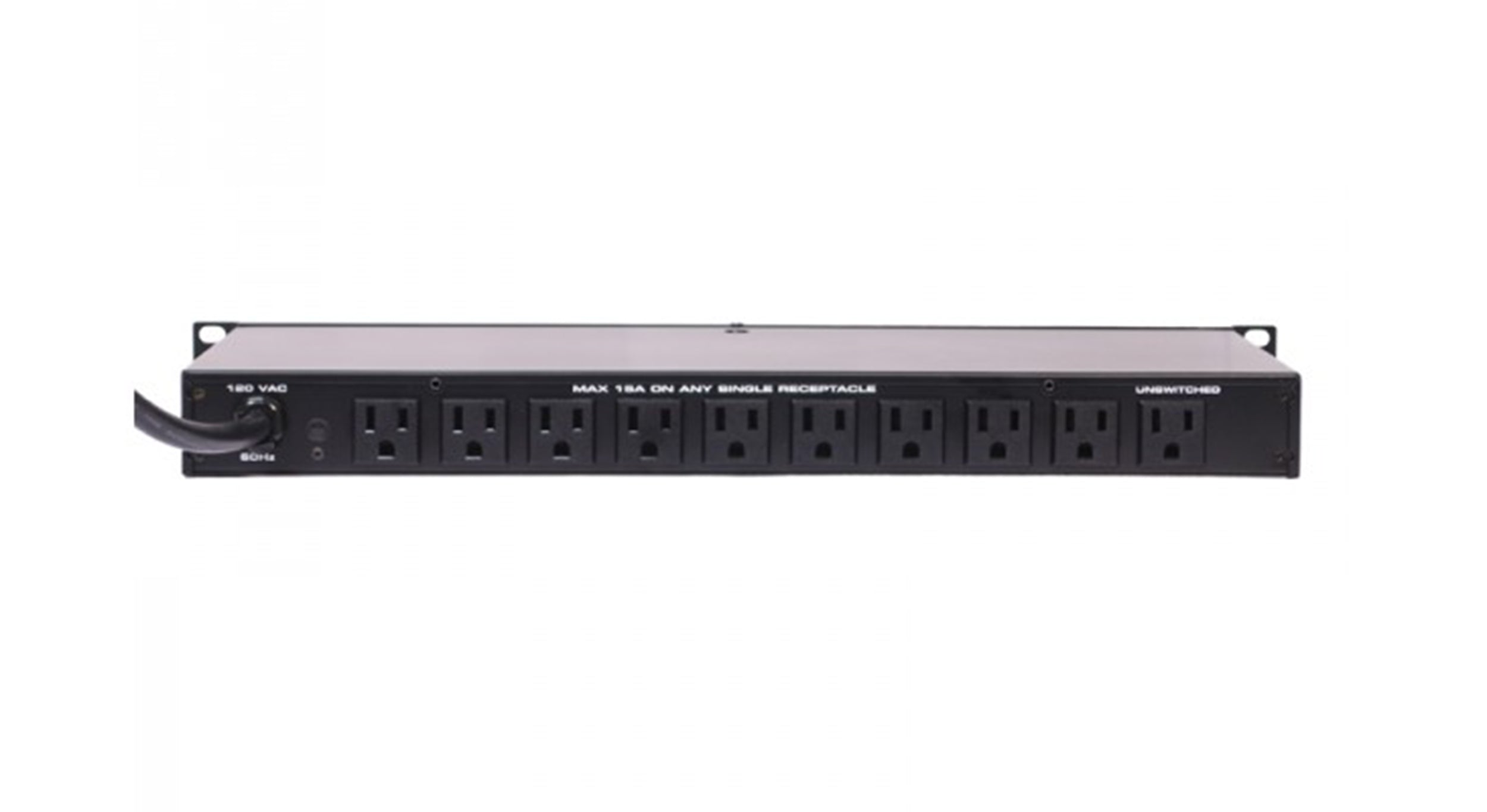

The JG11-15A provides 11 AC receptacles, including one unswitched outlet on the front and back of the unit. Excluding the unswitched outlets, the other receptacles are rotated to better accommodate "wall wart" power supplies. Each of the AC outlets is NEMA 5-15R, rated for 15 amps.
Capacity
The JG11-15A has a 15A circuit breaker and a 12A maximum current rating.
Power Protection
The unit features AC power protection that includes a fast-acting metal oxide varistor, which guards against high-energy surges between the line and neutral power leads. This protection also includes filtration capacitance, which enhances the surge protection and adds a primary level of line-noise elimination.
Power Cord
The power cord is rated for 15A and features a NEMA 5-15P plug. It's 15' long.
Circuit Breaker

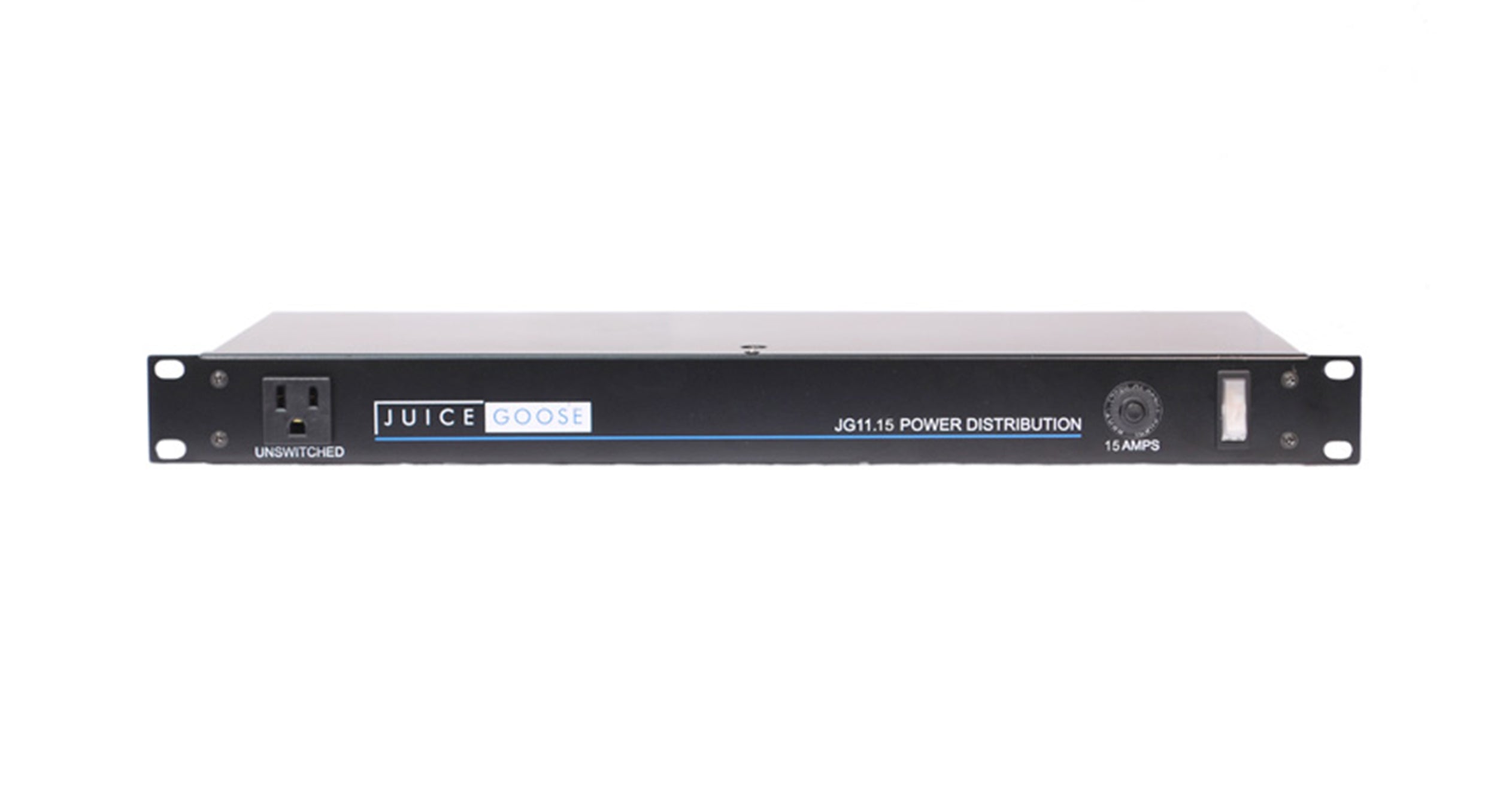

The JG11-15A features a circuit breaker mounted on the front of the chassis and is rated for 15A.
Product Specifications:
Type: Conditioner
Metering: None
Integrated Lamps: None
Connections
Outlets:
10x NEMA 5-15R (Rear Panel)
1x NEMA 5-15R (Front Panel)
Wall Plug Type: NEMA 5-15P
Wireless: No
Electrical
AC Input Power: 120 VAC, 60 Hz
Output Current: 12 A (Maximum)
Protection Types & Modes: Metal-Oxide Varistor (MOV)
Cable Length: 15' / 4.6 m
Dimensions: 19 x 7 x 1.75" / 48.3 x 17.8 x 4.4 cm
Weight: 6 lb / 2.7 kg
Packaging Info
Package Weight: 6.4 lb
Box Dimensions (LxWxH): 21.5 x 11.5 x 2.3"
