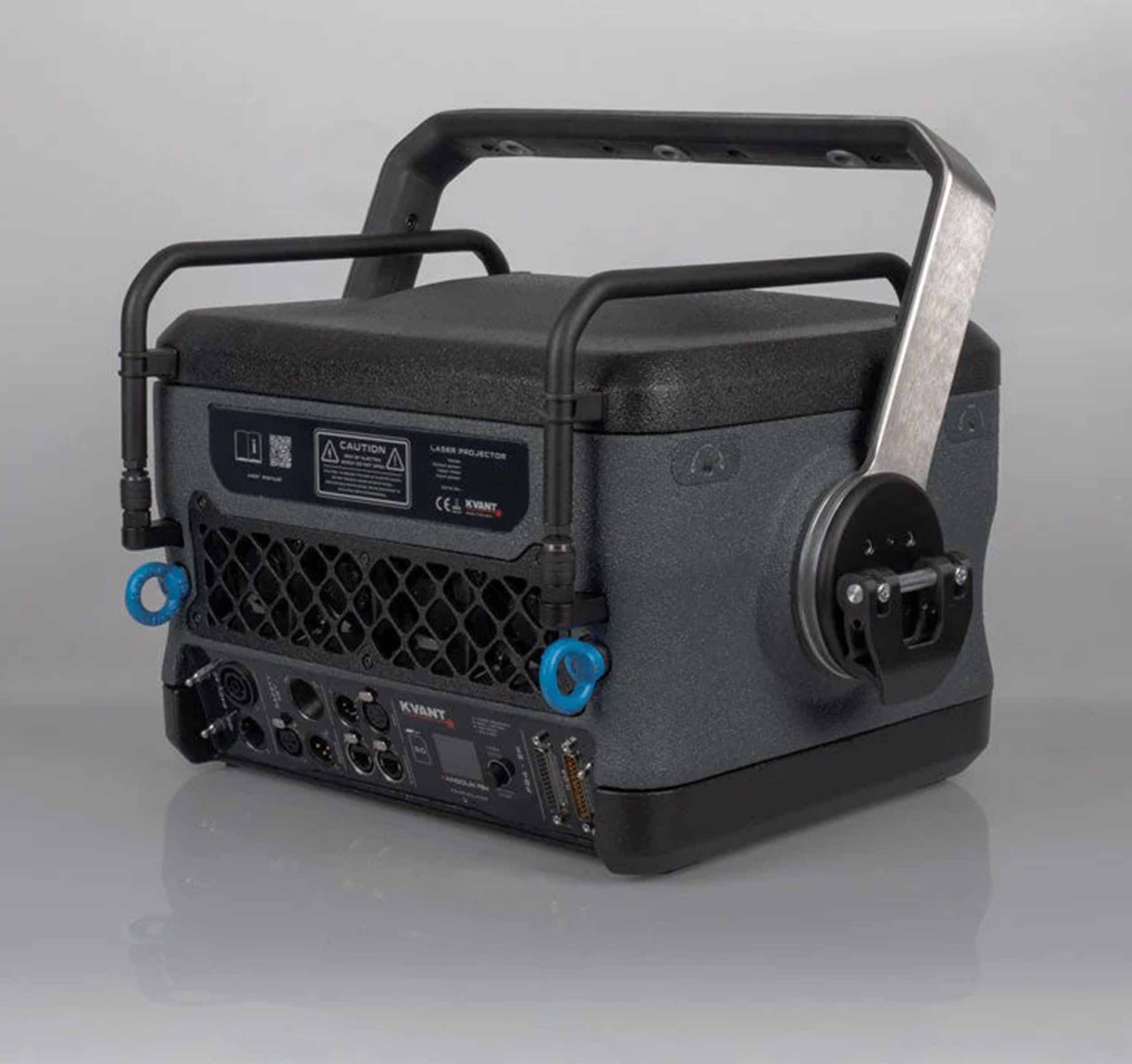

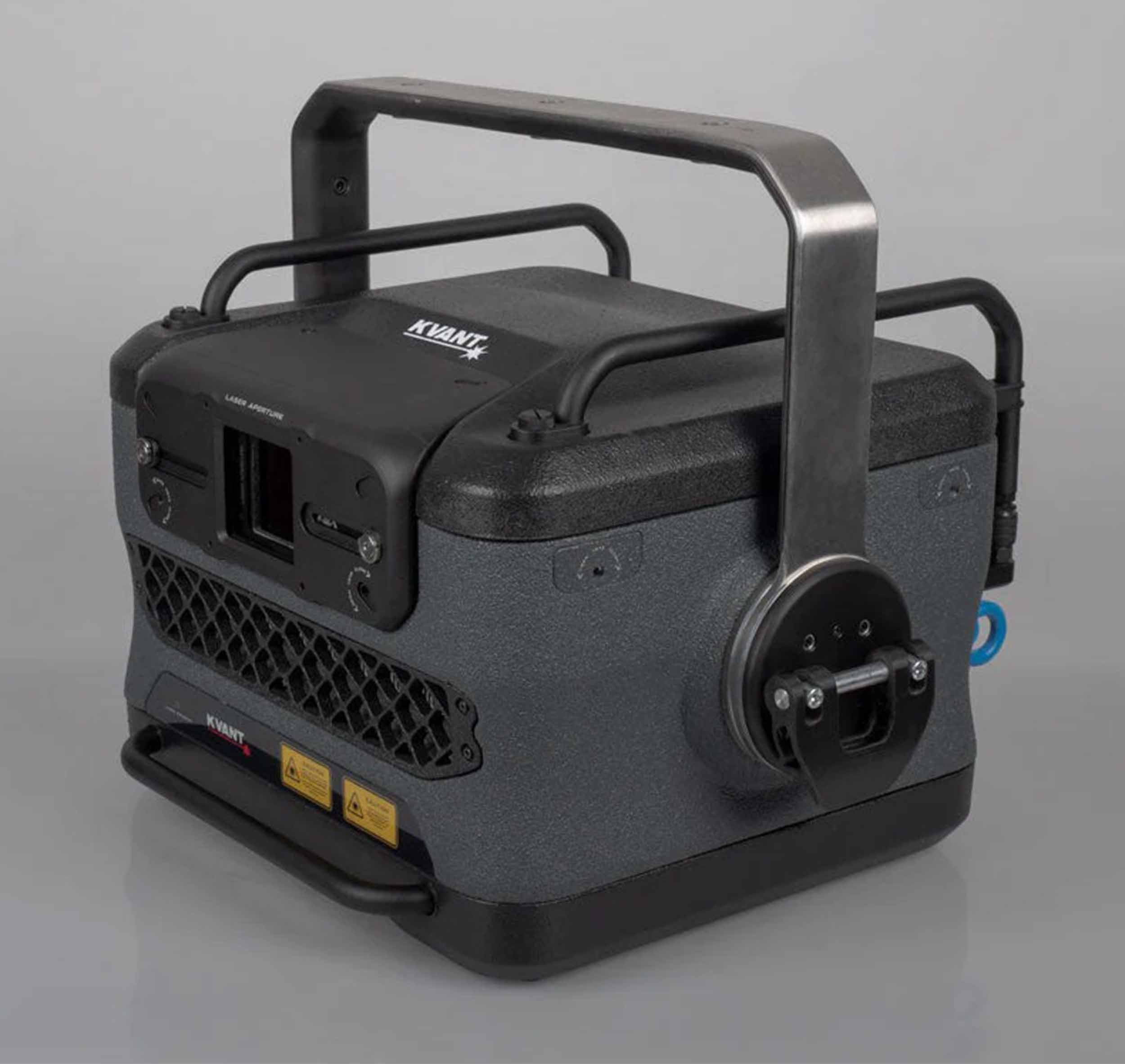

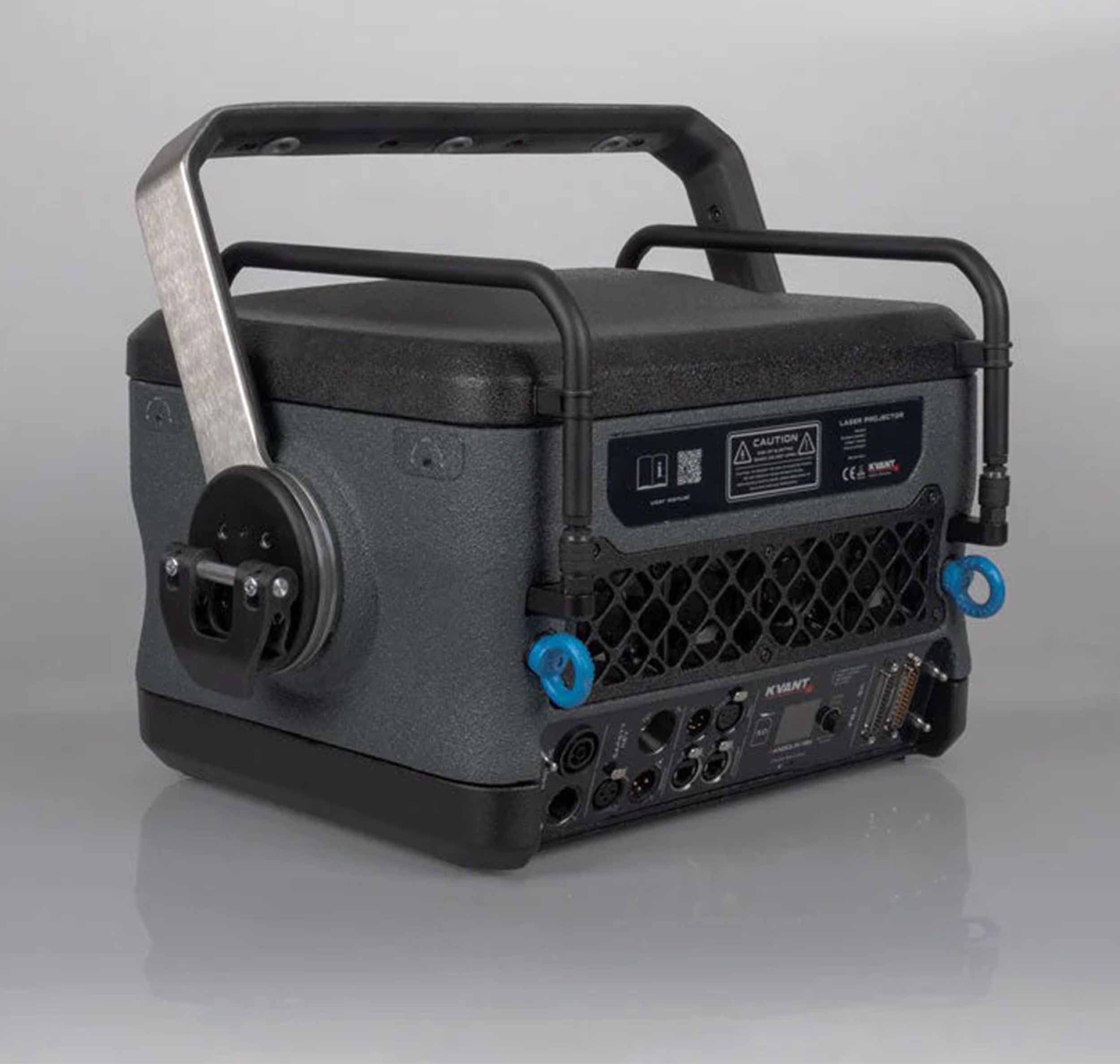

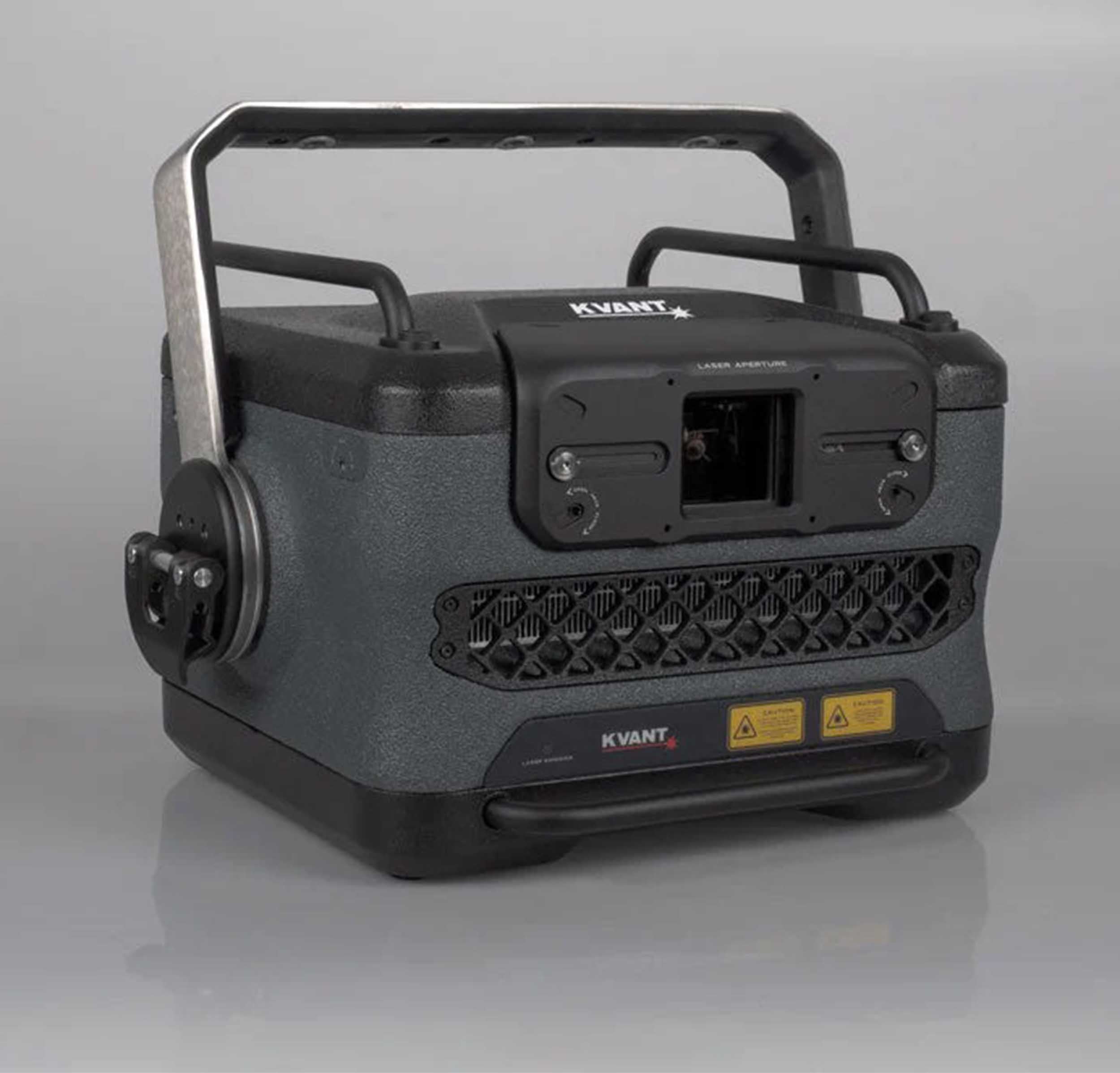

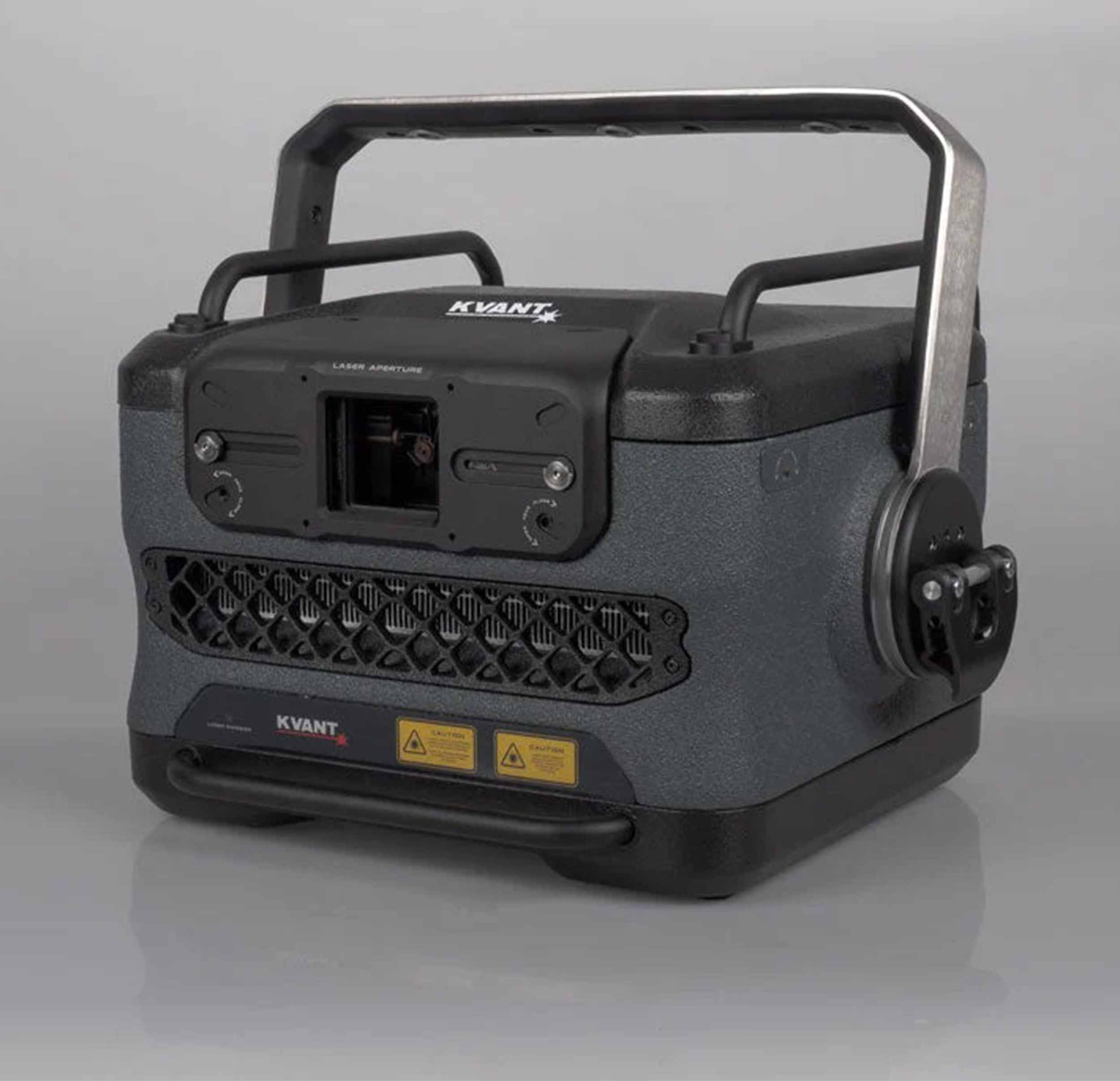

Kvant Lasers Atom 58, Professional Laser Display Projector

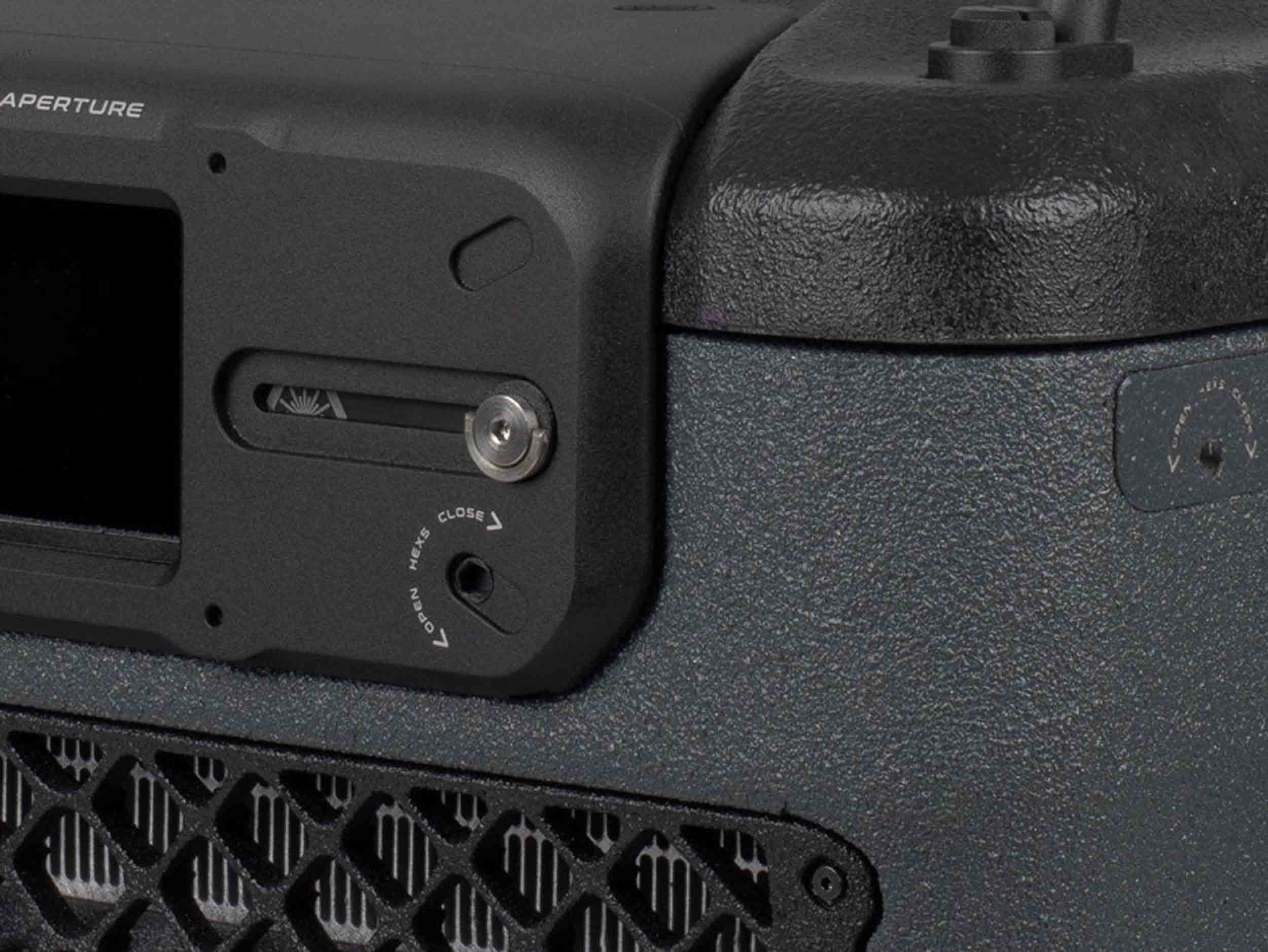

The Kvant Lasers Atom 58, Professional Laser Display Projector is designed the same way as the new line of world-class Spectrums, using the same innovative foam aluminium material for the chassis, but with a few differences that allow for a more economical price tag. The latest Atom is a fine-crafted semiconductor FAC-diode-based full-color laser display system that provides its user with powerful output, unified beams, crisp colors, and advanced control features and connections.

Our Atoms emit beams with unrivalled divergence while maintaining guaranteed power output across the entire scanning range. This is something pretty unique that not many manufacturers can offer.

Many times, Atoms showed their potential in power-demanding applications. Still, we manage to keep their manufacturing costs and sales prices very reasonable.

Product Specifications:

Source | Type:

Semiconductor Laser Diode [Fac]

Full-Color Rgb Laser Projector

Compliant With: En 60825-1

Ingress Protection Rating: Ip20, Or Ip54 With an Optional Rain Cover Installed

Weight [Kg]: 31

Size [WxHxD, Mm]: 491 X 310 X 396

Guaranteed Opt. Output: 54.3 Watts

R | G | B [W]: 11.5 | 17 | 30

Wavelengths [Nm, ±5nm]: 638 | 525 | 455

Beam Size [Mm]: 9 X 7

Beam Divergence [Mrad]: 1.1 Mrad

Modulation [Khz] | Type: 100 | Analogue

X-Y Scanners:

Saturn9 | 30 Kpps @ 8°

Max. Scanning Angle 40° On Both Axes

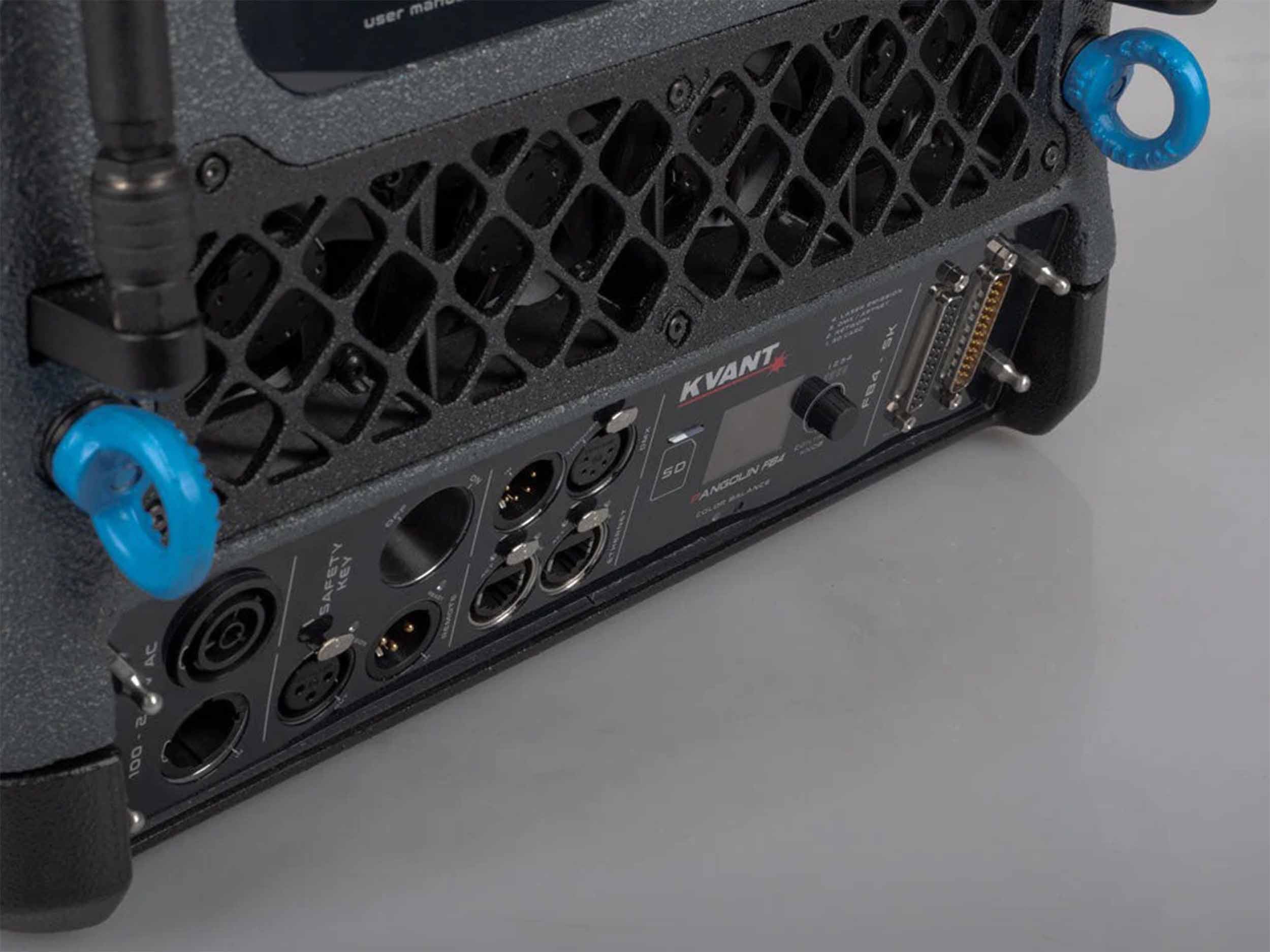

Power Requirements [V] | Input:

100-240/50-60hz

Neutrik Powercon True1

Max. Power Consumption [VA]: 1200

Operation Temperature [°C]: 10-35, Or -20 To 40 When Installed in The Monsoon Outdoor Enclosure
