LD Systems CURV500AVS Portable Array System AV Set Including Speaker Cables

The patented CURV 500 AV Set is the perfect fit anywhere music is played: in bars, clubs, studios, and even at home as a home entertainment system. Featuring a power of 380 watts RMS and a maximum sound pressure level of 122 dB, the CURV 500 AV Set can remain discreetly in the background, but also provide an impressive rocking performance.

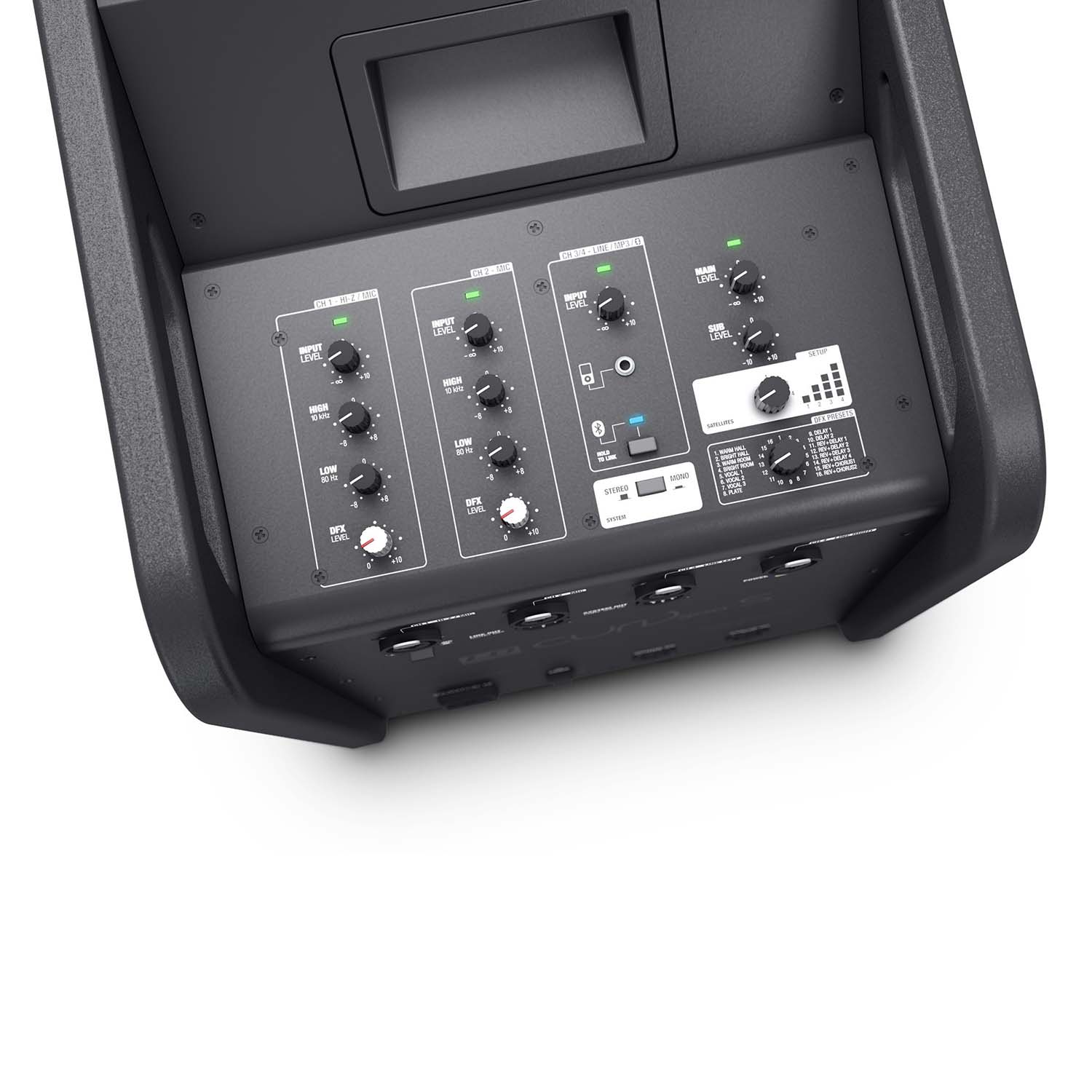

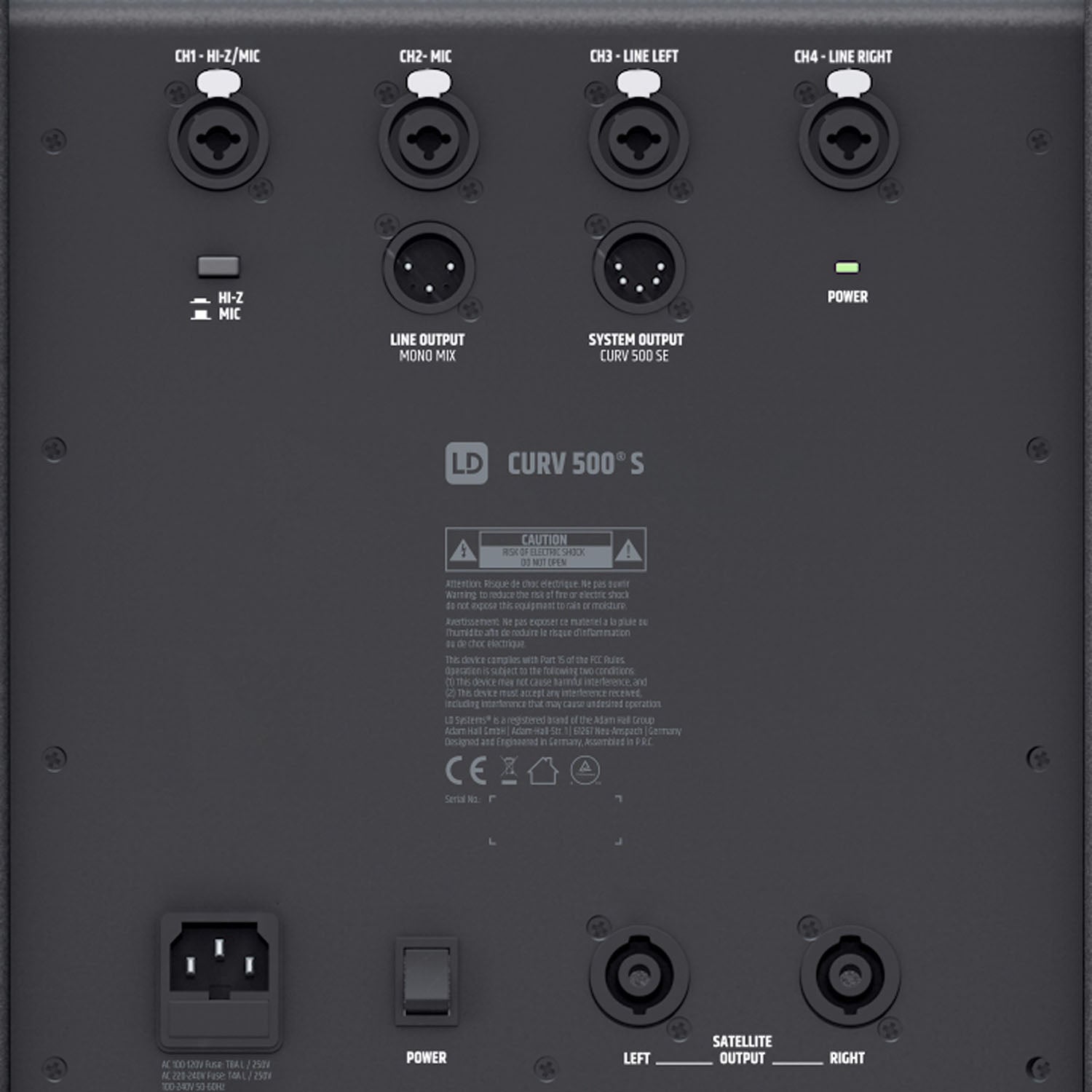

The 10" bass-reflex subwoofer with Class D power amplifier represents the core of the CURV 500 AV Set and includes a limiter, protection against short circuit, overheating, over-voltage, as well as a 4-channel mixer with 16 digital effects, presets and Bluetooth. Combo and Speakon-compatible sockets offer extensive connectivity options. Furthermore, the subwoofer features four digital systems presets, an M20 threaded flange, and three ergonomic carrying handles.

The two satellites are operated via SmartLink adapters. The elements, only 12 x 12 cm in size, are equipped with LD System's own Wave Ahead technology; one 4" and three 1" drivers provide a coherent and extremely detailed playback with high pressure and dynamics.

With optional wall and ceiling mounting systems, the satellites can be installed anywhere, where good sound and subtle appearance are required. For even more power, a total of eight array satellites can be operated in stereo mode (max. four on each side).

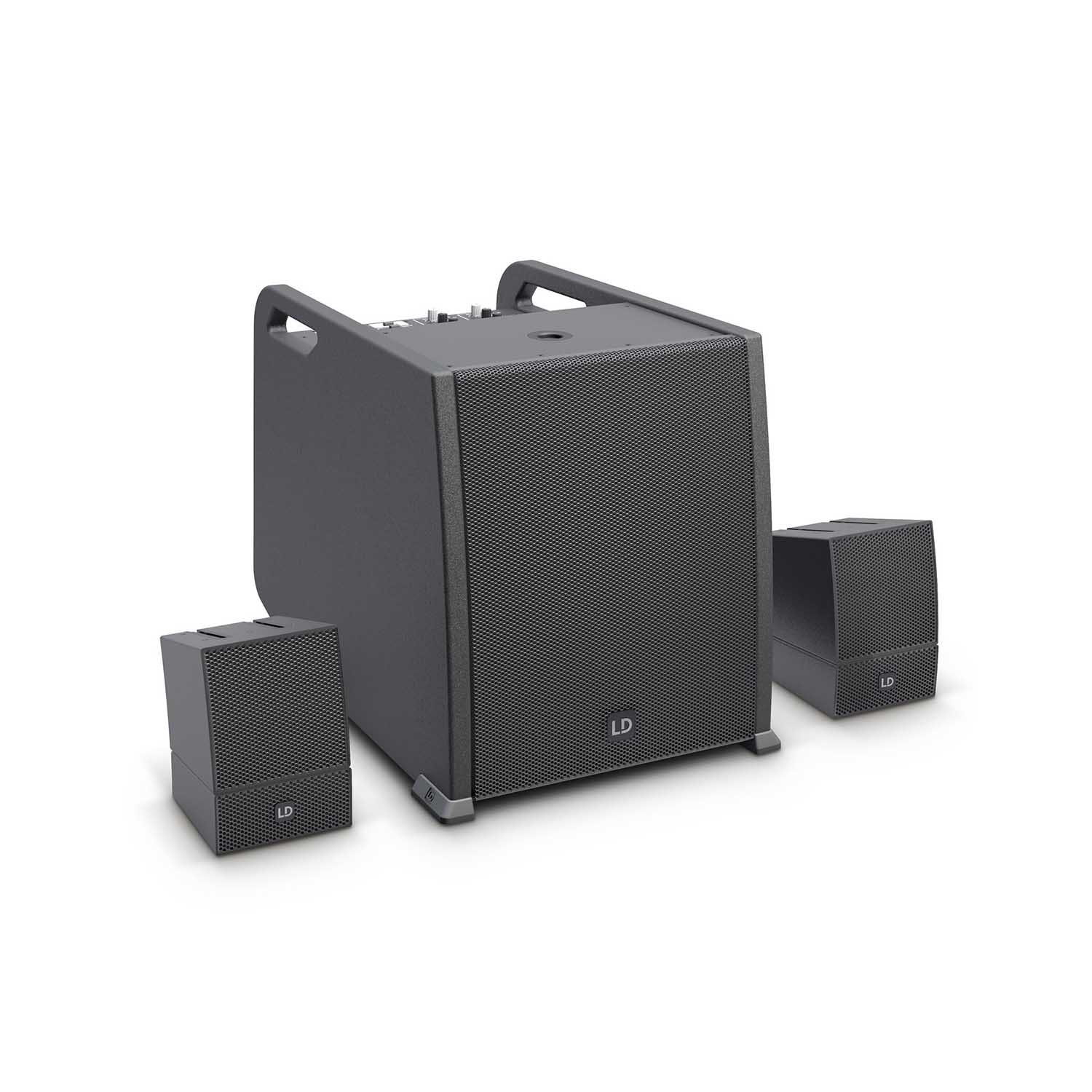

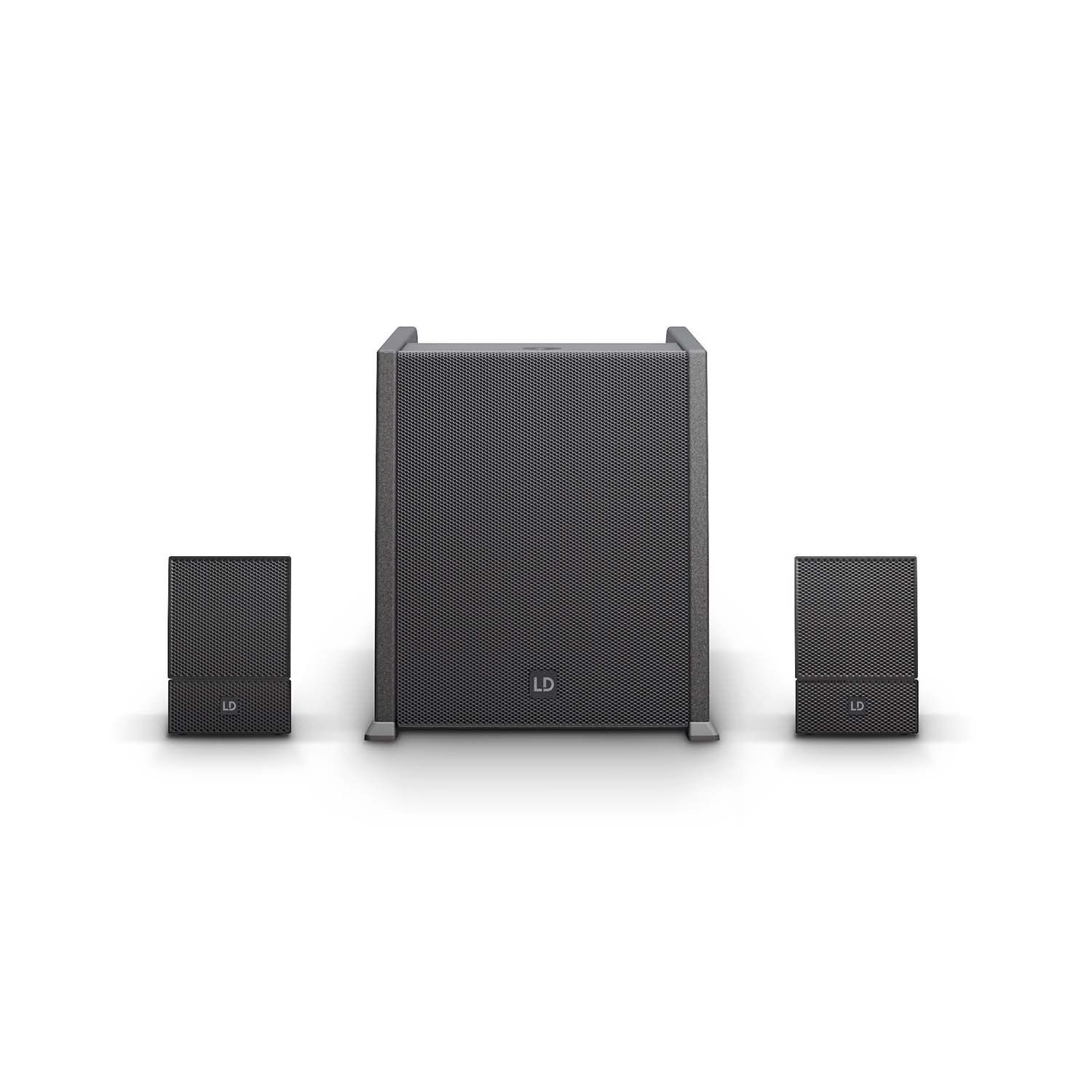

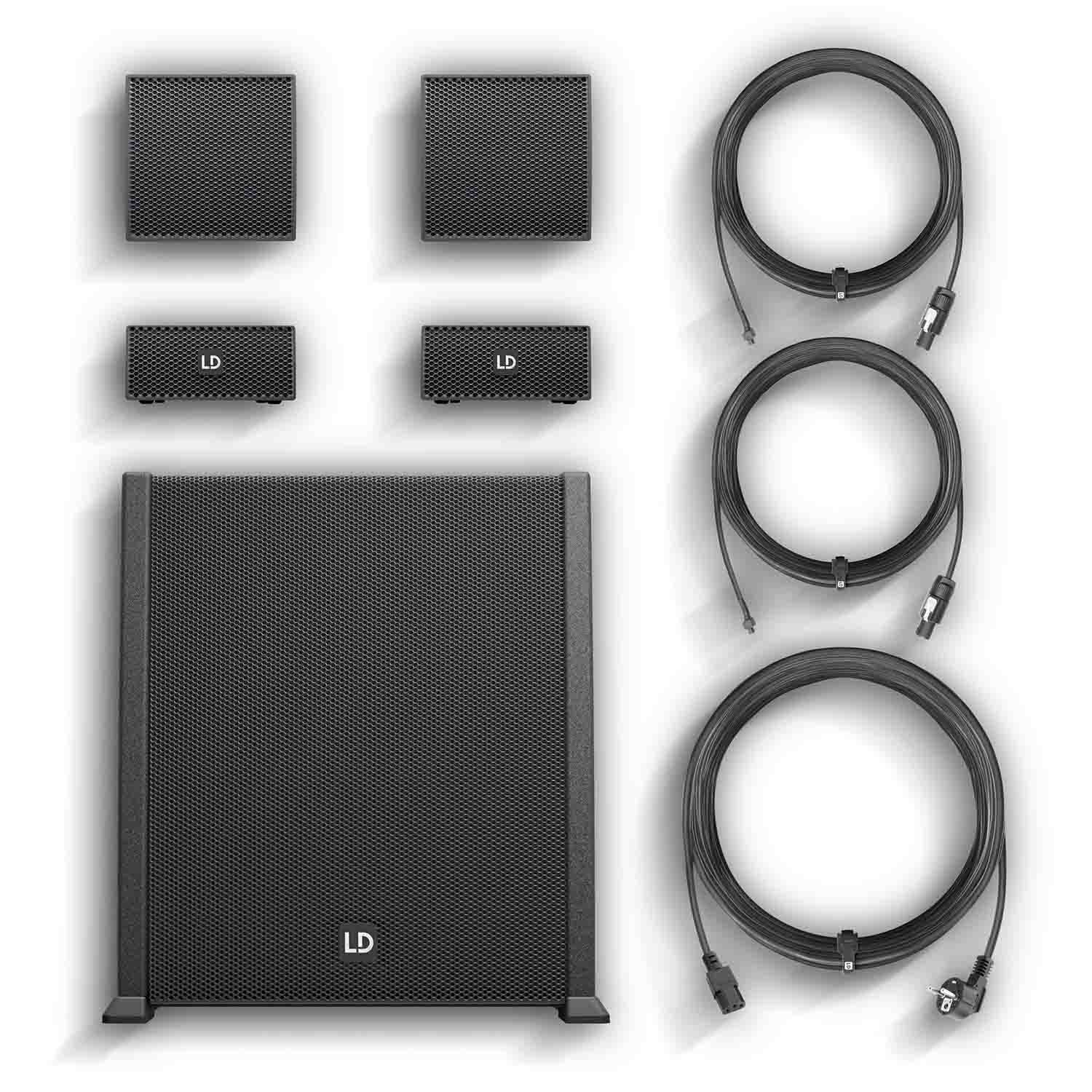

The CURV 500 AV Set includes a subwoofer with a mixer unit, two satellites, two SmartLink adapters, and two speaker cables.

Product Specifications:

Product Type: PA Complete Systems

System output (RMS): 380 W

Color: Black

Number of array satellites: 2

Number of Smartlink adapters: 2

Number of subwoofers: 1

Max. SPL (continuous): 116 dB

Max. SPL (peak): 122 dB

Frequency response: 47 - 20000 Hz

Dispersion (H x V): 110° horizontal, vertical (each satellite) 10 °

RMS Subwoofer: 300 W, Array Satellites: 2 x 160 W

Peak power Subwoofer: 1200 W, Array Satellites: 2 x 640 W

Amplifier: Class D

Protection circuits: DSP-based multiband limiter, overload, short circuit, thermal overload

Weight: 22,8 kg

Accessories (included): 2 x Speaker cable with terminal block CURV 500 CABLE 2 (3 m), Power cord

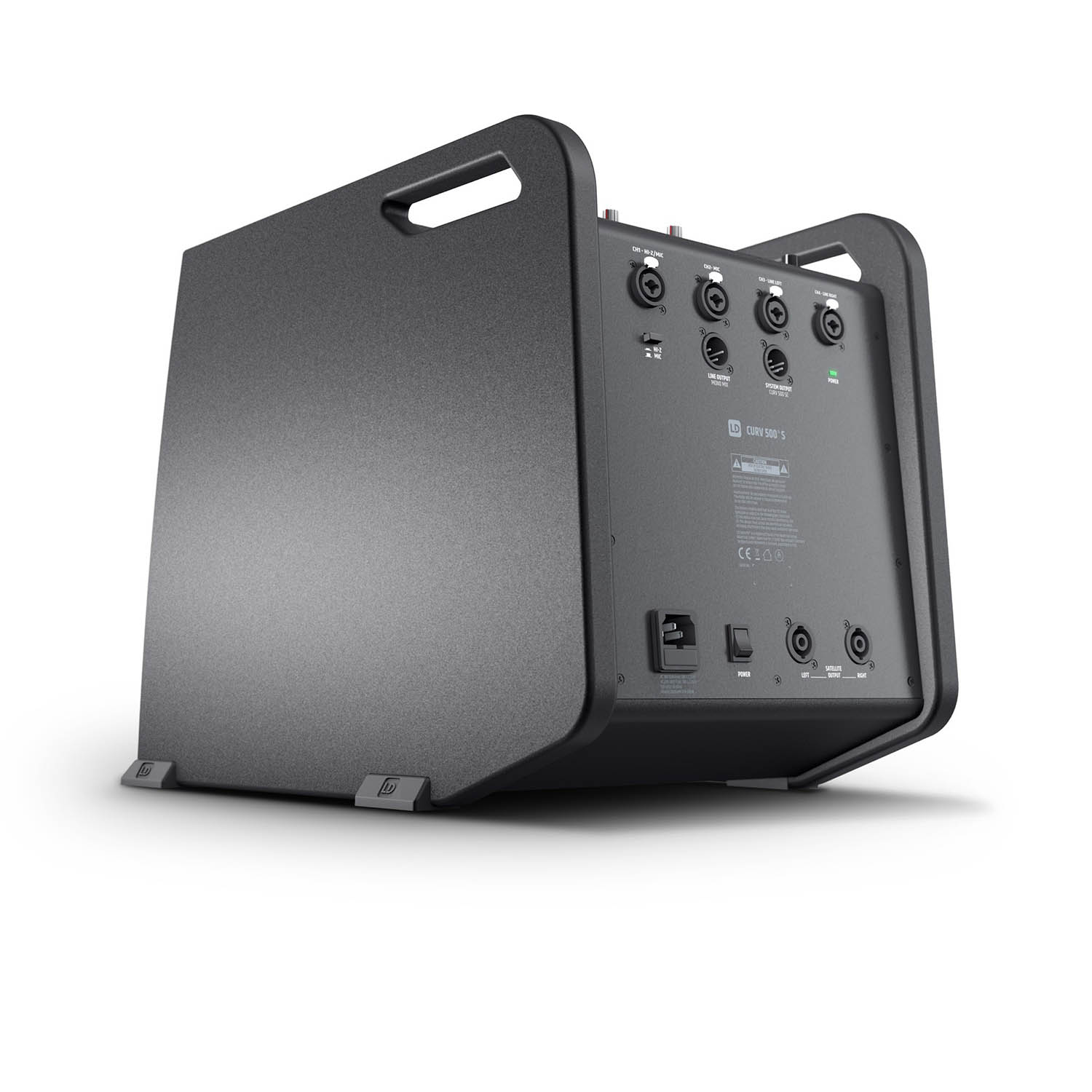

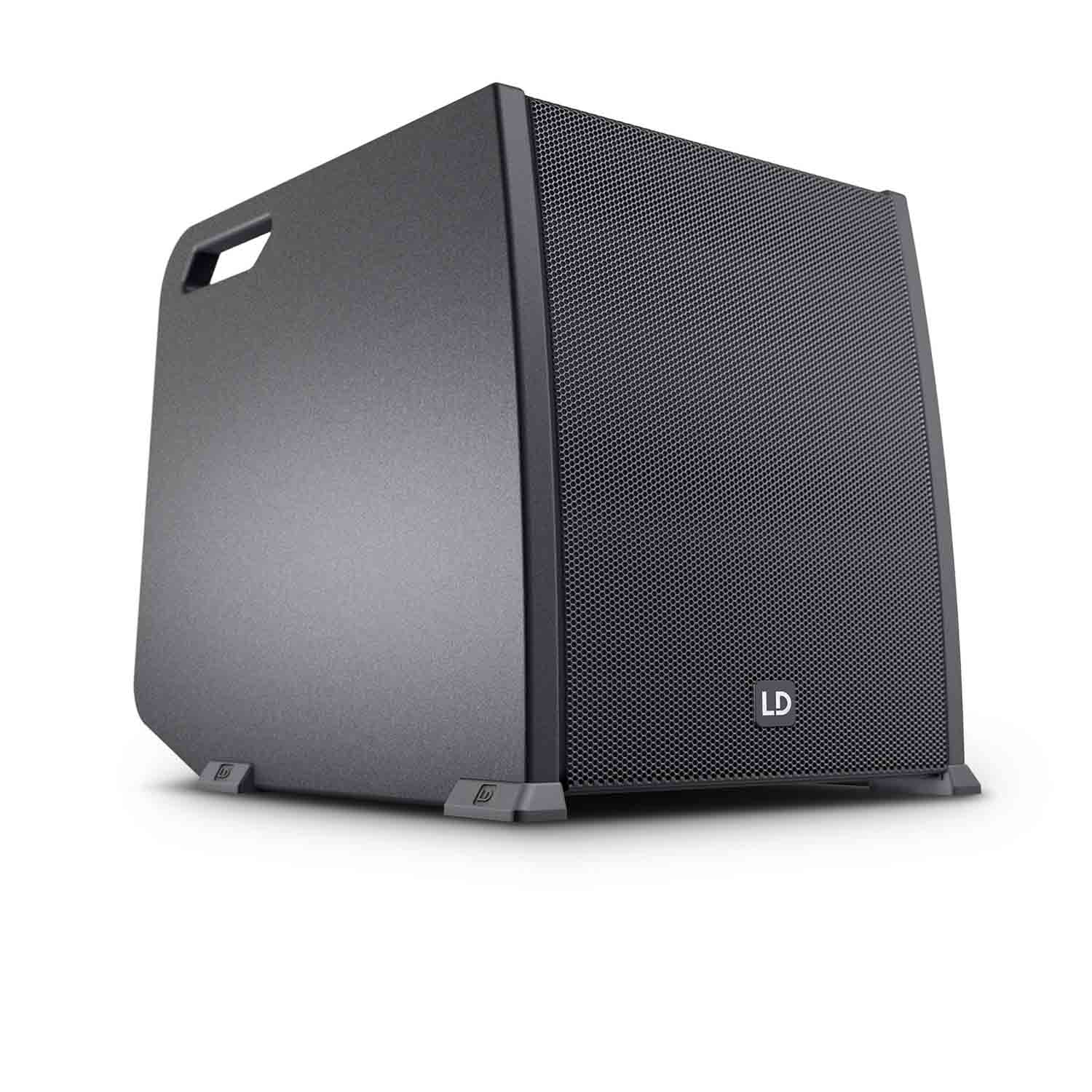

Subwoofer

Low/mid driver dimensions: 10 "

Woofer size: 254 mm

Cabinet construction: Bass Reflex

Cabinet material: plywood

Cabinet surface: PA painting

Dimensions Subwoofer (W x H x D): 325 x 383 x 491 mm

Subwoofer weight: 16.5 kg

The subwoofer features:  16 DFX Presets, 3 ergonomic handles, 4 channel mixer, 4 System DSP Presets, Bluetooth, Threaded flange M20

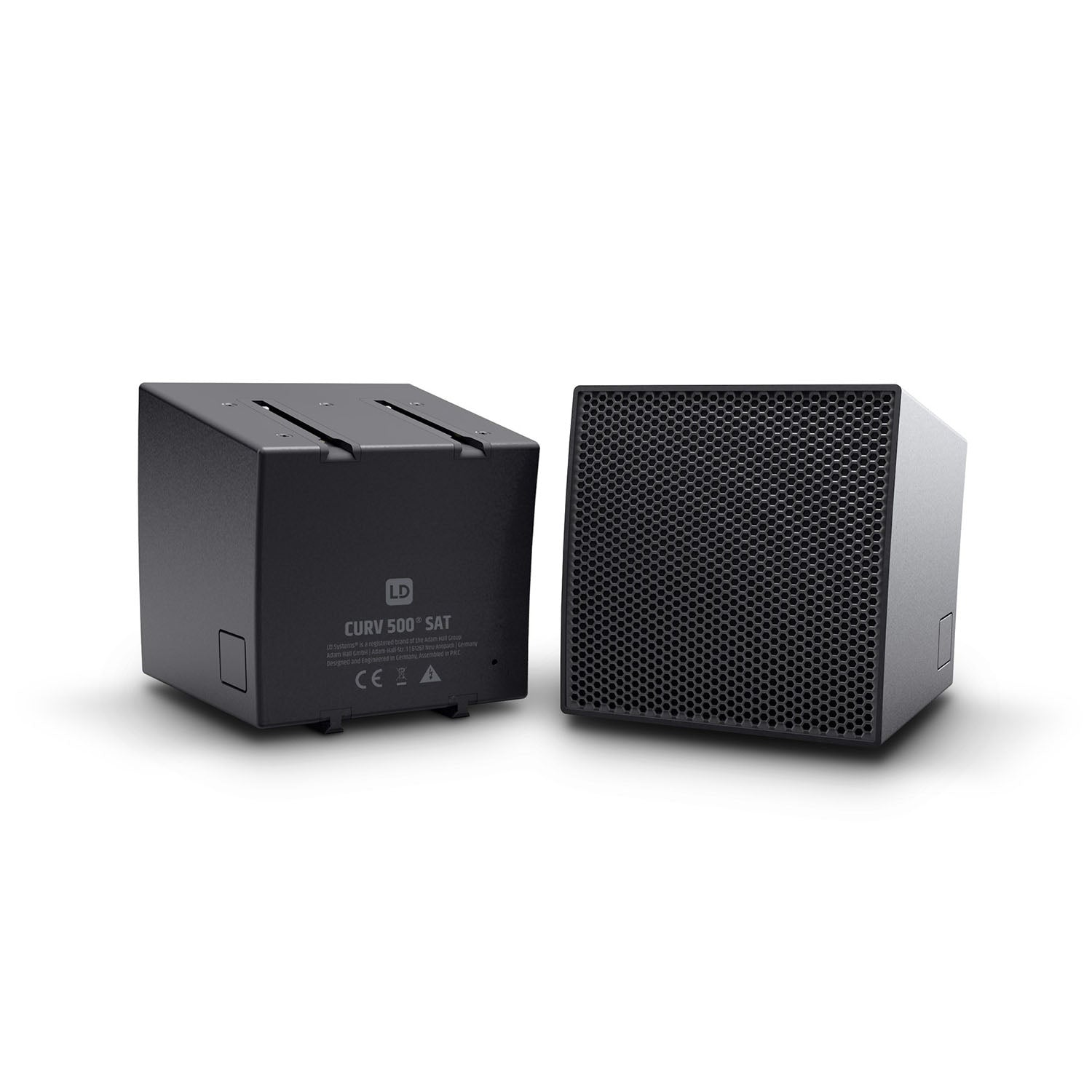

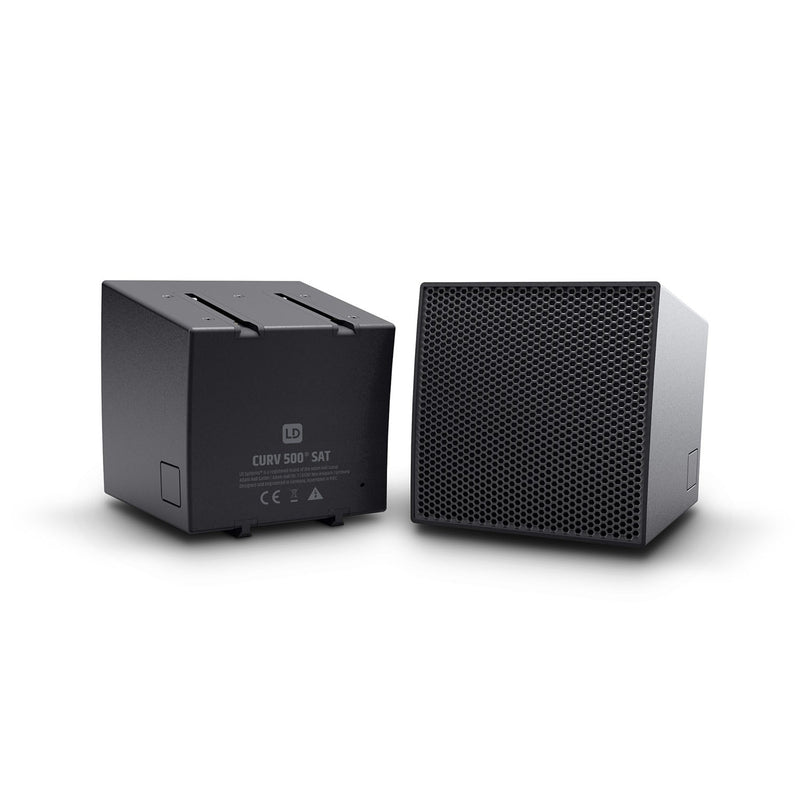

Array Satellites

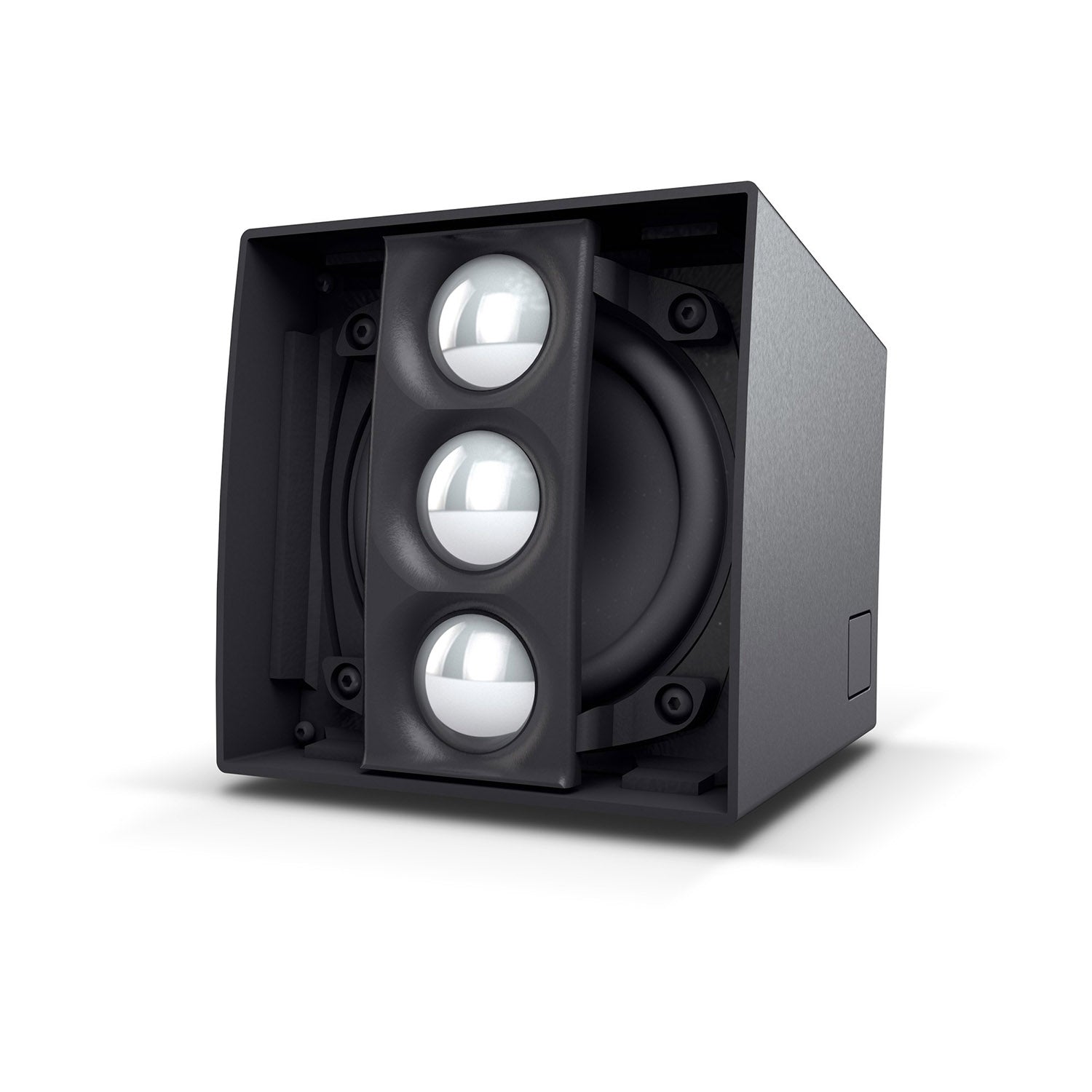

Mid/Hi system: MF: 1 x 4" / HF: 3 x 1" with WaveAhead® Technology / 16 ohms

Array Satellite Features: internal crossover, metal grille, WaveAhead® Technology

Array Satellite Material: Die-cast aluminum

Array Satellite Surface: Powder coated

Array Satellite Dimensions (W x H x D): 122 x 122 x 122 mm

Array Satellite Weight: 1.7 kg

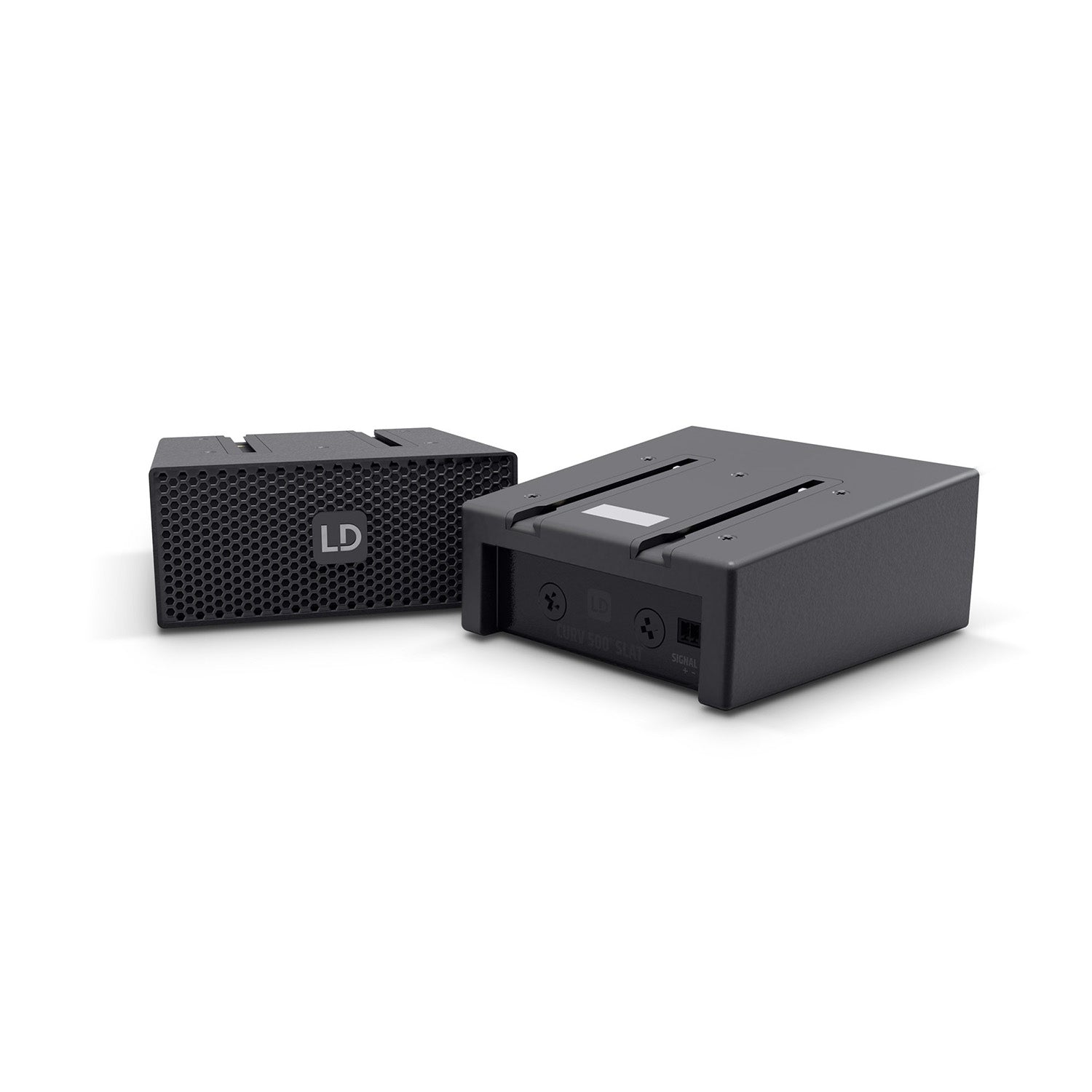

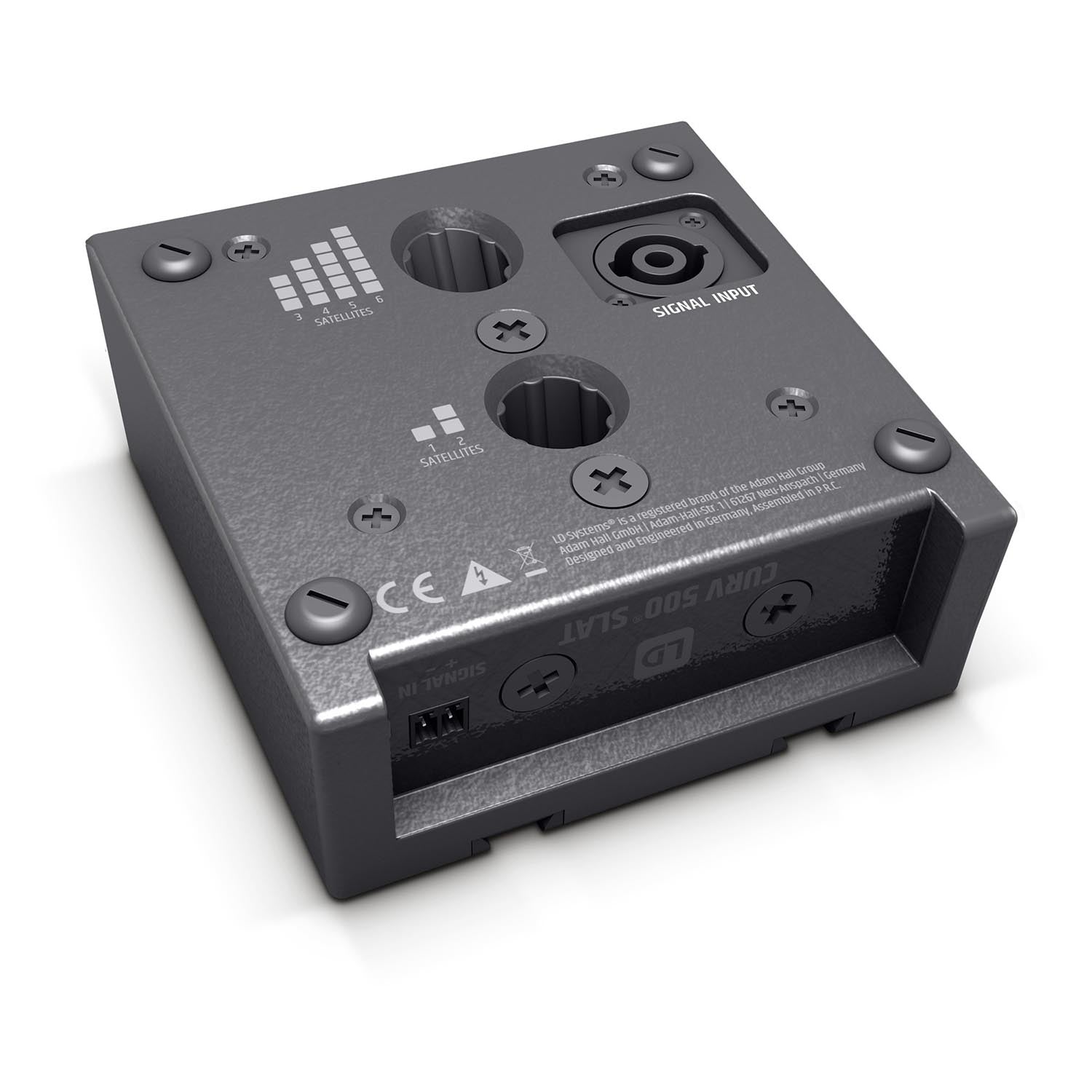

Smartlink Adapter

Smartlink Adapter Features: 2 x 16 mm pole mount socket, 2x M6 thread for optional wall mount

Smartlink Adapter Connectors: 1 x Speakon-compatible, 1x Phoenix

Smartlink Adapter Material: Die-cast aluminum

Smartlink Adapter Surface: Powder coated

Smartlink Adapter Dimensions (W x H x D): 122 x 57 x 122 mm

Smartlink Adapter Weight: 0.6 kg
