Description

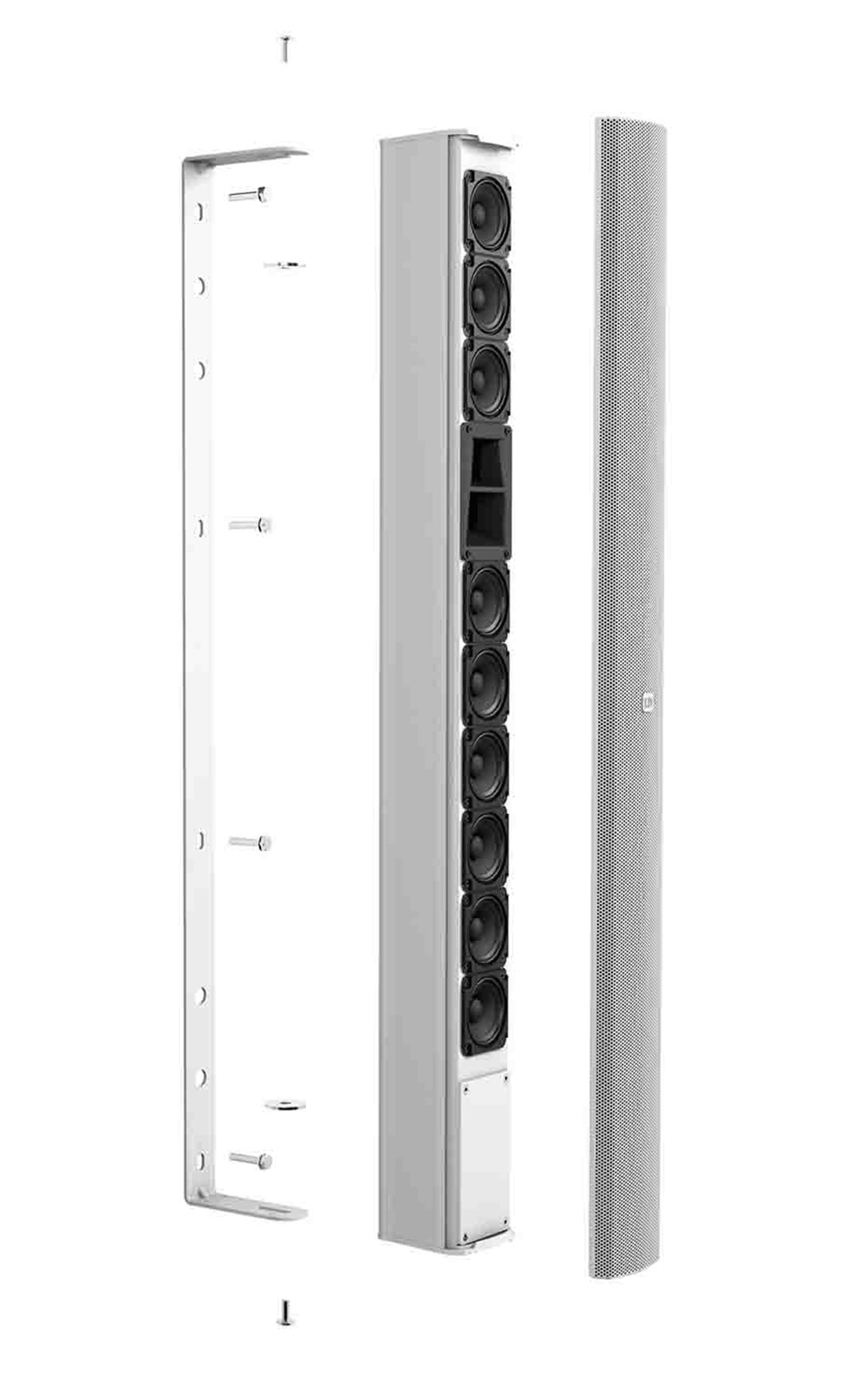

The LD System MAUI i1 W is a Passive Indoor and Outdoor Installation Column Loudspeaker White. This feature is achieved with nine 3" mid-range drivers, two 1" neodymium high-frequency drivers, and a specially developed BEM-optimized Waveguide. This combination avoids unnecessary reflections on the floor and on ceilings by keeping the vertical dispersion as narrow as possible and the horizontal one as wide as possible.

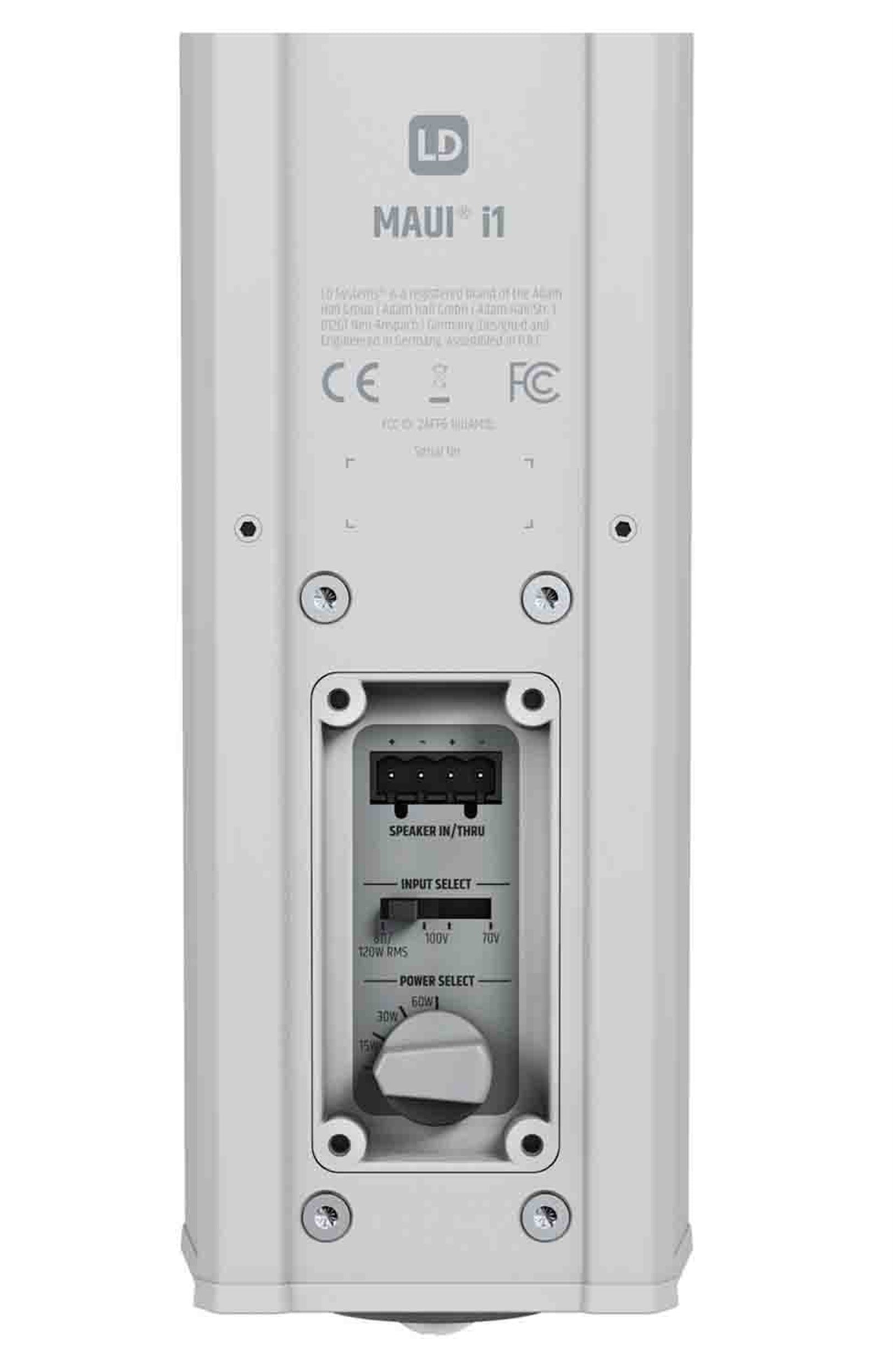

Installers can easily integrate the MAUI i1 into any constant-voltage audio system. This is made possible with an 8 Ohm / 70 V / 100 V selector switch. In addition, you can tap the power down to 60 W, 30 W, 15 W, and 7.5 W depending on how many speakers you need to run in parallel and for more efficient performance. At 8 Ohms, you can benefit from the best frequency response and highest 120 W RMS power rating.

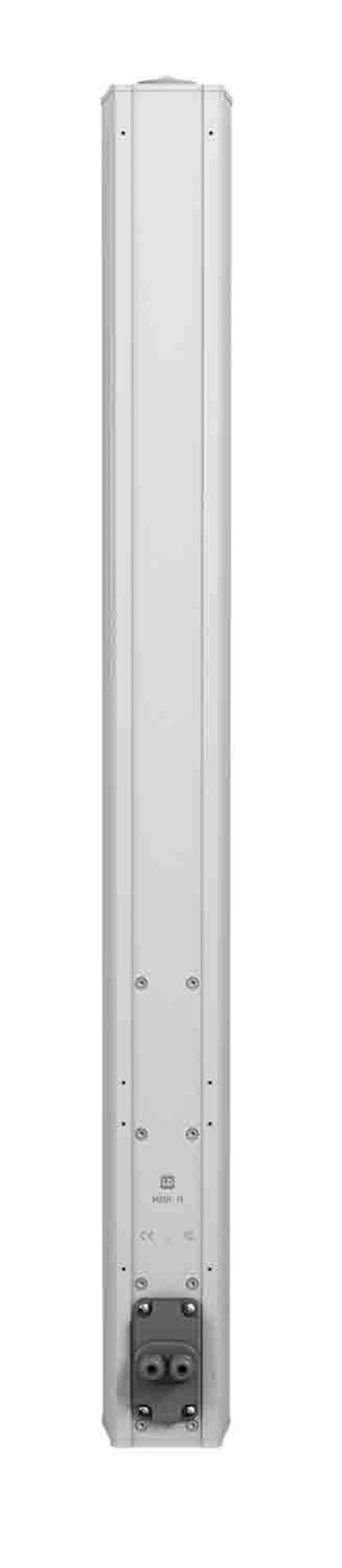

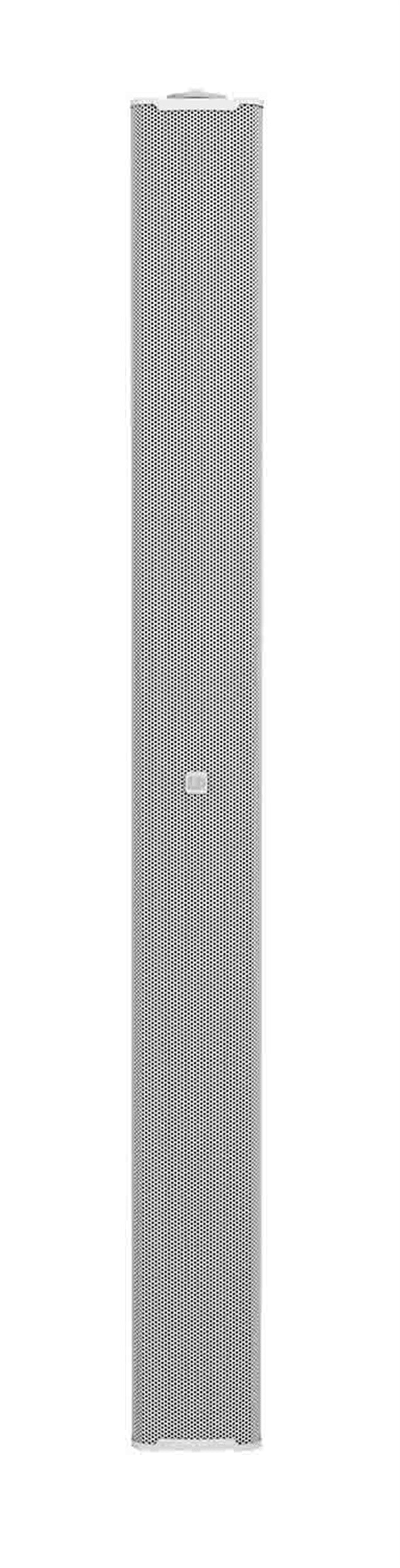

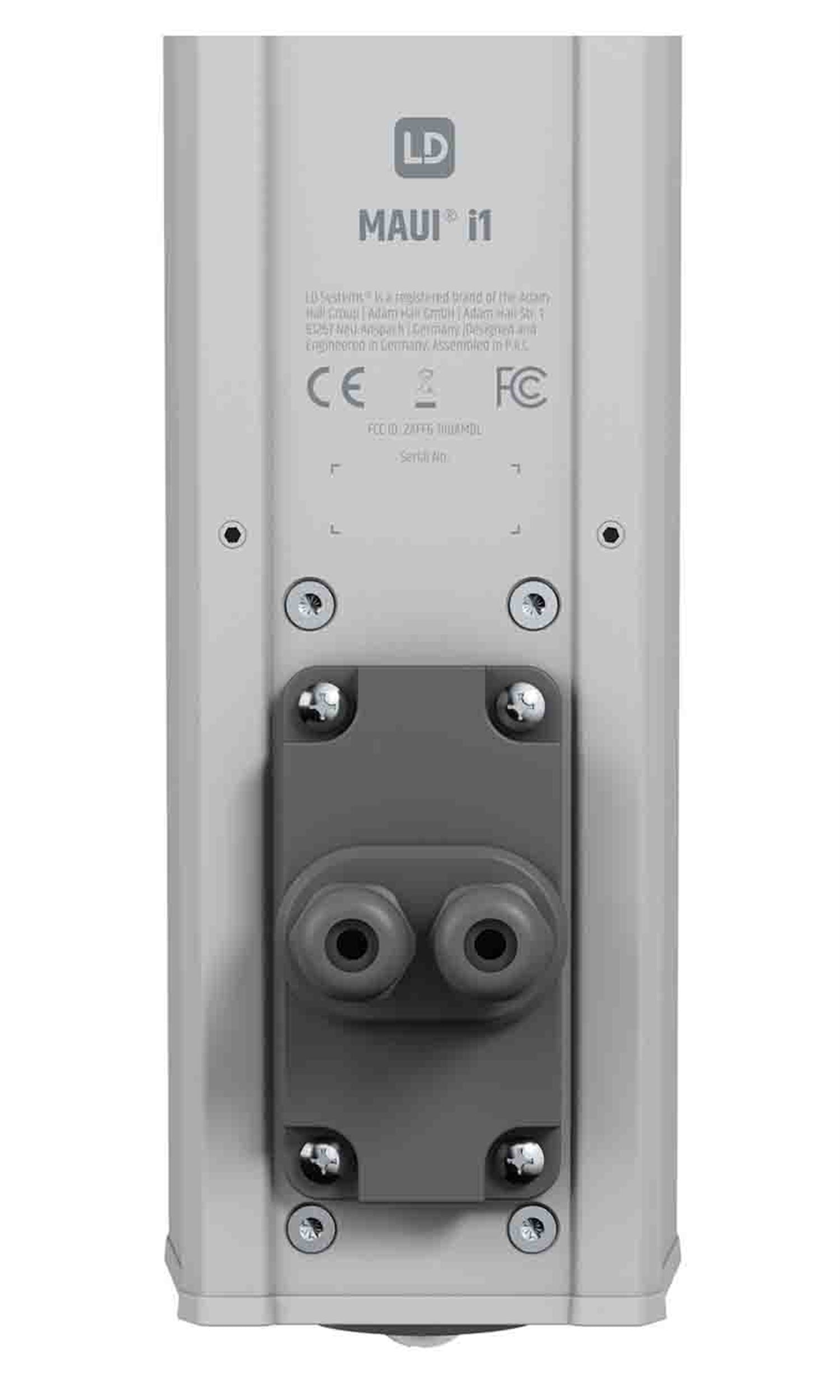

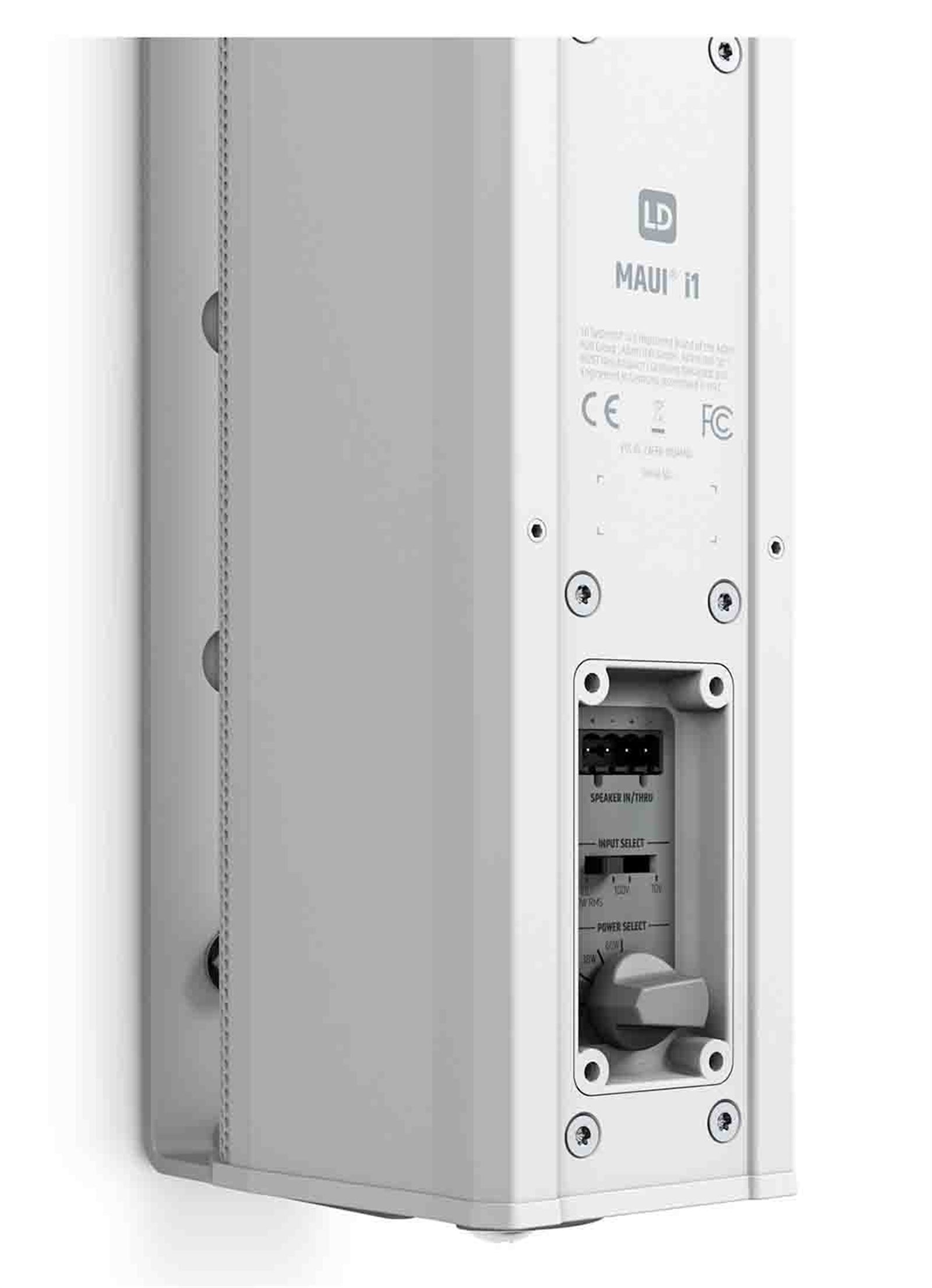

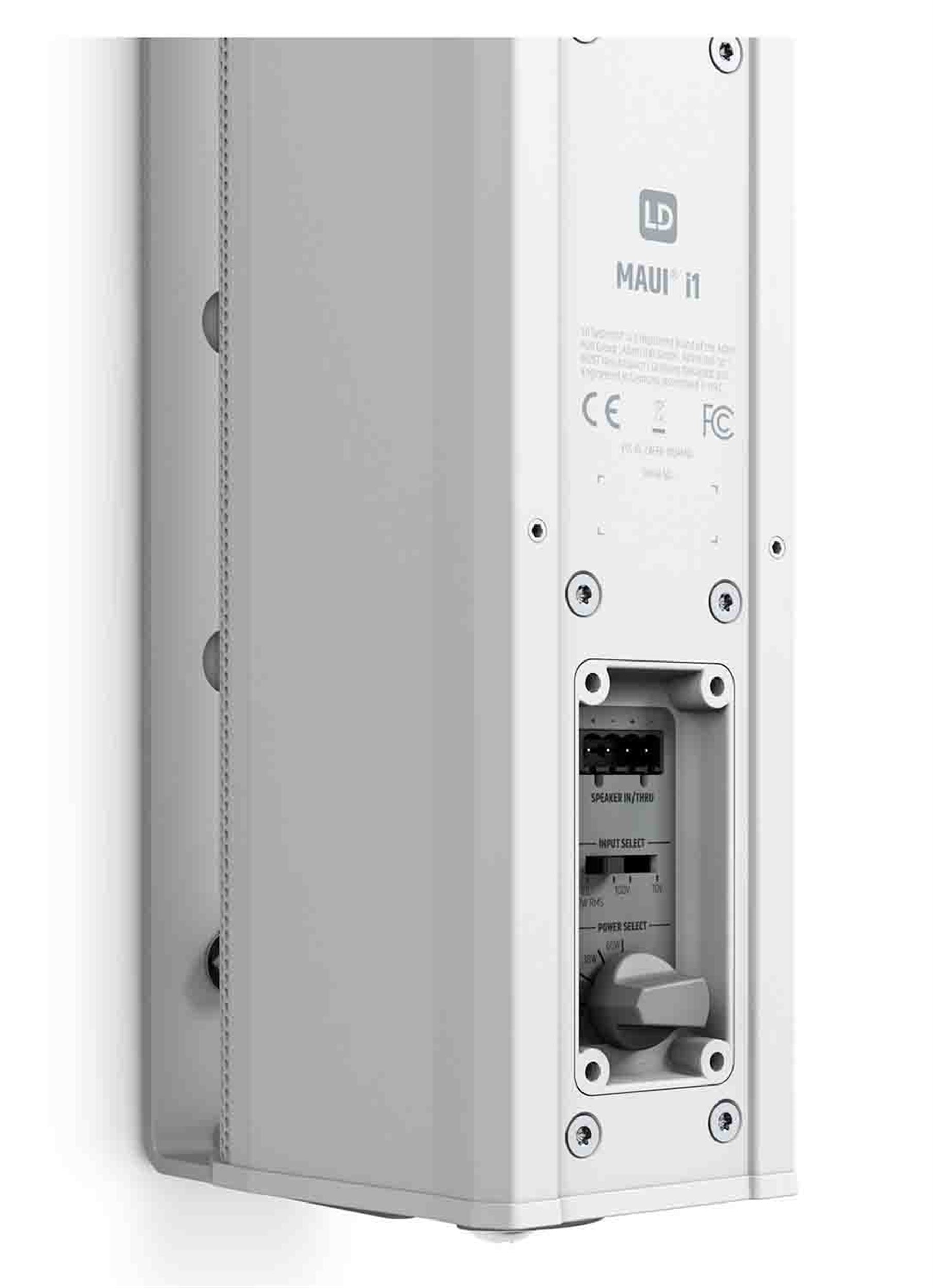

For outdoor use, MAUI i1 features weather-treated cones, an aluminum loudspeaker grille, and a weatherproof cover for the connection panel. That way, no water can enter the panel and your Loudspeaker stays rust-free.
The multiple award-winning MAUI series has been expanded with the completely revised i1 and adapted to the special requirements of indoor and outdoor installations. All of this definitely makes MAUI i1 the right choice for your demanding fixed installations.
Product Specifications:
Product Type: Installation Loudspeakers
Type: Passive
Woofer Size: 76.2 mm
Woofer Magnet: Ferrite
HF Driver Dimensions: 2 x 1 "
HF Driver Size: 25.4 mm
HF Driver Magnet: Neodymium
HF Driver Brand: Custom-made
Dispersion (H x V): 120° x 30 °
Peak Power: 480 W
Frequency Response: 130 - 19000 Hz
Crossover Frequency: 2500 Hz
Impedance: 8 Ohm(s)
Width: 85 mm
Height: 985 mm
Depth: 105 mm

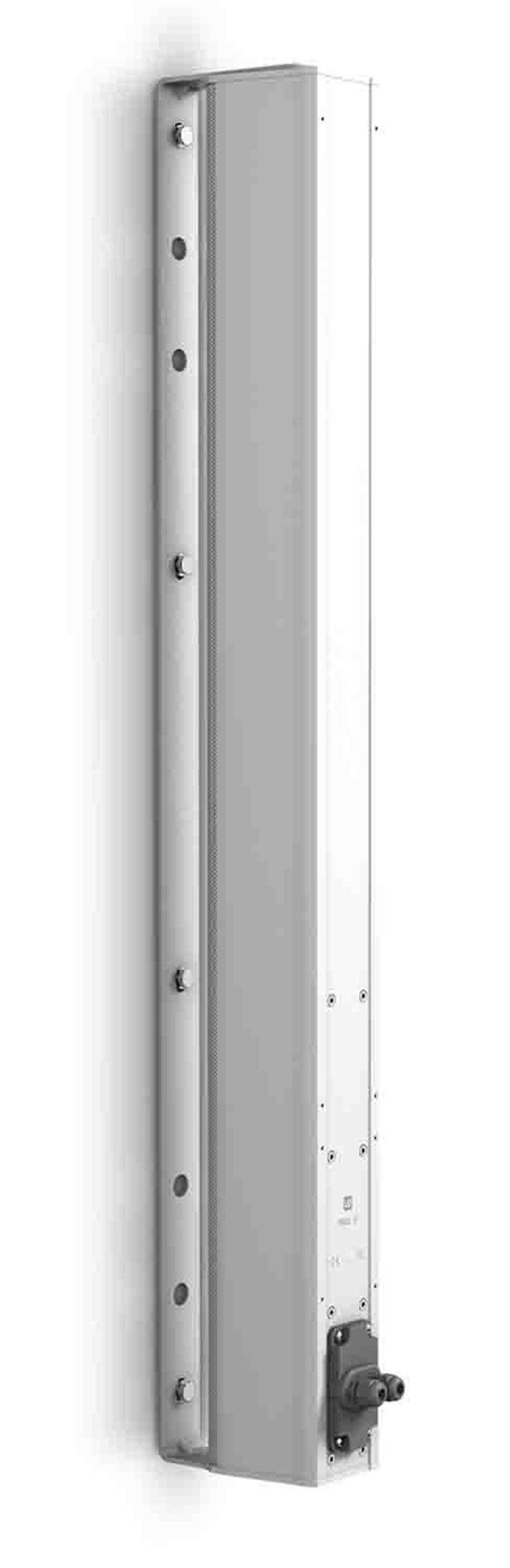

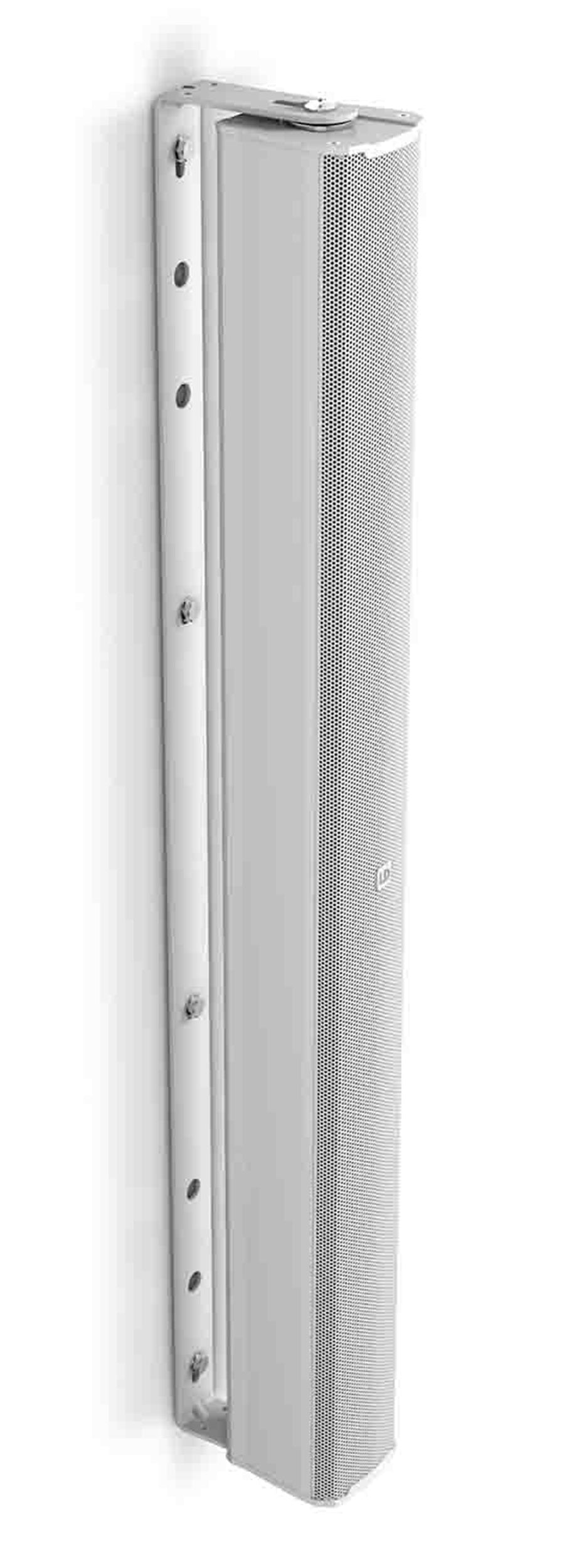

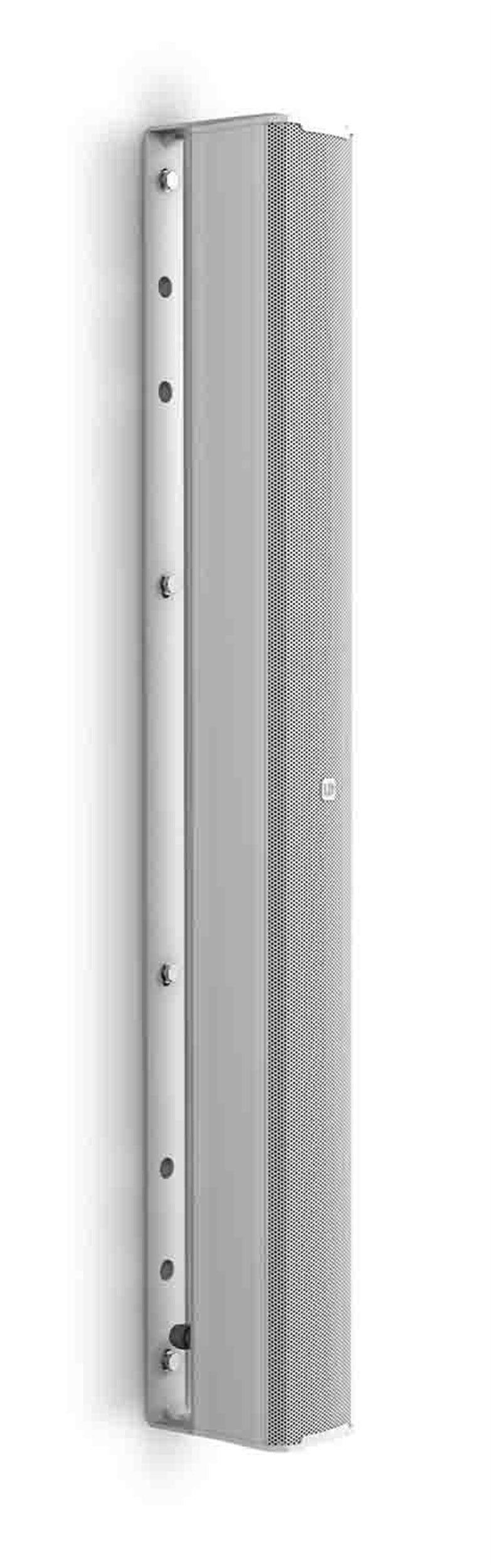

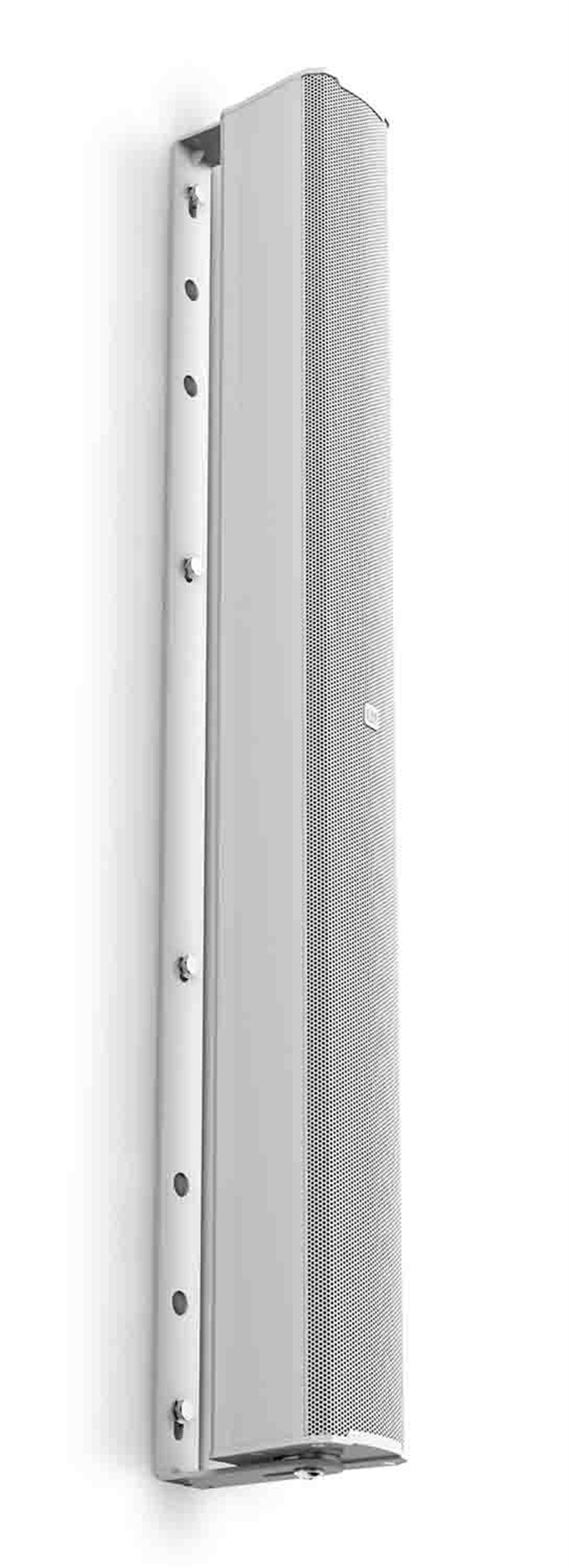

Accessories (included): U-Bracket for surface mount
Optional Accessories: (not available yet), Bracket for tilt installation applications
Weight: 8,6 kg
