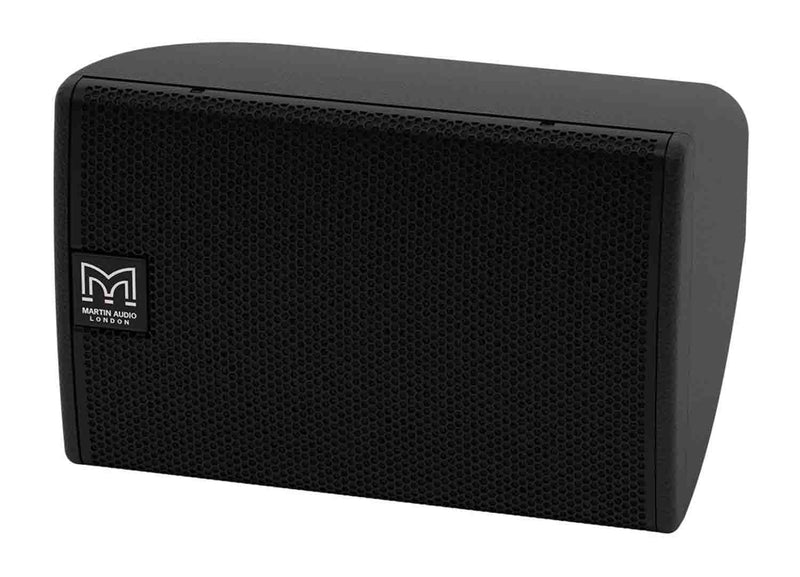

Martin Audio CDD6BTX-WR 6.5 Inch 2-Way Weatherized Speaker 100V IP54 Black

The Martin Audio CDD6BTX-WR 6.5 Inch 2-Way Weatherized Speaker 100V IP54 Black is a weatherized two-way passive micro speaker incorporating a 70V/100V line transformer and designed for discreet positioning in architectural installations including bars, museums, foyers, concourses, exhibition centers and How as well as outdoor applications where it will be subject to changing environmental conditions, but sheltered from direct exposure to the elements. It can also be used as a fill system in conjunction with larger CDD Series models and, with the addition of a CSX subwoofer, can reproduce surprisingly high levels of music program. It features a 6.5” (165mm) LF/1” (25mm) HF Coaxial Differential Dispersion driver inside an elegant UPM Formi composite enclosure with a dual cable gland for easy daisy-chaining of cabinets without the need for external breakout boxes.

The Coaxial Differential Dispersion technology employed in the CD6TX-WR delivers more consistent audience coverage than systems with fixed X° x Y° coverage patterns projecting relatively more output to the rear of the audience to distribute sound evenly front-to-back, while having wide horizontal coverage close-up. Its innovative CDD driver achieves ‘point source’ summation of the LF and HF sections eliminating off-axis variations in frequency response in the crossover region associated with non-coaxial designs. Improving on conventional coaxial designs, which can suffer from high-frequency beaming, the driver features a static waveguide that merges seamlessly with the unique cone shape maintaining the dispersion pattern out to very high frequencies.

The visually-distinctive enclosure can be used in either horizontal (landscape) or vertical (portrait) orientation, with rotation of the driver easily accomplished by removing the screw-free, protective grille. The curved shape of the enclosure allows it to be surface-mounted close to a wall or ceiling by means of the supplied omni-directional bracket or an optional close-mount ceiling bracket.

CDD6TX-WR features a water and particle resistant grille made from zinc plated mild steel with powder coated finish and is suitable for operating temperatures between -20°C to +70°C and environmentally tested to meet IP54.

A full-range, passive two-way system, the CDD6TX-WR may be used without a controller. However, the EQ and limiter functions of a controller such as the Martin Audio DX0.5, DX1.5 or DX2, or an MA Series amplifier with onboard DSP will maximize its capabilities. When used with a CSX subwoofer, crossover and EQ functions can either be performed by the DX0.5, DX1.5 and DX2 system controllers, or by an MA Series amplifier with onboard DSP option.

Product Specification:

Type:  Ultra-compact, Coaxial Differential Dispersion passive two-way system

Frequency Response:  80Hz-20kHz ±   | -10dB @ 70Hz

Rated Power:  150W AES, 600W peak

Sensitivity:  91dB

Nominal Impedance:  8 ohms

Dispersion (-6dB):  110°-80° horizontal, 80° vertical (user-rotatable)

Crossover:  2.5kHz passive

Connectors:  Low profile 13A push-lock, weatherproof input panel cover with dual cable glands

Pin Connections:  Left to right: Input+, Input -, Link -, Link +

100V line: 12.5W, 25W, 50W

70V line: 6.5W, 12.5W, 25W, 50W

Enclosure:  9-liter, composite material

Finish:  Black or white as standard

Protective Grille:  Zinc plated mild steel with powder coated finish and weatherized backing

Fittings:  4 x M6 inserts for wall/ceiling brackets

Dimensions: (W) 8.3ins x (H) 12.8ins x (D) 8.3ins

Weight:  14.3lbs
