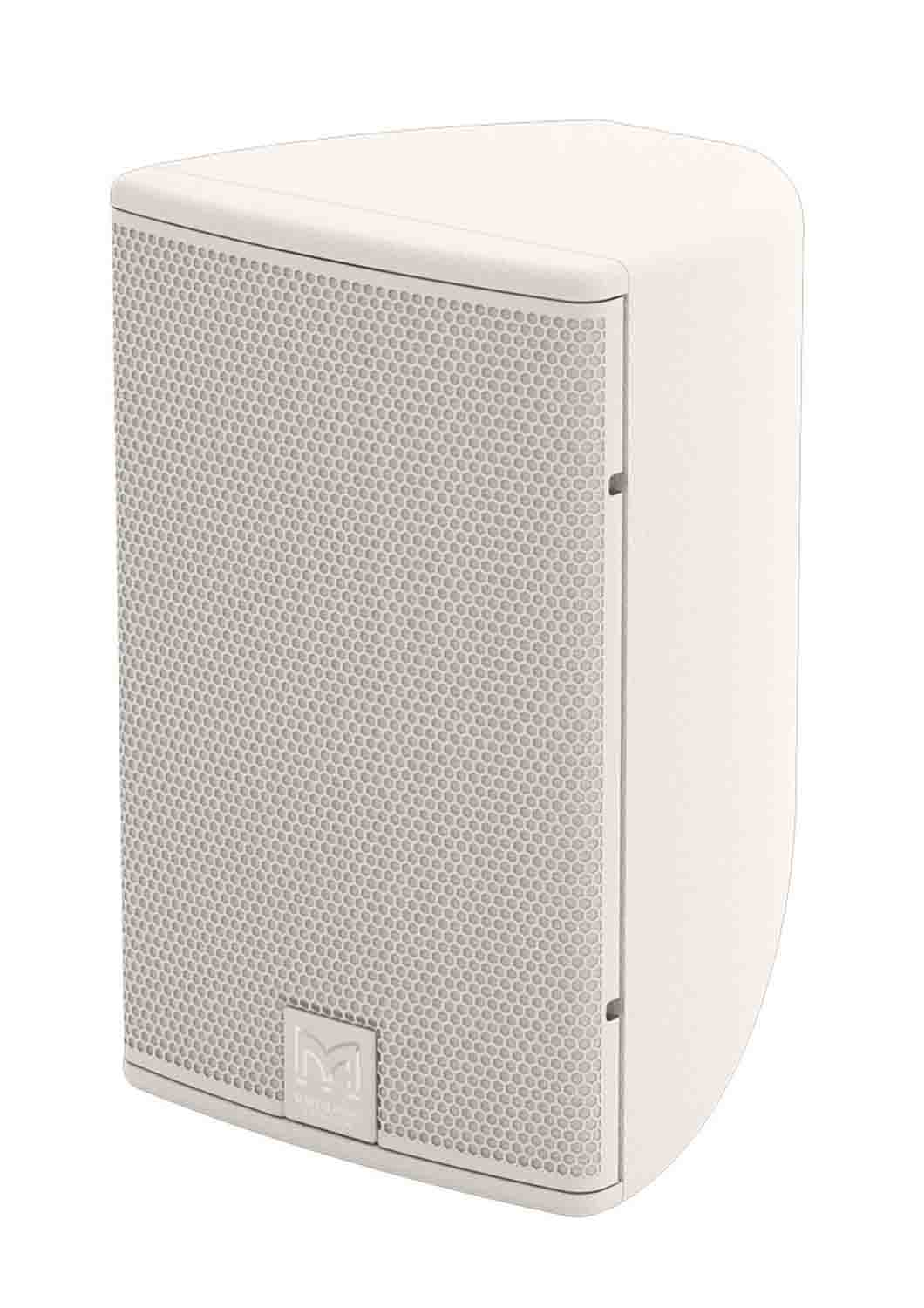

Martin Audio CDD6W 6 Inch Passive Coaxial Differential Dispersion On-wall Loudspeaker by martin audio
Martin Audio CDD6W 6 Inch Passive Coaxial Differential Dispersion On-wall Loudspeaker by martin audio

Martin Audio CDD6W 6" Passive Coaxial Differential Dispersion On-wall
Save $300.00
Martin Audio
SKU H-MART-CDD6W MPN CDD6W
Price:
$1,000.00 $1,300.00
Stock:
Sold out

Sign in to see your rewards

Sign in
Earn 500000 points (worth $50.0)
Teryn Cooper | Sales Engineer

ASK AN EXPERT

Our Certified Gear Technician is ready to help!

(213) 816 4102

Price Match Guaranteed if we lower the price within 30 days of your purchase, we’ll issue a store credit for the difference. Shop confidently knowing you’ll always get our best price. Free 2nd Day Air Delivery We offer Free 2nd Day Air on most items! Some exceptions apply, including oversized, truss, and stage products. Reward Points Earn 5% Back in HDJ Points on every purchase — use your points toward future gear purchases with us.

Call us for package deal pricing anytime 800-700-4542.

Description

The Martin Audio CDD6W 6 Inch Passive Coaxial Differential Dispersion On-wall Loudspeaker is a two-way passive loudspeaker system designed to fulfil the requirement for full-frequency dynamic performance from a very small enclosure. Featuring a 6.5” (165mm) LF/1” (25mm) HF Coaxial Differential Dispersion driver, it’s extremely small size and sleek lines make it ideal for visibly-unobtrusive applications. It can also be used as a fill system in conjunction with larger CDD Series models and, with the addition of an SX subwoofer, can reproduce surprisingly high levels of music program.

Product Specification:

Frequency Response: 80hz-20khz ± 3db, -10db @ 70hz

Driver Lf: 6.5” (165mm)/1.5” (38mm) Voice Coil, Long Excursion, Ferrite Motor System

Hf: 1” (25mm) Voice Coil, Fabric Dome with Neodymium Motor System

Rated Power: 150w Aes, 600w Peak

Recommended Amplifier: Ma2.8q, Ma2.0

Sensitivity: 91db

Maximum Spl: 113db Continuous, 119db Peak

Nominal Impedance: 8 Ohms

Dispersion (-6db): 110˚-80˚ Horizontal, 80˚ Vertical (User-Rotatable)

Crossover: 2.5khz Passive

Enclosure: 9-Liter, Composite Material

Finish: Black or White Textured Paint

Protective Grille: Black or White Perforated Steel with Scrim Cloth Backing

Connectors: Low Profile 13a Push-Lock

Pin Connections: Left to Right: Input+, Input -, Link -, Link +

Fittings: 4 X M6 Inserts for Wall/Ceiling Brackets

Dimensions: (W) 8.3ins X (H) 12.8ins X (D) 8.3ins

Weight: 11lbs
