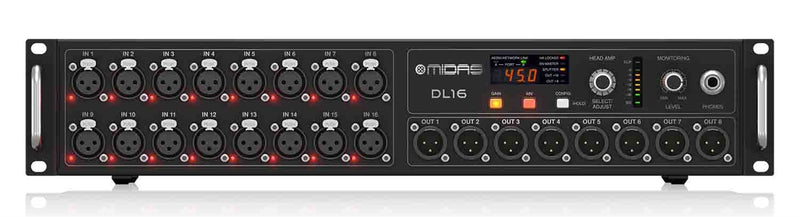

The Midas DL16 is a 16-Input, 8-Output Stage Box with ULTRANET and ADAT Interfaces that has revolutionized virtually everything in the live entertainment production workflow, and now that same cutting-edge technology brings live production signal distribution into the modern age. The DL16 Stage Box provides 16 of our award-winning microphone preamplifiers with switchable +48 V phantom power; 8 balanced analog XLR returns at the stage end; an integrated ULTRANET output for connecting to BEHRINGER P16-M personal monitor mixers; plus, connectivity for your ADAT-compatible outboard equipment.
If your application calls for more inputs or just wants to keep your cable runs short and tidy, putting a DL16 at stage front and another behind the drum riser provides an additional 16 inputs for drum and guitar/bass amp. The best part all it takes is a single CAT5 cable per stage box.
MIDAS - The Legend in Sound Quality
Ever since our formation in the 1970s, we have had a long history of innovation and leadership in the world of audio mixing consoles. Employed by the most famous touring acts and installations worldwide, our XL4 and Heritage H3000 consoles quickly became industry standards.
ADAT-Ready
Many manufacturers have adopted the ADAT digital interface as a means of transferring digital data between certain types of audio devices, such as mixers, synthesizers, lighting rigs, and effect processors.
Dual AES50 Ports for Massive Connectivity
Connecting over a single shielded (STP) CAT5 cable, up to three DL16s can be daisy-chained to deliver 48 channels in and 24 out to the stage. KLARK TEKNIK’s AES50 simultaneously provides high channel counts, extremely low and deterministic latencies, accurate phase-aligned networked clock distribution, error detection, network redundancy, with simple deployment and ease of use to meet the needs of the live performance industry.
Product Specifications:
Type: Digital Stage Box
Compatibility: AES50 / Ultranet systems
Channels: 16 x 8
Inputs - Mic Preamps: 16 x XLR
Phantom Power: Yes
Outputs Main: 8 x XLR
Outputs Digital: 2 x Optical Toslink (ADAT)
Data I/O: 2 x EtherCON (AES50), 1 x EtherCON (Ultranet)
USB: 1 x Type B
Computer Connectivity: USB, Ethernet
MIDI I/O: In/Out
Headphones: 1 x 1/4"
Rackmountable: 2U
