Description

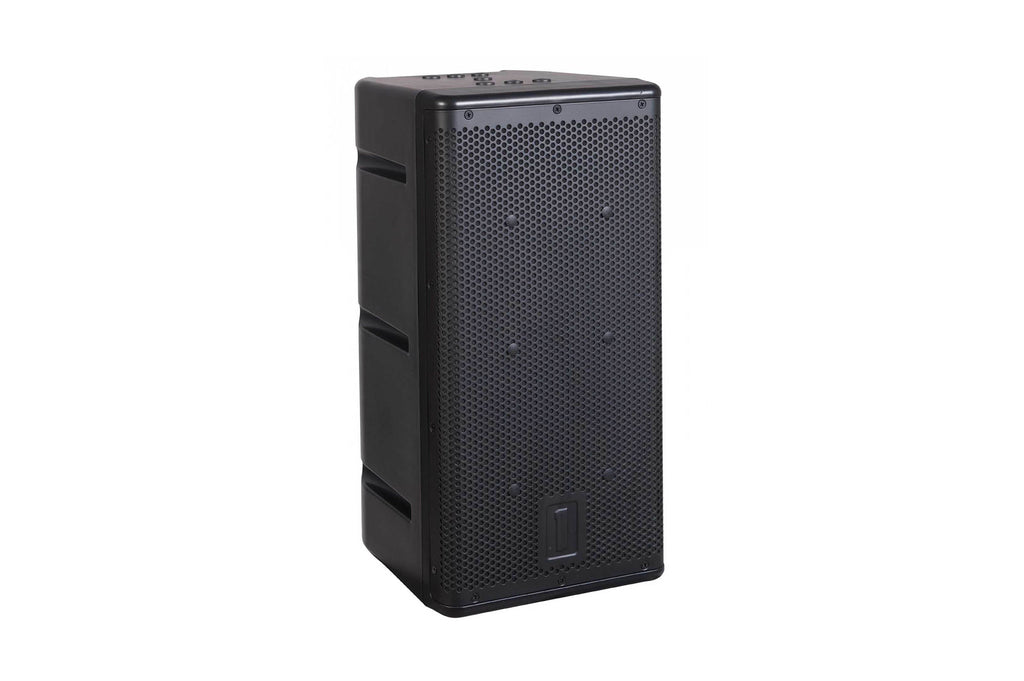

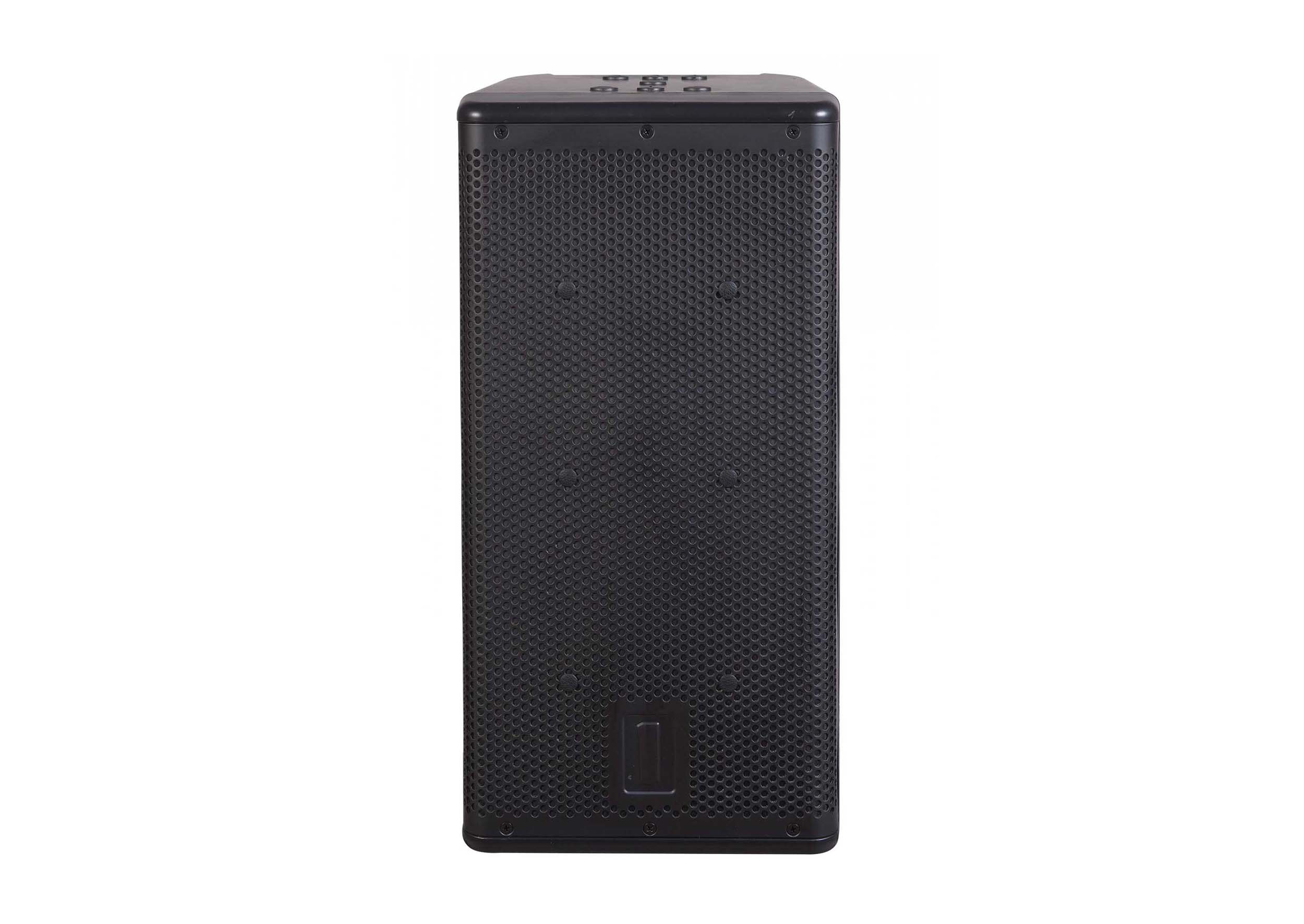

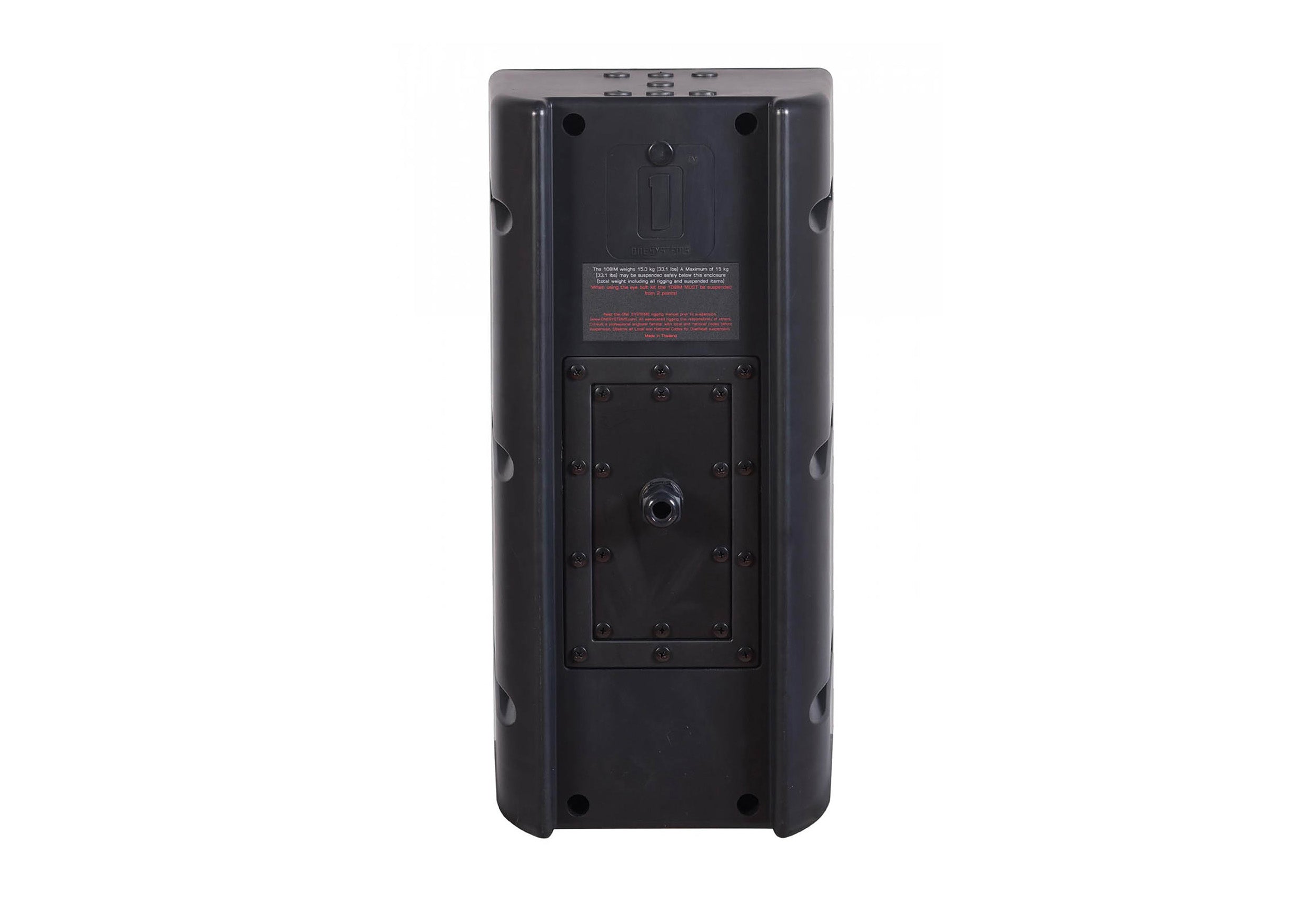

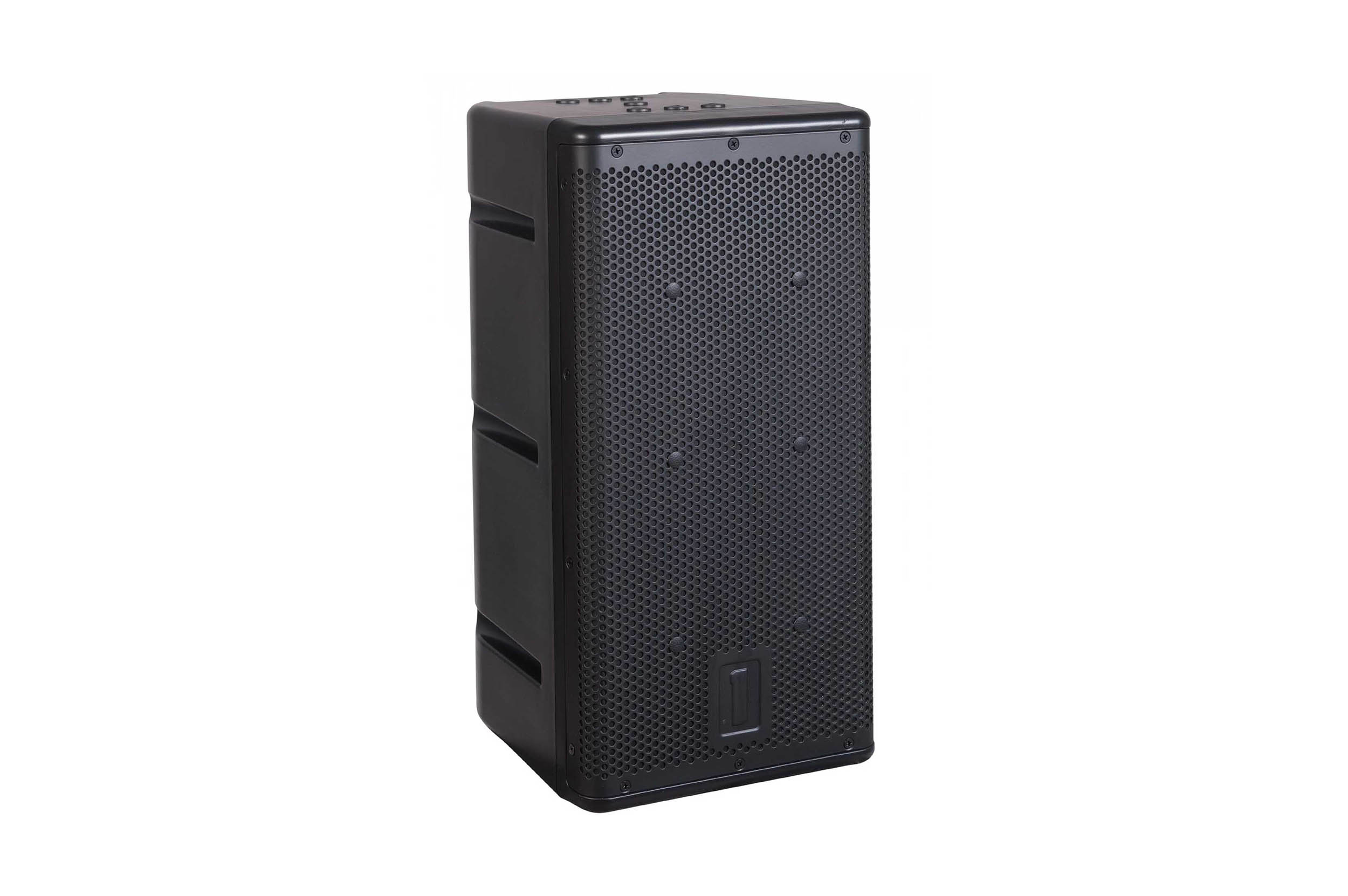

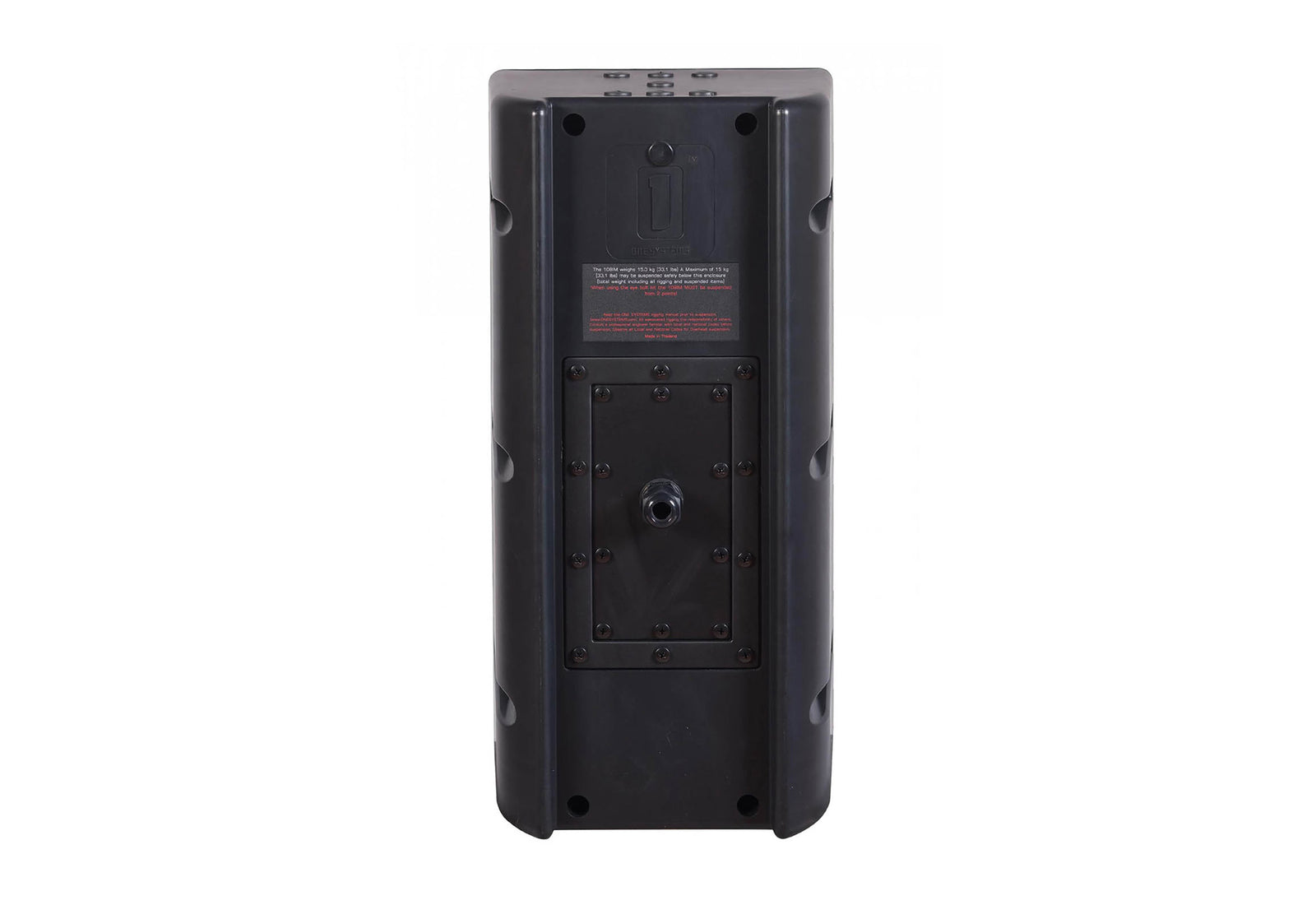

The One Systems 108.HTH-BLACK Direct Weather Platinum Small Format Loudspeakers – Black is a universal direct weather loudspeaker system designed for use in both marine environments and general-purpose inland environments. The 8-inch two-way design provides excellent acoustic radiation from a compact enclosure. The 108HTH utilizes 316-grade stainless steel (marine-grade) for all structural and rigging points. All associated One Systems rigging accessories are also 316-grade stainless steel.
All metal components that are not structural feature a newly developed marine-grade powder coat over 304-grade stainless steel. This allows the 108HTH to be used in ocean front and cruise ship applications as well as in general direct weather installations.
The 108HTH is optimized for outdoor short-throw to medium-throw applications such as theme parks, parade routes, baseball /football stadiums, and other entertainment/sports venues where permanent installation is required. The 108 HTH is a very versatile design providing high performance in a small physical package.

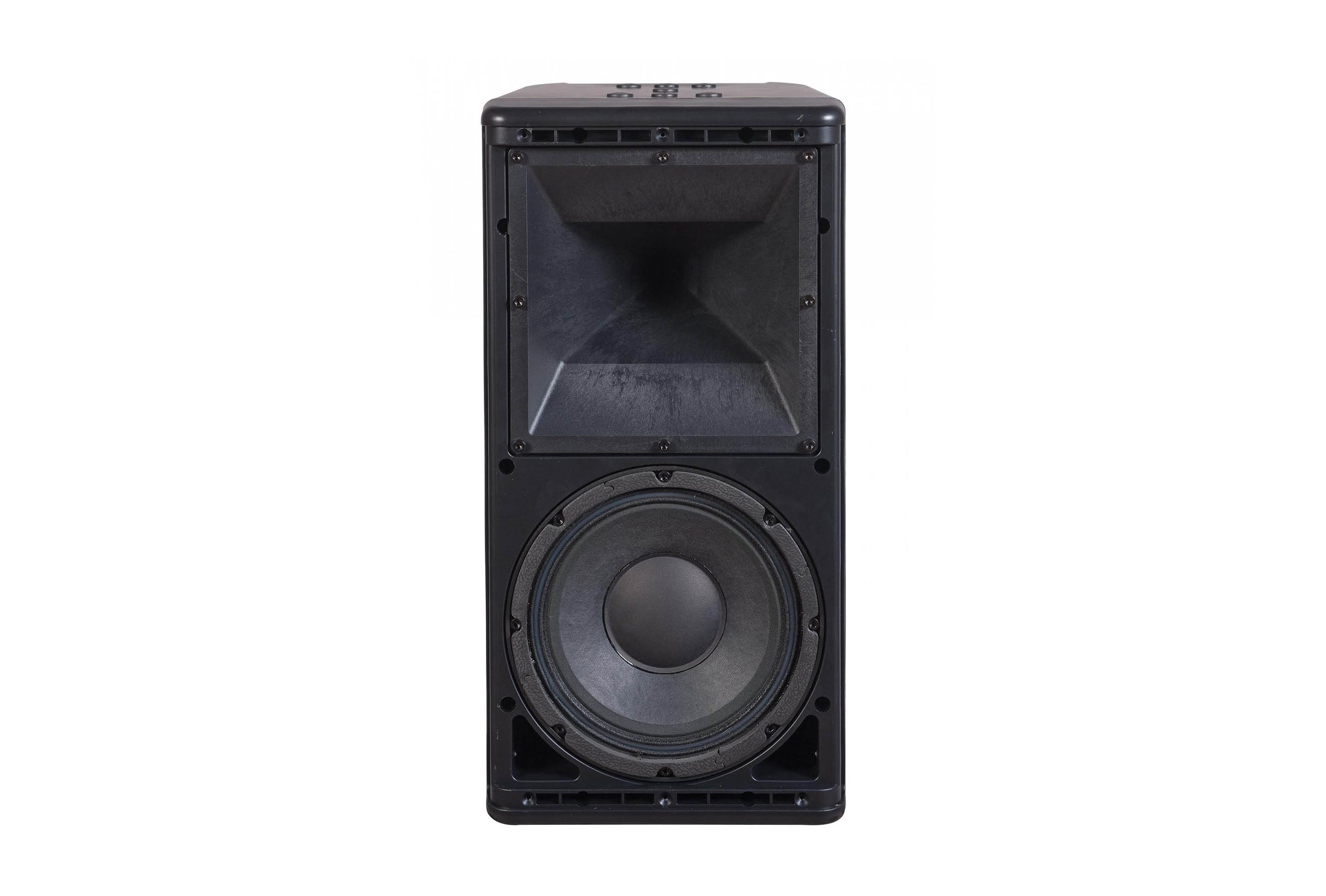

IMPORTANT NOTE: For ocean front and marine environments, the included “vent plugs” must be installed in the loudspeaker vents! The 108HTH (USA) also features an installer configurable High Z or Lo Z mode. The High Z mode features a wide bandwidth 150-watt auto former that presents input taps of 150 watts, 75 watts, and 37.5 watts. The Lo Z mode is 8 ohms. The simple configuration process is found on the third page of this data sheet or on the One Systems web site (www.onesystems.com). The configuration scheme does not utilize any switches that limit system reliability. The Hi Z mode allows for either 70.7Vrms or 100Vrms operation. The 108HTH offers a medium format titanium compression driver and high order filtering to provide superb intelligibility, extended bandwidth, as well as superior system dynamics.
Product Specification:
Frequency Response: 65Hz – 16,000Hz
Coverage Pattern: 60 x 40 degrees or 105 x 60 degrees
Crossover Frequency: 2000 Hz (60 x 40 horn),1600 Hz (105 x 60 horn)
System Sensitivity (1 Watt / 1 Meter): 92dB
Power Handling: 200 watts continuous ,400 watts program,800 watts peak
Input Impedance (Lo Z): 8-ohms
Input Taps (Hi Z): 150 watts, 75 watts, 37.5 watts
Weight: 36.4 lbs.
Dimensions (H x W x D) in: 19.05 x 9.56 x 10.66 inches
