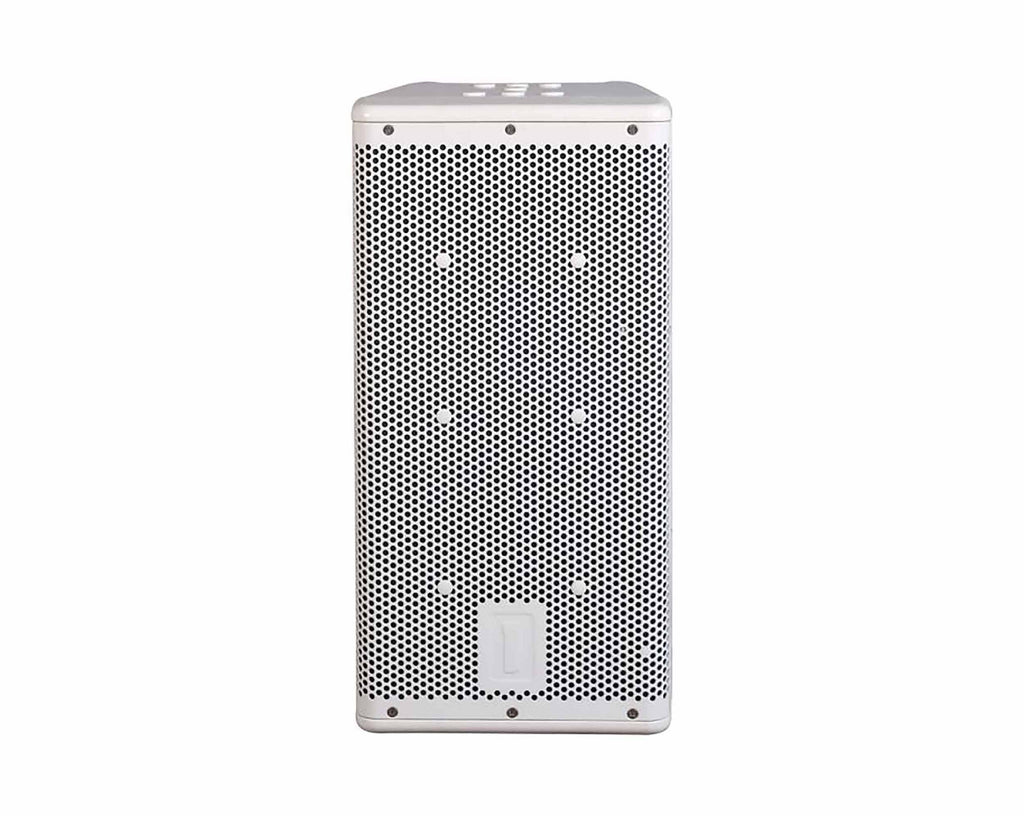

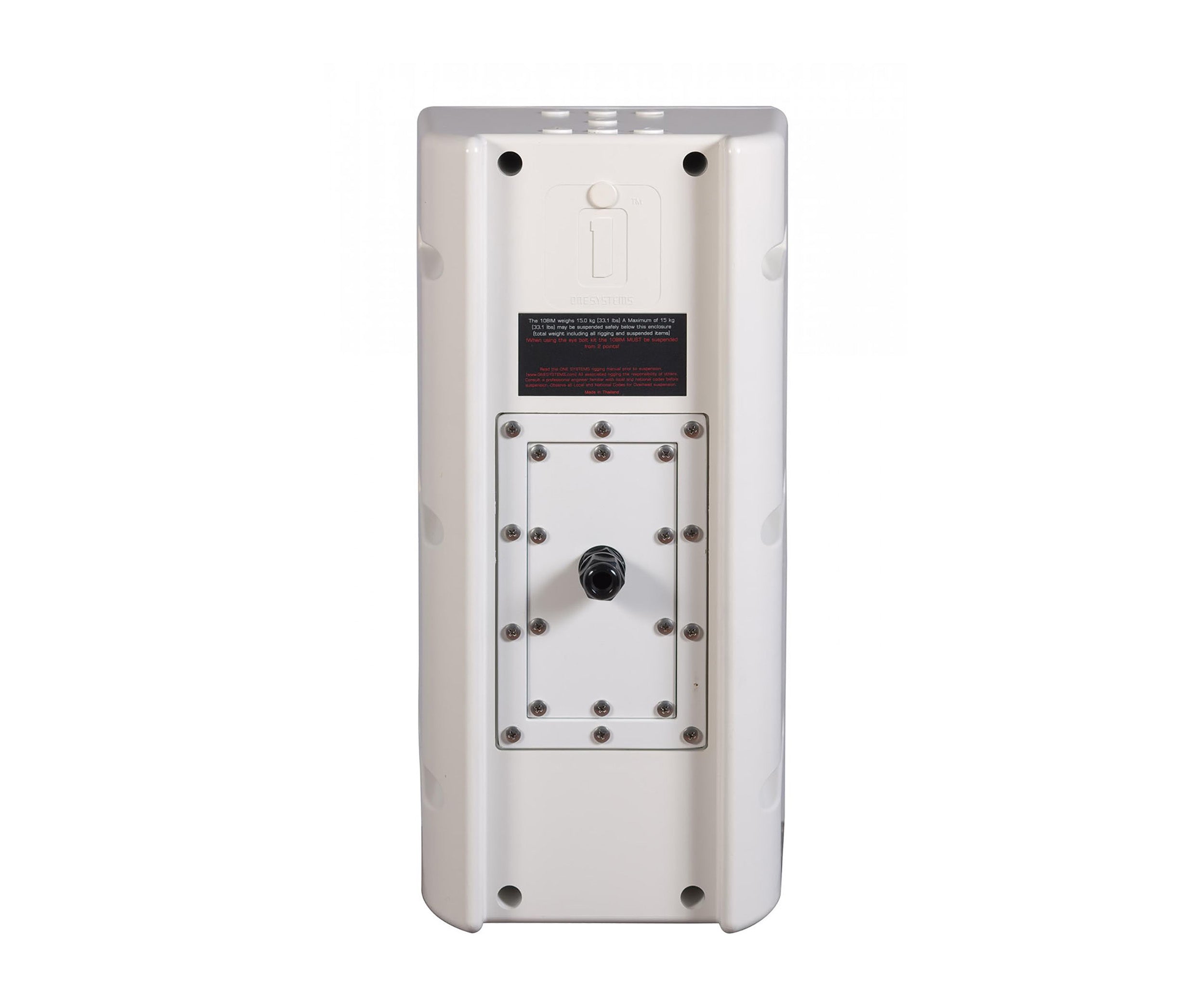

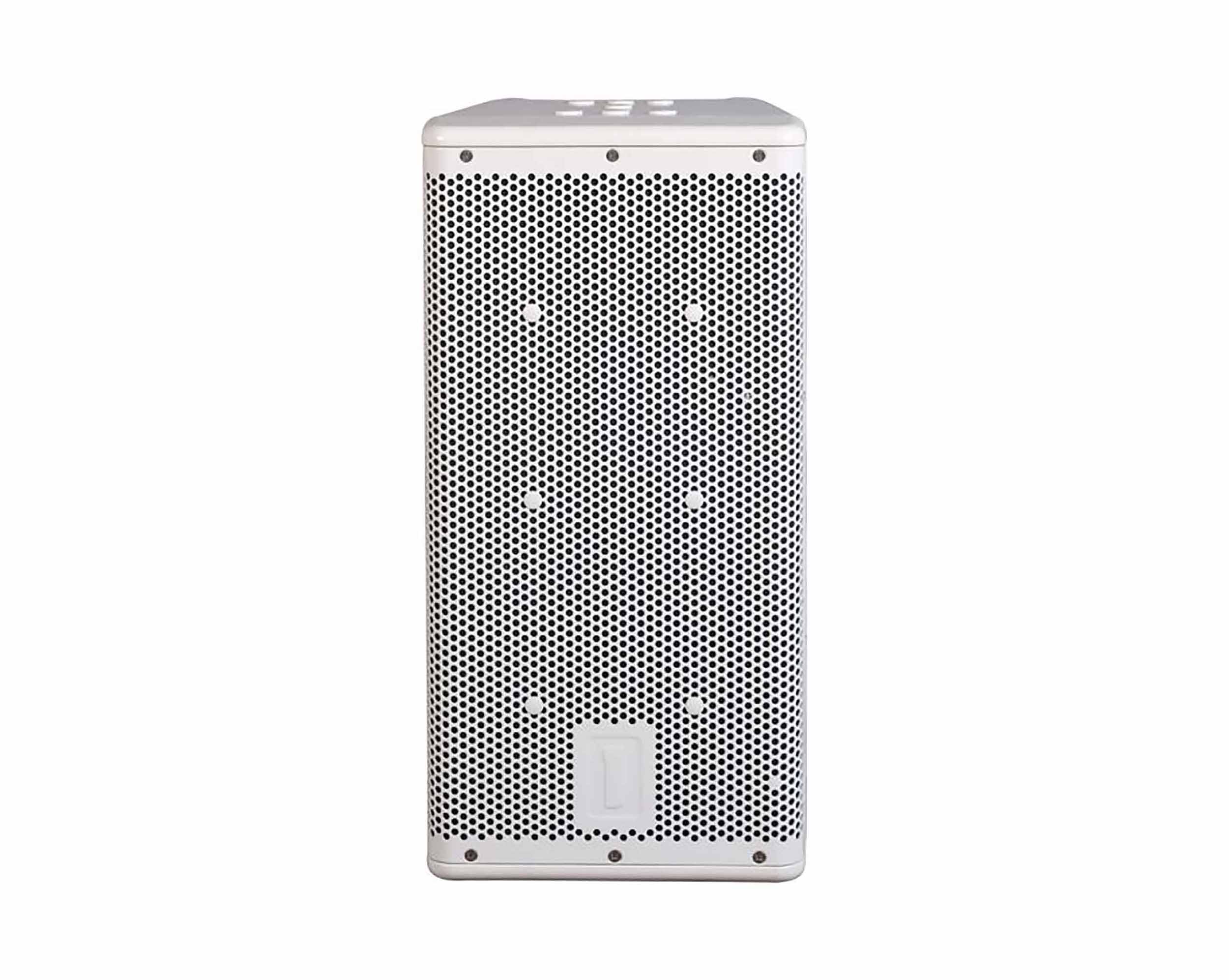

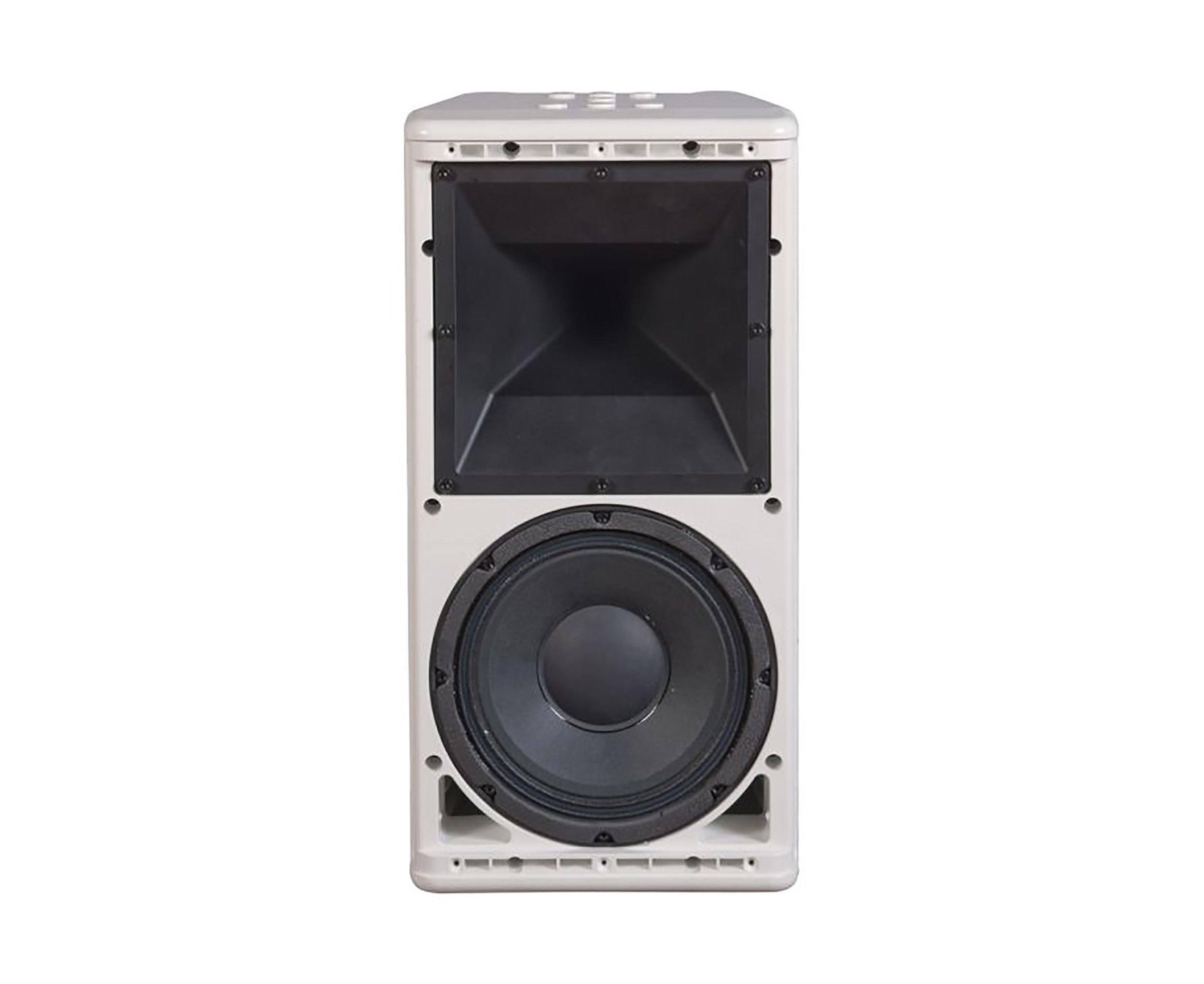

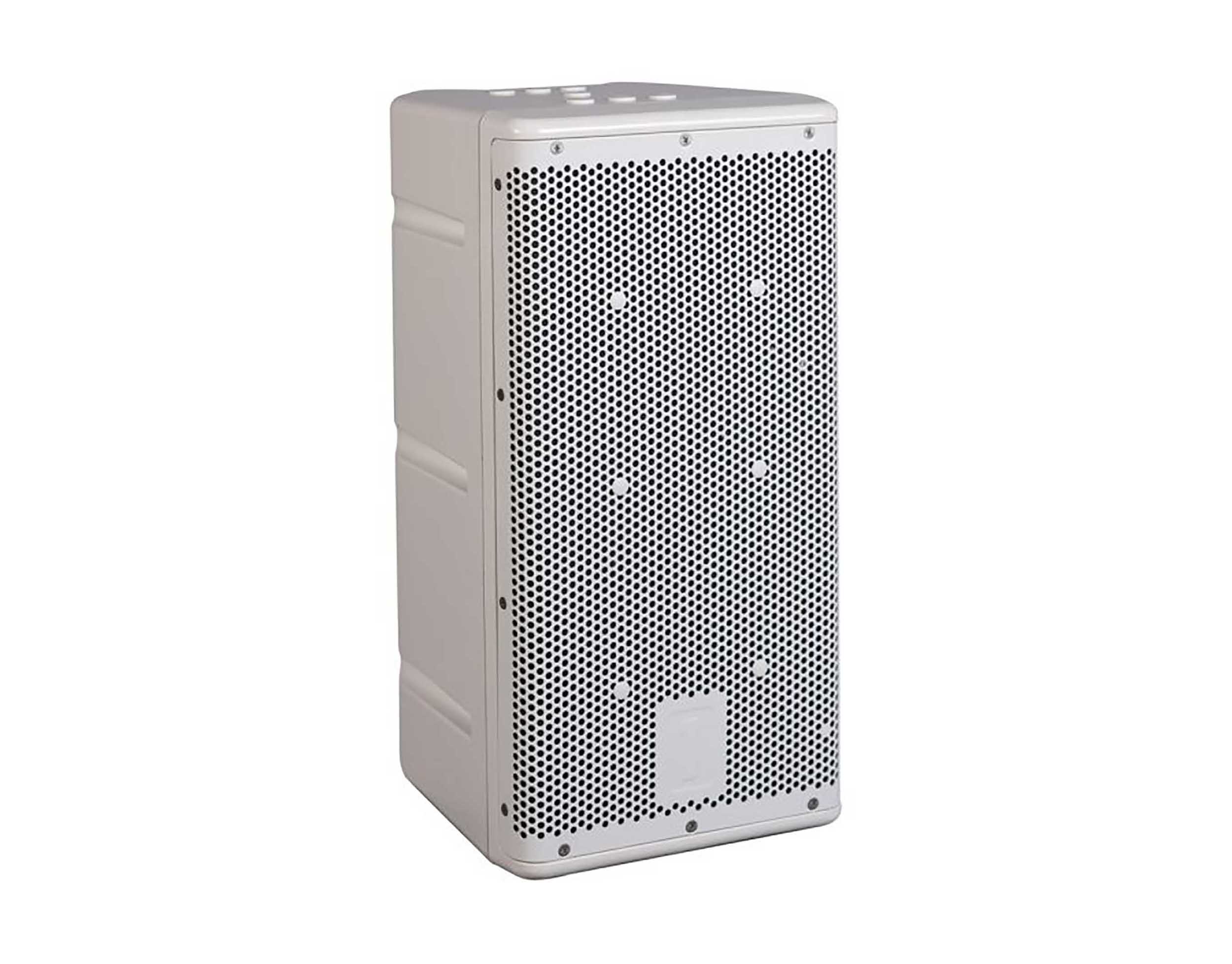

One Systems 108.HTH-WHITE IP56-Rated Installation Loudspeaker with 70/100V Transformer - White

The One Systems 108.HTH-WHITE Direct Weather Platinum Small Format Loudspeakers – White is a universal direct weather loudspeaker system designed for use in both marine environments and general purpose inland environments. The 8-inch two-way design provides excellent acoustic radiation from a compact enclosure. The 108HTH utilizes 316-grade stainless steel (marine-grade) for all structural and rigging points.

All associated One Systems rigging accessories are also 316-grade stainless steel. All metal components that are not structural feature a newly developed marine-grade powder coat over 304-grade stainless steel. This allows the 108HTH to be used in ocean front and cruise ship applications as well as in general direct weather installations.

IMPORTANT NOTE: For ocean front and marine environments, the included vent plugs must be installed in the loudspeaker vents! The 108HTH (USA) also features an installer configurable High Z or Lo Z mode. The High Z mode features a wide bandwidth 150-watt auto former that presents input taps of 150 watts, 75 watts, and 37.5 watts. The Lo Z mode is 8 ohms. The configuration scheme does not utilize any switches that limit system reliability. The Hi Z mode allows for either 70.7Vrms or 100Vrms operation. The 108HTH offers a medium format titanium compression driver and high order filtering to provide superb intelligibility, extended bandwidth, as well as superior system dynamics.

Product Specification:

Frequency Response: 65Hz – 16,000Hz

Coverage Pattern: 60 x 40 degrees or 105 x 60 degrees

Crossover Frequency: 2000 Hz (60 x 40 horn),1600 Hz (105 x 60 horn)

System Sensitivity: (1 Watt / 1 Meter): 92dB

Power Handling: 200 watts continuous,400 watts program,800 watts peak

Input Impedance (Lo Z): 8-ohms

Input Taps (Hi Z): 150 watts, 75 watts, 37.5 watts

Weight: 36.4 lbs.

Dimensions (H x W x D) in: 19.05 x 9.56 x 10.66 inches
