Description

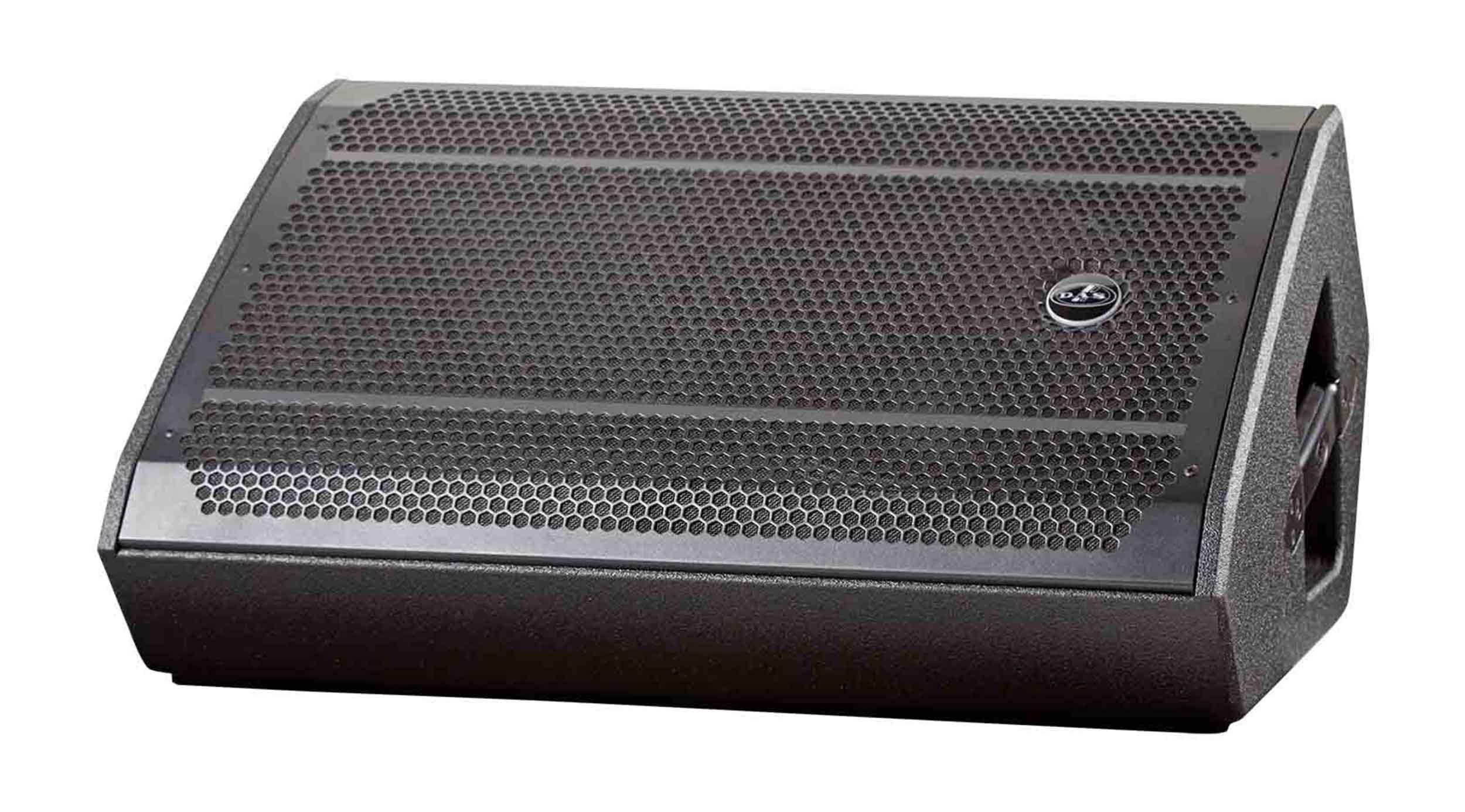

The ACTION-M512A is an active stage monitor designed to deliver a highly versatile solution, from fixed installations to the popular portable monitor application. Its rotatable horn with 80º x 50º dispersion means the enclosure can also be used as a PA.

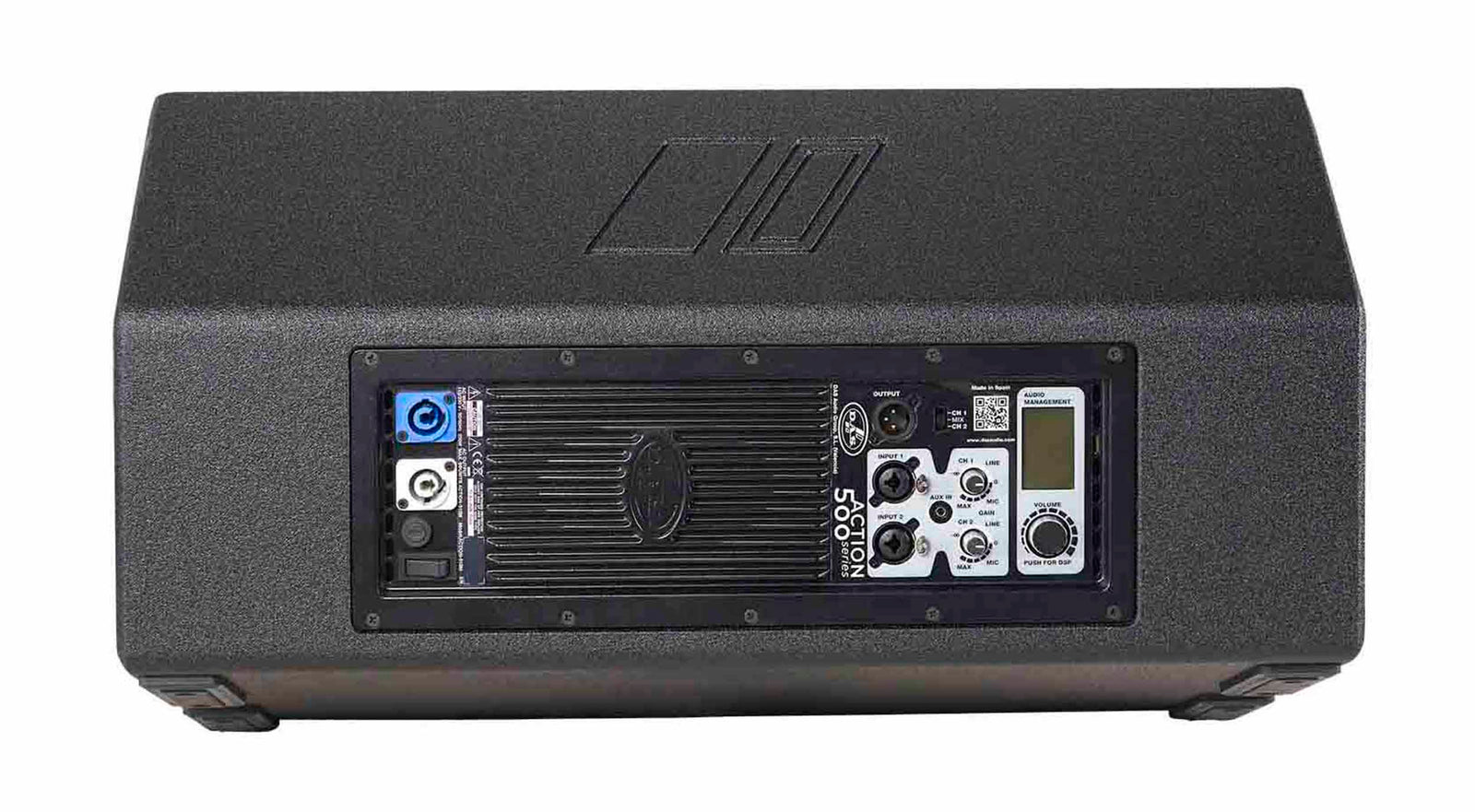

As part of our company culture, all our systems are developed under a single philosophy: to deliver the highest possible quality in terms of both materials and overall system design. In the ACTION-500 series we use the same birch plywood as our touring systems for a tight, natural warm sound found nowhere else on the market. The series’ full range of active tops is complete with two balanced XLR inputs for mic and line, an additional 3.5 mm mini jack input, and a powerCON connection.
The system has a 12MI4 speaker for low frequencies and an M-34 compression driver for high frequencies which, together with the 1000 W peak Class D amplifier, deliver outstanding performance. The DAScontrol interface uses a high-range 24-bit DSP and rear LCD screen to enable the selection of presets, EQ modes, delay, gain control and signal source mix.
The open box is like new condition. Open box is covered by the full manufacturer warranty.
Product Specifications:
Frequency Range (-10 dB): 60 Hz – 20 kHz
Horizontal Coverage (-6 dB): 80º
Vertical Coverage: 50º
Maximum Peak SPL at 1 m: 130 dB
Nominal Amplifier Power (continuous): 500 W
Nominal Amplifier Power (peak): 1000 W
Input Type: Balanced
Input Impedance: 20 kOhms
Input Sensitivity: 1.95 V (+8 dBu)
Audio Signal Input Connector: 2 x Female XLR
AUX Input: 1 x 3.5 mm Mini Jack
Audio Signal Loop Thru Connector: 2 x Male XLR
Control: DAS control
AC Output Connector: powerCON NAC3MPB
Current Draw 230 V / 115 V: 1.1 A/2.2 A
Enclosure Construction: Birch Plywood
Enclosure Geometry: Trapezoidal
Finish: ISO-flex Paint
Color: Black
Dimensions (H x W x D): 13,2 x 25,6 x 17,7 in"
Net Weight: 43,0 lbs
Components:
LF Driver: 12MI4
HF Driver: M-34
Horn/Waveguide: BC-85
Carton Dimensions (H x W x D): 15,1 x 29,4 x 19,8 in
Shipping Weight: 47,4 lbs
