Description

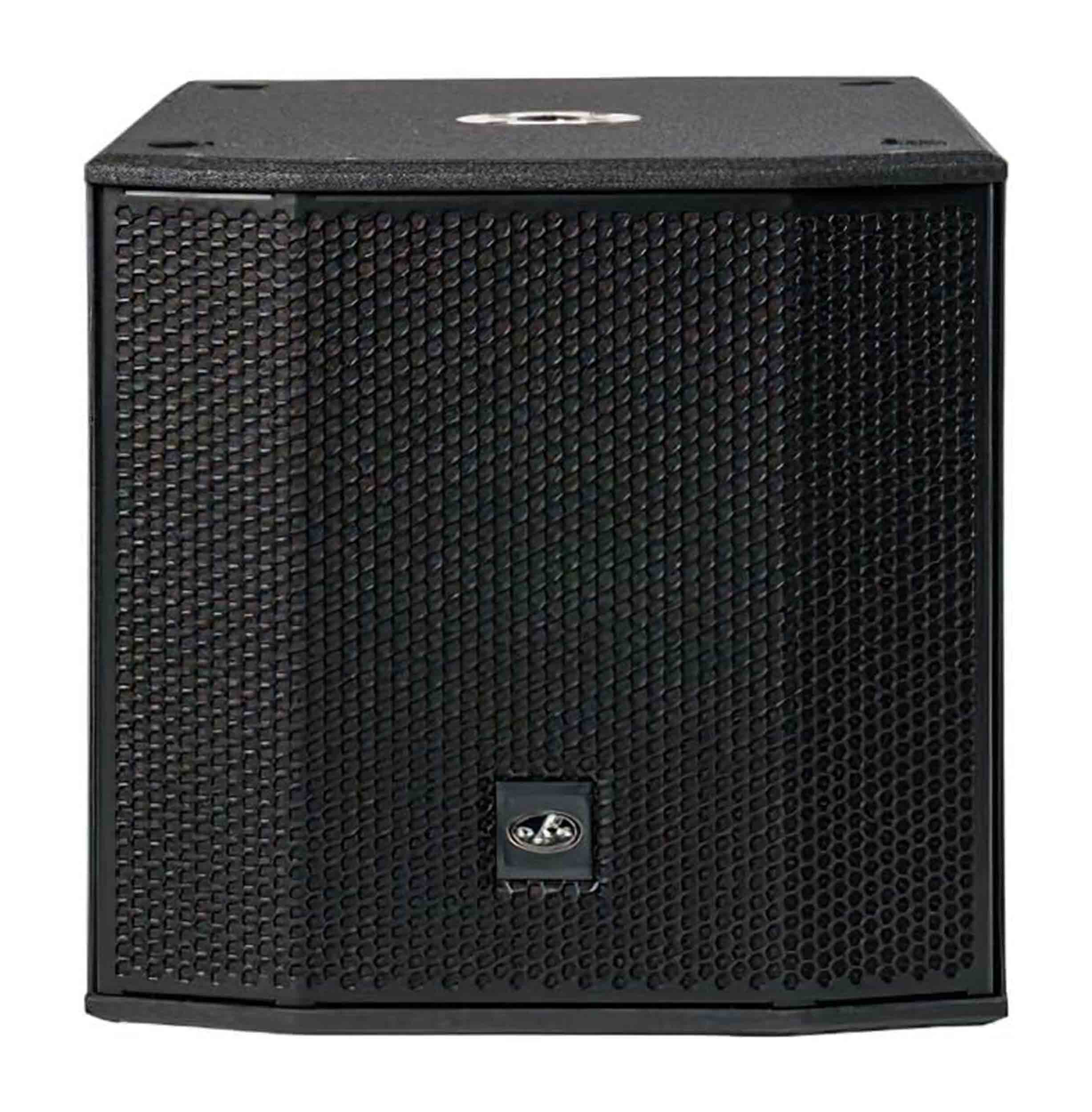

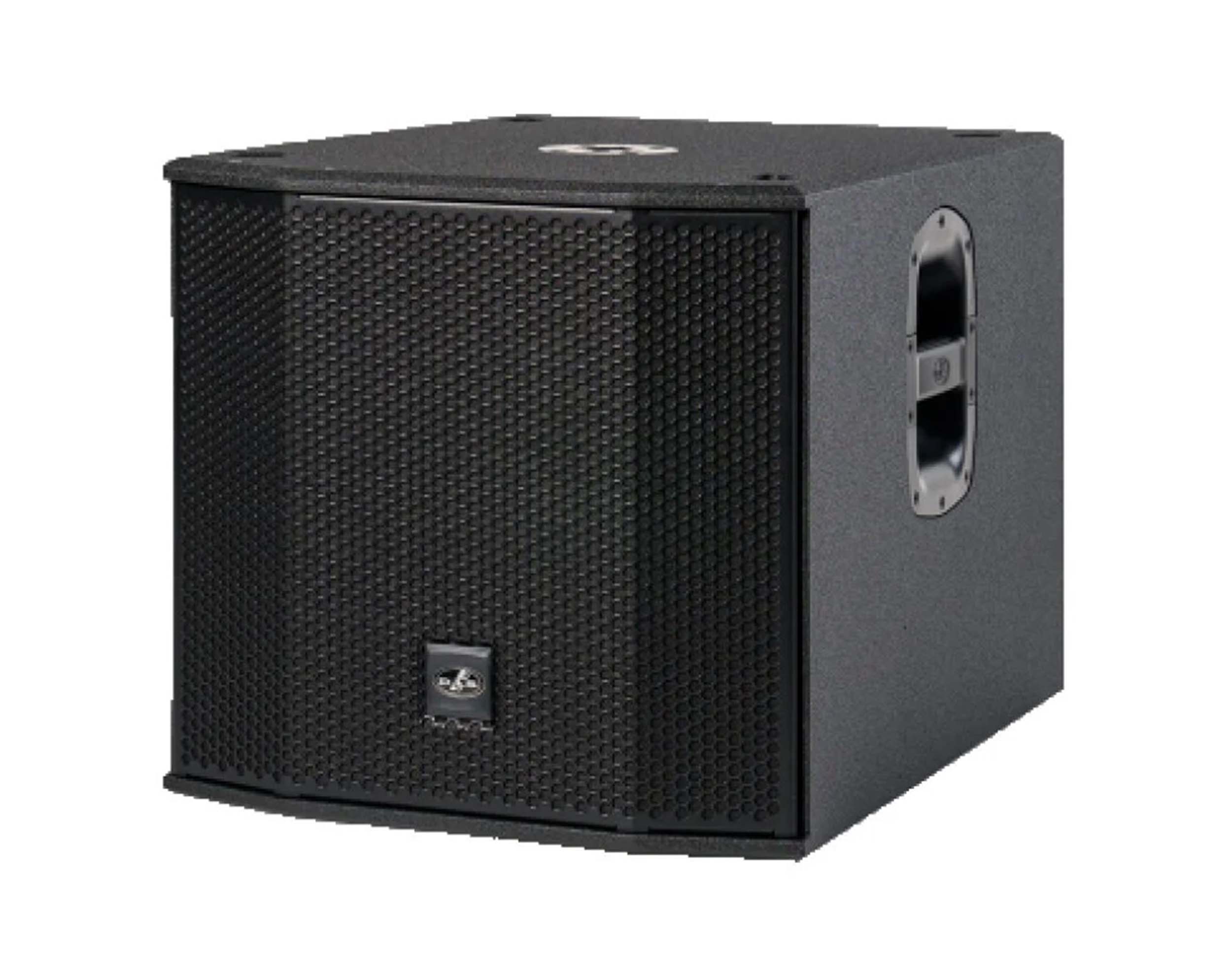

The ALTEA-S15A is a compact yet powerful active subwoofer with a bass-reflex design that delivers deep frequency response and impressive sound pressure levels. The 15″ DAS 15FW4 woofer boasts a high-quality construction with a 3″ voice coil and die-cast aluminium basket, allowing for high excursion and a power handling of 600 watts/AES. An optimized ventilation system enables a high sustained load with extremely reduced power compression.
The woofer is driven by an integrated Class-D power amplifier with a wide-range switching power supply, providing 600 watts/RMS and 1200 watts/peak, enabling up to 131dB/max SPL with a frequency response of 40Hz to 125kHz.

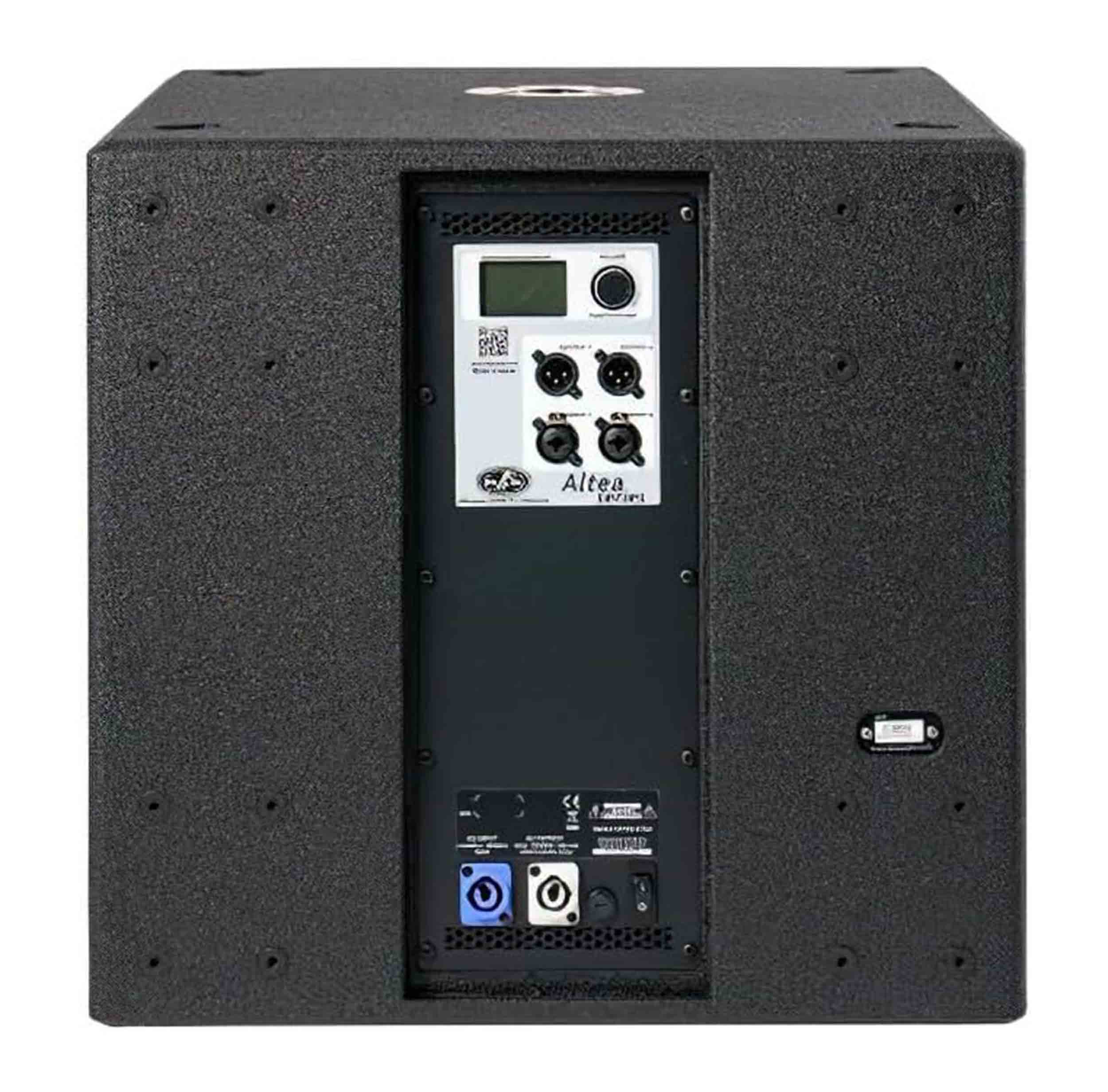

The ALTEA-S15A also features an extensive range of settings to ensure the best possible performance. PowerCON in/Out power connections are included, while the integrated DSP with DAScontrol™ (LCD display encoder) allows for adjustable crossover frequencies, two sound presets (deep/loud), and cardioid presets. With the cardioid presets you can quickly and easily create setups with multiple ALTEA-S15A units to reduce the sound energy emitted to the rear.

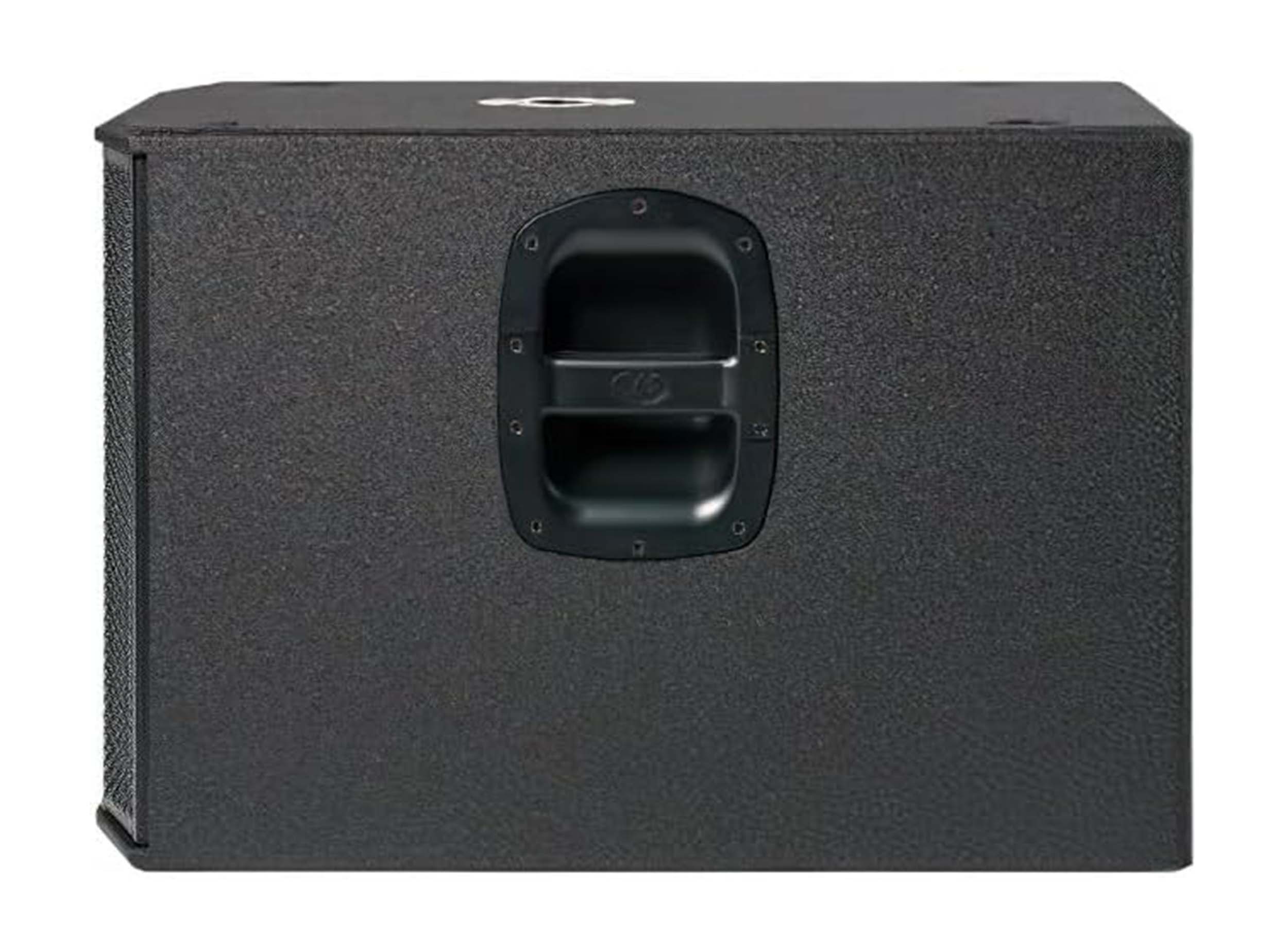

The ALTEA-S15A cabinet is constructed of high-quality birch plywood and finished with our rugged ISOflex PU coating. The high-quality front grille is powder-coated. For transport, in addition to two side handles, the ALTEA-S15A is prepared for the mounting of rear wheels.
The open box is like new condition. Open box is covered by the full manufacturer warranty.
Product Specifications:
Frequency Range (-10 dB): 40 Hz – 125 Hz
Maximum Peak SPL at 1 m: 131 dB
Nominal Amplifier Power (continuous): 600 W
Nominal Amplifier Power (peak): 1200 W
Input Type: Balanced
Input Impedance: 20 kohms
Input Sensitivity: 1.95 V (+8 dBu)
Audio Signal Input Connector: 2 x Female XLR
Audio Signal Loop Thru Connector: 2 x Male XLR
Control: DAScontrol
AC Output Connector: powerCON NAC3MPB
Current Draw 230 V / 115 V: 1.4 A/2.8 A
Enclosure Construction: Birch Plywood
Enclosure Geometry: Rectangular
Finish: ISO-flex Paint
Color: Black
Dimensions (H x W x D): 18,5 x 19,1 x 27,0 in"
Net Weight: 30,0 kg (66,0 lb)
LF Driver: 15FW4
Carton Dimensions (H x W x D): 20,3 x 20,7 x 28,2 in"
Shipping Weight: 35,0 kg (77,0 lb)
