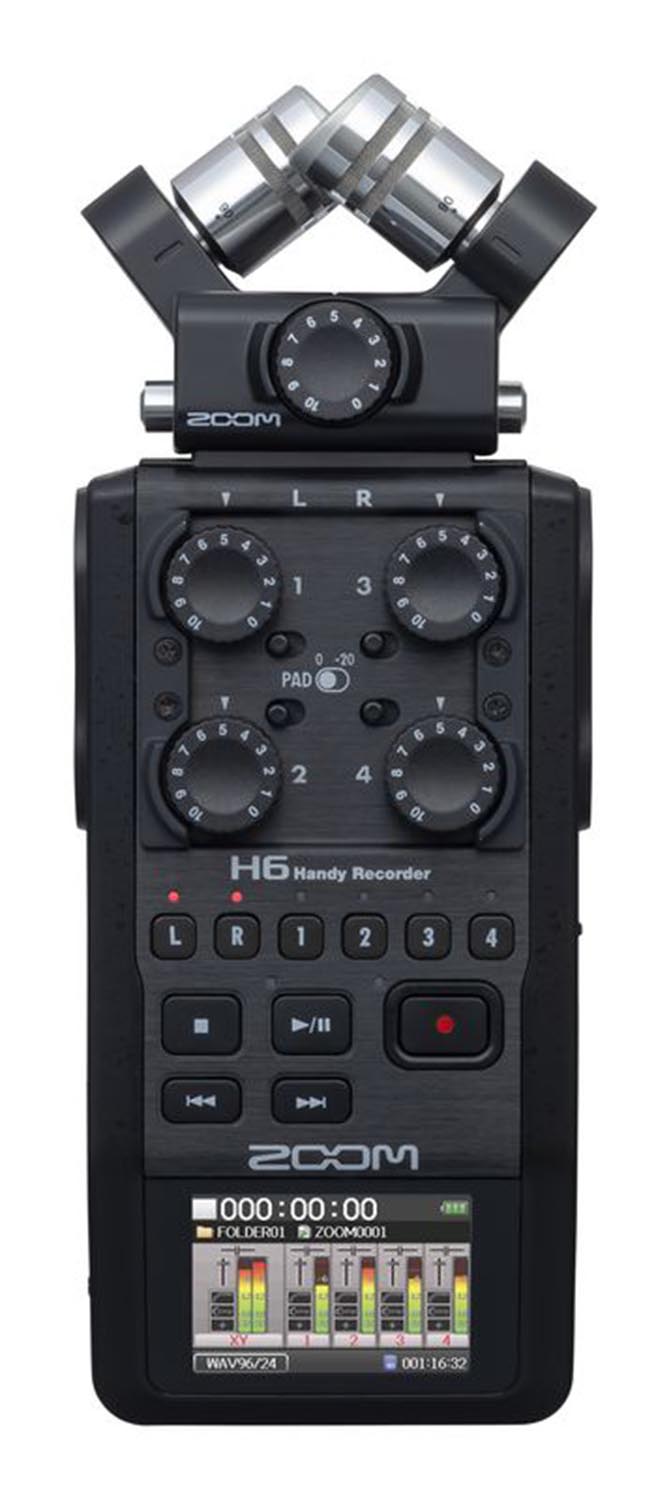

B-Stock: ZOOM H6 All Black 6-Track Portable Handy Recorder

The ZOOM H6 All Black is the ultimate portable recorder.  With its advanced preamps and interchangeable capsules, the H6 delivers unmatched versatility and award-winning quality.

Creative Versatility

From podcasting to music to filmmaking and more, the H6 is your go-to recorder.

Podcast Anywhere

From the studio to remote locations, podcasts are produced everywhere.  With inputs for every guest, the battery-powered H6 is a complete portable podcasting solution.

Unlimited Studio Time

The H6 is your personal music studio 24/7. With up to six discrete line-level / mic-level inputs, plus the ability to overdub and more, the H6 provides the road from a great idea to the perfect track.

Sound for Every Scene

Featuring interchangeable mic capsules, four combo inputs, and six tracks of a quality recording, the H6 is ready to record on any set and in any scene the director throws at you.

Ins

The H6 offers four XLR/TRS combo jacks with dedicated pad switches and gain control for distortion-free recording.

Outs

The H6 features two 1/8” outputs, a stereo line out as well as a headphone out with dedicated volume control.

Multi-Channel Audio Interface

The H6’s USB port enables it to serve as a stereo or multi-channel audio interface for your computer or iPad.

Product Specifications:

SD Card: 16MB to 2GB

SDHC Card: 4GB to 32GB

SDXC Card: 64GB to 128GB

INPUTS

XYH-6 X/Y MIC:

Mic type: Unidirectional

Sensitivity: -41 dB, 1 kHz at 1 Pa

Input gain: -∞ to 46.5 dB

Max sound pressure input: 136 dB SPL

XYH-6 MIC/LINE IN:

Connector: 1/8" stereo mini jack

Input level: - ∞ to 46.5 dB

Input impedance: 2 k Ω

Plug-in power: 2.5V supported

MSH-6 MS MIC:

Mic types: Unidirectional and bi-directional

Sensitivity: -37 dB, 1 kHz at 1 Pa (unidirectional)

-39 dB, 1 kHz at 1 Pa (bi-directional)

Input gain: -∞ to 42.5 dB

Max sound pressure input: 120 dB SPL (unidirectional)

122 dB SPL (bi-directional)

INPUTS 1 TO 4:

Connectors: XLR / TRS combo jacks

(XLR: Pin 2 hot / TRS: Tip hot)

Input gain: (PAD OFF) -∞ to 55.5 dB

Input gain: (PAD ON) -∞ to 35.5 dB

Input impedance: 1.8kΩ or more

Max input level: +22 dBu (PAD ON)

Phantom power: +12V /+24V /+48V

(Phantom power can be turned on/off independently for Inputs 1 - 4)

Equivalent Input Noise (EIN): -120 dBu or less

OUTPUTS

Line Out: Jack type: 1/8" stereo mini jack

Rated Output Level: -10 dBu when output load impedance is 10k Ω or more

PHONE OUT: Jack type: 1/8" stereo mini jack

Output Level: 20 mW +20 mW into 32 Ω load

Built-In Speaker: 400mw 8 Ω mono speaker

LCD SCREEN: 2.0-inch full color LCD (320 x 240 pixels)

Power Requirements: AA size (LR6) battery x 4,

Alkaline or NiMH type

AC adapter: AD-17 (DC5V/1A/USB-type) (optional),

USB bus power

Battery Life: Battery life (with alkaline battery, continuous recording) Over 20 hours

DIMENSIONS AND WEIGHT

H6: 77.8mm (W) x 152.8mm (D) x 47.8mm (H), 280g

XYH-6: 78.9mm (W) x 60.2mm (D) x 45.2mm (H), 130g

MSH-6: 58.0mm (W) x 67.6mm (D) x 42.1mm (H), 85g
