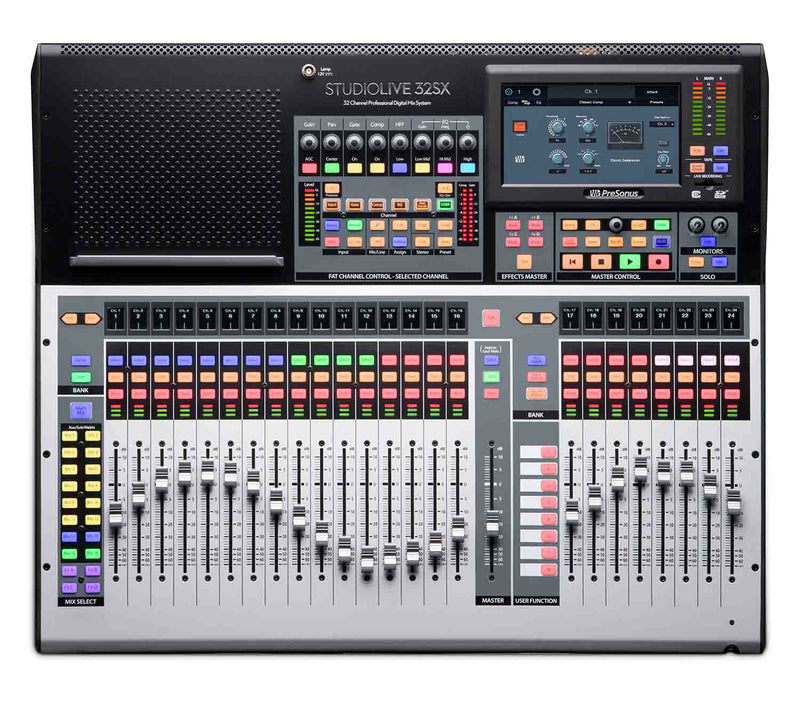

PreSonus STUDIOLIVE 32SX, 32-channel Digital Mixer and USB Audio Interface

The PreSonus STUDIOLIVE 32SX is a 32-channel Digital Mixer and USB Audio Interface with the processing power, studio-grade audio quality, and flexible routing options that made StudioLive mixers famous, the StudioLive 32SX is the perfect compact, 32-channel digital mixing solution. Powered by the dual-core PreSonus FLEX DSP Engine, the StudioLive 32SX digital mixer is equipped with 40 mixing channels, 26 mix buses, and 286 simultaneous processors, including 4 stereo reverberation systems, and Fat Channel plug-in models on every input and mix.

The low profile of the StudioLive 32SX makes it an ideal solution for any mixing environment where desk real estate is at a premium. The split-fader workflow lets you manage 32 input channels in two fader layers, while still providing access to your mix outputs on eight additional faders. With 32 XMAX mic preamps and 16 balanced mix outputs, the StudioLive 32SX packs connectivity and power into an efficient use of space.

The Scalable Digital Mixer

The StudioLive 32SX digital mixer and the complete PreSonus StudioLive Series III ecosystem of AVB networking products allow you to create a system that is truly customized for your needs. Add EarMix 16M personal monitor mixers to give your musicians their own customizable 16-channel monitor mixes. Connect a StudioLive 32R to use as a remote stage box or monitor mixer. Multiple StudioLive Series III digital mixers can be networked, allowing you to route audio to and from any device on the audio network, thanks to the flexibility of Digital Patching onboard your StudioLive 32SX digital mixer and in UC Surface remote mixer software.

Superior Sound

We built our reputation designing great-sounding analog circuits for critical studio-recording environments, and we put all of that experience into designing the StudioLive 32SX digital mixer. In 1995, PreSonus patented digital control over analog circuits with our first studio product. Building on this legacy, we created a separate digital volume-control circuit ahead of our lauded analog XMAX mic preamp design, providing the convenience of digital recall without sacrificing fidelity.

Record Music with Or Without A Computer

PreSonus Capture recording software is an intuitive multitrack recording application with a fully integrated Virtual Soundcheck mode that runs directly on your StudioLive 32SX digital mixer or on your Mac or Windows computer. Record all 32 channels plus a stereo mix of your choosing via USB, to an SD Card, or both for the ultimate redundant live-recording rig. StudioLive mix scenes can be stored with your recordings to speed up virtual soundchecks. Best of all, Capture sessions open natively in Studio One with the entire StudioLive mix scene re-created in the Studio One console, complete with fader levels, Fat Channel settings, mutes, solos, and more. No other multitrack software makes recording as fast, simple and hassle-free so you can focus on mixing the show.

Product Specifications:

Type: Digital Mixer

Channels: 32 channels, 40 mix channels

Inputs - Mic Preamps: 16 x XLR (mic), 16 x XLR-1/4" combo (mic/line)

Phantom Power: Switchable per channel

Inputs - Line: 1 x Dual RCA Stereo (tape), 4 x 1/4" (2 x stereo aux in)

Outputs - Digital: 1 x XLR (AES/EBU)

Headphones: 1 x 1/4"

USB: 1 x Type B (64 x 64)

Computer Connectivity: USB 2.0

Software: Studio Magic Plug-in Suite, Studio One Artist, Presonus Capture, UC Surface

Power Source: Standard IEC AC cable

Height: 6.51"

Depth: 22.97"

Width:  25.98"

Weight: 30 lbs.
