Description

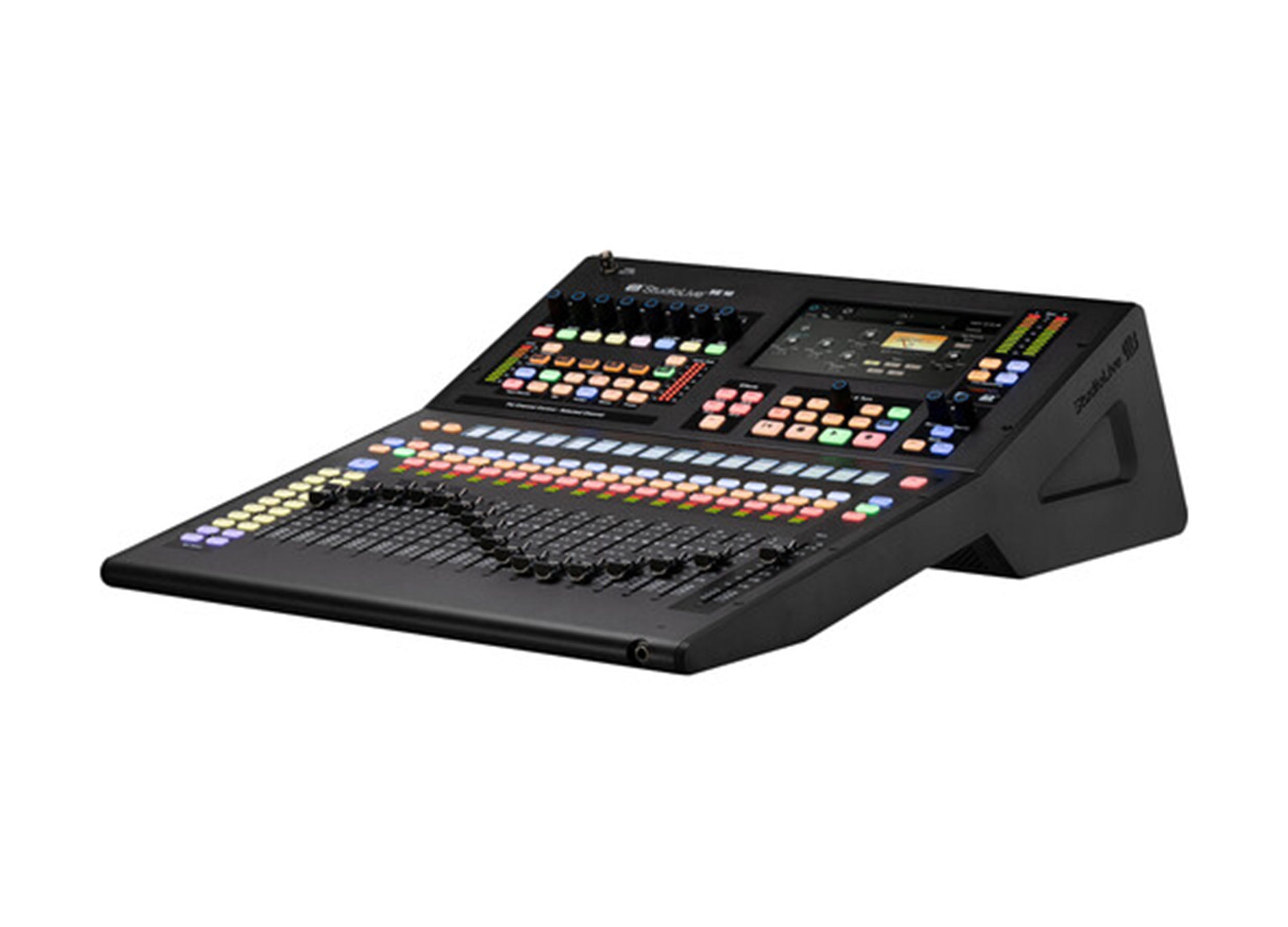

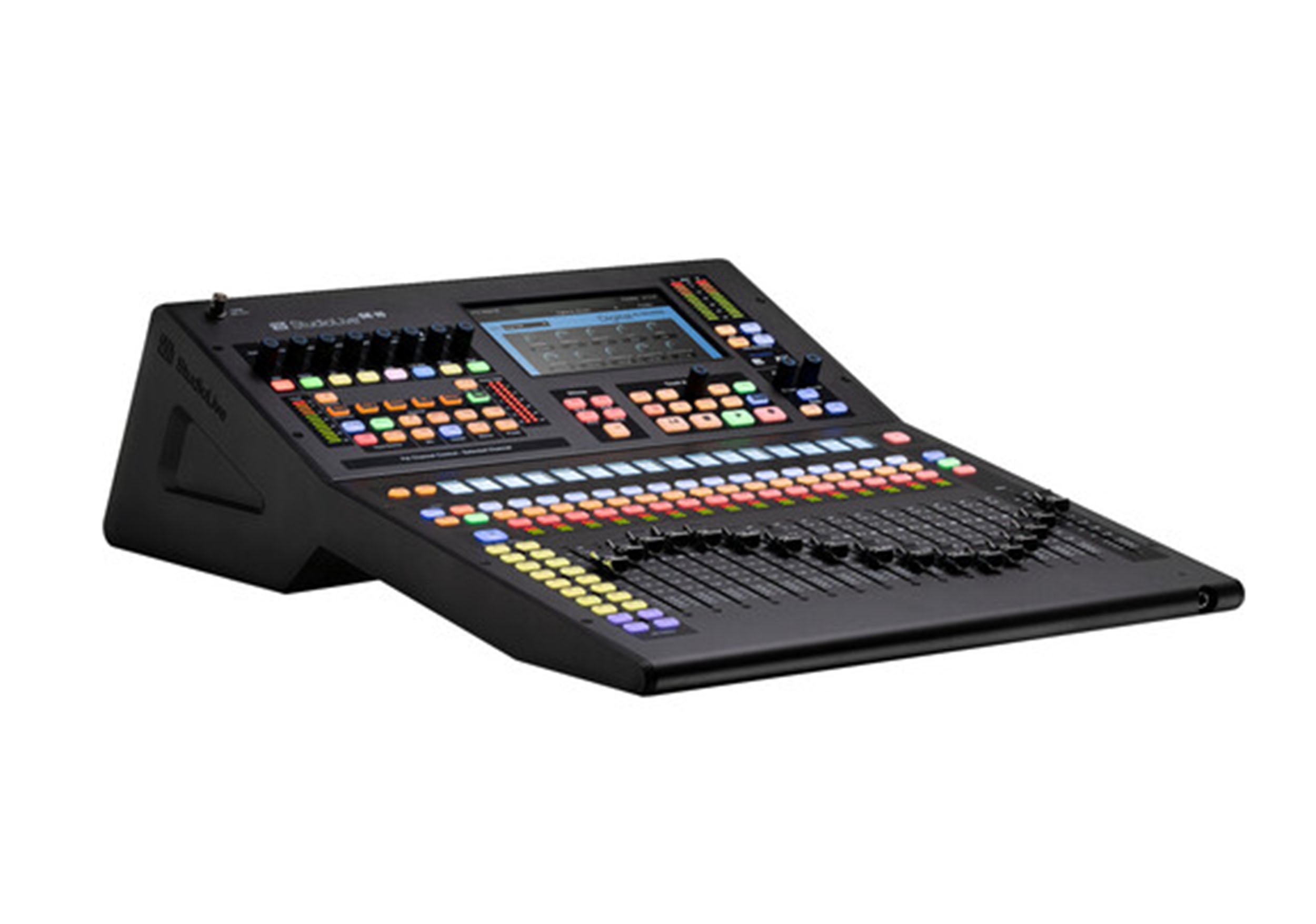

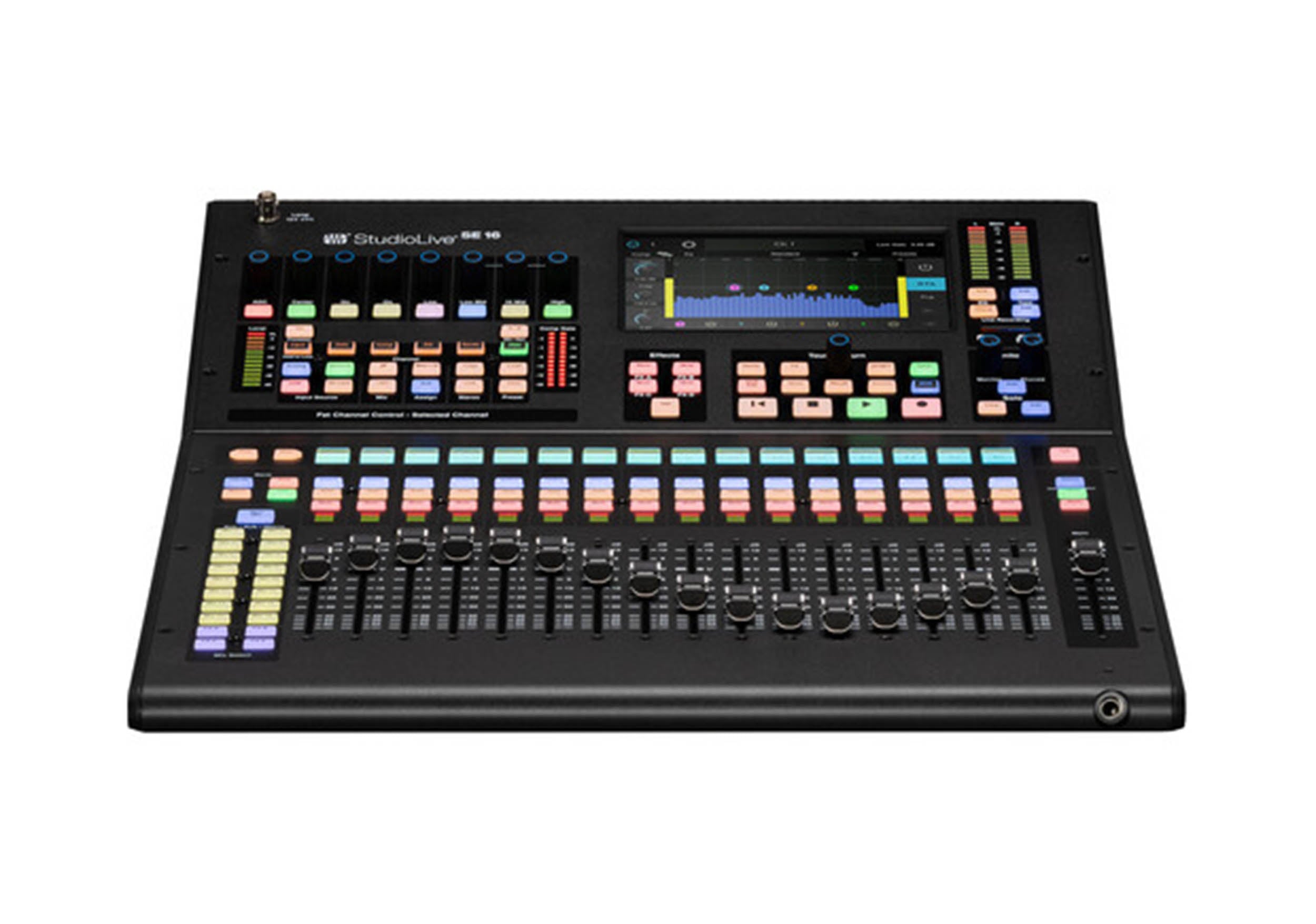

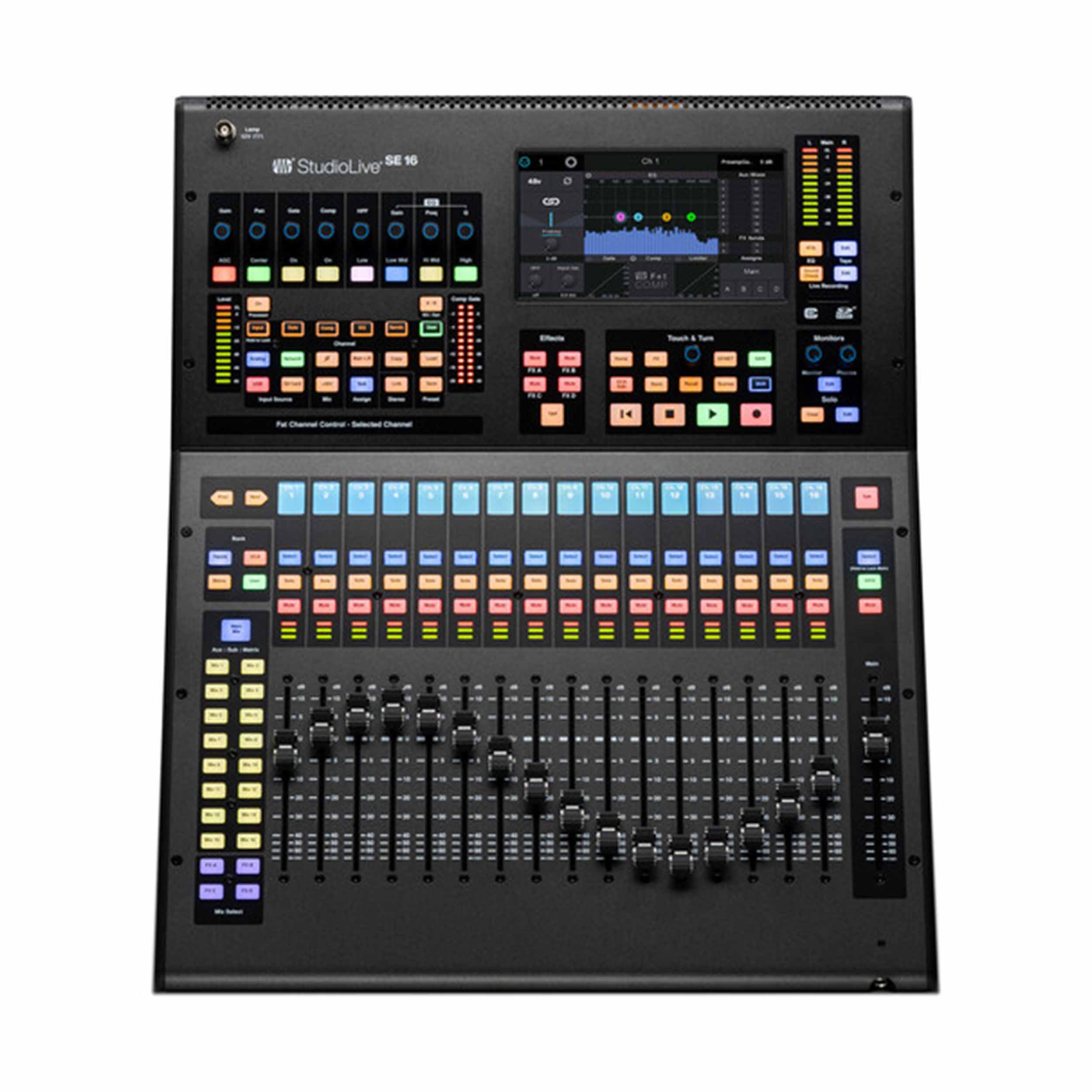

The PreSonus STUDIOLIVE SE16 Digital Console Mixer is Designed to inspire and built to perform, StudioLive SE delivers pristine, ultra-low noise studio-quality sound to the stage in a unique split-fader frame. Dial in your mix with an arsenal of audio processors and effects, including meticulous digital models of coveted EQs, compressors, limiters, and reverb.
But live sound for touring, installations, and houses of worship demands more than pristine audio and powerful effects. With the StudioLive SE 16, you get access to capabilities beyond any solution in its class—like seamless multitrack recording, playback and streaming with integrated Fender Studio Pro and Capture software, remote access mix, console management, and one-click virtual soundcheck.
Expand your system and stay industry-ready—StudioLive SE connects effortlessly to networked StudioLive Stage Boxes and any Milan-compatible I/O, while its sleek design, intuitive layout, ergonomic feel, and high-contrast UI maximize comfort and streamline workflow during long sessions.
Product Specifications:
ADC Dynamic Range: 115 dB (A-wtd, 48 kHz)
DAC Dynamic Range: 115 dB (A-wtd, 48 kHz)

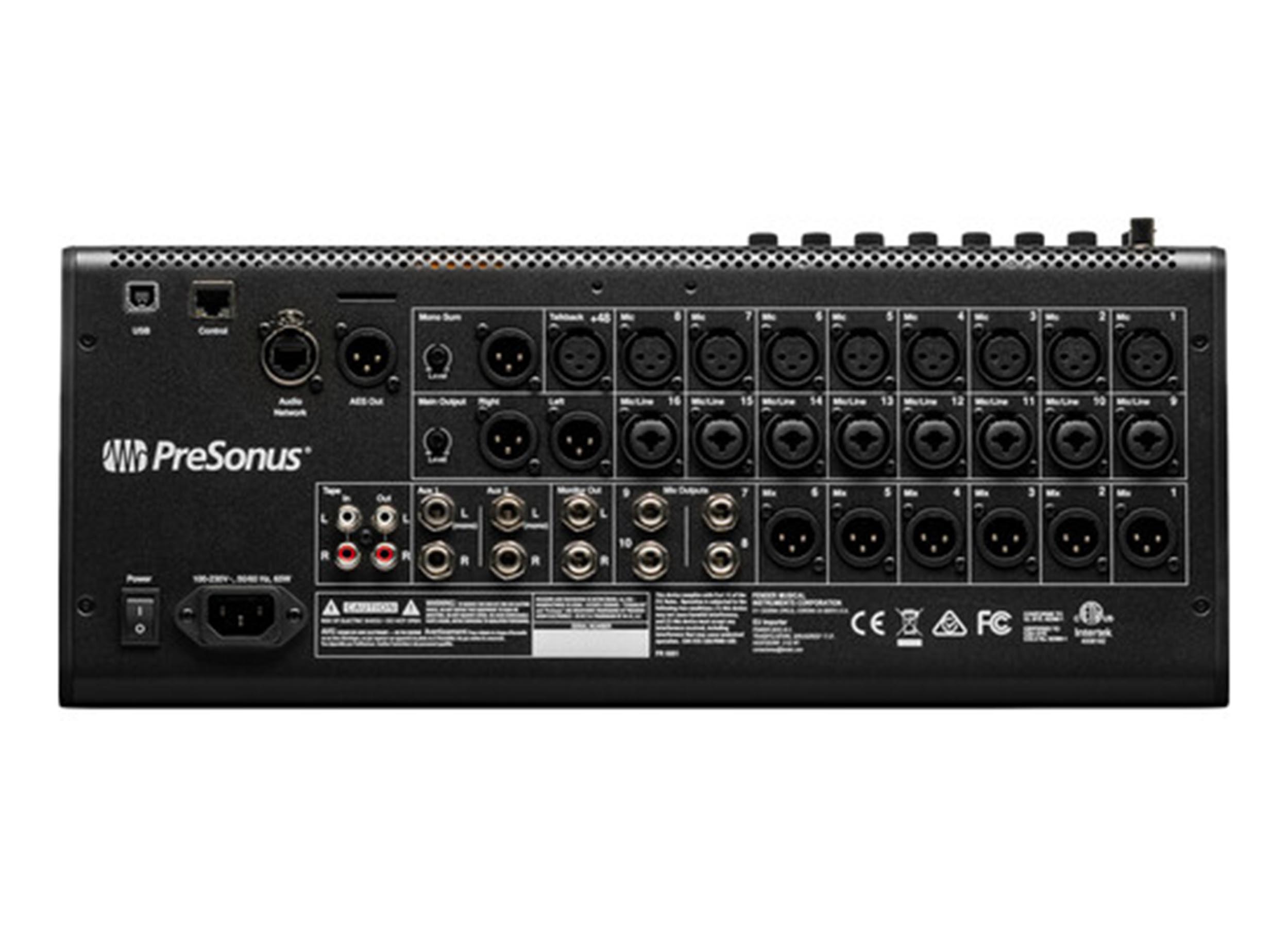

USB Recording Port: USB 2.0, Type-B
AES/EBU Output: XLR Male
Network Control Port: RJ-45
AVB Audio Network Port: Locking XLR Ethernet
Internal Processing: 32-bit, floating point
DSP Engine: Quad-core FLEX DSP
Sampling Rate: 44.1 and 48 kHz
A/D/A Bit Depth: 24-bit
Reference Level for 0 dBFS: +18 dBu
Total System Latency: 1.9 ms (local routing, analog in-analog out, all processing active)
Jitter: <20 ps RMS (20 Hz – 20 kHz)
Jitter Attenuation: >60 dB (1 ns in, 1 ps out)
Display: 7” TFT LCD touch display
Power Connector: IEC
Input Voltage Range: 90 to 230 VAC (±10%)
Recommended Ambient Operating Temperature: 0°C to 40°C
Microphone Preamplifier Type: 16 XLR female, balanced (combo connectors)
Frequency Response (to Main Output, unity gain): 20 Hz – 20 kHz, ±0.5 dBu
Input Impedance (Mic): 1 kΩ
THD (to Main Output): <0.005%, +4 dBu, 20–20 kHz, unity gain, unwtd
S/N Ratio (to Main Output): 94 dB (ref = +4 dBu, 20 kHz BW, unity gain, A-wtd)
Common Mode Rejection Ratio: 65 dB (1 kHz, unity gain)
Gain Control Range: 0 dB to +60 dB (±1 dB)
Maximum Input Level (Mic, unity gain): +12 dBu
Phantom Power: 48 VDC, switchable per channel (±2 VDC)
Line Inputs Type: (8) ¼" TRS female, balanced (combo connectors)
Frequency Response (Line, unity gain): 20 Hz – 20 kHz, ±0.5 dBu
Input Impedance (Line): 10 kΩ
THD (Line to Main Output): <0.005%, +4 dBu, 20–20 kHz, unity gain, unwtd
S/N Ratio (Line to Main Output): 94 dB (ref = +4 dBu, 20 kHz BW, unity gain, A-wtd)
Maximum Input Level (Line): +18 dBu
Tape Inputs Type: RCA female, unbalanced (stereo pair)
Maximum Input Level (Tape In): +12 dBu ±0.5 dBu
Monitor Outputs Type: ¼" TRS female, balanced (stereo pair)
Maximum Output Level (Monitor): +18 dBu ±0.5 dBu
Output Impedance (Monitor): 100 Ω
Tape Outputs Type: RCA female, unbalanced (stereo pair)
Maximum Output Level (Tape Out): +18 dBu ±0.5 dBu
Output Impedance (Tape Out): 100 Ω
Headphone Output Type: ¼" TRS female, active stereo
Maximum Output (Headphones): 100 mW/ch @ 60 Ω load
Frequency Response (Headphones): 20 Hz – 20 kHz (±0.5 dB)
THD+N (Headphones): 0.01% (1 kHz, max gain, 20 Hz BW, unwtd)
S/N Ratio (Headphones): 96 dB (1 kHz, max gain, 20 Hz BW, unwtd)
System Crosstalk (Input to Output): -90 dB (ref = +4 dBu, 20 Hz–20 kHz, unwtd)
Product Weight: 23.15 lbs.
Product Dimensions (L x W x H): 22.97” x 17.59” x 6.51”
