Description

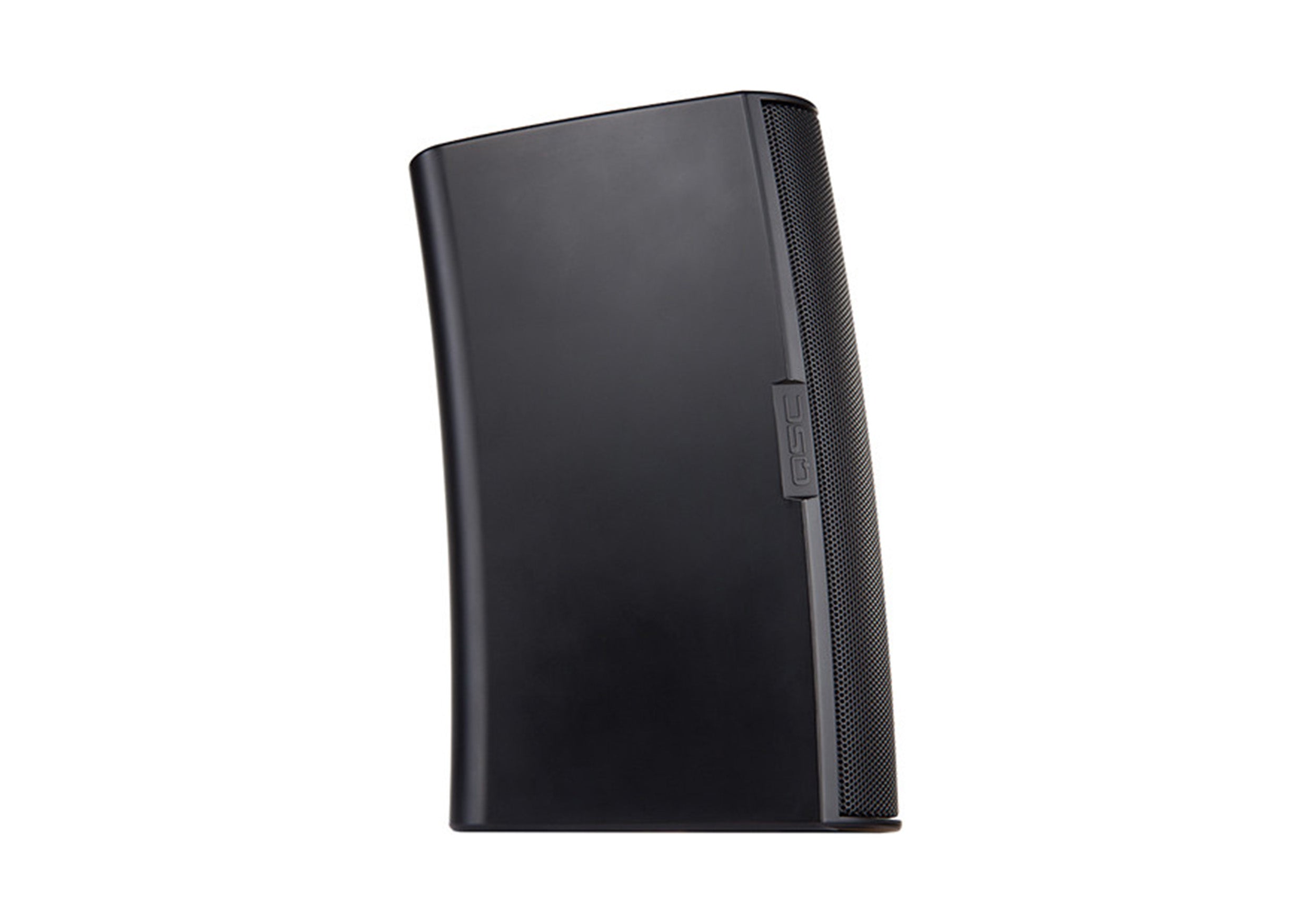

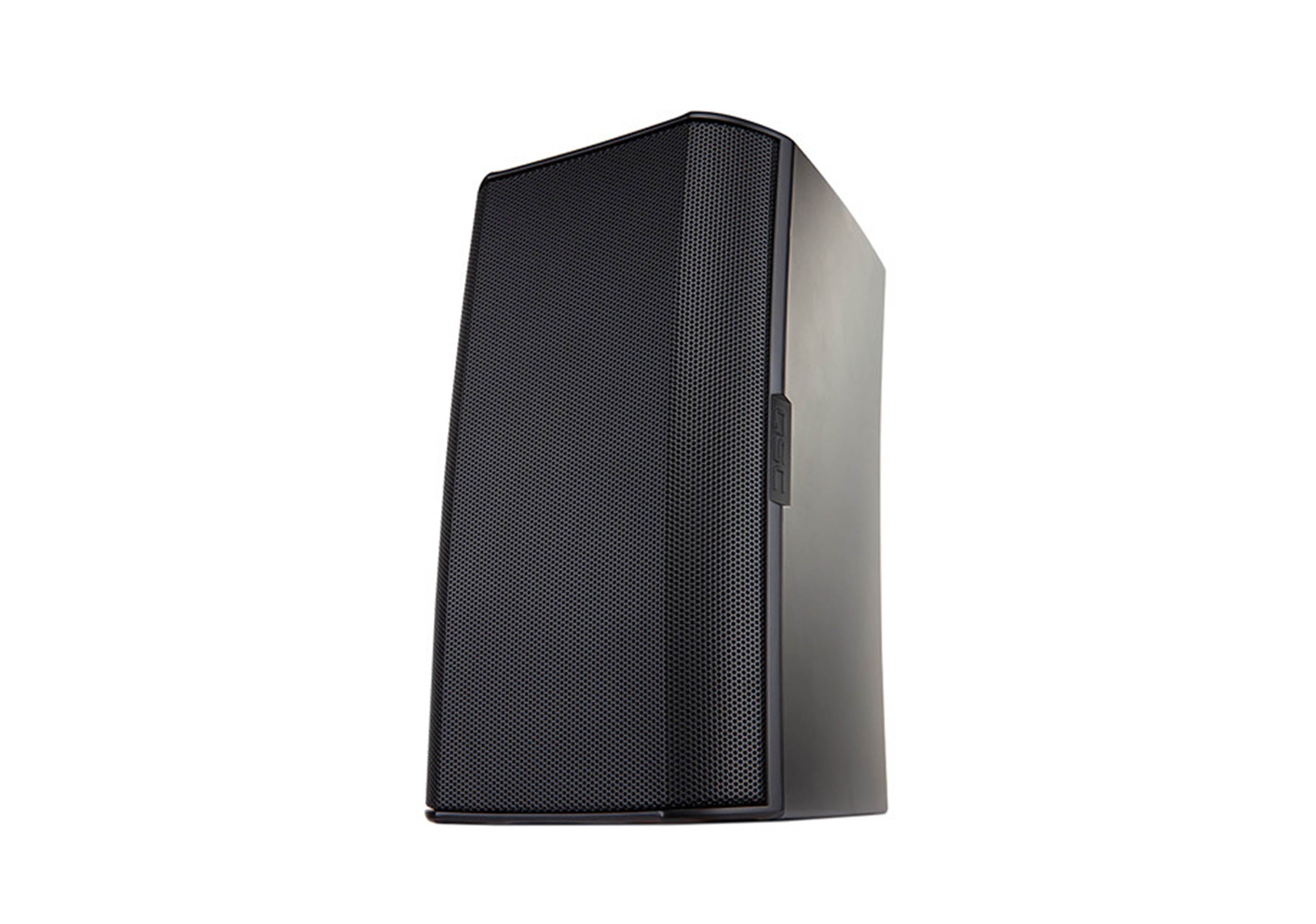

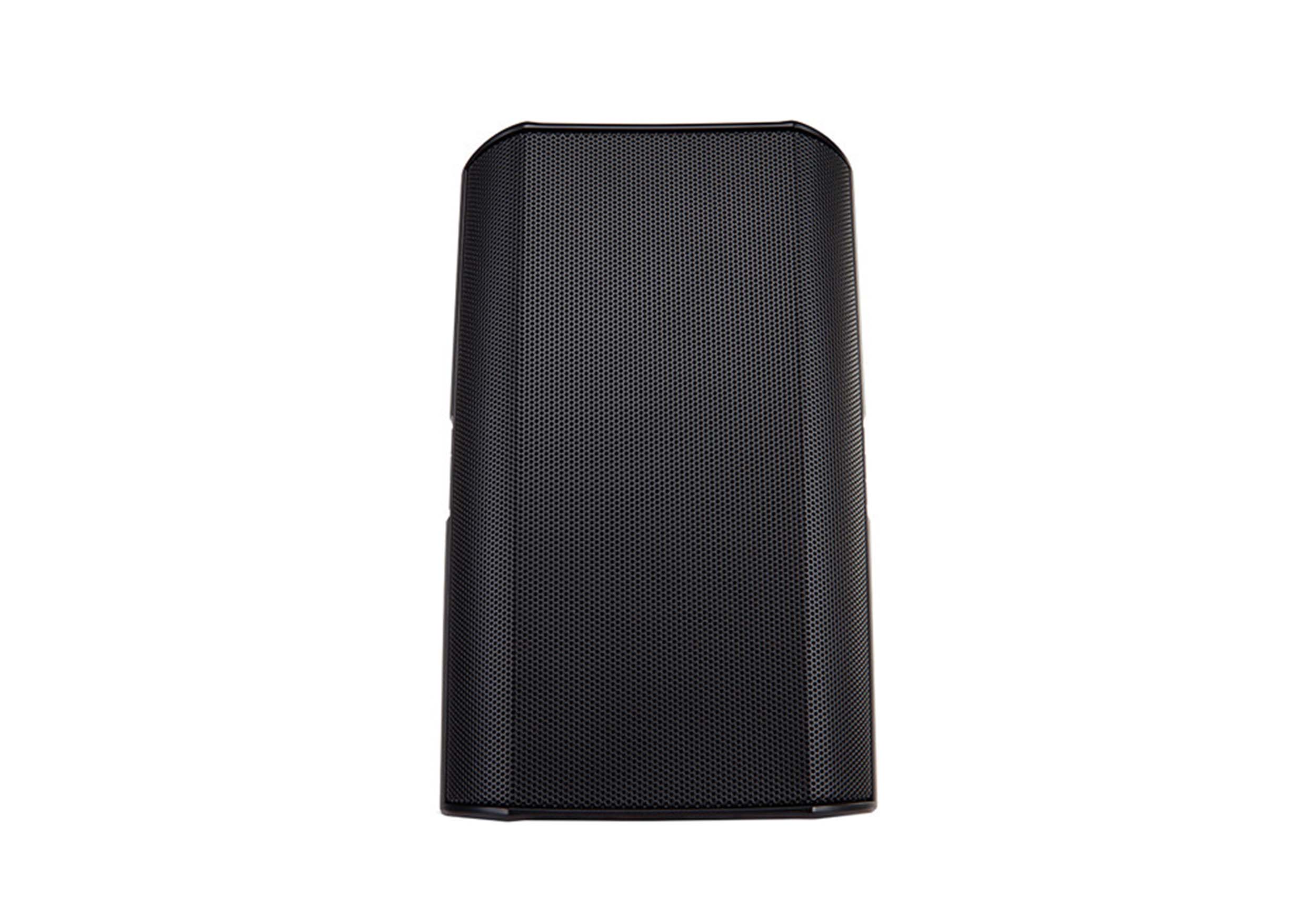

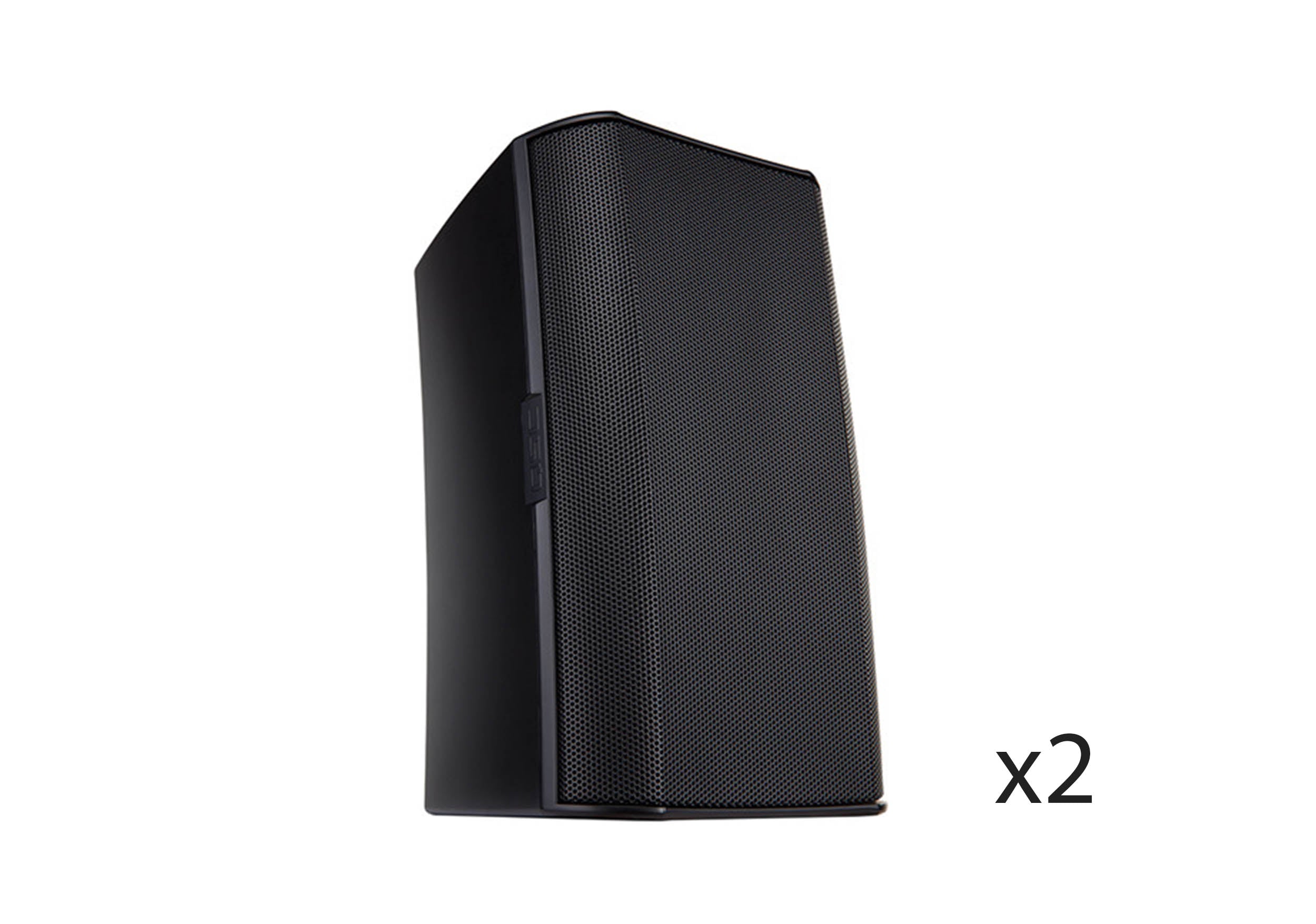

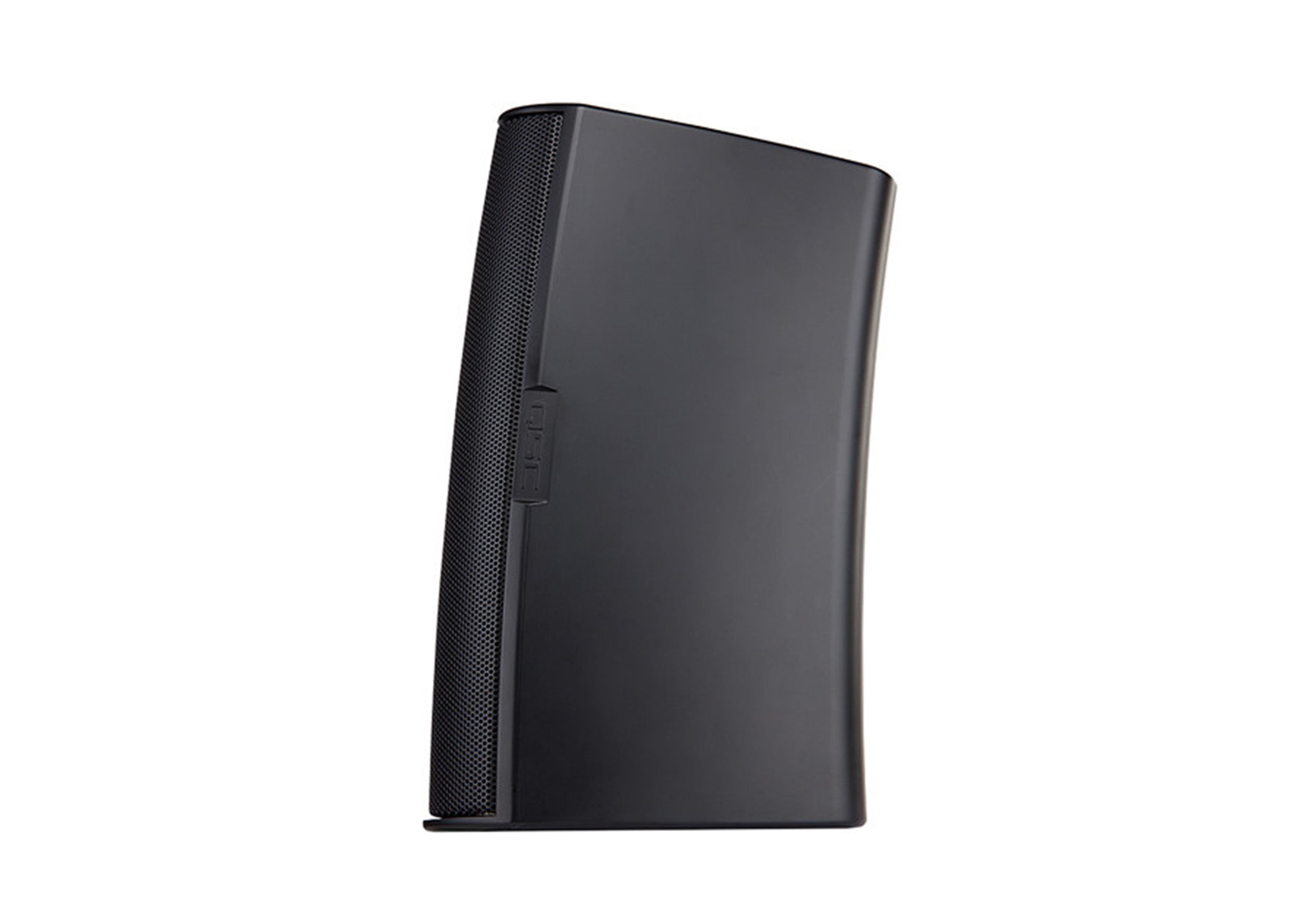

The QSC AD-S6T-BK Acoustic Design Series 6.5" 2-Way 150W Surface-Mount Loudspeaker - Black is a pair of transformer-equipped 6.5" surface-mount loudspeakers supplied with award-winning X-Mount systems, making them suitable for 70/100V or 8-ohm operation in a variety of foreground and background music applications, whether installed in horizontal, vertical, wall, or ceiling deployments.

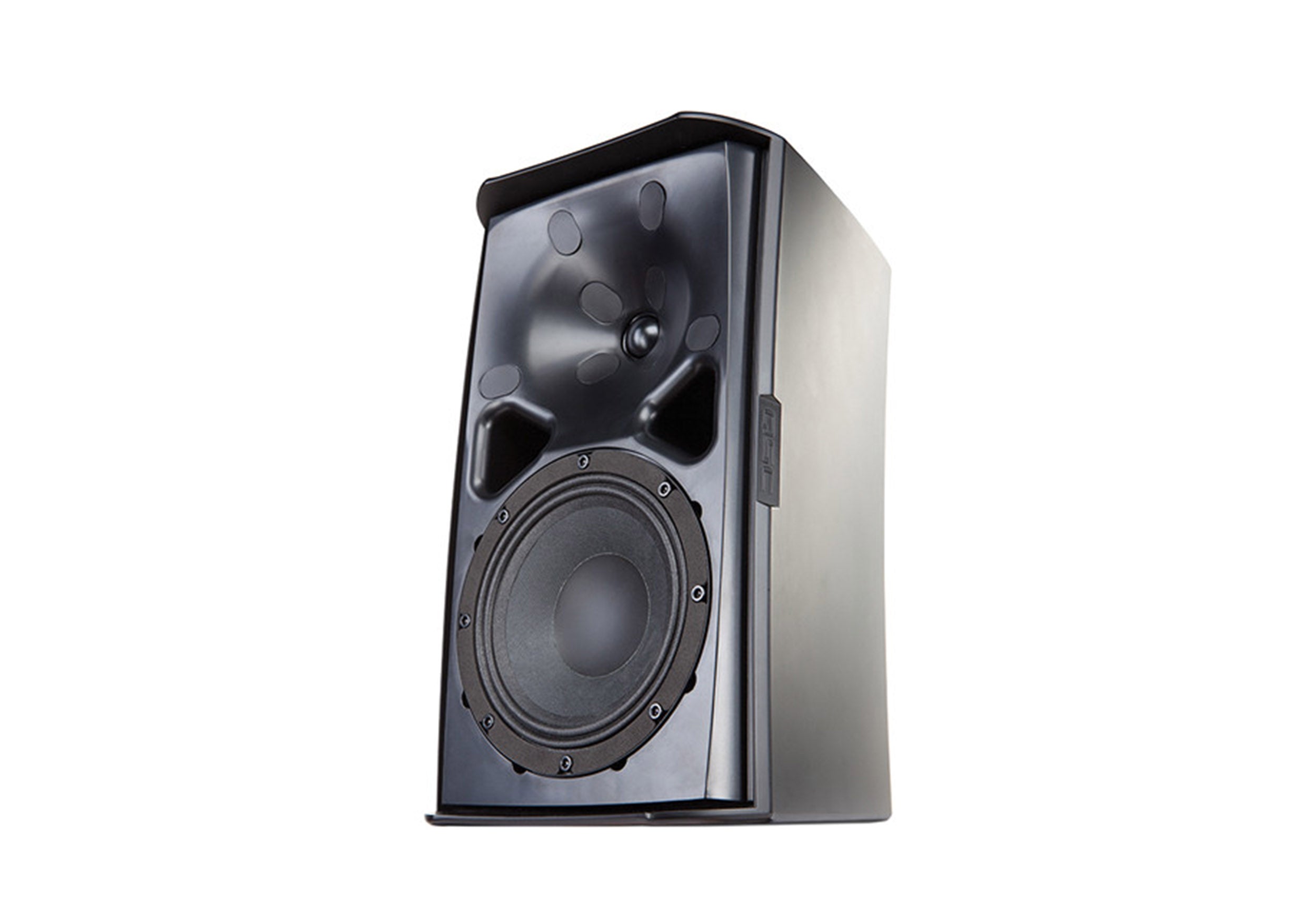

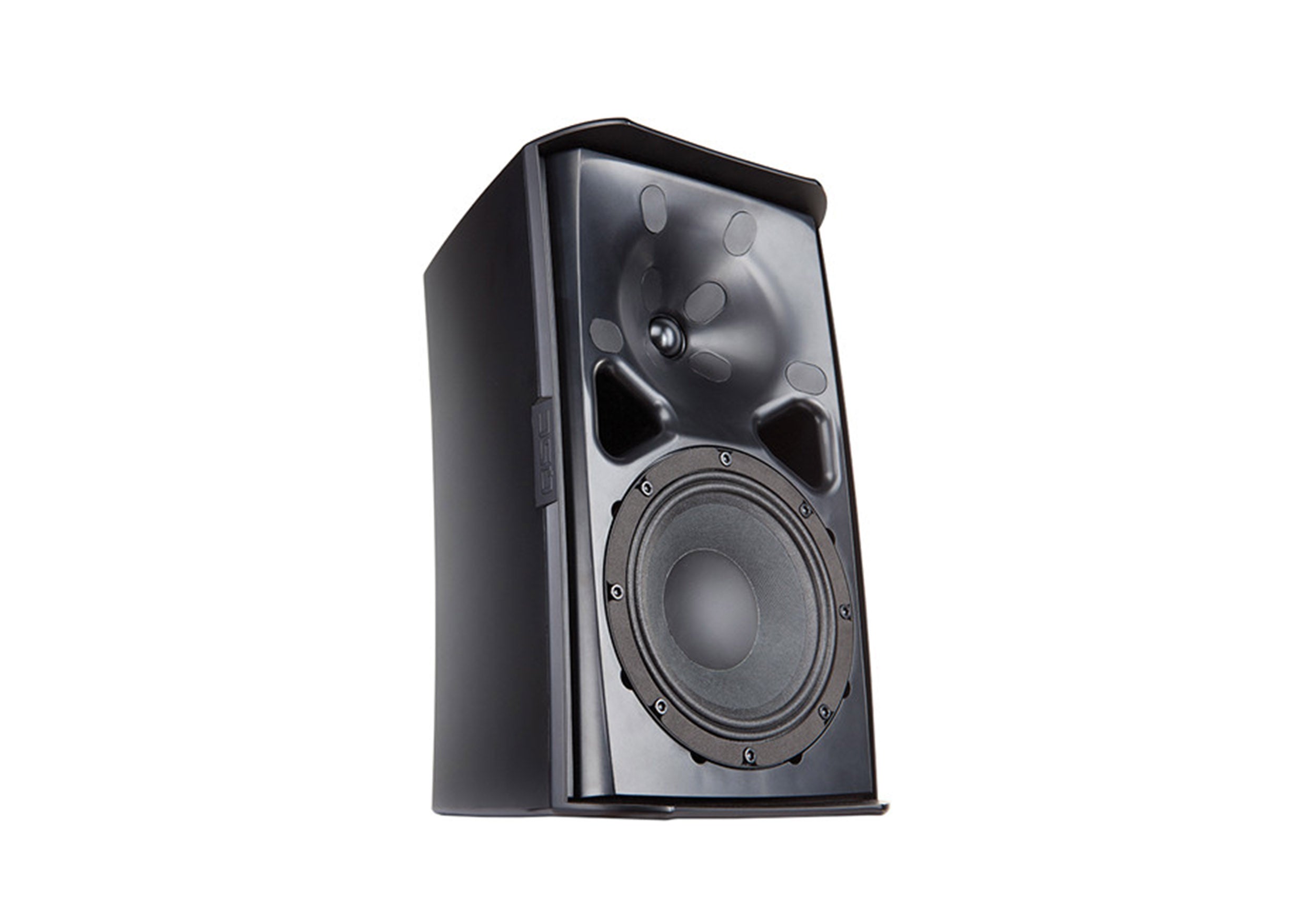

Outfitted with a 6.5" weather-treated woofer and a 1" silk dome tweeter on a DMT waveguide, the AD-S6T offers even 105° conical coverage and improved off-axis response while providing a frequency range of 60 Hz to 20 kHz (-10 dB). The speaker is capable of handling 150W RMS and producing a peak maximum SPL of 116 dB.
The AD-S6T utilizes a 4-pole Euroblock connector under a sealed input cover for easy wiring and protection from moisture. Featuring a rugged ABS enclosure and a powder coated aluminum grille, the AD-S6T boasts dust and splash resistance beyond IP54 ratings for worry-free operation indoors or outside.
Product Specification:
Active/Passive: Passive
Number of Included Speakers: 2
Speaker Configuration: 2-Way
Power Handling:
For 2 Hours / At Low-Z: 150 W RMS
Recommended Amplifier Power: 300 W
Constant Voltage / Transformer Taps:
70 V: 60 / 30 / 15 / 7.5 W or 8 Ohms Bypass
100 V: 60 / 30 / 15 W or 8 Ohms Bypass
Impedance: 8 Ohms (Transformer Bypassed)
Transformer Wattage: 60 W
Enclosure Type: Sealed
Shielded: No
Drivers:
HF Driver: 1x 1" / 2.54 cm Horn-Loaded Silk Dome Tweeter
HF Voice Coil: 1" / 2.54 cm
LF Driver: 1x 6.5" / 16.51 cm Paper Woofer
LF Voice Coil: 1.5" / 3.81 cm
Performance:
Frequency Range: 60 Hz to 20 kHz -10 dB
Maximum SPL:
110 dB (Continuous)
116 dB (Peak)
Sensitivity: 89 dB SPL
Coverage Angle: 105° (Conical)
Directivity:
5 (Directivity/Q Factor)
7 dB (Directivity Index)
Maximum Input Voltage: 35 V RMS
Connectivity:
Inputs/Outputs: 1x Block 4-Pole Speaker Input/Thru (Removable)
Operating Conditions: -4 to 122°F / -20 to 50°C
Mounting: 1x Bracket Point (Rear)
Construction Material: ABS, Aluminum Grille, Polymer
Dimensions: 14.4 x 8.5 x 8.5" / 36.58 x 21.59 x 21.59 cm
Product Weight: 13.6 lbs. / 6.2 kg (Each Speaker)
Shipping Weight: 33 lbs.
Shipping Dimensions (LxWxH): 20 x 12 x 12 Inches
