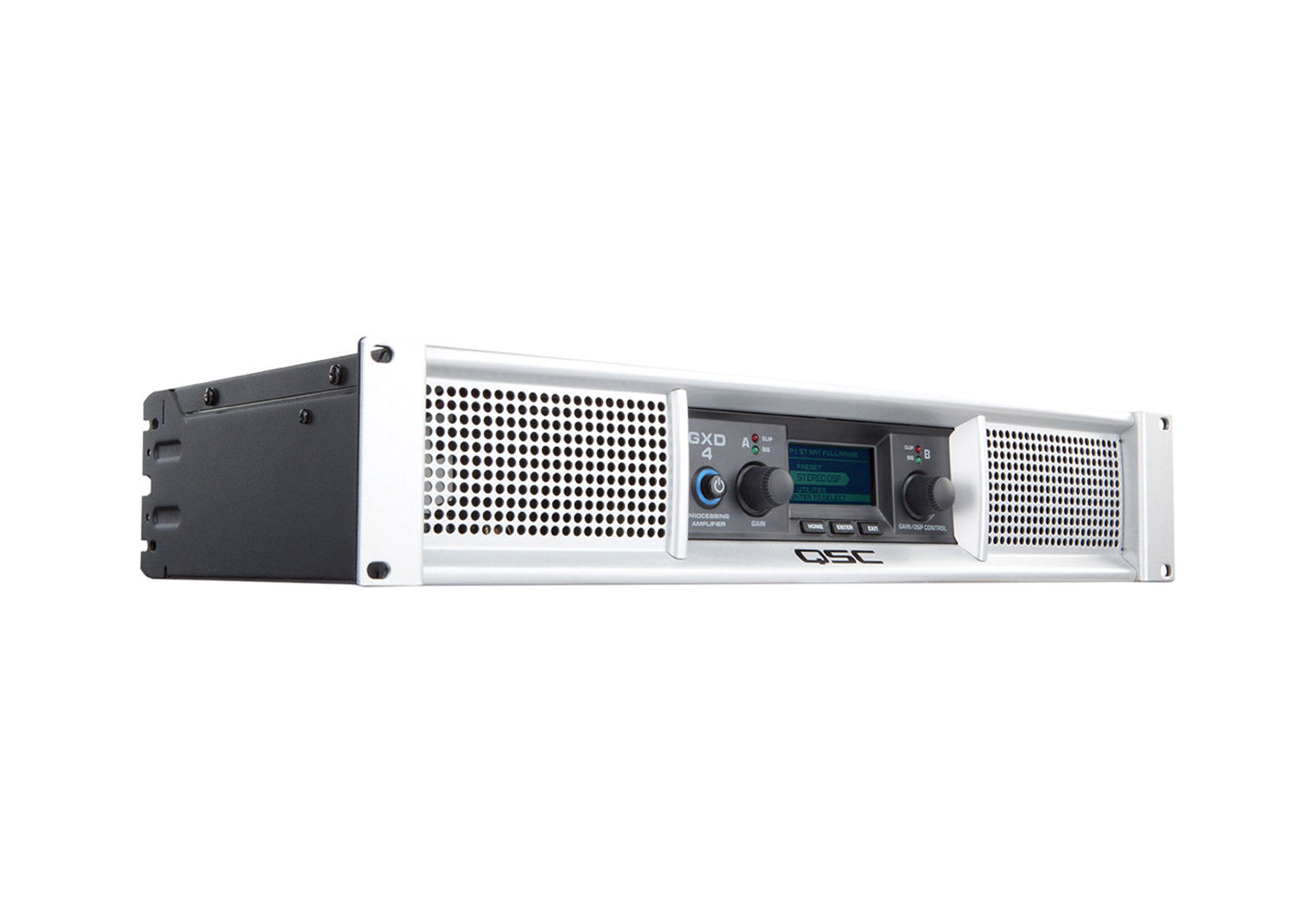

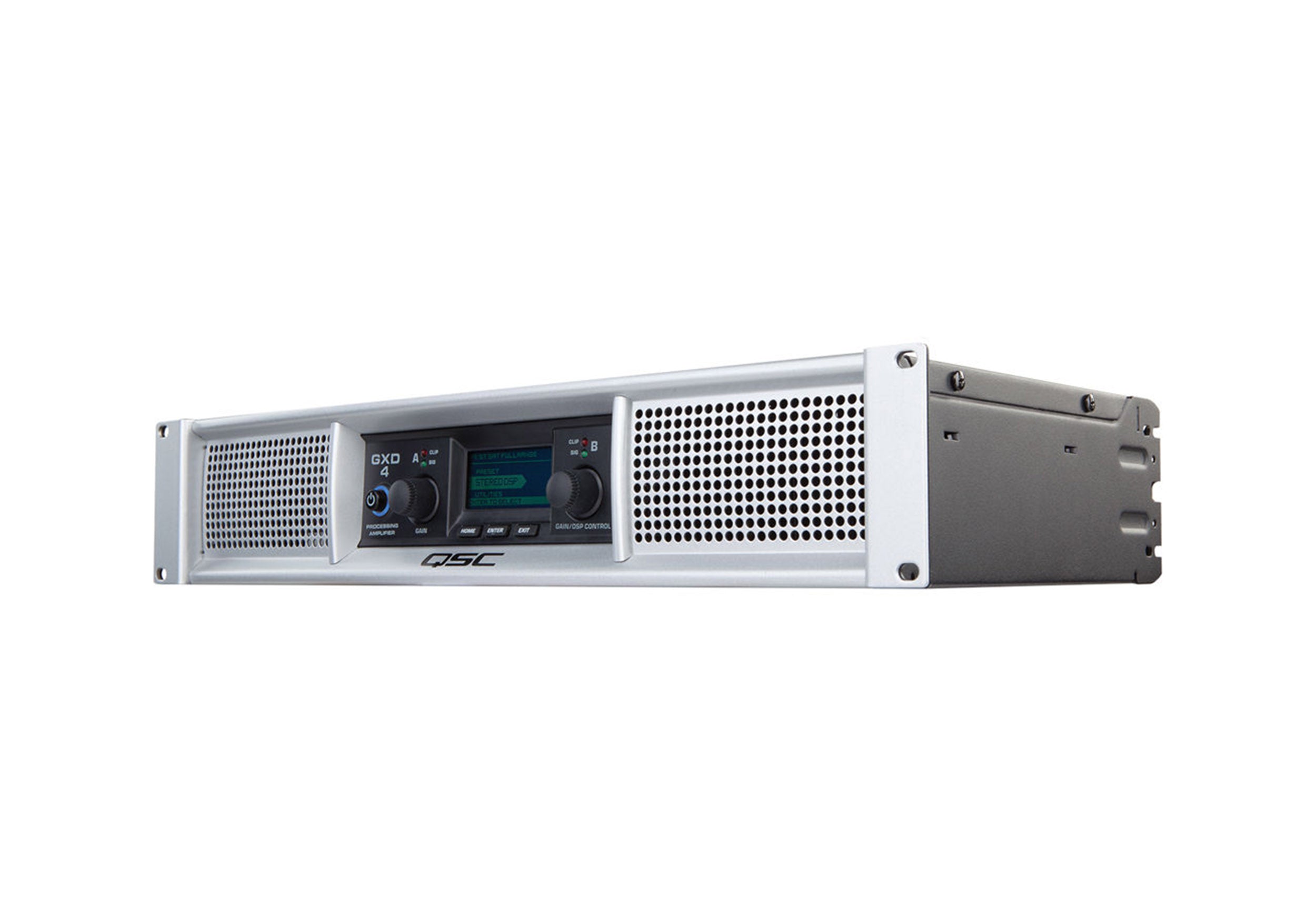

QSC GXD4 Professional 1600W Power Amplifier with DSP

The QSC GXD4 Professional 1600W Power Amplifier with DSP is a power amplifier designed for professional PA systems utilizing speakers with 4 and 8 ohm loads and a maximum output of 1600W. The GXD 4 employs a class D output stage with a universal power supply for high performance and efficiency, while keeping the unit lightweight at 11.3 lbs. The integrated DSP section includes High and Low-Pass filters (24dB LR), 4-band parametric equalizer, signal alignment delay, and RMS/Peak speaker protection limiting.

The parallel XLR and 1/4" TRS input connectors offer broad compatibility with convenient loop-through capabilities, while the professional binding posts and NL4 connector provide mono and bi-amped speaker connections. In addition to the limiting offered on inputs and outputs, the GXD employs smart speaker protection by providing settings for the loudspeaker's continuous output and impedance (4 ohm or 8 ohm). The GXD 4 ships with a standard IEC power cord.

Product Specifications:

Number of Channels: 2

Amplifier Power Rating:

8 Ohms:

600 W Peak per Channel

400 W RMS per Channel

4 Ohms:

800 W Peak per Channel

600 W RMS per Channel

Amplifier Class: Class-D

Performance:

Protections: DC Fault, Open Circuit, RF, Short Circuit, Thermal

Frequency Response: 20 Hz to 20 kHz +0.7/-0.8 dB

Damping Factor: 100

Input Sensitivity:

1.2 Vrms

3.9 Vrms

Input Impedance:

10 Kilohms (Unbalanced)

20 Kilohms (Balanced)

Max Gain: 33.5 dB

SNR: 100 dBA

THD: < 1% (1 kHz, at Rated Power)

Signal Processing:

Audio Delay: Adjustable Up to 50 ms

Crossover: Yes

EQ: 4-Band Parametric EQ

Filters:

High-Pass: 20 Hz to 4 kHz, 24 dB/Octave Linkwitz-Riley

Low-Pass: 60 Hz to 4 kHz, 24 dB/Octave Linkwitz-Riley"

Limiting: Peak

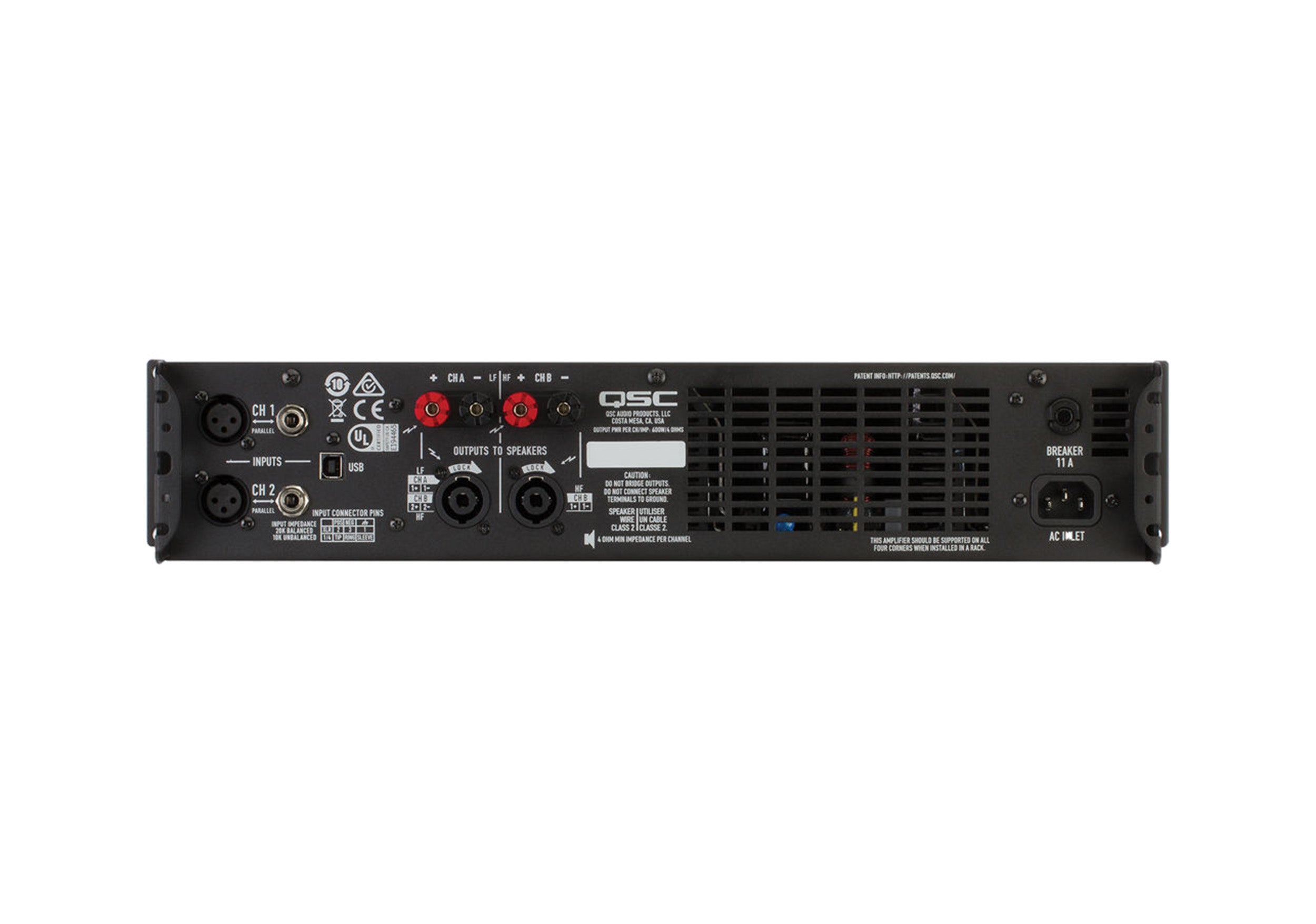

Connectivity:

Analog Audio I/O:

2x XLR 3-Pin Female Input

2x 1/4"" TRS Balanced Input

2x speakON NL4 Output

2x Binding Post Pair Output

Digital I/O: 0x TOSLINK

USB I/O: 1x USB-B

Power:

AC Input Power:

Universal: 100 to 240 VAC, 50 / 60 Hz

Current Consumption:

100 VAC, 4 Ohms: 3.4 A (1/8 Power)

120 VAC, 4 Ohms: 2.9 A (1/8 Power)

230 VAC, 4 Ohms: 1.6 A (1/8 Power)

Physical:

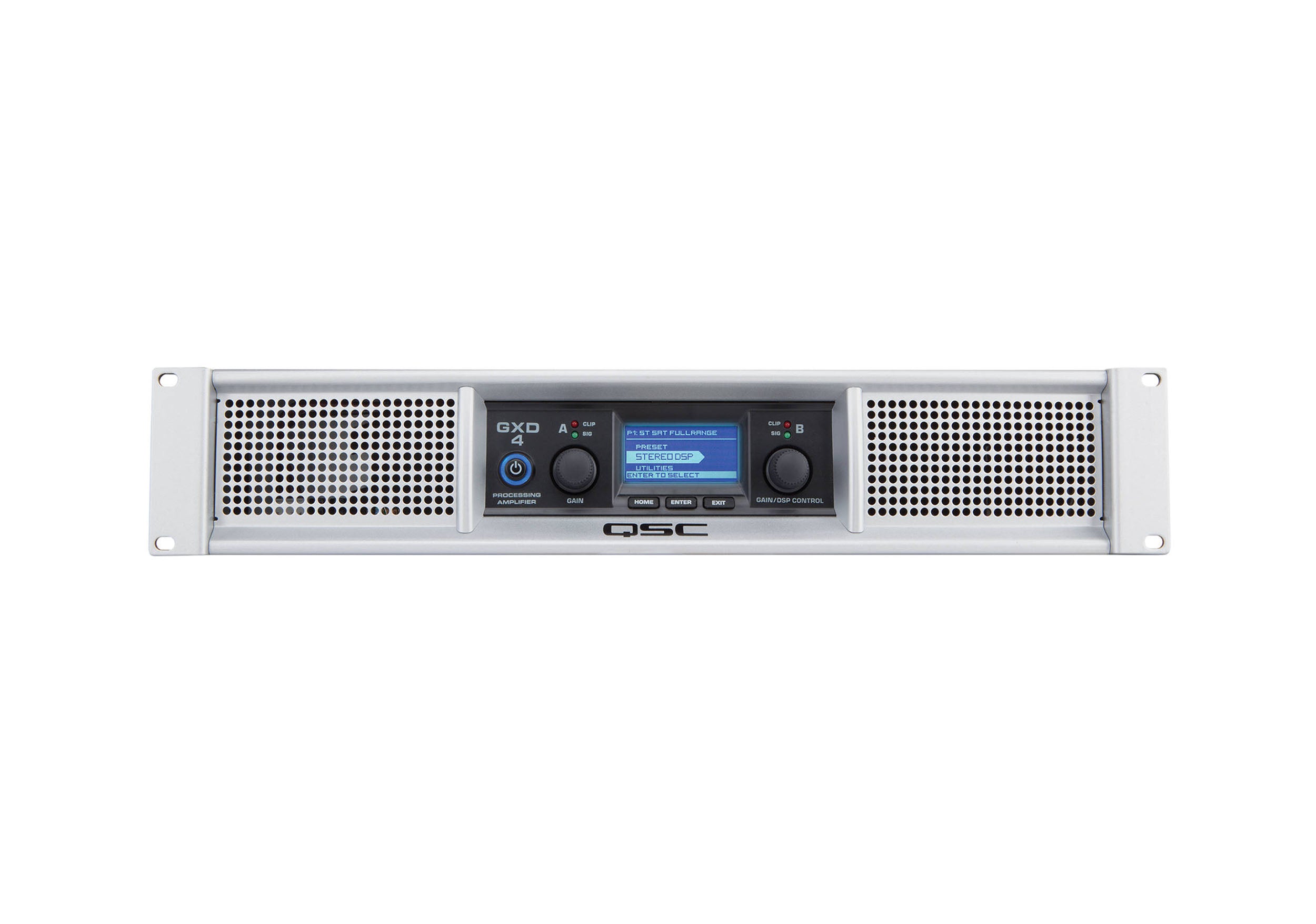

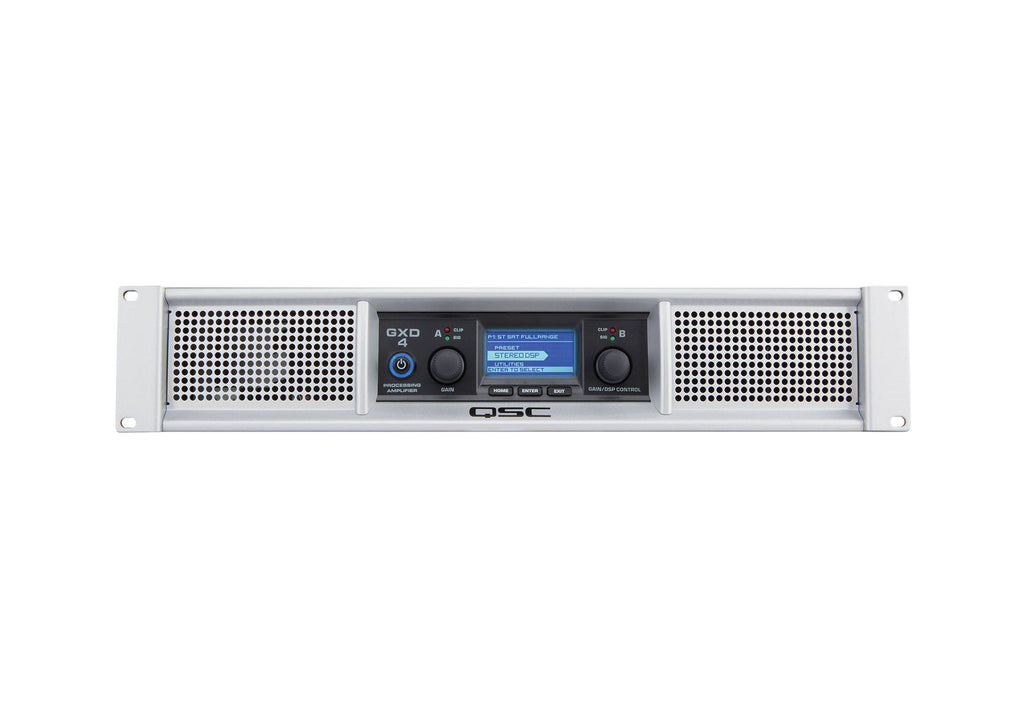

Display & Indicators:

 2x Green LED (Signal)

2x Red LED (Clip)

1x Blue LED (Power)

1x LCD

Rackmount Size: 2 U

Certifications: CE, RoHS, UL, WEEE

Product Weight: 11.3 lbs. / 5.1 kg

Product Dimensions: 19 x 10.2 x 3.5 Inches

Shipping Weight: 16 lbs.

Shipping Dimensions (L x W x H): 23.5 x 14.3 x 6.4 Inches
