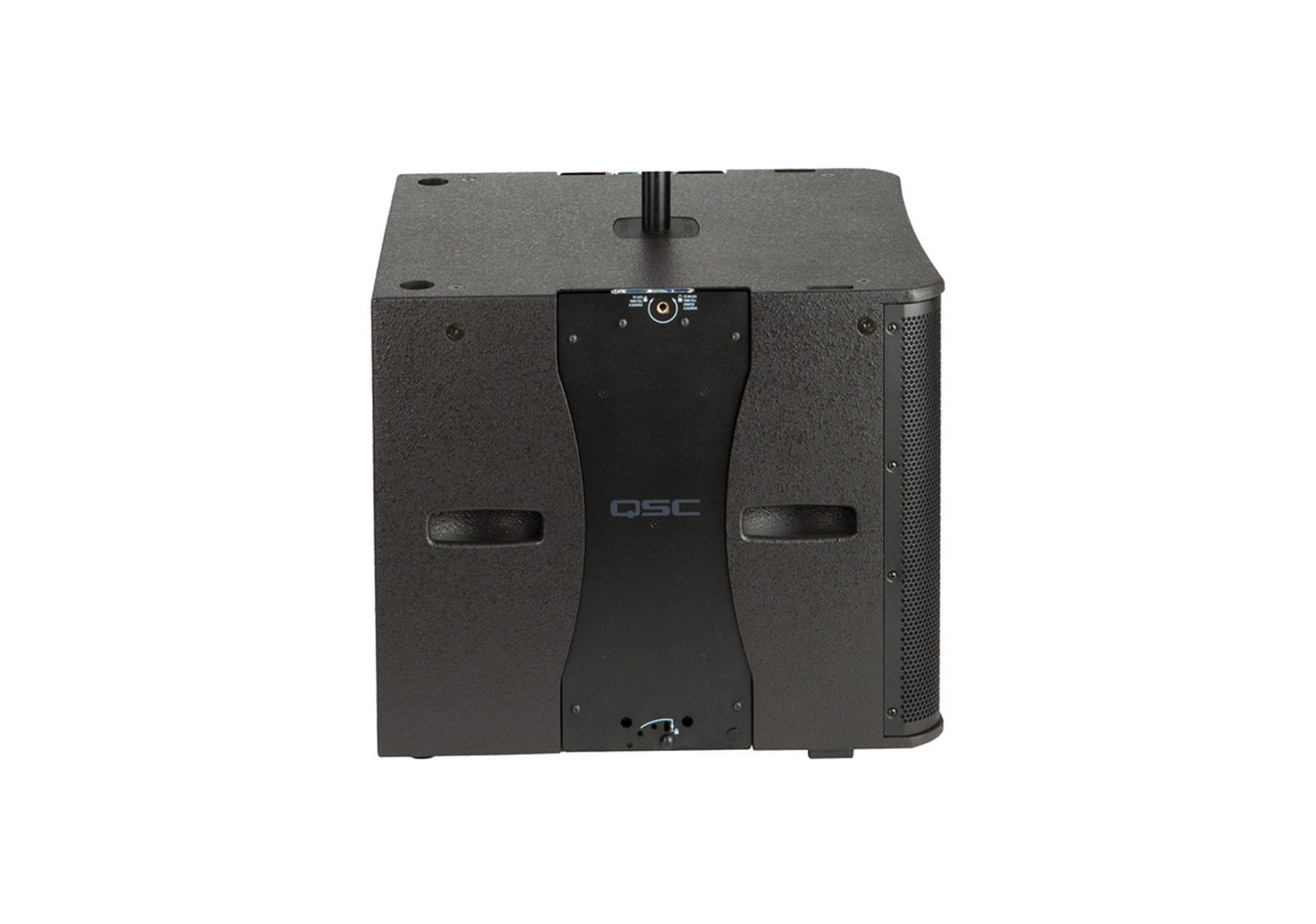

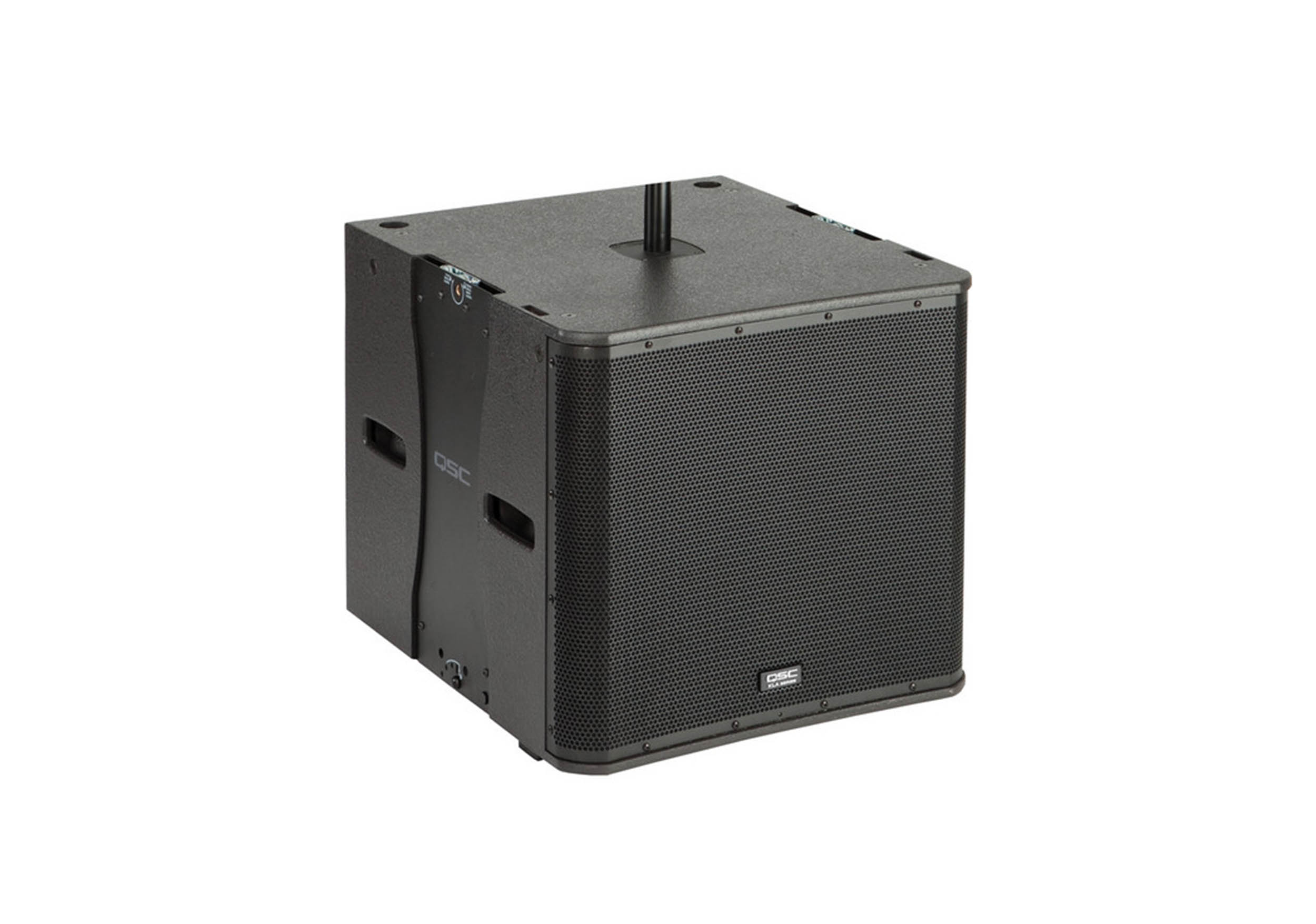

QSC KLA181-BK 1000W Powered 18-Inch Flying Subwoofer- Black

The QSC KLA181-BK 1000W Powered 18-Inch Flying Subwoofer - Black is a designed to be used in the KLA series system. The 1000W amplifier powers the 18" woofer, which reproduces frequencies down to 33 Hz with a maximum SPL of 135 dB. The KLA181 has an integrated threaded pole-cup receptacle that allows you to pole-mount up to two KLA12 speakers on top of it for array setup. Its M10 fittings allow it to alternatively be suspension mounted.

Additional features include a "DEEP" DSP algorithm for power bass, Guardrail protection to prevent clipping, a balanced XLR line input, an XLR thru, a polarity switch, an attenuation control, and LED indicators. The KLA181 includes a 3.6' and 12' powerCON power cords as well as an 3' XLR audio loop-thru cable, a 3' powerCON loop-thru cable, a Hex key, and a 3-pin Euroblock connector.

Product Specifications:

Enclosure Type: Bass-Reflex Subwoofer

Total Power Capacity: 1000 W

LF Driver: 1x 18" / 45.72 cm Woofer

Performance:

Frequency Range: 33 Hz -10 dB

Frequency Response: 38 Hz -6 dB

Maximum SPL: 135 dB

I/O Impedance: XLR Input:

40 Kilohms (Balanced)

20 Kilohms (Unbalanced)

Protections: Excursion, Overcurrent, Thermal

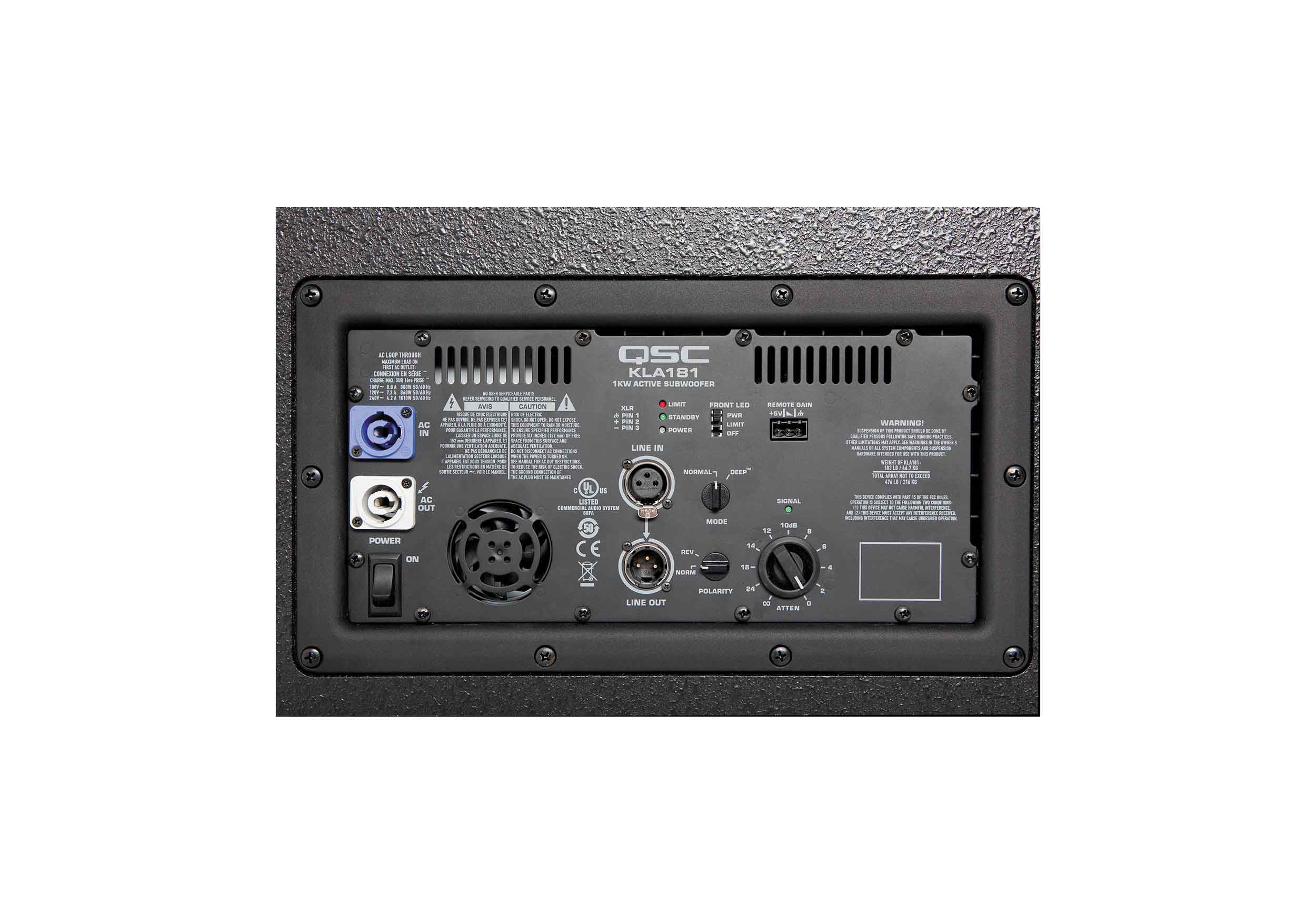

Connectivity:

Audio I/O:

1x XLR 3-Pin Female Balanced Line Input

1x XLR 3-Pin Male Balanced Line Output

Mobile App Compatible: No

Phase Adjustment: Yes

Power:

AC Input Power: 100 to 240 VAC, 50 / 60 Hz

AC Power I/O:

1x powerCON Input

1x powerCON Output

Current Consumption:

100 VAC: 2.3 A (1/8 Power)

120 VAC: 2.01 A (1/8 Power)

230 VAC: 1.13 A (1/8 Power)

Mounting:

1 x M20 Pole Socket (Top)

4 x M10 Fly Point (Top)

1 x Bracket Point (Each Side)

Handles: 2x Each Side

Cooling: Fan

Product Weight: 104 lb / 47.2 kg

Product Dimensions: 21.6 x 23.4 x 25.7" / 547 x 594 x 653 mm

Shipping Weight: 120 lbs.

Shipping Dimensions (LxWxH): 31 x 28 x 24 Inches
