Description

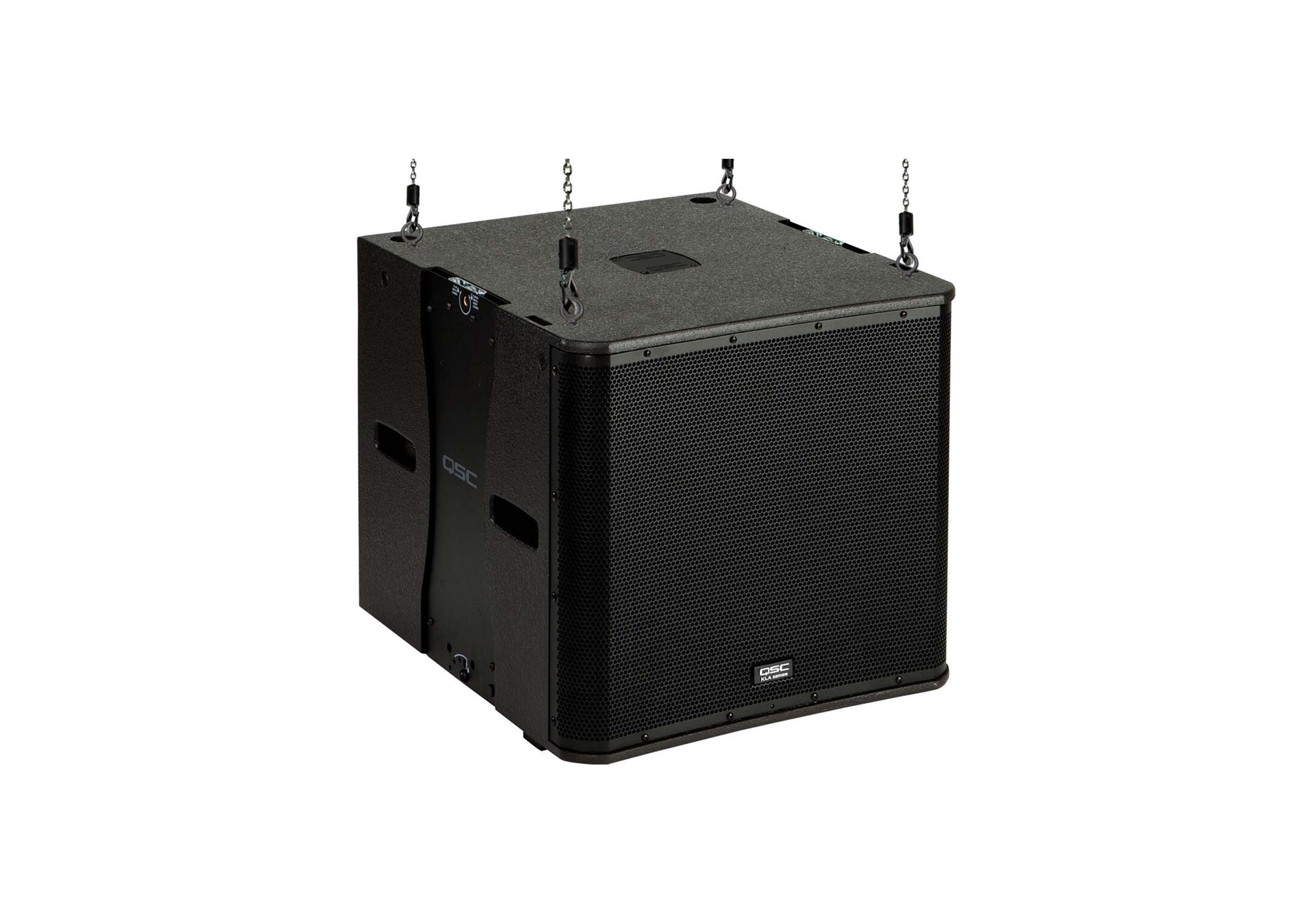

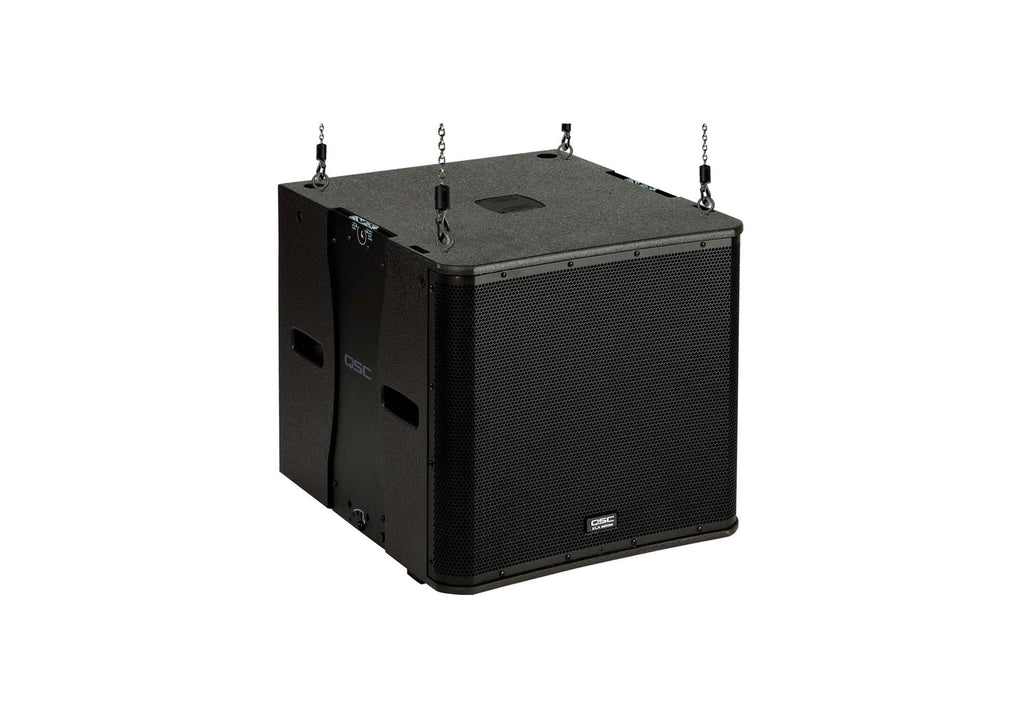

The QSC M10-KIT-S (QSC's M10 Eyebolt Kit-S) is a set of four M10 x 1.5, 35 to 38 mm forged shoulder eyebolts for suspending a subwoofer. QSC lists it as the suspension kit for the QSC LS118, and QSC's KLA Series manual specifies the same 35 to 38 mm eyebolts for the four M10 points on top of the KLA181.
Can I use it to fly a QSC KS118, KS112 or KS212C?
No. QSC's KS Series manual says not to fly or suspend any KS Series subwoofer, because they are not intended or equipped for it, and to use them only on a flat surface such as a floor or stage. QSC's KS118 FAQ says the KS118 has no hardware intended for flying. For KS118 ground and pole setups, see the QSC KS118 page.
Can I hang speakers under a flown LS118, or fly several LS118 together?
No. QSC's LS118 and LS218 user manual says only a single LS118 can be safely suspended with the M10 Eyebolt Kit-S, and not to suspend additional loudspeakers or subwoofers underneath it. QSC's L Class FAQ adds that flying an array of several subwoofers is not supported. A single LS118 can be flown behind or next to an LA108 or LA112 array. The LS118 has four M10 points on the top and four on the side, so it can hang in either direction.
Does it fit QSC K.2, legacy K or KLA12 speakers?
No. For the K.2 and legacy K Series, QSC specifies the M10 Kit-C, or any forged shoulder M10 eyebolt with a thread no longer than 0.8 inch (20 mm). The KLA12 takes the 20 mm eyebolts of the K Series M10 KIT. The Kit-S eyebolts are the longer 35 to 38 mm size made for subwoofers.
How do the eyebolts install?
QSC's LS118 manual: use a 6 mm hex key to remove the four hex screws from the four M10 points on the top or the side, thread an eyebolt into each insert, tighten until each shoulder is snug against the enclosure, then keep turning it to the position you need. Do not overtighten, which can damage the eyebolt thread or the insert. QSC's KLA Series manual gives the same steps for the four M10 points on top of the KLA181.
Product Specifications:
| Contents | 4 forged shoulder eyebolts |
| Size | M10 x 1.5, 35 to 38 mm (about 1.4 to 1.5 in) |
| Material | Steel |
| For | QSC LS118 (one subwoofer, nothing suspended underneath), QSC KLA181 |
| Not for | QSC KS112, KS118 and KS212C (QSC: do not fly or suspend any KS Series subwoofer); QSC K.2, legacy K and KLA12 speakers (use the M10 Kit-C or K Series M10 KIT) |
| Shipping Weight | 1.055 lbs. |
| Shipping Dimensions (LxWxH) | 4.8 x 3.3 x 2.4 Inches |
Disclaimer: Hollywood DJ provides load information, including the manufacturer load tables we host, for general reference only. It is not intended to replace a qualified engineer or professional rigger, who should plan and approve any truss or staging installation.
