QSC LA108, 8" Powered Line Array Loudspeaker Package with Array Frame

Transform your live sound setup with the QSC DJ Package, featuring two QSC LA108 2-Way 8-Inch Powered Line Array Loudspeakers and a QSC LA108-AF Array Frame. Designed for unparalleled audio performance, the LA108 speakers deliver crystal-clear sound with powerful bass, making them perfect for concerts, events, and large venues. The included array frame allows you to effortlessly rig the speakers for optimal coverage, ensuring every note is heard with precision. Elevate your sound to professional levels with this dynamic package—perfect for DJs and audio engineers who demand the best.

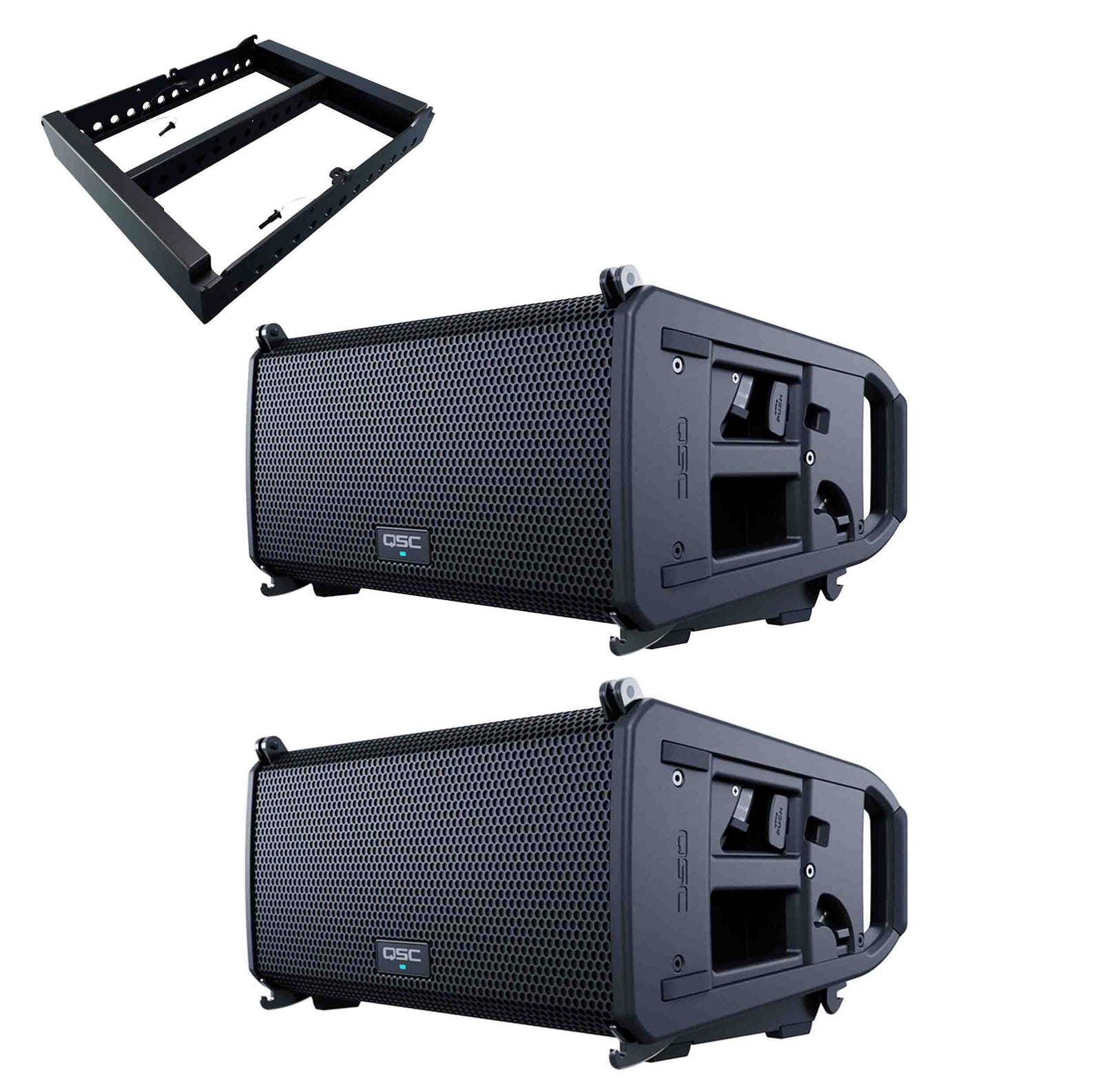

QSC DJ Package Includes,

• 2 QSC LA108, 2-Way 8-Inch Powered Line Array Loudspeaker
• 1 QSC LA108-AF Array Frame for LA 108 Line Array Loudspeaker

2 QSC LA108, 2-Way 8-Inch Powered Line Array Loudspeaker

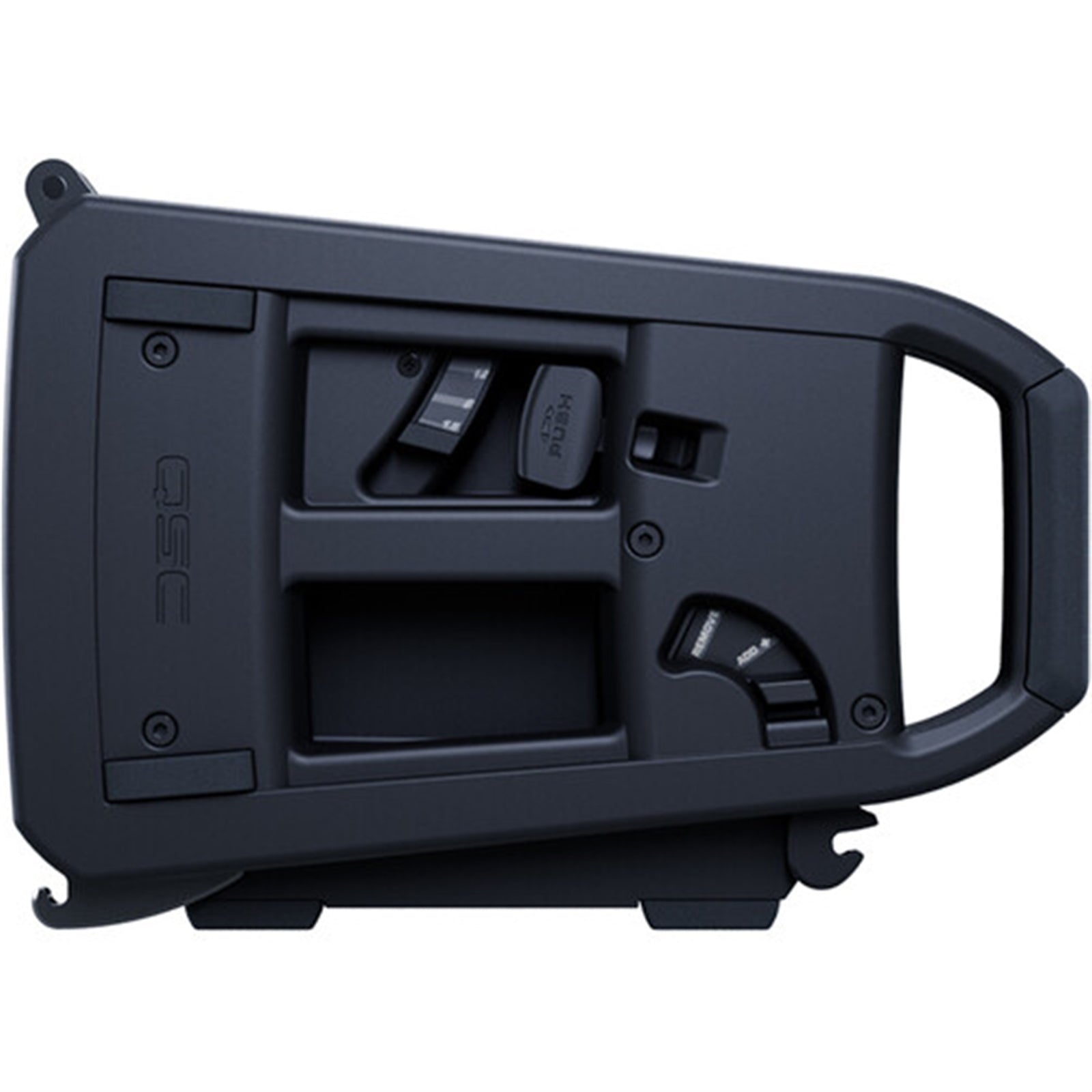

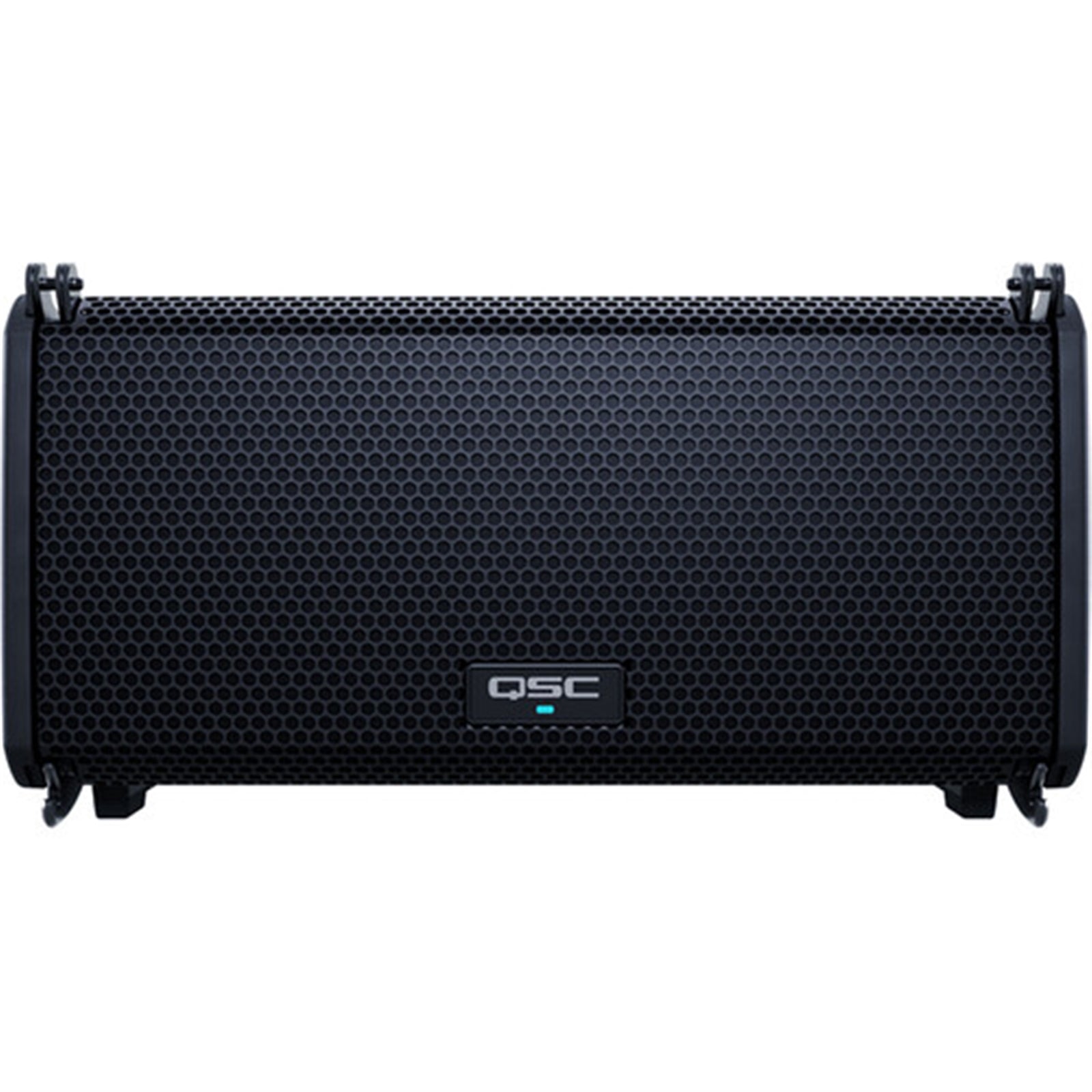

The QSC LA108, 8-Inch Powered Line Array Loudspeaker 2-Way is a next-generation, intelligent, active line array loudspeaker featuring a brilliant combination of leading-edge innovation, refined engineering and unparalleled ease of use in an easy-to-deploy package.

Delivering extraordinary audio experiences and exceptional performance via system intelligence and premium components, the LA108 is the result of a deep understanding of customer needs and application requirements. The LA108 is easy to configure and deploy for applications ranging from simple, portable, plug-and-play setups, to demanding, networked, high-tech AV productions and fixed installations. Solo entertainers, installers and production companies will value its intuitive splay angle adjustment and array optimization, as well as its flexible interoperability with networked audio systems (Dante).

Deployed using dedicated array frame, ground-stacked (array frame combined with optional sub-stack adapters), or mounted using loudspeaker stand/pole, the LA108 loudspeaker also features daisy-chain connections for analog, digital audio and AC power (PowerCON TRUE1).

Product Specifications:

Configuration: Two-way active line array loudspeaker

LF Transducer: 203 mm (8-inch), cone

Frequency Response (-6 dB): 62 Hz - 20 kHz

Frequency Range (-10 dB): 57 Hz - 20 kHz

Nominal Coverage Angle: 100° H x 15° V

Maximum Rated SPL1 (peak): 134 dB @1 m

Amplifier (peak): Class D, LF 1000 W / HF 300 W

Cooling: Convection cooling

Controls: Rotary push encoder, 2 x Push buttons (Menu, ID)

Indicators: Power LED, Limiter active LED, Standby active LED, 2 x Signal LED

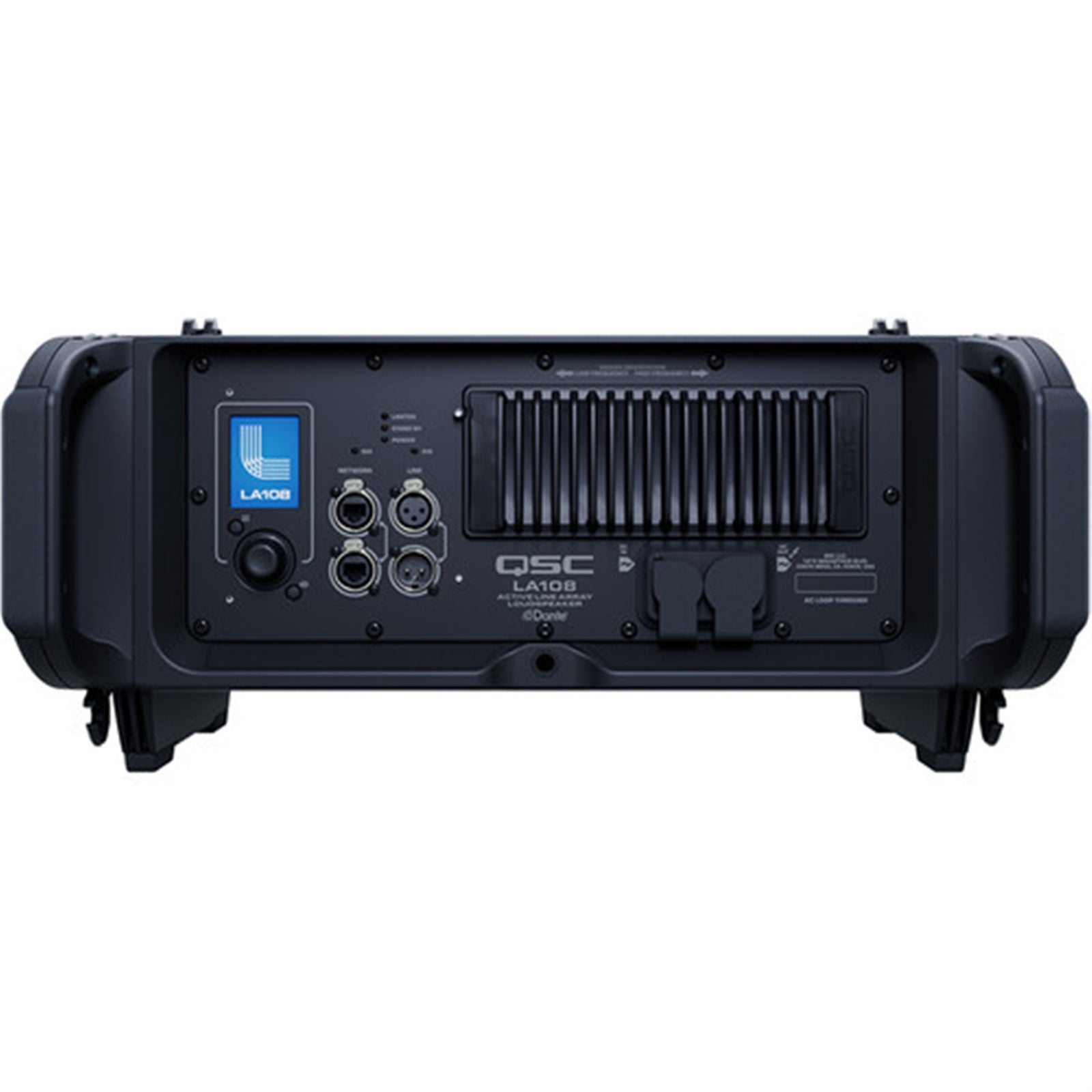

Connectors:

XLR Female (Analog In)

XLR Male (Analog Thru)

2 x RJ45 EtherCON (Dante and QSC SysNav in/Thru)

2 x PowerCON TRUE1 (AC Power Inlet/Outlet)

AC Power Input: Universal power supply 100 – 240 VACS, 50 – 60 Hz

AC Power Consumption2: 100 VAC, 0.8 A / 120 VAC, 0.75 A / 230 VAC, 0.5 A

Enclosure Material: Impact Resistant ABS

Attachment Points:

QSC Rapid Deploy rigging system

1x M10 (on rear panel for pull-back)

Color: Black (RAL 9011)

Grille: 18 GA Powder coated steel

Dimensions (H × W × D): 10.7 x 20.4 x 14.7 inches

Net Weight: 13.7 kg (30.1 lb)

Shipping Weight: 17.1 kg (37.6 lb)

Supplied Accessories: 1 x PowerCON TRUE1 power cable

Regulatory: UL, CE, FCC Class B

1 QSC LA108-AF Array Frame for LA 108 Line Array Loudspeaker

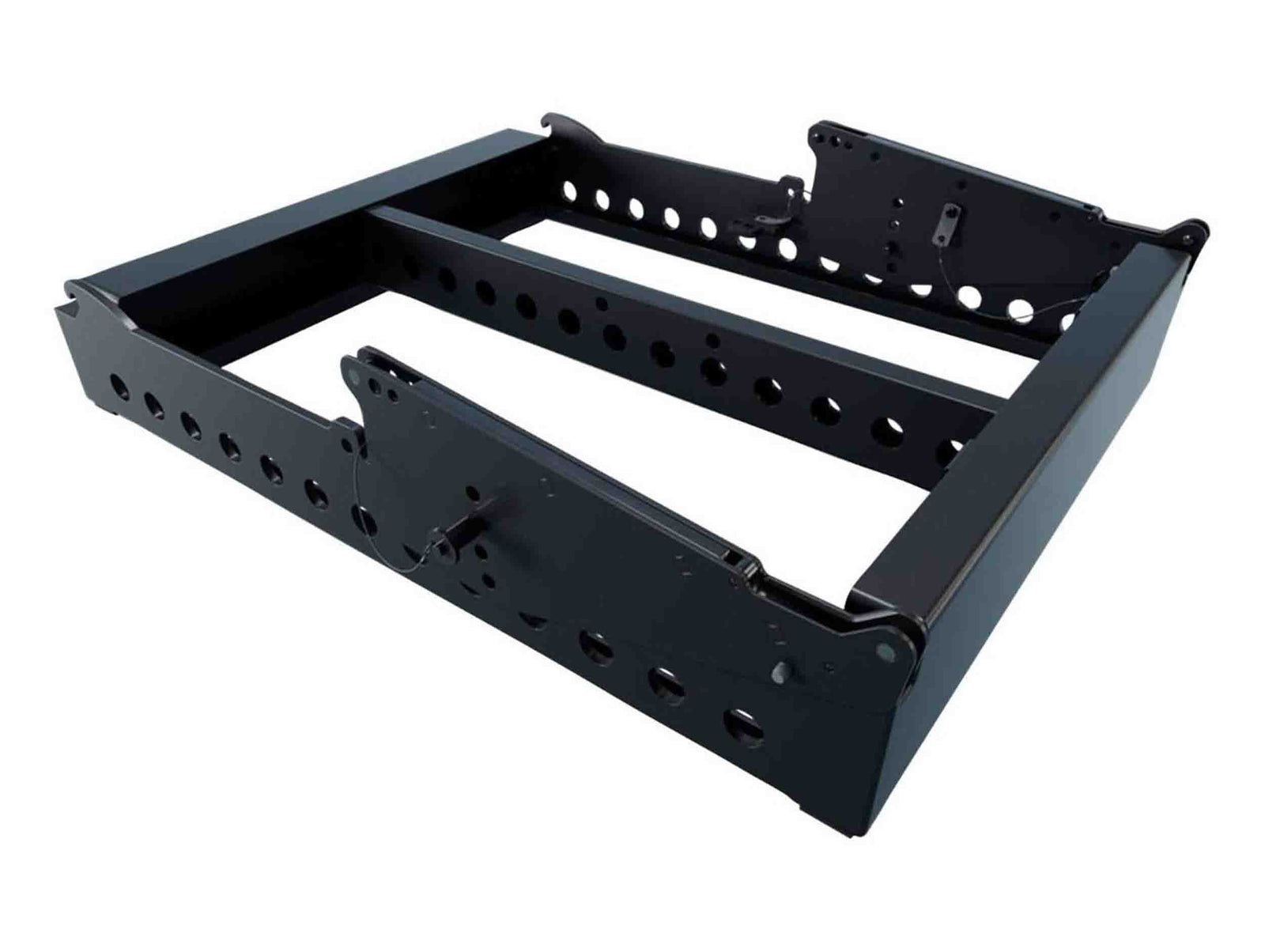

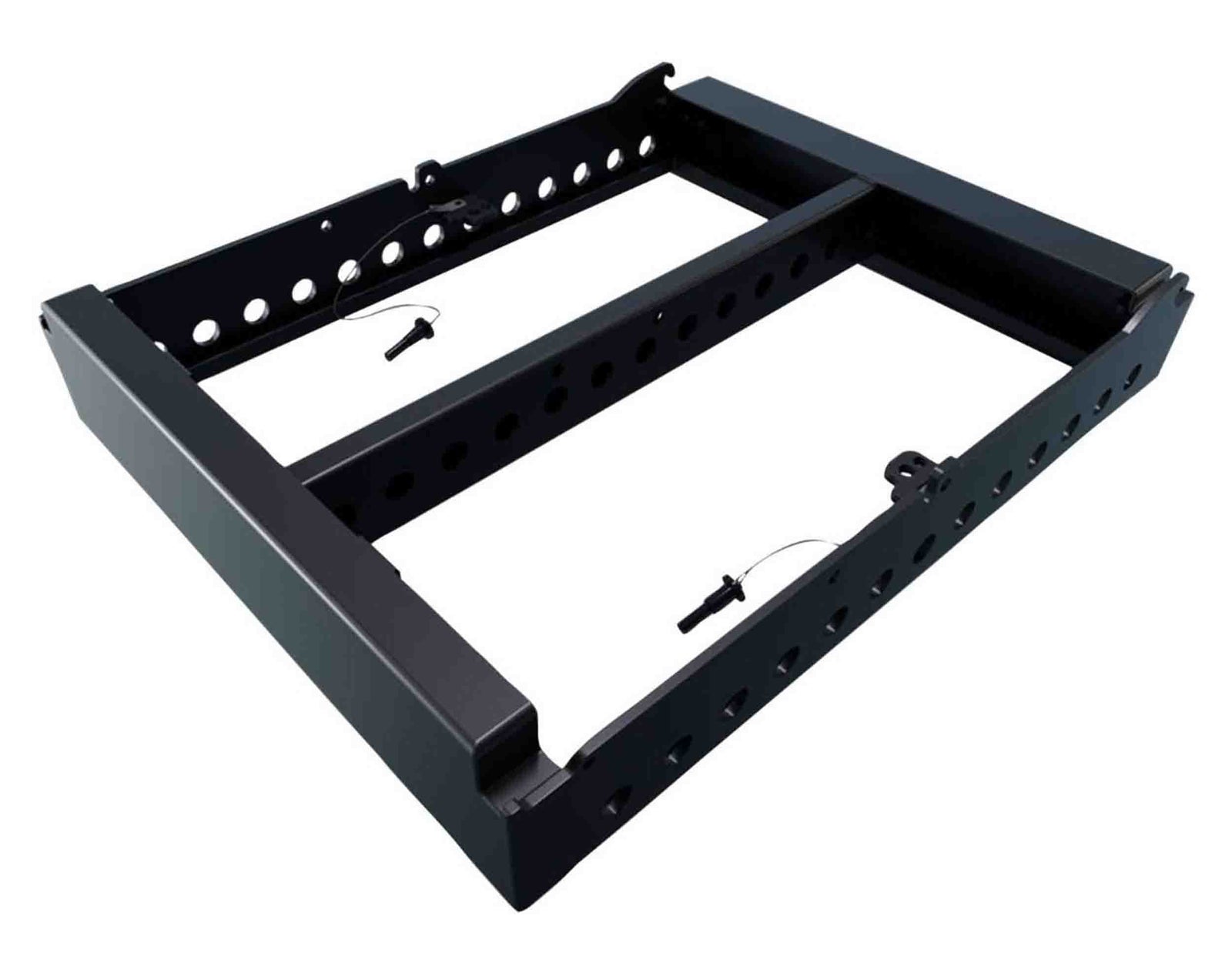

Audio professionals looking to rig their LA Series line array speaker modules will appreciate the QSC LA108-AF Array Frame for LA 108 Line Array Loudspeaker. It enables you to rig and deploy up to six loudspeaker modules.

Product Specifications:

Type: Hardware

Dimensions (H x W x D): 108 x 476 x 600 mm / 4.3 x 18.7 x 23.6 in

Net Weight: 10.9 kg / 24 lb

Shipping Dimensions (H x W x D): 191 x 559 x 683 mm / 7.5 x 22 x 26.9 in

Shipping Weight: 12.5 kg / 27.5 lb
