Description

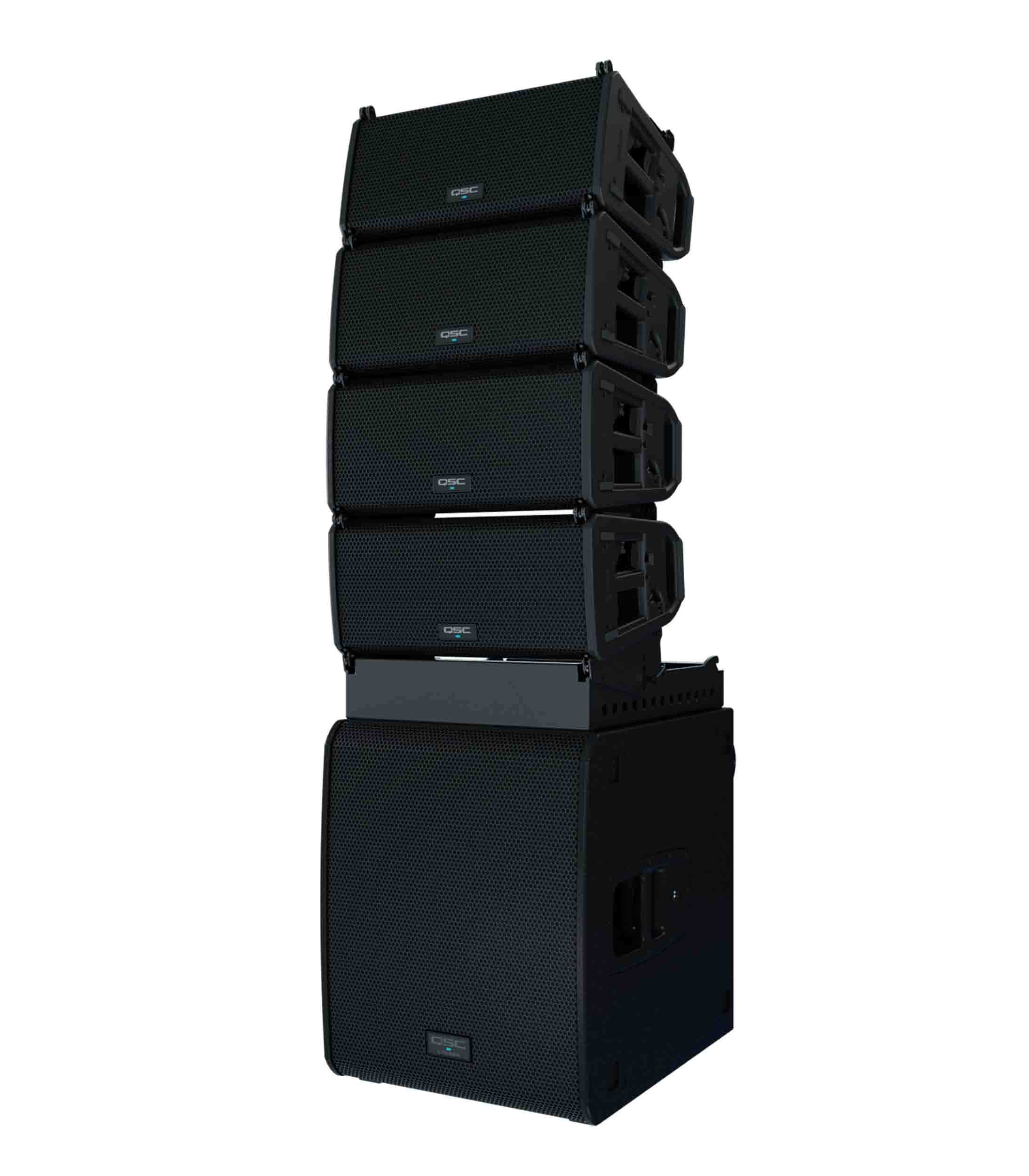

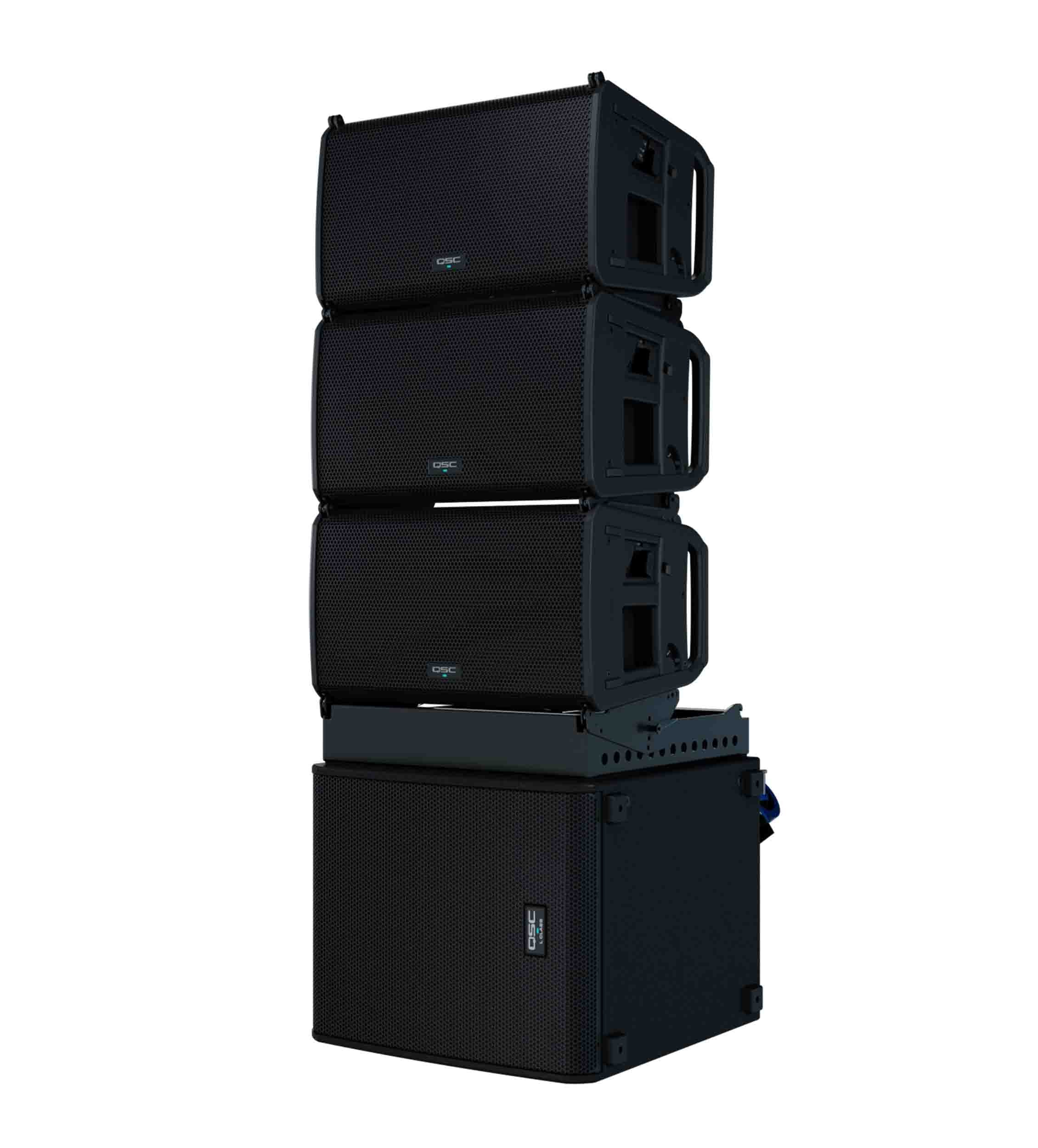

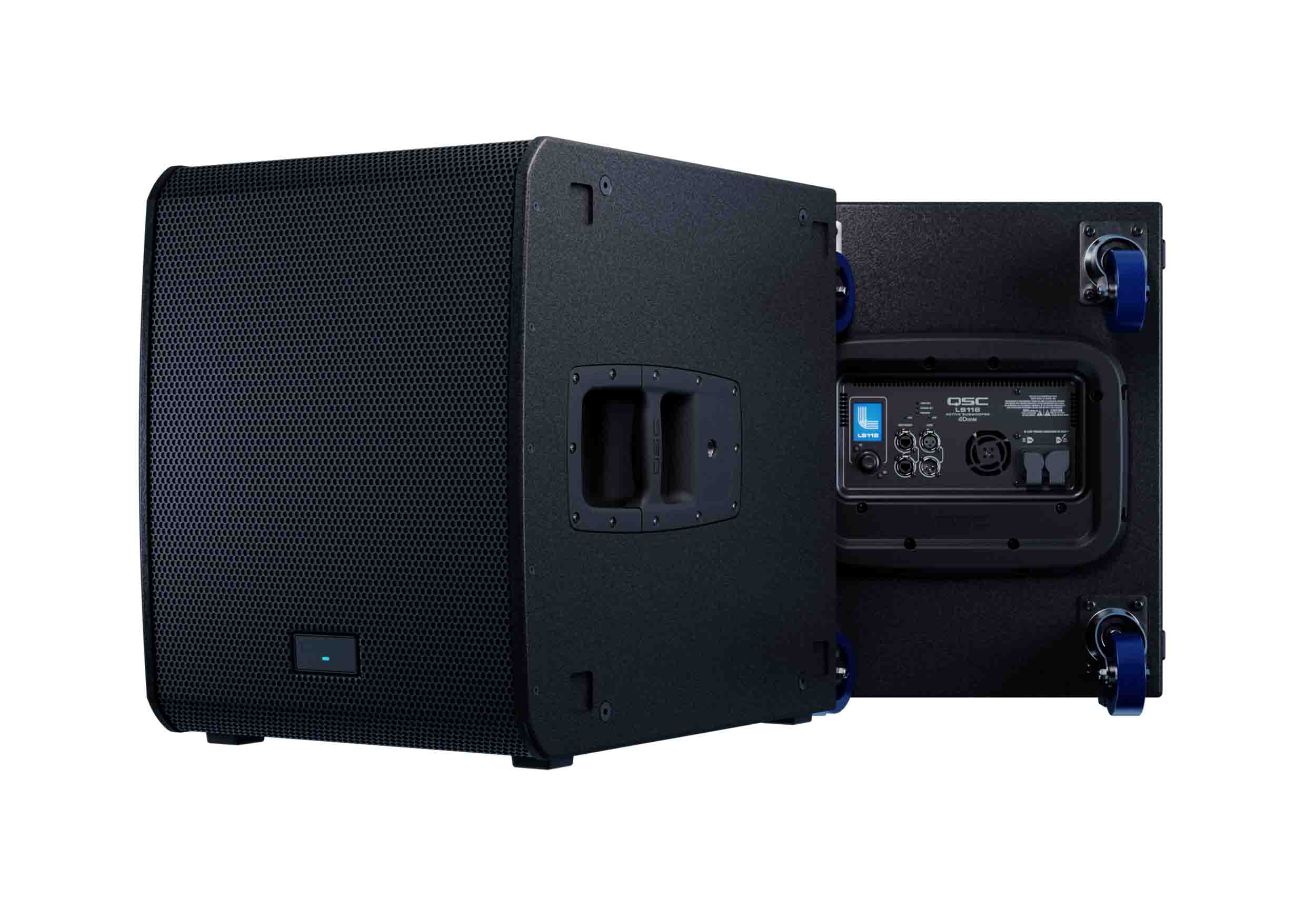

The QSC LS118 is a next-generation, intelligent, active subwoofer featuring a brilliant combination of leading-edge innovation, refined engineering and unparalleled ease of use in an easy-to-deploy package. Delivering extraordinary audio experiences and exceptional performance via system intelligence and premium components, the LS118 is the result of a deep understanding of customer needs and application requirements. The LS118 is easy to configure and deploy for applications ranging from simple, portable, plug-and-play setups, to demanding, networked, high-tech AV productions and fixed installations. Featuring QSC Acoustic Linear Phase (ALP) design, which permits effortless combination and coherent deployment of QSC loudspeakers within the same sound system, the LS118 also provides daisy-chain connections for analog, networked digital audio (Dante) and AC power (PowerCON TRUE1). Two or more LS118 can be configured in a cardioid arrangement, maximizing low frequency output in front while minimizing unwanted energy around the sides and rear of the system. Together with the LA108 or LA112 active line array loudspeakers, the LS118 can be deployed with either an array frame/ground-stack adapter or using loudspeaker poles in both horizontal and vertical orientations. The LS118 is backed by an industry-best global 6-Year Extended Warranty, with product registration
Product Specification:
Configuration: Direct radiating, active subwoofer
LF Transducer: 460 mm (18-inch), cone
Frequency Response (-6 dB): 41 Hz - 98 Hz
Frequency Range (-10 dB): 35 Hz - 111 Hz
Nominal Coverage Angle: Omni-directional or cardioid radiation modes (cardioid setup requires min. 2 units)
Maximum Rated SPL1 (peak): 138 dB @ 1 m
Amplifier (peak): Class D, 4000 W
Cooling: Low noise, variable speed fan
Controls:
Rotary push encoder
2 x Push button (Menu, ID)
Display Screen: 61 mm (2.4-inch) Full color display area (240 x 320 pixels)
Indicators:
Power LED
Limiter active LED
Standby active LED
2 x Signal LED

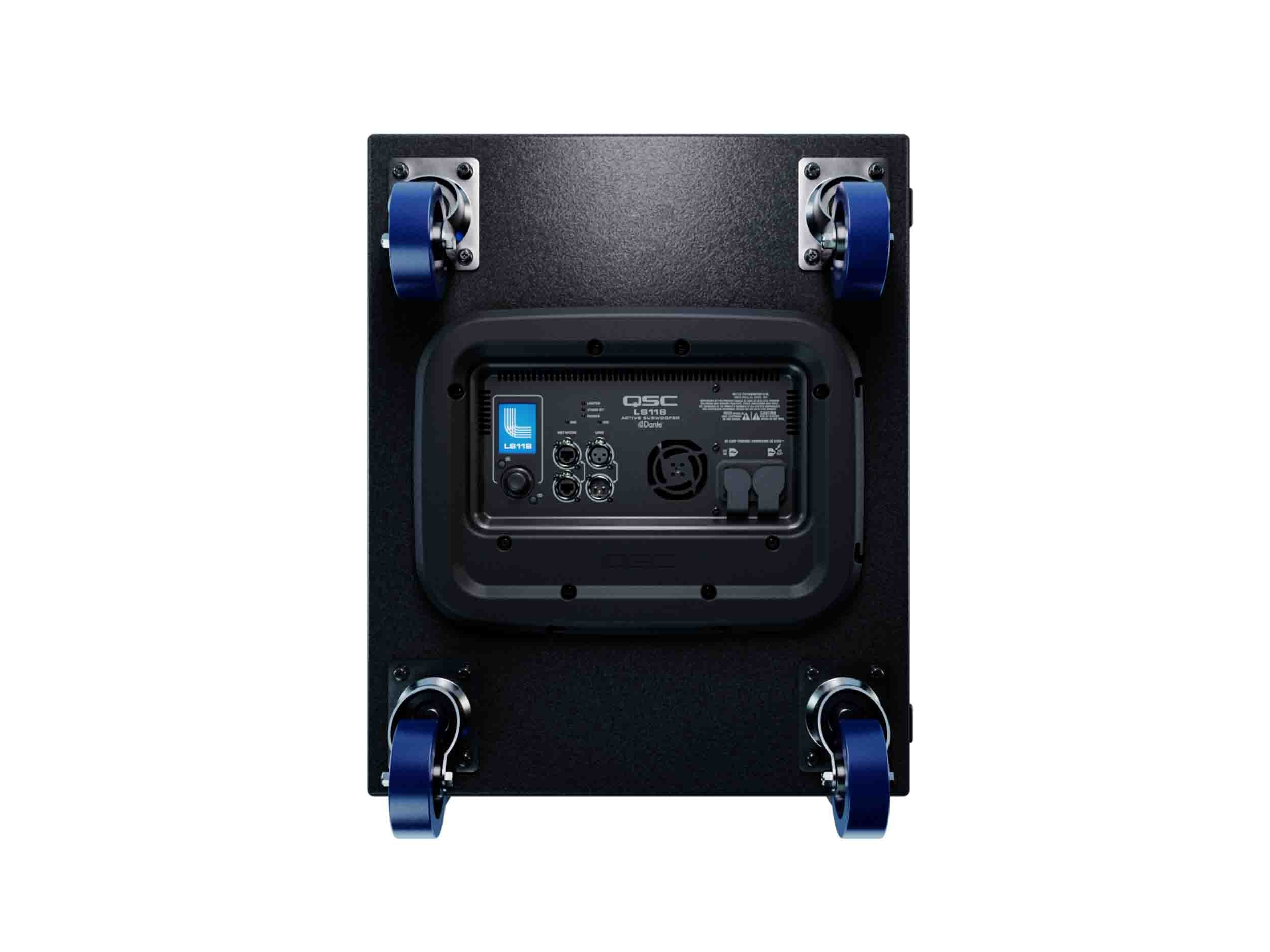

Connectors:
XLR Female (Analog In)
XLR Male (Analog Thru)
2 x RJ45 EtherCON (Dante and QSC SysNav In/Thru)
2 x PowerCON TRUE1 (AC Power Inlet/Outlet)
AC Power Input: Universal power supply, 100-240 VAC, 50-60 Hz
AC Power Consumption2: 100 VAC, 3.6 A / 120 VAC, 3.0 A / 230 VAC, 1.7 A
Enclosure Material: 15 mm birch plywood with Polyurea coating
Attachment Points:
8 x M10 (for individual vertical or horizontal suspension/flying)
2 x M20 (for vertical or horizontal loudspeaker pole or ground-stack deployments)
Color: Black (RAL 9011)
Grille: 16 GA Powder coated steel
Dimensions (H x W x D):
640 × 520 × 790 mm
25.2 × 20.5 × 31.1 inch
Net Weight: 50 kg (110 lb) including casters
Shipping Weight: 62.6 kg (138 lb)

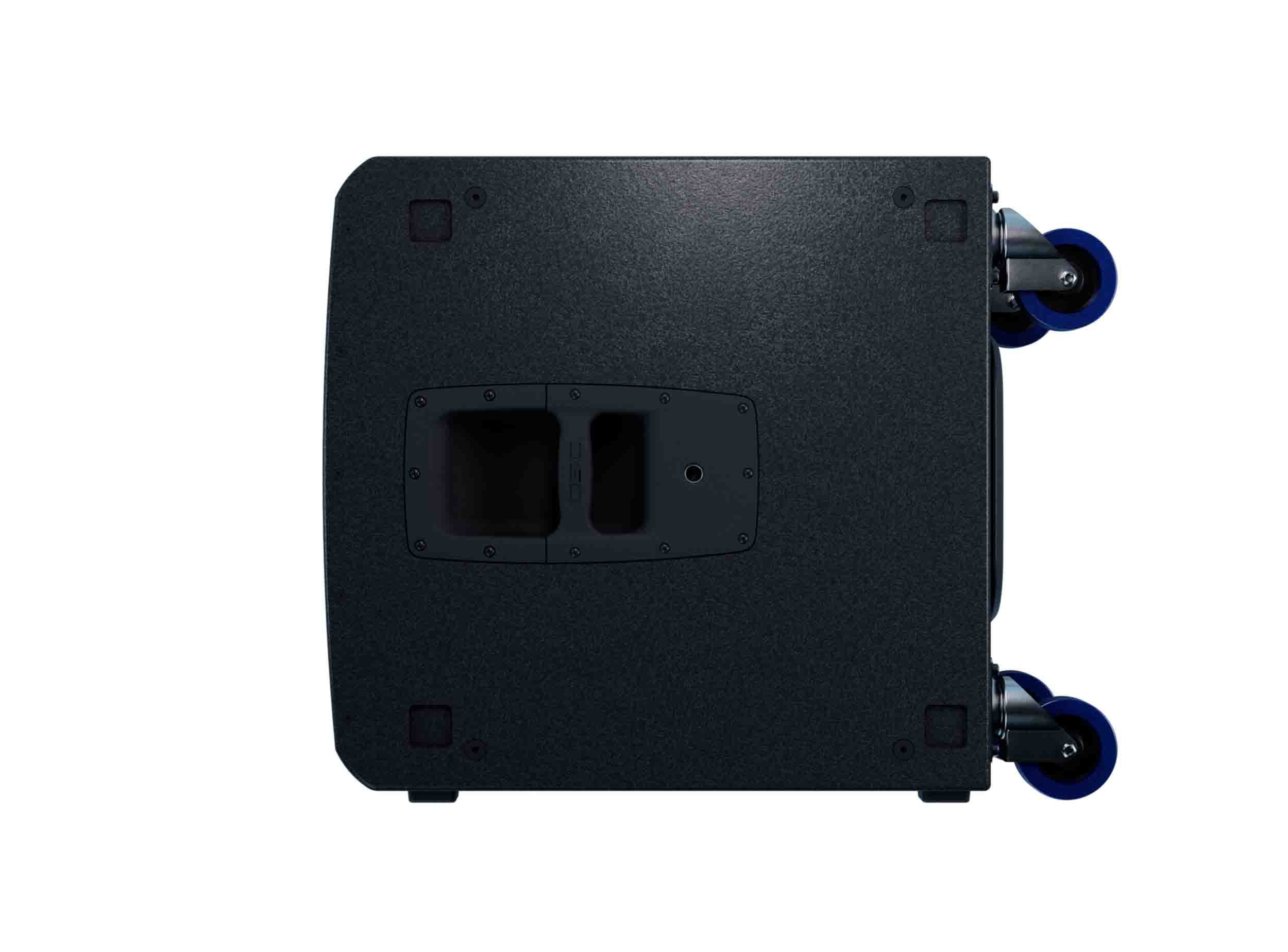

Included Accessories: 4 x Heavy-duty, low noise 4-inch casters, 1 x PowerCON TRUE1 power cable
Regulatory: UL, CE, FCC Class B
Optional Accessories
LS118:
KS118-CVR: Soft Transport Cover made with heavy-duty Nylon/Cordura material, with grille guard
TWS-AMP: Universal Temporary Weather Shield protects the complete amplifier panel
LS-KIT-J: International Jumper Kit (2x 1.2 m PowerCON TRUE1 and 2x 1.2 m EtherCON jumpers, 1.5 mm2/H05VV cables)
LS-KIT-J-NA: North America Jumper Kit (2x 48-in PowerCON TRUE1 and 2x 48-in EtherCON jumpers, 12 AWG/SVT cables, NEC compliant)
M10 Eyebolt Kit-S: Eyebolt kit for suspending subwoofers (4x M10×1.5, 35–38 mm eyebolts)
Mounting Accessories:
Ground-Stack with LA108 loudspeaker: LA108-AF (Array Frame) combined with LA108-KIT-SA (Stack Adapter Kit)
Ground-Stack with LA112 loudspeaker: LA112-AF (Array Frame) combined with LA112-KIT-SA (Stack Adapter Kit)
Loudspeaker Pole SP-26: 66 cm/26-in long, with M20 thread
Loudspeaker Pole SP-36: 91 cm/36-in long, with M20 thread
