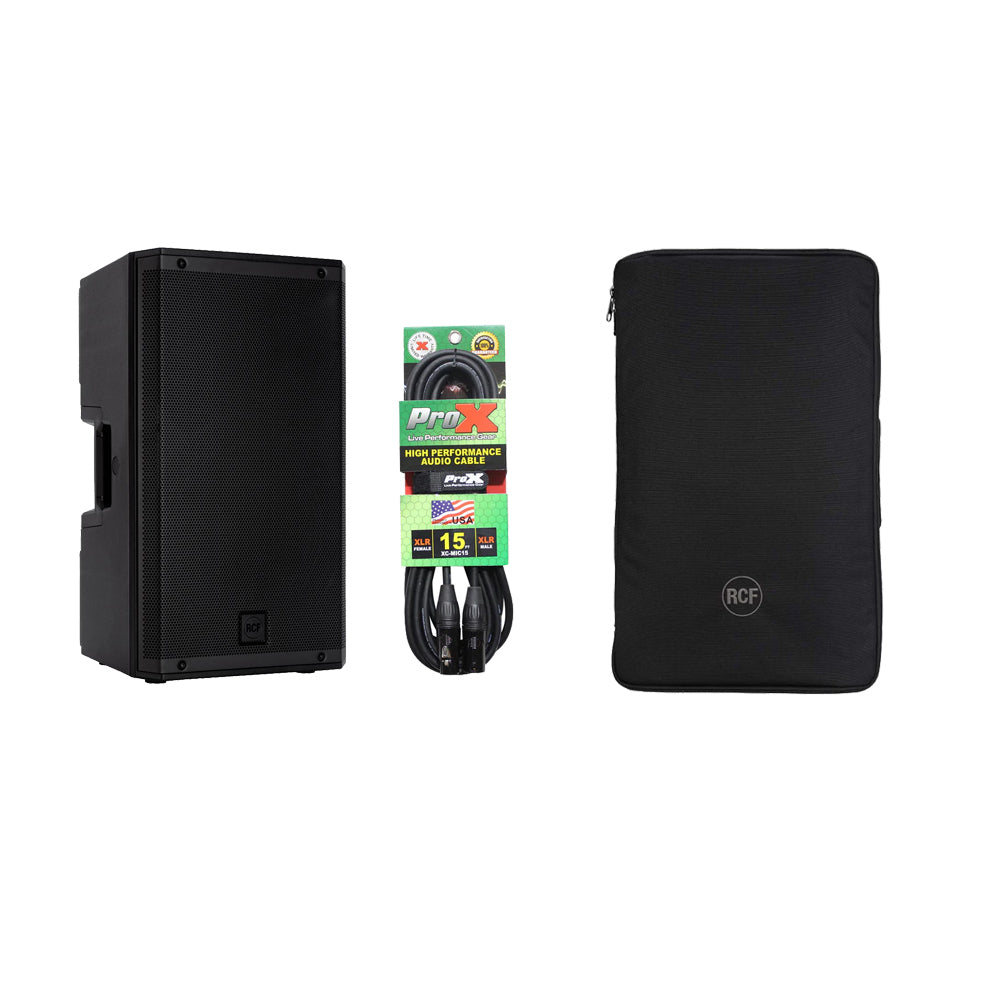

RCF ART-912A Speaker Package Including Protective Cover and Microphone Cable

This package includes the RCF ART 912-A Two-Way 12" 2100W Powered PA Speaker, delivering exceptional sound clarity and deep bass for demanding audio environments. Engineered with a 1.75" compression driver, 12" woofer, and a high-powered two-channel amplifier, it offers wide 100° x 60° coverage and up to 130 dB SPL with advanced True Resistive Waveguide and proprietary DSP processing. The bundle also features the RCF COVER-ART912A protective padded cover, crafted from heavy-duty weather-resistant polyester with convenient zip and Velcro openings for quick access and full panel protection. Completing the package is the ProX XC-MIC15 premium XLR cable, built with 93% braided OFC copper shielding to ensure noise-free, professional-grade signal transmission—perfect for live sound and touring setups.

This DJ Package Includes,

• 1 RCF ART-912A Active 2100W 2-Way 12" Powered Speaker
• 1 RCF COVER-ART912A Protective Cover for ART-912 / 932
• 1 ProX XC-MIC15 Balanced XLR3-F to XLR3-M High Performance Microphone Cable - 15 Feet

1 RCF ART-915A Two-Way 15" 2100W Powered PA Speaker

The ART 912-A is masterfully engineered to deliver stellar audio performance and versatility for intensive audio applications. The combination of a 1.75" compression driver, 12" woofer, two-channel 2100W amplifier, and the constant directivity True Resistive Waveguide produces coherent 100° x 60° coverage for the listening area with up to 130 dB SPL, distortion-free sound. Merging RCF proprietary Fir PHASE and Bass Motion Control DSP processing, perfectly tuned for each model, the audience will experience absolute clarity and deep, powerful bass response. The sleek cabinet uses a special polypropylene composite material with an M-brace internal reinforcement, making it easy to carry and secure to install on a pole, flown-, wall-, or truss-mounted using the multiple rigging points available.

Power That Moves

The most powerful amplifier in its class. RCF's improvements in transducer design make them stronger and powerful, so the amplifier follows the evolution. With 2,100 Watts of power, the 2-channel ART 9 Class-D amplifier is 50% more powerful than previous models, able to manage extremely high sound pressure levels with an ultra-fast attack, realistic transient response, and very low heat loss. ART 9 is very energy-efficient so there is no need for a cooling fan - the amplifier is attached to a solid aluminum heat exchanger in the back of the unit - with no moving parts. Being physically connected with the internal frame, the amplifier is firm and solid within the cabinet. The input circuit features a new low distortion design with an advanced safety limiter, maintaining the true character of the input signal at all levels. All ART 9 amplifiers are designed according to EN62368-1 for maximum safety and present a Switch Mode Power Supply section joining high-efficiency with minimum weight.

M-Brace: A New Cabinet Design

A professional appearance of an ART 9 cabinet is ideal for live events or installed applications. The sleek cabinet uses a special polypropylene composite material with a radically new construction concept. The grille cover is heavy-duty steel protecting both transducers and vented ports. The purpose-designed M-brace connects the four internal sides of the cabinet and amplifier, preventing any deformation for a completely inert body, with augmented acoustical damping even at maximum volume settings. It also performs as a reinforcement structure, for greater resistance to mechanical stress.

Bass Motion Control

When searching for an extended bass with enhanced performance, RCF engineers found a way to remove the high-pass filter, replacing it with a forward-thinking approach. Introducing BMC (Bass Motion Control), the newly advanced woofer excursion management feature. The speaker equipped with BMC can handle the lowest audible frequencies without affecting the woofer stability, with extended linearity and better sound integrity.

The BMC method works by creating a complete map of the dynamic behavior of the woofer, to generate a custom algorithm that only limits over-excursions. This gives total freedom of signal reproduction to the transducer. When high-pass filters normally protect the woofer motion from becoming destructive but change the phase behavior, the new BMC algorithm breaks conventional rules.

New Paradigms in Electroacoustics

The advanced design of ART9 lies within the housing of the speaker. The new True Resistive Waveguide is the result of several refinements in both the transducers' and the vented ports' design with Finite Element Analysis, and constant measurement in RCF anechoic chambers. Thanks to Fir PHASE technology, the new shape, and the placement of the ports, the speaker now acts as a single ideal source for a perfect sound image. Acoustically, the TRW waveguide mimics a resonance-free pure resistive load reducing the high-frequency distortion of a classic horn. With its asymmetrical sound shaping, the coverage angle of the waveguide provides constant directivity to the entire listening area and improved stereo panorama.

Superior Transducers

Lightweight and powerful, RCF drivers are a true reference for high performance. All transducers are designed by RCF engineers in Italy for maximum reliability and perfectly matched components.

High Frequencies

The new 1.75" compression driver voice-coil design with Polyimide-Kapton dome features a new bonding technology and reinforced ribs making it 10 times more durable than previous designs. The redesigned phase plug increases sound clarity, enhancing transient response and improving coupling with the low-frequency transducer.

Low Frequencies

Low-frequency transducer design gains more stability over higher currents, with less distortion, and is highly efficient in terms of heat dissipation. RCF quality control is very strict. Our woofers are tested with a 200 hours continuous signal to stress the transducer at extreme levels. Only the best woofer design can fit ART 9.

New Perspective on Linearity

RCF speakers are designed using a proprietary and advanced digital Fir technology, conceived to deliver transparent sound, absolute clarity, and perfect imaging to the listener.

The special Fir PHASE filters allow for coherent distribution of sound for all listeners without phase distortions, ensuring minimum latencies in the system.

Product Specifications:

Enclosure Type: Bass-Reflex Loudspeaker/Floor Monitor

Total Power Capacity: 2100 W

Amplifier Power Rating:

LF: 1400 W Peak

HF: 700 W Peak

Amplifier Class: Class-D

HF Driver: 1 x 1" / 25.4 mm Titanium Compression Driver

HF Voice Coil: 1.75" / 44.45 mm

MF Driver: No

LF Driver: 1x 12" / 304.8 mm Woofer

LF Voice Coil: 2.5" / 63.5 mm

Frequency Response: 50 Hz to 20 kHz

Maximum SPL: 130 dB (Peak)

Coverage Angle: 100° H x 60° V

Protections: RMS, Signal Limiter, Thermal

Audio I/O:

1x Combo XLR-1/4"" TRS Female Balanced/Unbalanced Input

1x XLR 3-Pin Male Balanced Thru/Output

Network I/O: No

USB I/O: No

Wireless Connectivity: No

Mobile App Compatible: No

Crossover: High-Pass: 1800 Hz (Internal)

EQ: No

Parametric EQ: No

Semi-Parametric EQ: No

Dynamic Processing: Soft Limiter

Alignment Delay: No

Phase Adjustment: No

Digital Signal Processing: FIR Filter, Venue Settings

AC Input Power: Universal: 100 to 120 VACS, 60 Hz

AC Power I/O: 1x IEC Input (Locking)

Power Consumption: 300 W

Color: Black

Mounting:

3 x M10 Fly Point (Each Side, Top)

1 x 1.38"" / 35 mm Pole Socket (Bottom)

Handles:

1x Top

1x Each Side

Cooling: Convection, Heat Sink

Construction Material: Composite, Stainless Steel Grille

Dimensions: 25.2 x 14.6 x 14.2" / 640.1 x 370.8 x 360.7 mm

Weight: 41.8 lb / 19 kg

Shipping Weight: 50 lbs

Shipping Dimensions (LxWxH): 27 x 17 x 16"

1 RCF COVER-ART912A Protective Cover for ART-912 / 932

The RCF COVER-ART912A Protective Cover for ART-912 / 932 features heavy-duty weatherproof polyester outer fabric, foam rubber padding, and zip openings with Velcro fasteners. The frontal cover can be opened and blocked with Velcro on one side. It features multiple openings for handles, for the rear connection panel, and the pole mount cap.

Product Specifications:

Color: Black

Weight: 2.2 lbs

Shipping Dimension: 16.34, 28.94, 3.94 inches

Shipping Weight: 4.41 lbs

1 ProX XC-MIC15 Balanced XLR3-F to XLR3-M High Performance Microphone Cable - 15 Feet

The ProX XC-MIC15 is ideal for professional touring and live sound applications where a device with an XLR output needs to be connected to a device with an XLR input. 93% braided OFC Copper Compact shield to reduce noise and protect pure sound transfer. Compact cable diameter to decrease eddy currents. Bending & Twisting are no match for our high-performance tour-grade audio cables. They're designed to provide years of dependable sound reproduction and outlast every other cable on the market! Complete Coil technology demands consistent weave tolerances to create precise accuracy and detailed clarity. This is the most important part of the design and greatly affects performance.

Fits: XLR3-M TO XLR3-F

Product Specifications:

Shipping Dimension: 13.00"L x 12.00"D x 5.00"H

Shipping Weight: 9.00 lbs
