RCF ART-935A Two-Way 15" 2100W Powered PA Speaker with Integrated DSP

The RCF ART 935-A Two-Way 15" 2100W Powered PA Speaker with Integrated DSP is masterfully engineered to deliver stellar audio performance and versatility for intensive audio applications. The combination of a 3" titanium/neodymium compression driver, 15" woofer, two-channel 2100W amplifier, and the constant directivity True Resistive Waveguide produces coherent 100° x 60° coverage for the listening area with up to 133 dB SPL, distortion-free sound. Merging RCF proprietary FiRPHASE and Bass Motion Control DSP processing, perfectly tuned for each model, the audience will experience absolute clarity and deep, powerful bass response. The sleek cabinet uses a special polypropylene composite material with an M-brace internal reinforcement, making it easy to carry and secure to install on a pole, flown-, wall-, or truss-mounted using the multiple rigging points available.

Power that Moves

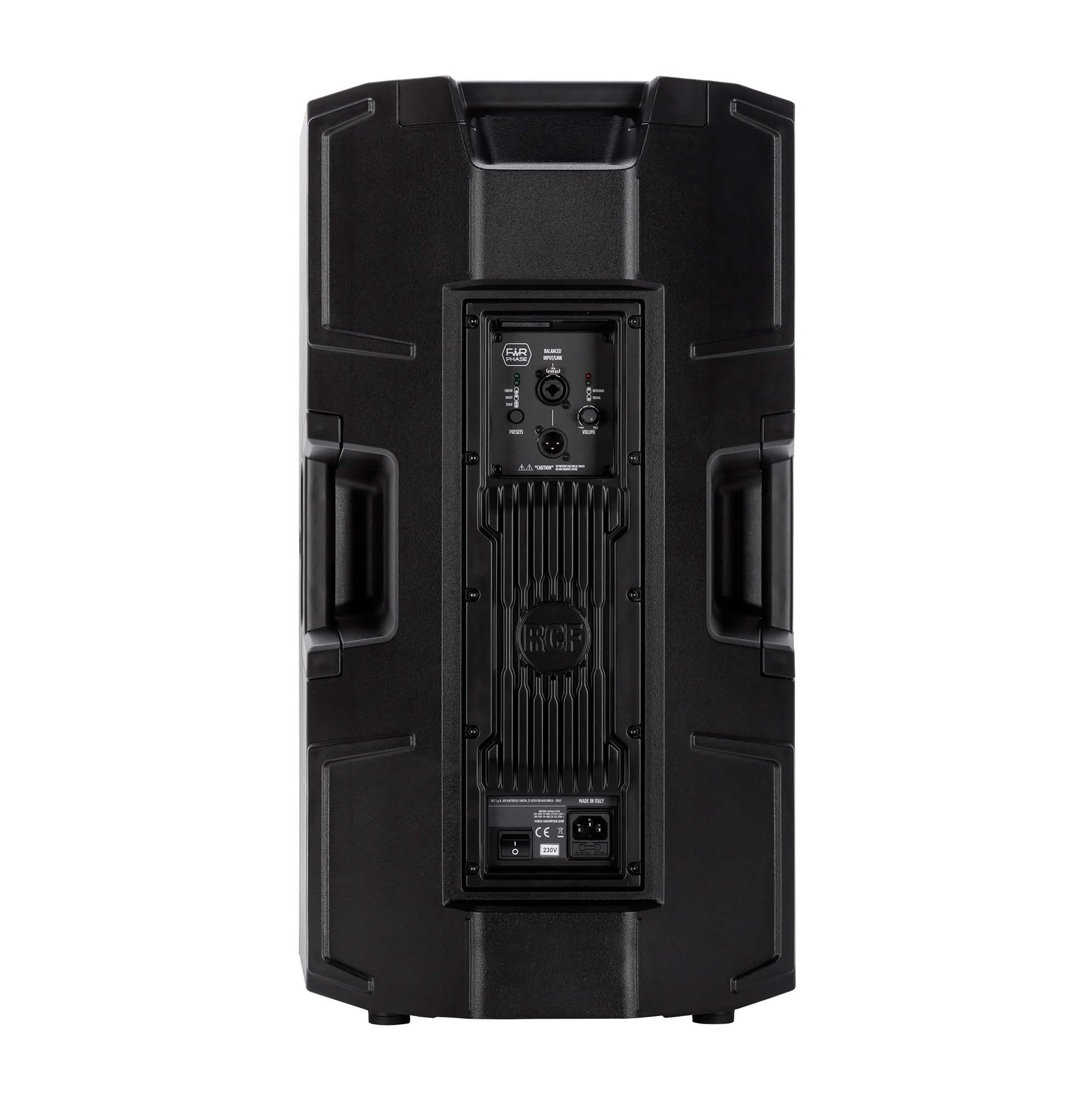

The most powerful amplifier in its class. RCF's improvements in transducer design make them stronger and powerful, so the amplifier follows the evolution. With 2,100 Watts of power, the 2-channel ART 9 Class-D amplifier is 50% more powerful than previous models, able to manage extremely high sound pressure levels with an ultra-fast attack, realistic transient response, and very low heat loss. ART 9 is very energy-efficient so there is no need for a cooling fan - the amplifier is attached to a solid aluminum heat exchanger in the back of the unit - with no moving parts. Being physically connected with the internal frame, the amplifier is firm and solid within the cabinet. The input circuit features a new low distortion design with an advanced safety limiter, maintaining the true character of the input signal at all levels. All ART 9 amplifiers are designed according to EN62368-1 for maximum safety and present a Switch Mode Power Supply section joining high-efficiency with minimum weight.

M-Brace: A New Cabinet Design

A professional appearance of an ART 9 cabinet is ideal for live events or installed applications. The sleek cabinet uses a special polypropylene composite material with a radically new construction concept. The grille cover is heavy-duty steel protecting both transducers and vented ports. The purpose-designed M-brace connects the four internal sides of the cabinet and amplifier, preventing any deformation for a completely inert body, with augmented acoustical damping even at maximum volume settings. It also performs as a reinforcement structure, for greater resistance to mechanical stress.

Bass Motion Control

When searching for an extended bass with enhanced performance, RCF engineers found a way to remove the high-pass filter, replacing it with a forward-thinking approach. Introducing BMC (Bass Motion Control), the newly advanced woofer excursion management feature. The speaker equipped with BMC can handle the lowest audible frequencies without affecting the woofer stability, with extended linearity and better sound integrity.

The BMC method works by creating a complete map of the dynamic behavior of the woofer, to generate a custom algorithm that only limits over-excursions. This gives total freedom of signal reproduction to the transducer. When high-pass filters normally protect the woofer motion from becoming destructive but change the phase behavior, the new BMC algorithm breaks conventional rules.

New Paradigms in Electroacoustics

The advanced design of ART9 lies within the housing of the speaker. The new True Resistive Waveguide is the result of several refinements in both the transducers' and the vented ports' design with Finite Element Analysis, and constant measurement in RCF anechoic chambers. Thanks to FiRPHASE technology, the new shape, and the placement of the ports, the speaker now acts as a single ideal source for a perfect sound image. Acoustically, the TRW waveguide mimics a resonance-free pure resistive load reducing the high-frequency distortion of a classic horn. With its asymmetrical sound shaping, the coverage angle of the waveguide provides constant directivity to the entire listening area and improved stereo panorama.

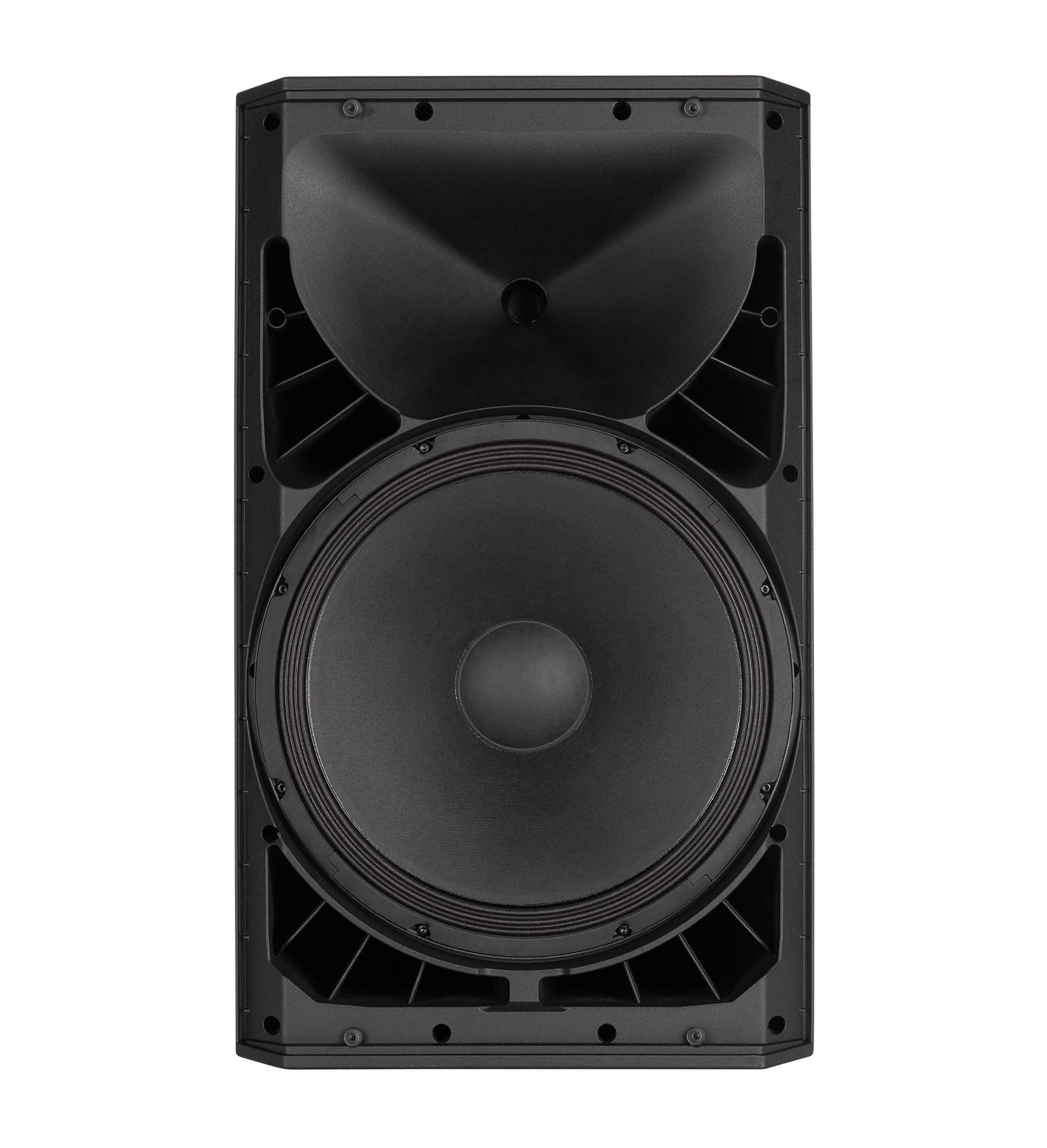

Legendary Transducers

Superior Compression Drivers

The ND840 Compression Driver in pure Titanium with a 3” voice coil allows a crossover point at only 800 Hz. This allows a better impulse response, fast decay, and superior efficiency. Lightweight and powerful, RCF neodymium drivers are a reference in performance and reliability.

Potent Woofer

The low-frequency transducer is a high-power 15’’ woofer with a 3" voice coil that delivers tight, punchy bass. Reproduction of the mid-bass frequencies is accurate, transparent, and free from distortion.

New Perspective on Linearity

RCF speakers are designed using a proprietary and advanced digital FiR technology, conceived to deliver transparent sound, absolute clarity, and perfect imaging to the listener.

The special FiRPHASE filters allow for coherent distribution of sound for all listeners without phase distortions, ensuring minimum latencies in the system.

Product Specifications:

Frequency Response: 45 Hz ÷ 20000 Hz

Max SPL @ 1m: 133 dB

Horizontal Coverage Angle: 100°

Vertical Coverage Angle: 60°

Compression Driver: 1 x 1.4'' neo, 3.0'' v.c

Woofer: 1 x 15'', 3.0'' v.c

Input Signal: bal/unbal

Input Connectors: XLR, Jack

Output Connectors: XLR

Input Sensitivity: -2 dBu/+4 dBu

Crossover Frequencies: 800Hz

Protections: Thermal, RMS

Limiter: Soft Limiter

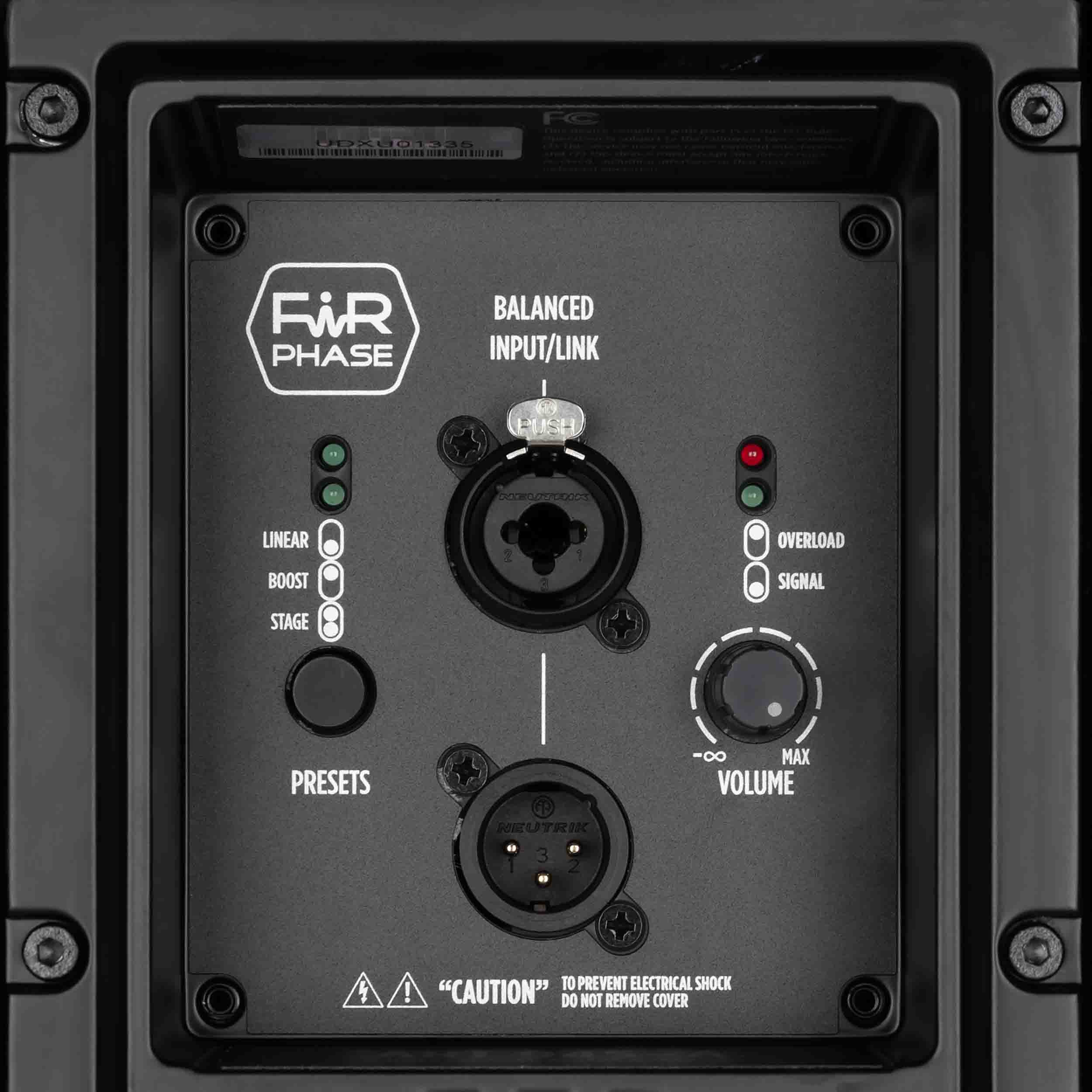

Controls: Linear, Boost Stage, Volume

Total Power: 2100 W Peak

High Frequencies: 700 W Peak

Low Frequencies: 1400 W Peak

Cooling: Convection

Connections: VDE

Safety Agency: CE Compliant

Hardware: 1 x M10 Top, 1 x M10 each side

Handles: 1 Top , 1 each side

Pole Mount/Cap: Yes

Color: Black

Height: 717 mm / 28.23 inches

Width: 415 mm / 16.34 inches

Depth: 410 mm / 16.14 inches

Weight: 24.2 kg / 53.35 lbs

Package Height: 760 mm / 29.92 inches

Package Width: 475 mm / 18.7 inches

Package Depth: 470 mm / 18.5 inches

Package Weight: 26.4 kg / 58.2 lbs
