Description

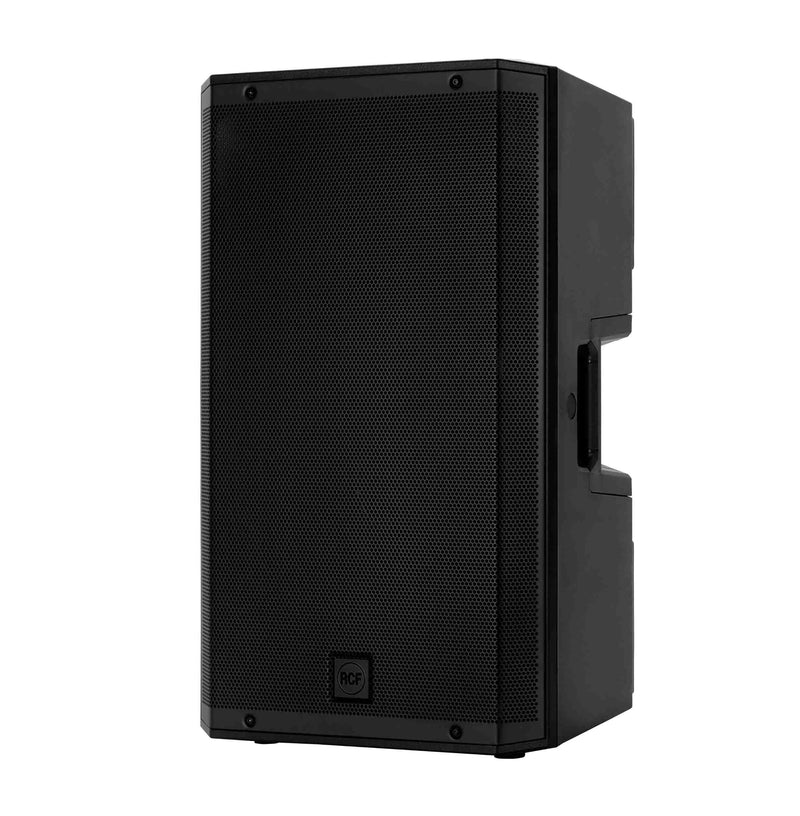

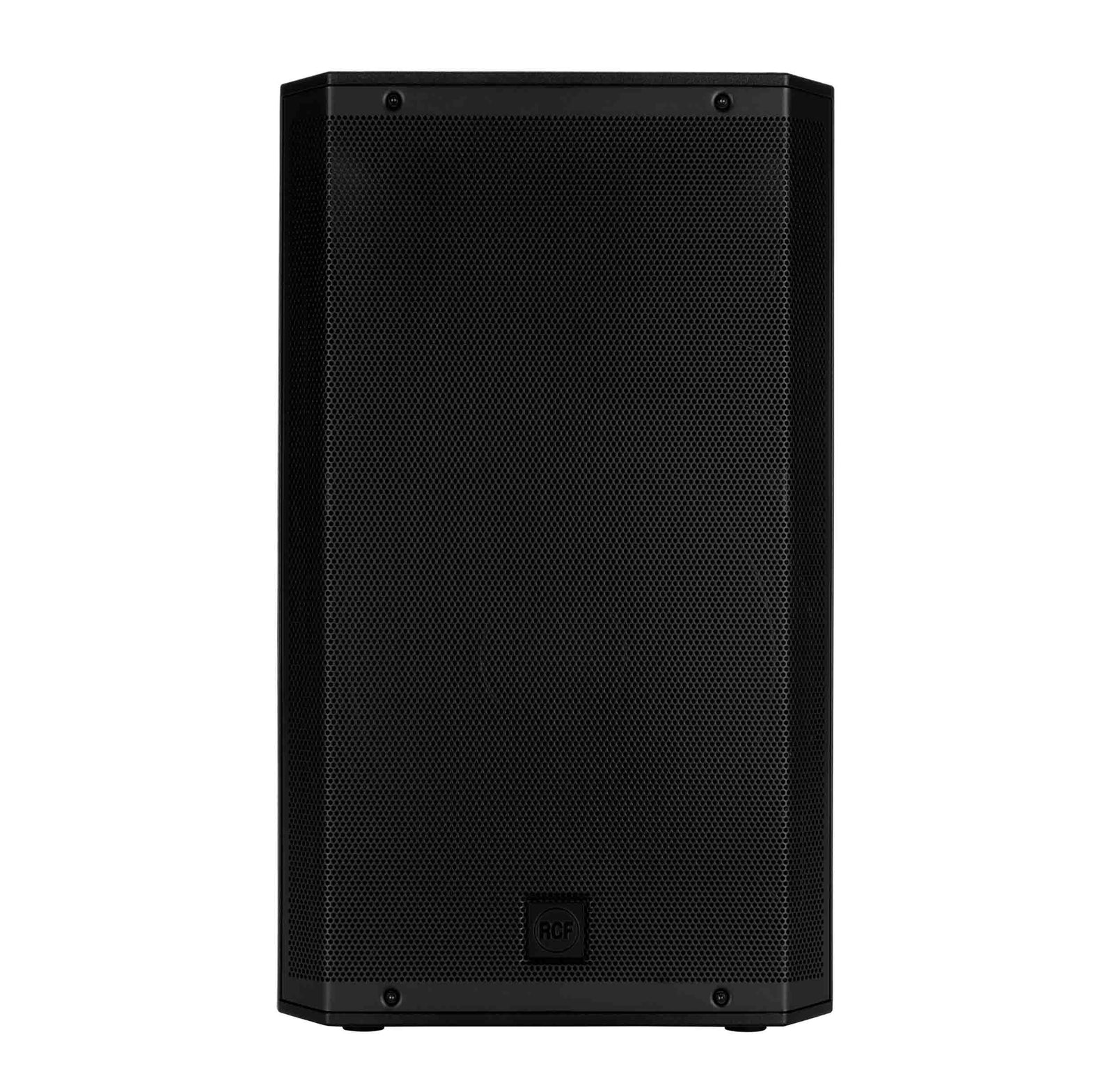

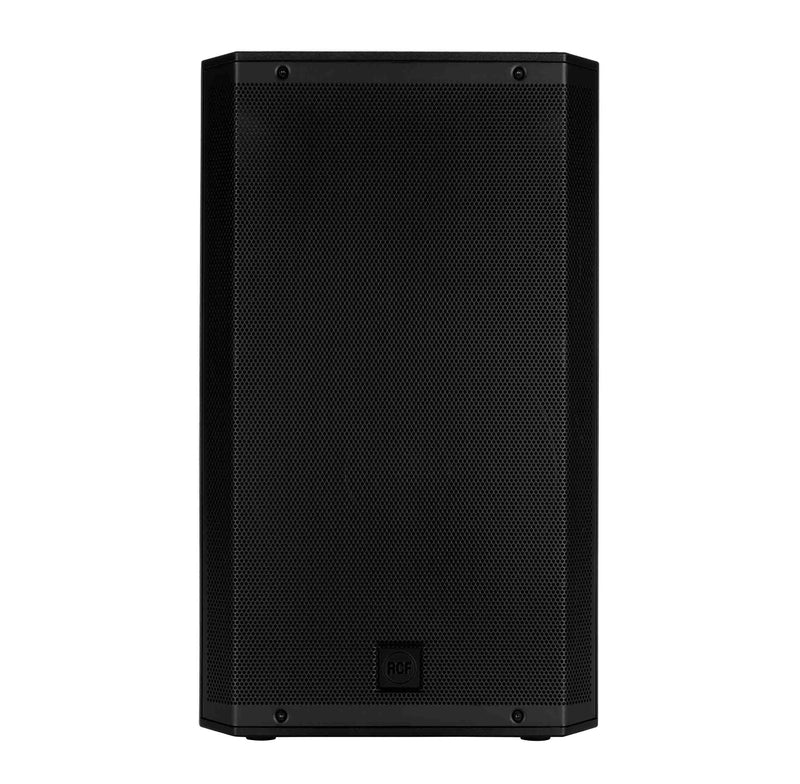

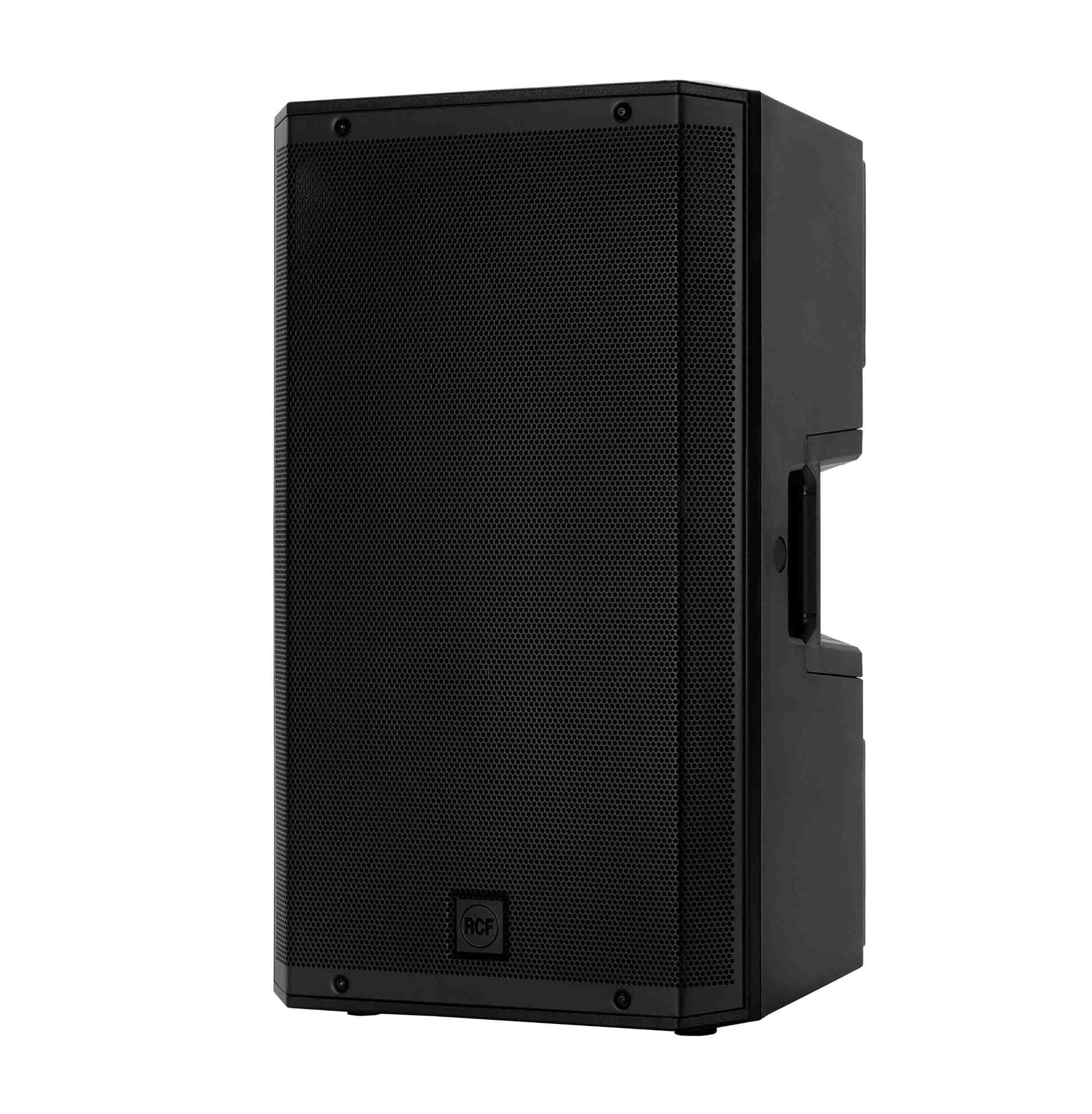

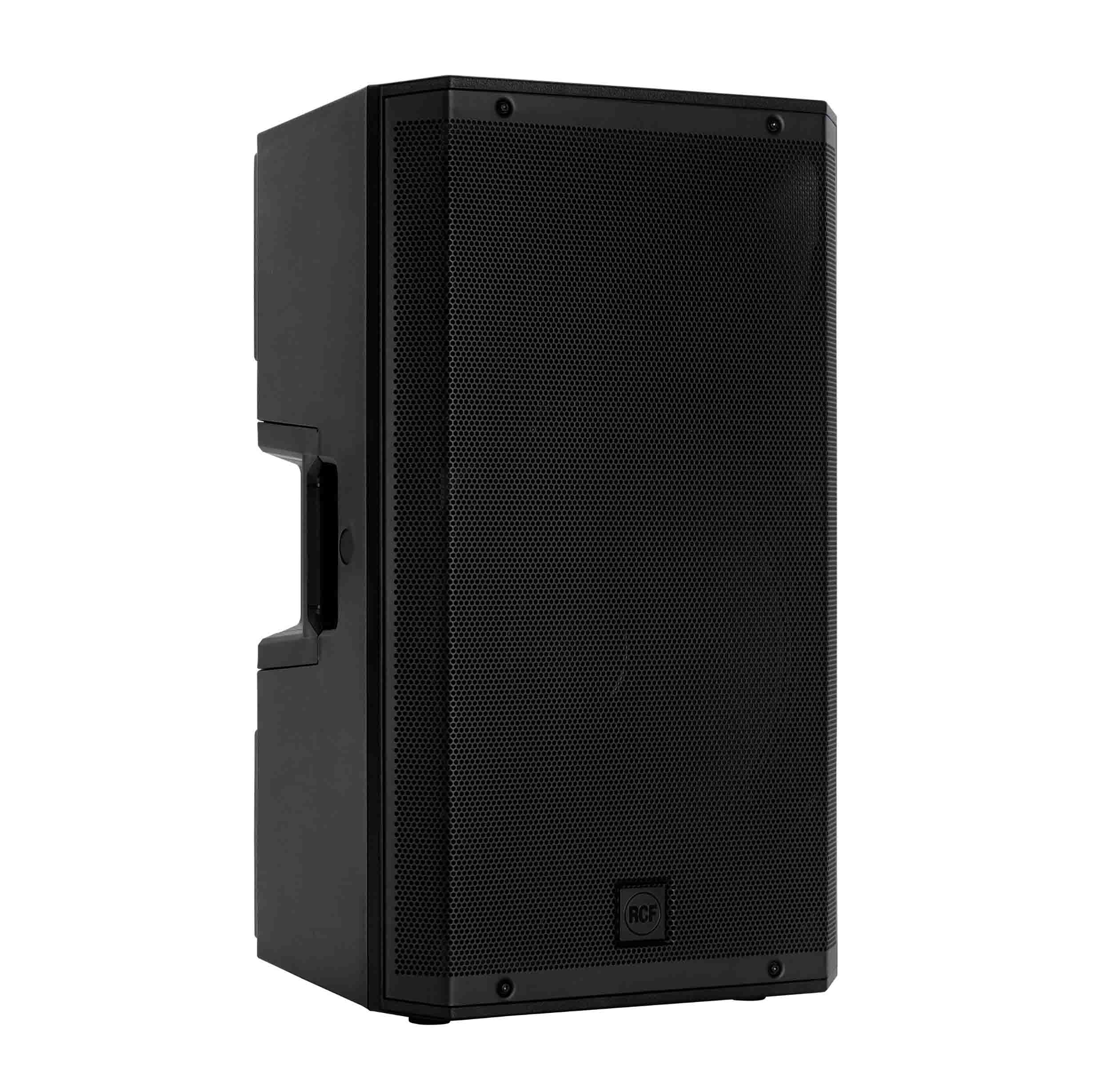

The RCF ART 945-A (ART-945A, ART945A) is a 15-inch powered PA speaker and the highest-output model in RCF's ART 9 series. It pairs a 15-inch neodymium woofer with a 4-inch voice coil titanium compression driver, driven by a 2100 W peak Class-D bi-amplifier, and reaches 135 dB max SPL from 45 Hz to 20 kHz with 100° x 60° coverage. It weighs 49.4 lb (22.4 kg), and it is the only ART 9 model with sealed powerCON TRUE1 TOP power in and out for linking power to a second speaker.

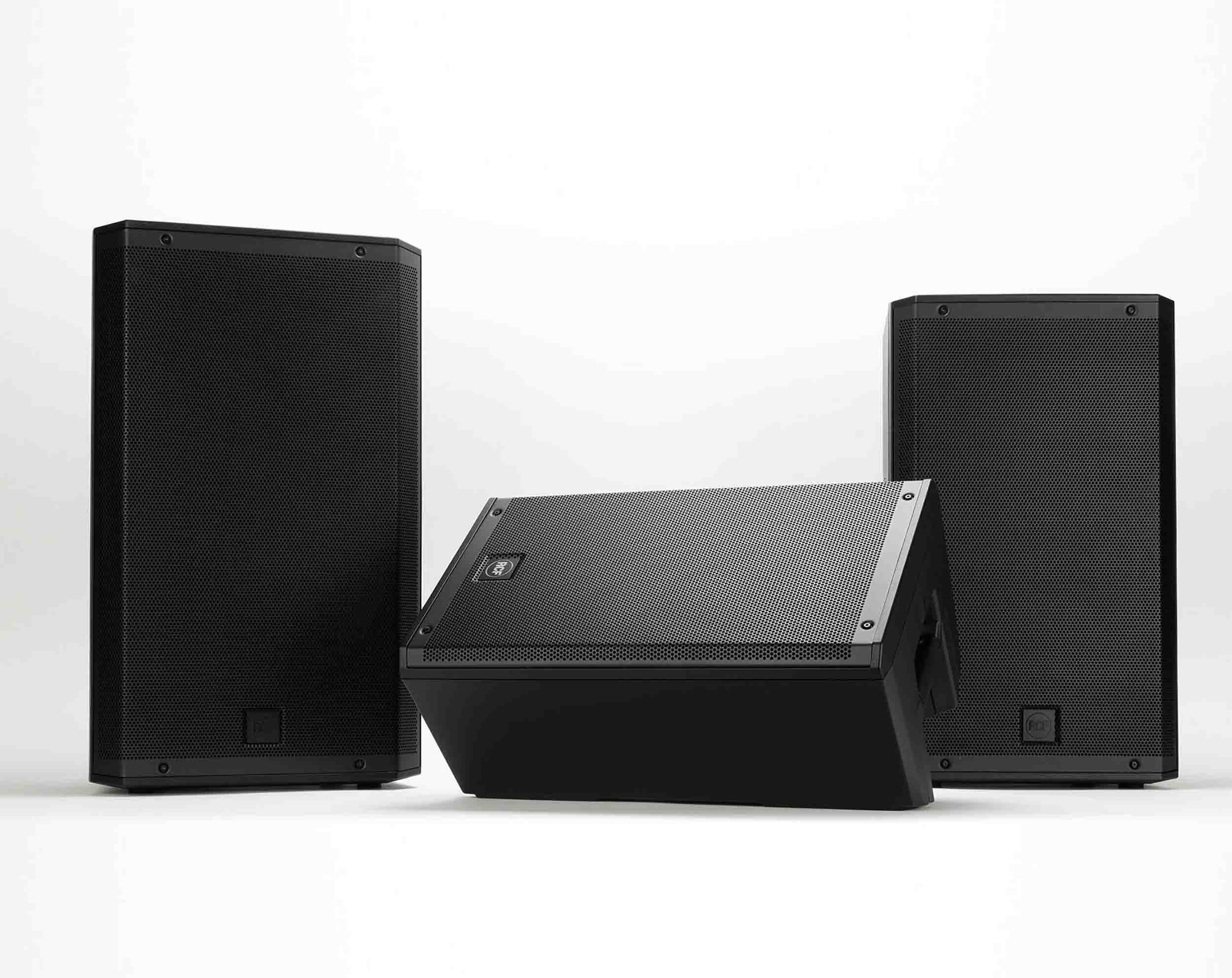

Use it as a main PA speaker on a stand or over a subwoofer, as a floor monitor, or fly it from its M10 rigging points. RCF FiRPHASE processing and Bass Motion Control are built in.
ART 945-A, Open Box or a package: which should I buy?
Every option below has the same ART 945-A speaker inside.
| Option | What you get | Best for |
|---|---|---|
| ART 945-A (this page) | One speaker | You already own stands, covers and cables |
| Open Box ART 945-A | One speaker sold as open box | Adding a speaker to an existing system |
| ART 945-A with cover and cable | One speaker, an RCF ART-COVER-915 padded cover and a 15 ft XLR cable | A single speaker ready to transport |
| ART 945-A pair with stands | Two speakers, a ProX tripod stand pair with bag and two 15 ft XLR cables | A complete stereo PA |
| ART 945-A pair with covers and stands | Two speakers, two padded covers, a tripod stand pair and two 15 ft XLR cables | A stereo PA you carry to every gig |
How is the ART 945-A different from the ART 935-A and ART 915-A?
All three are 15-inch ART 9 speakers with the same 2100 W amplifier and 100° x 60° coverage. The difference is the drivers: the ART 945-A has the largest compression driver and a neodymium woofer, which gives the most output and a lower crossover point.
| ART 945-A | ART 935-A | ART 915-A | |
|---|---|---|---|
| Woofer | 15-inch neodymium, 3.5-inch voice coil | 15-inch, 3-inch voice coil | 15-inch, 2.5-inch voice coil |
| Compression driver voice coil | 4-inch, titanium | 3-inch | 1.75-inch |
| Crossover | 650 Hz | 800 Hz | 1800 Hz |
| Max SPL | 135 dB | 133 dB | 131 dB |
| Frequency response | 45 Hz to 20 kHz | 45 Hz to 20 kHz | 45 Hz to 20 kHz |
| Power connection | powerCON TRUE1 TOP in and out | IEC | IEC |
| Weight | 49.4 lb (22.4 kg) | 54.2 lb (24.6 kg) | 49.4 lb (22.4 kg) |
Pick the ART 945-A for the most output and vocal clarity at distance. The ART 935-A has a 3-inch driver and standard IEC power, and the ART 915-A is the entry 15-inch model. For a 12-inch box with the same amplifier, see the ART 932-A.
Why does the 4-inch compression driver matter?
It allows a crossover point of only 650 Hz, which RCF says gives a better impulse response, fast decay and higher efficiency. The titanium driver sits on RCF's True Resistive Waveguide, which gives constant directivity across the listening area.

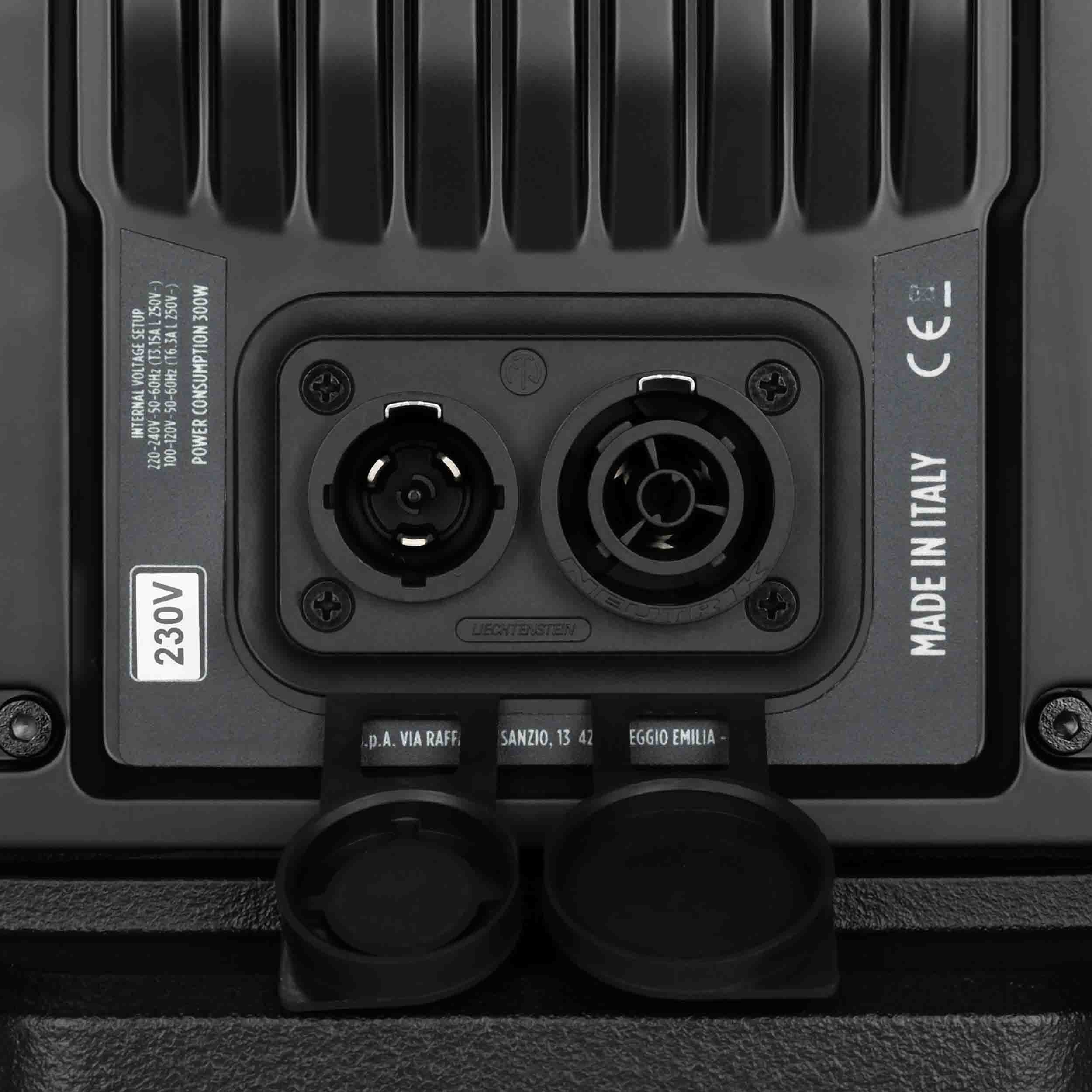

What is powerCON TRUE1 TOP?
A sealed, locking power connector rated for outdoor use. RCF's TOP (True Outdoor Protection) connectors are IP-protected and UV resistant to UL50E. The ART 945-A has a powerCON TRUE1 TOP input and an output, so one power run can feed a second speaker. Per the RCF manual, the power link carries up to 1600 W at 100 to 120 V.

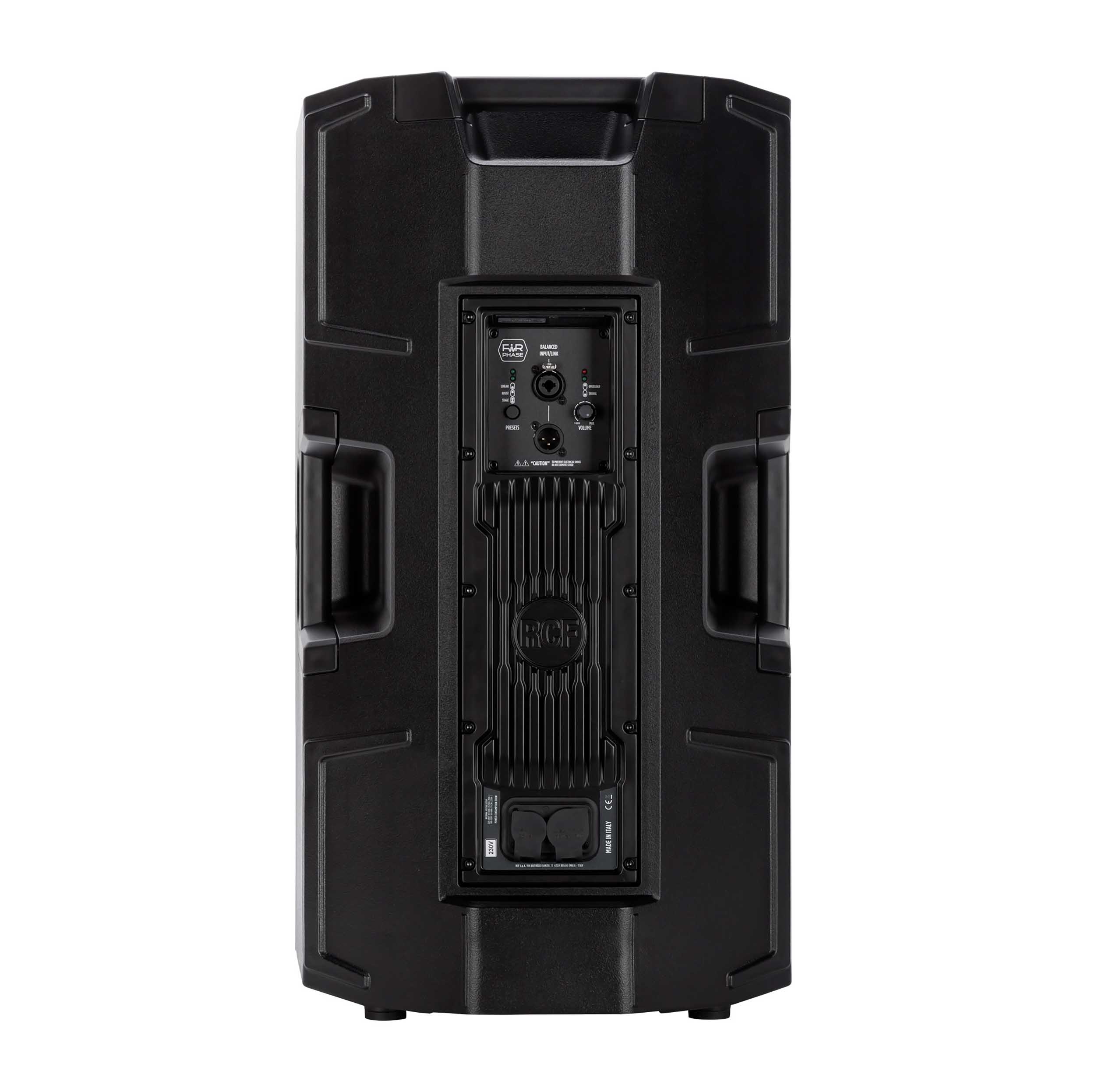

What controls are on the back?

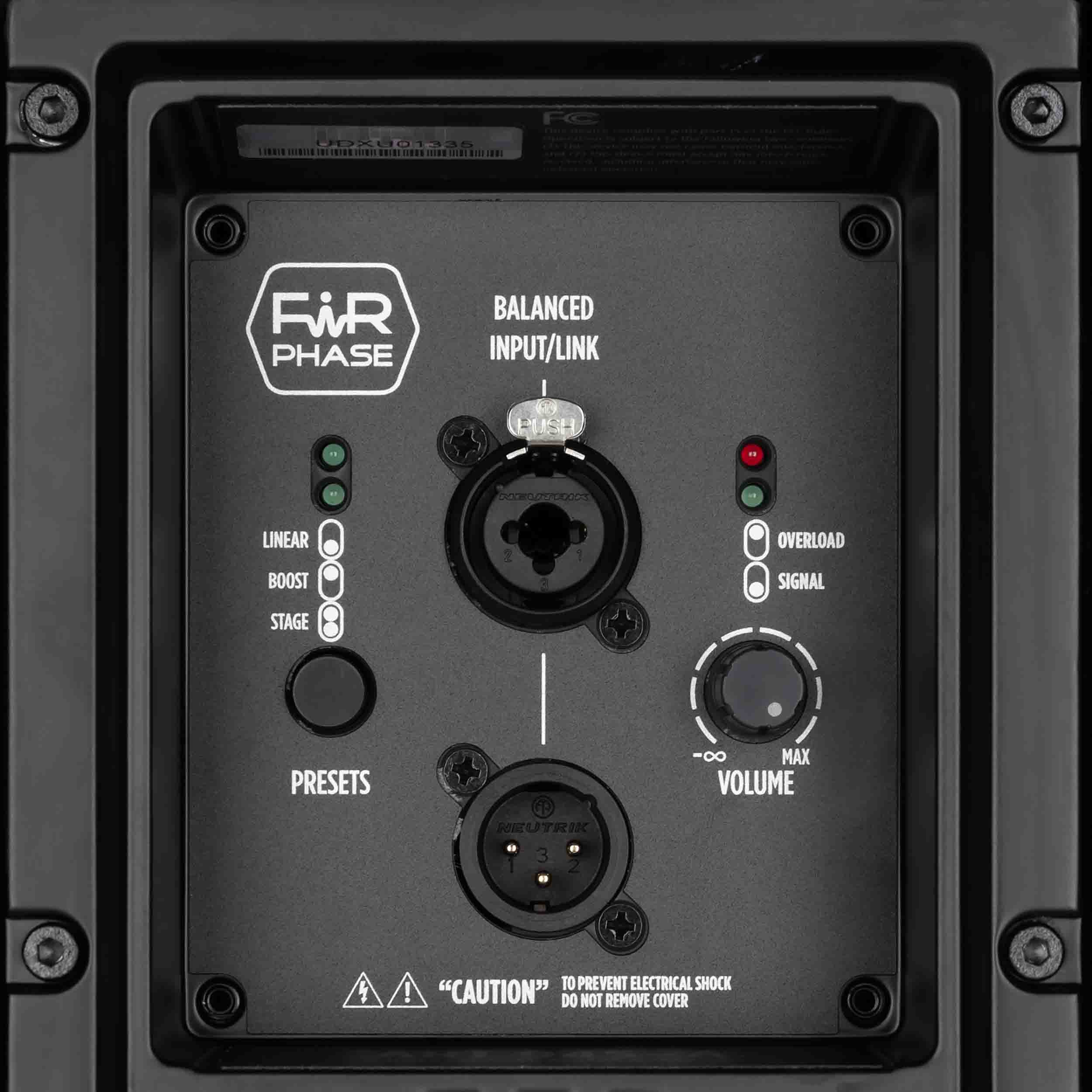

A preset selector with three settings: LINEAR for normal use, BOOST for low-volume background music, and STAGE for use as a floor monitor. There is one balanced XLR/1/4-inch combo input, an XLR output to link more speakers, a volume control and signal and overload LEDs.
Can I plug a microphone straight in?
Not directly. The combo input expects a line-level signal (-2 dBu / +4 dBu sensitivity), so run microphones through a mixer first. If you want mic preamps, a mixer and Bluetooth built into the speaker, look at the ART 9 AX models such as the ART 915-AX.
Does it need a fan?
No. The amplifier is mounted to an aluminum heat exchanger on the back of the cabinet and cools by convection, with no moving parts. RCF's Bass Motion Control replaces a fixed high-pass filter and limits only woofer over-excursion, so the speaker keeps its low end at high volume.
How do I mount it?

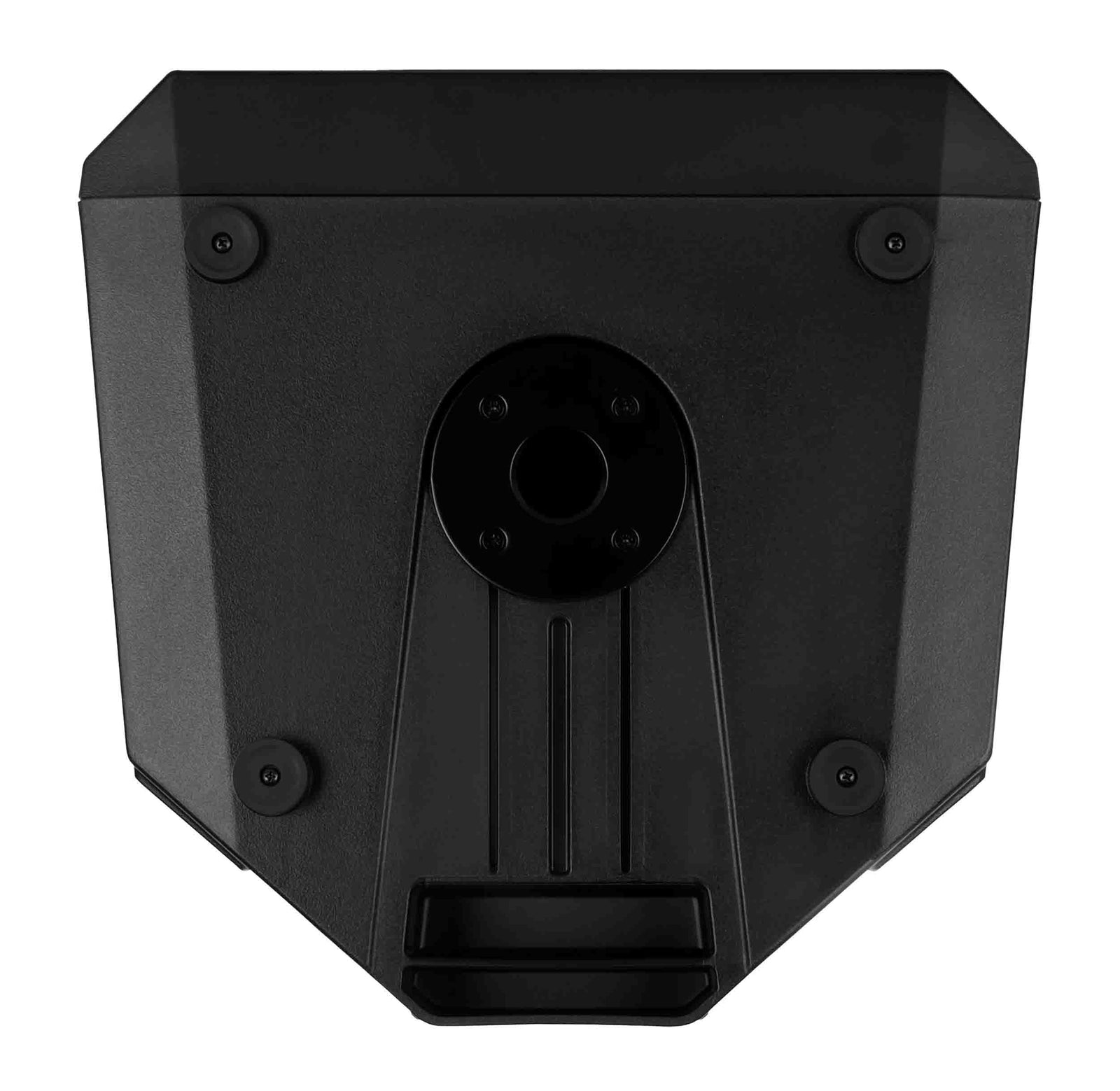

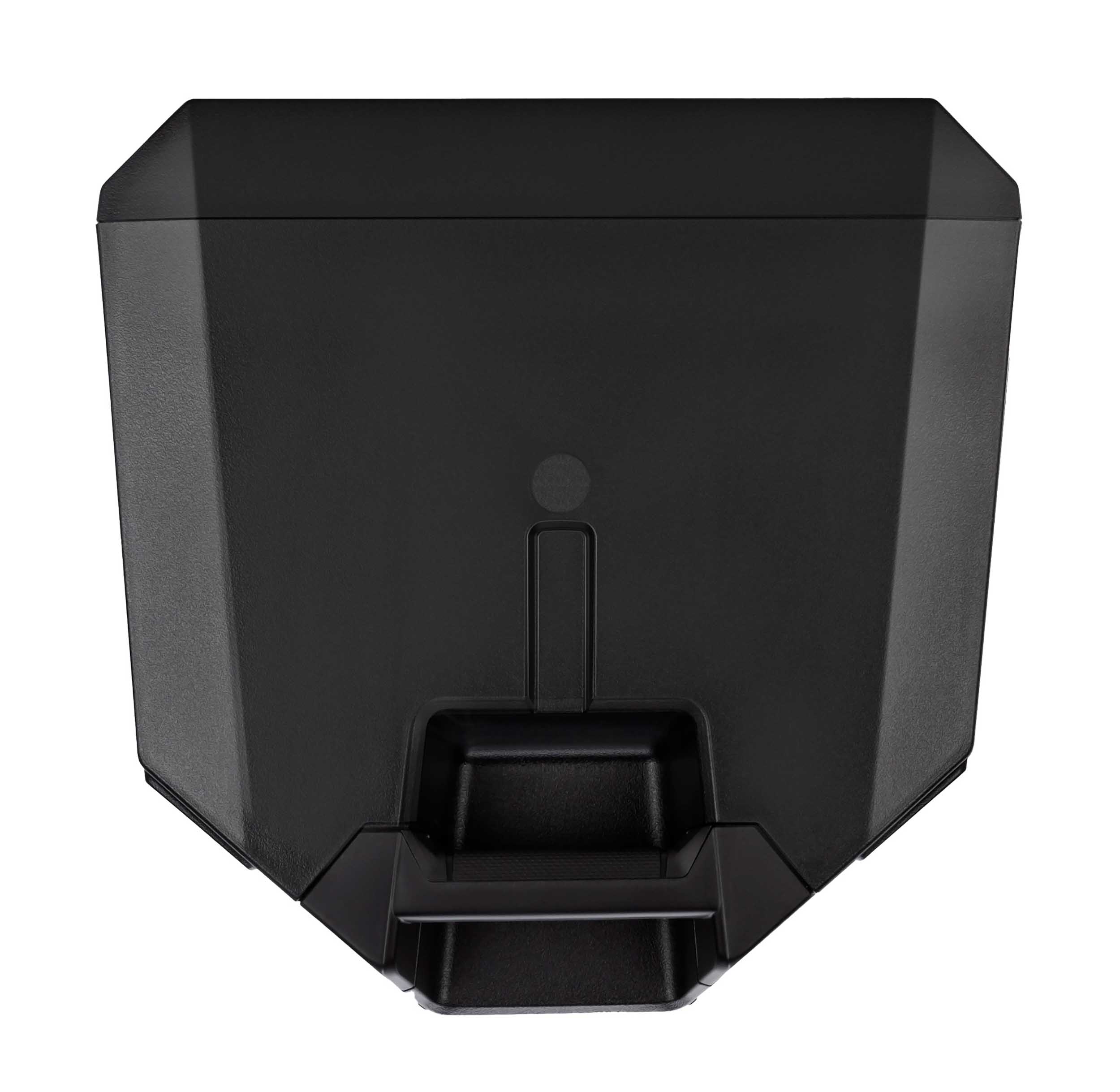

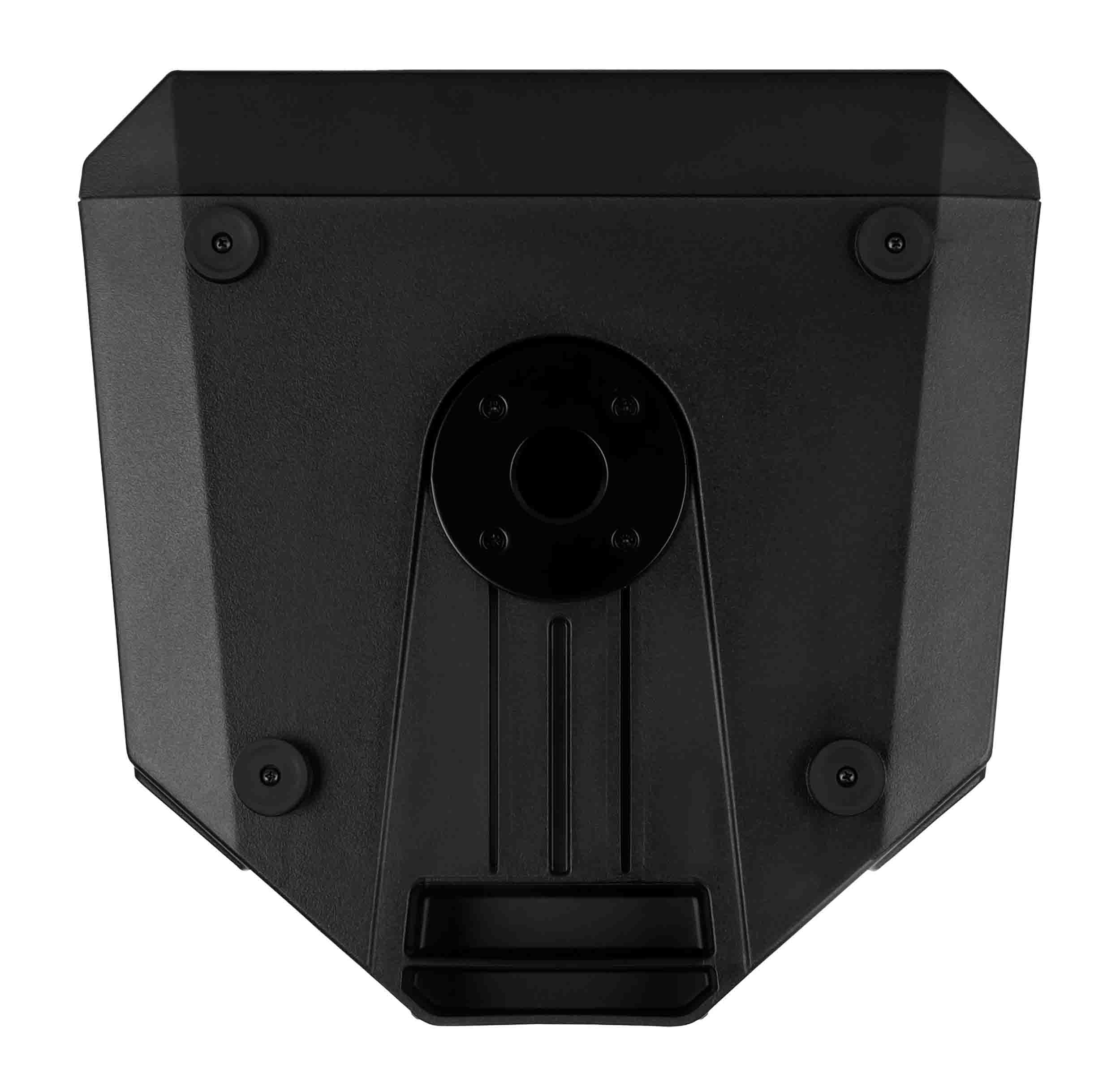

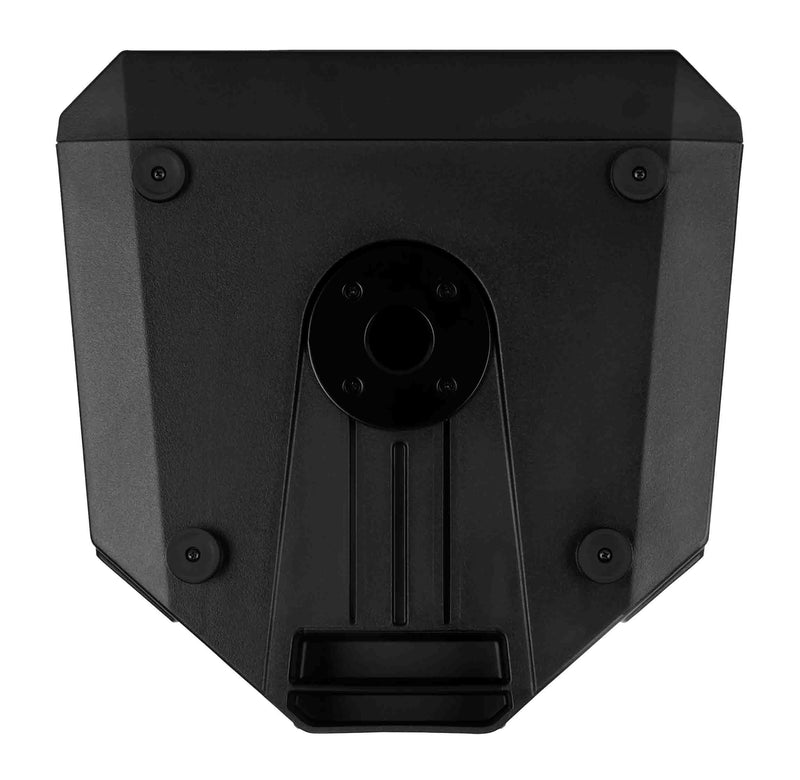

On a speaker stand or a subwoofer pole using the 35 mm pole socket, on the floor as a stage monitor, or suspended from its M10 points (one on top, one on each side) with RCF's AC-ART915-SB suspension bar. RCF warns never to hang ART speakers by their handles.
ART 945-A specifications
| Type | Active 2-way PA speaker |
| Woofer | 15-inch neodymium, 3.5-inch voice coil |
| Compression driver | 1.4-inch exit neodymium, 4-inch voice coil, titanium |
| Amplifier | Class-D bi-amp, 2100 W peak |
| Low frequencies | 1400 W peak |
| High frequencies | 700 W peak |
| Frequency response | 45 Hz to 20 kHz |
| Max SPL | 135 dB at 1 m |
| Coverage | 100° horizontal x 60° vertical |
| Crossover | 650 Hz |
| Processing | FiRPHASE, Bass Motion Control, soft limiter |
| Presets | Linear, Boost, Stage |
| Input | XLR/1/4-inch combo, balanced or unbalanced |
| Input sensitivity | -2 dBu / +4 dBu |
| Output | XLR link |
| Power | powerCON TRUE1 TOP in and out |
| Protections | Thermal, RMS |
| Cooling | Convection (no fan) |
| Cabinet | Polypropylene composite with M-brace, steel grille |
| Rigging | M10 points: 1 on top, 1 on each side; 35 mm pole socket |

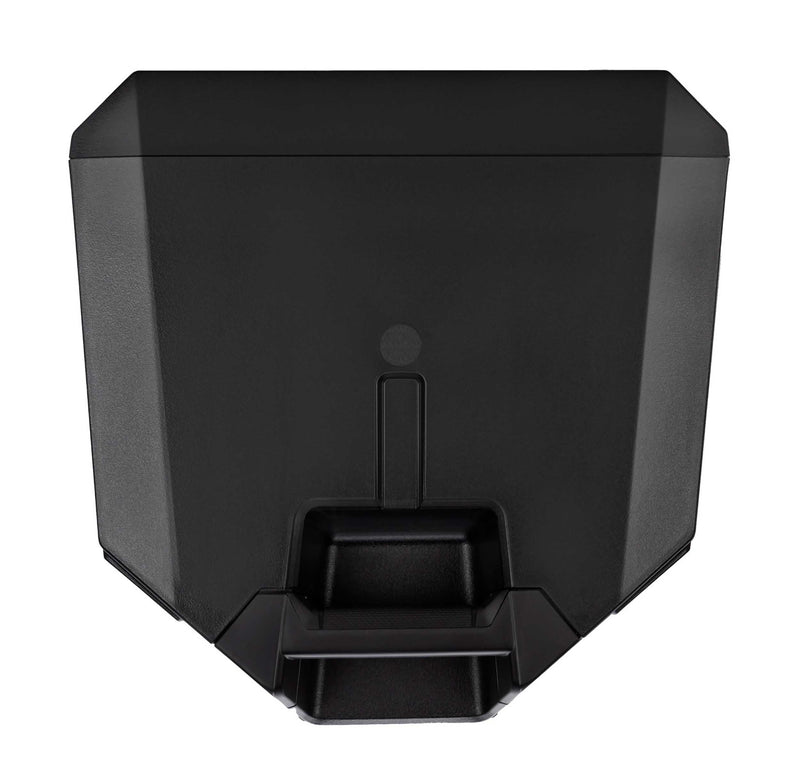

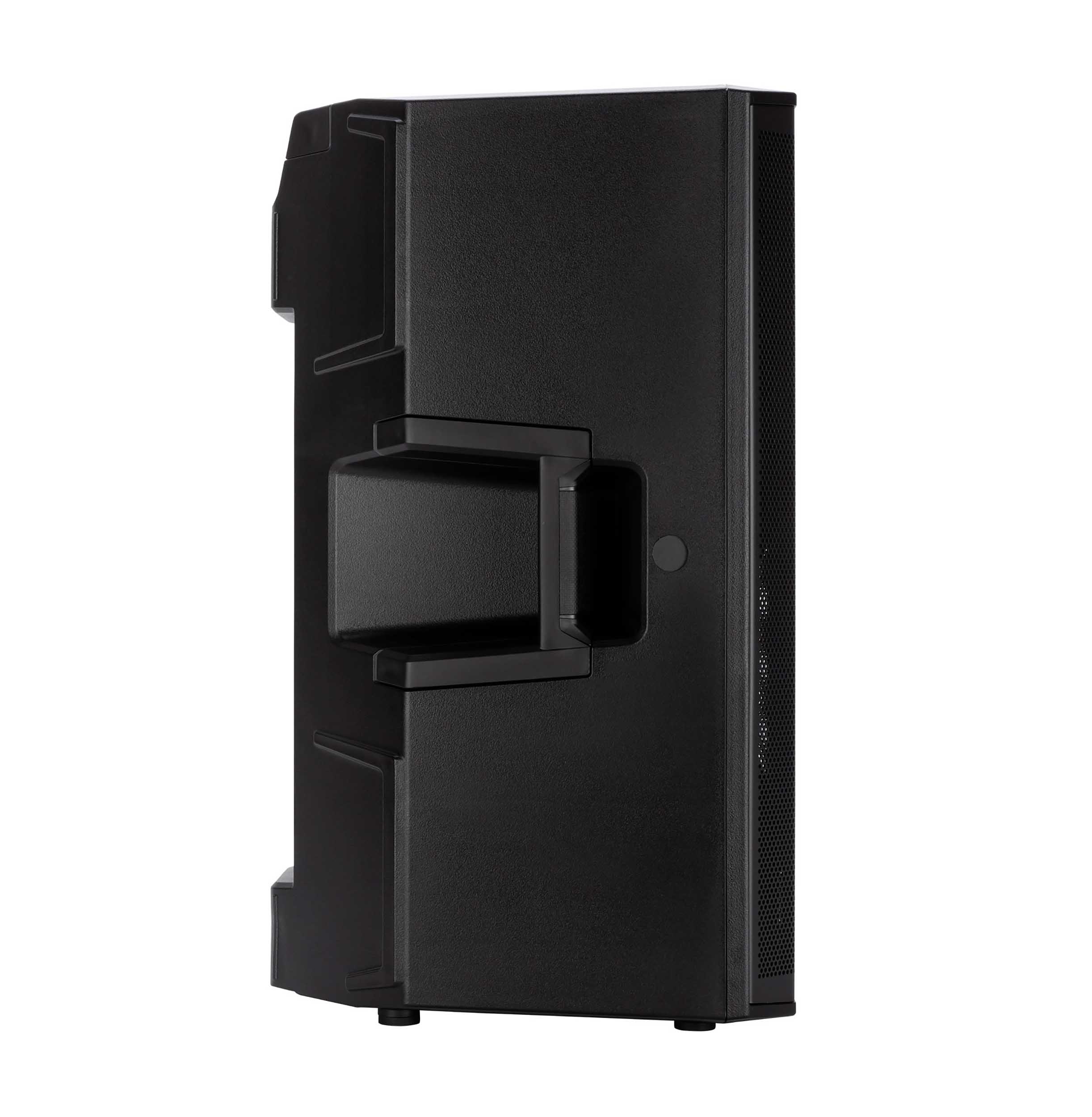

| Handles | 1 on top, 1 on each side |
| Dimensions (H x W x D) | 28.23 x 16.34 x 16.14 in (717 x 415 x 410 mm) |
| Weight | 49.4 lb (22.4 kg) |
| Shipping weight | 57.8 lb (26.2 kg) |
Specifications from the RCF ART 945-A product page, spec sheet and the ART 9 user manual.
What accessories fit the ART 945-A?
RCF's ART-COVER-915 padded cover and AC-ART915-SB suspension bar are made for the 15-inch ART 9 models. Compare the whole range in RCF ART series powered PA speakers, see every brand in 15-inch powered speakers, or browse everything from RCF.
