Description

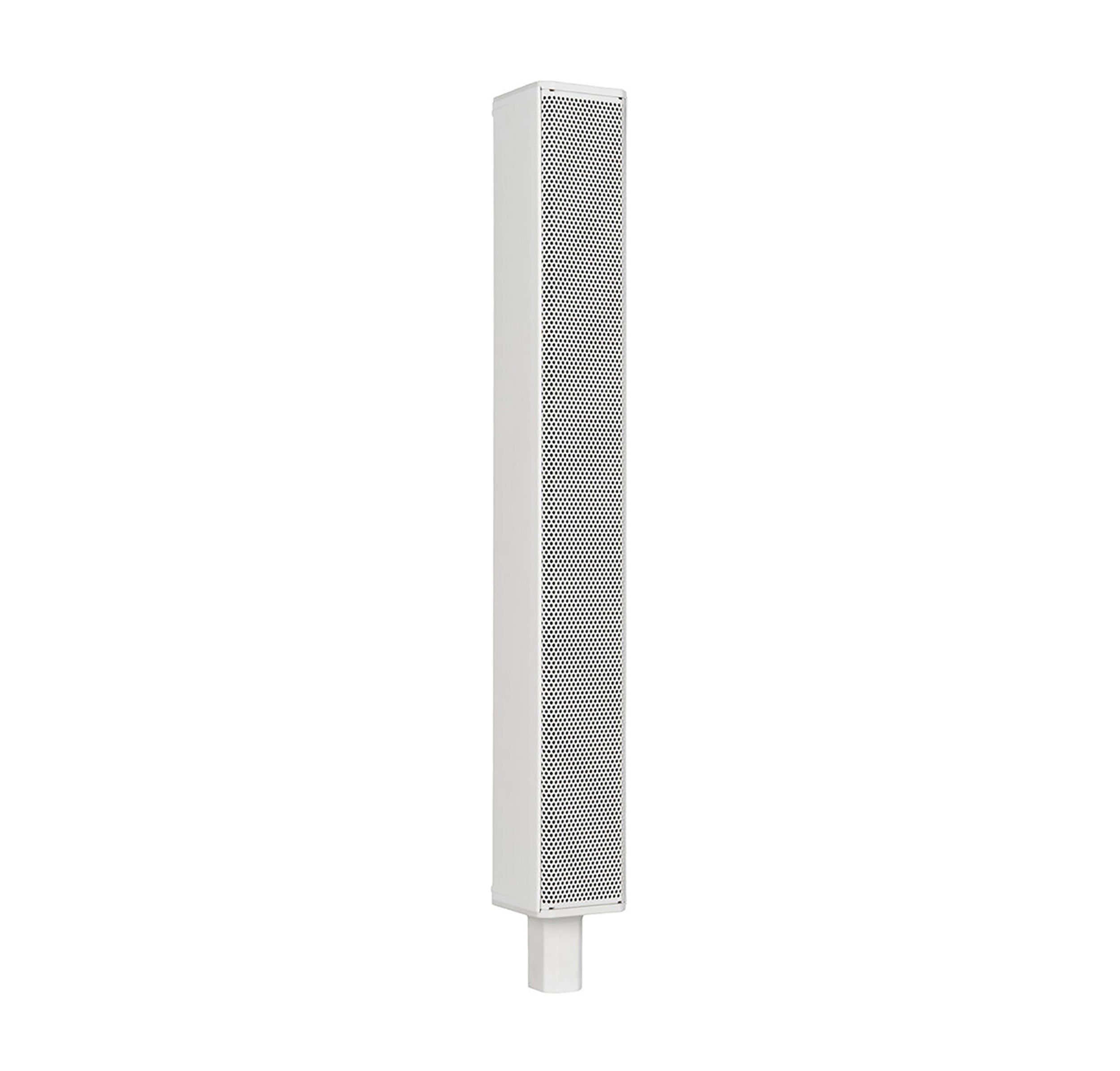

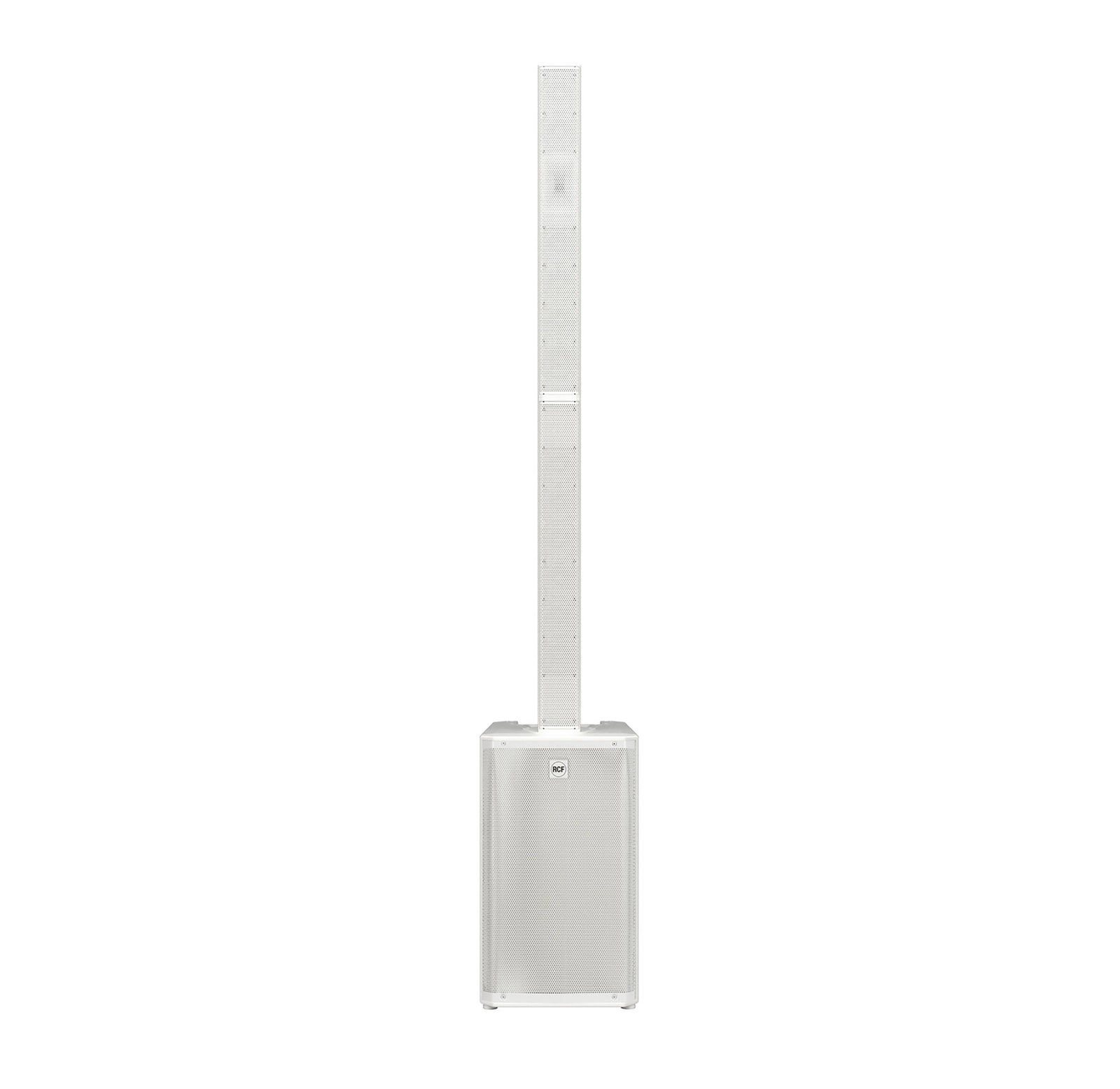

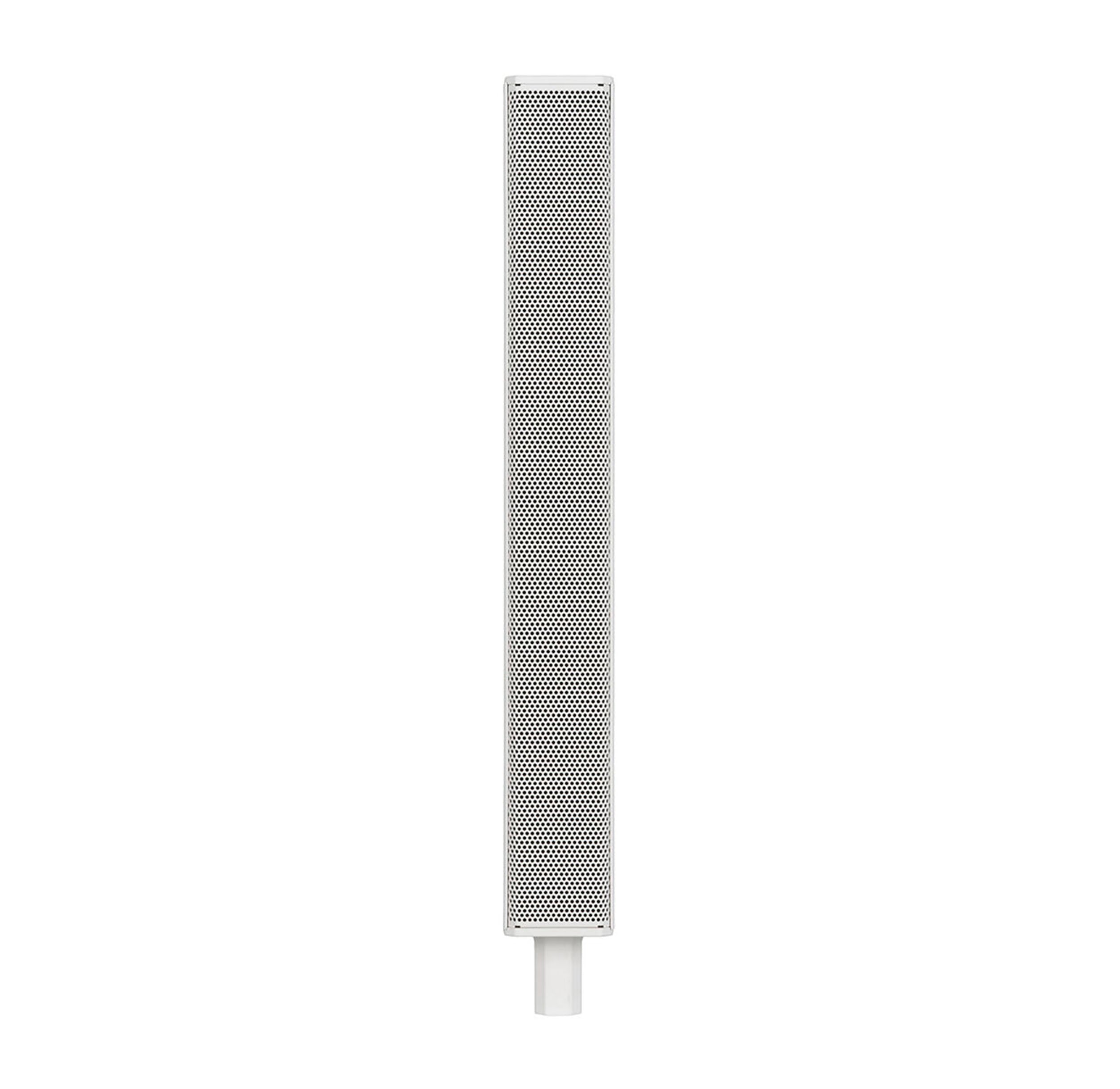

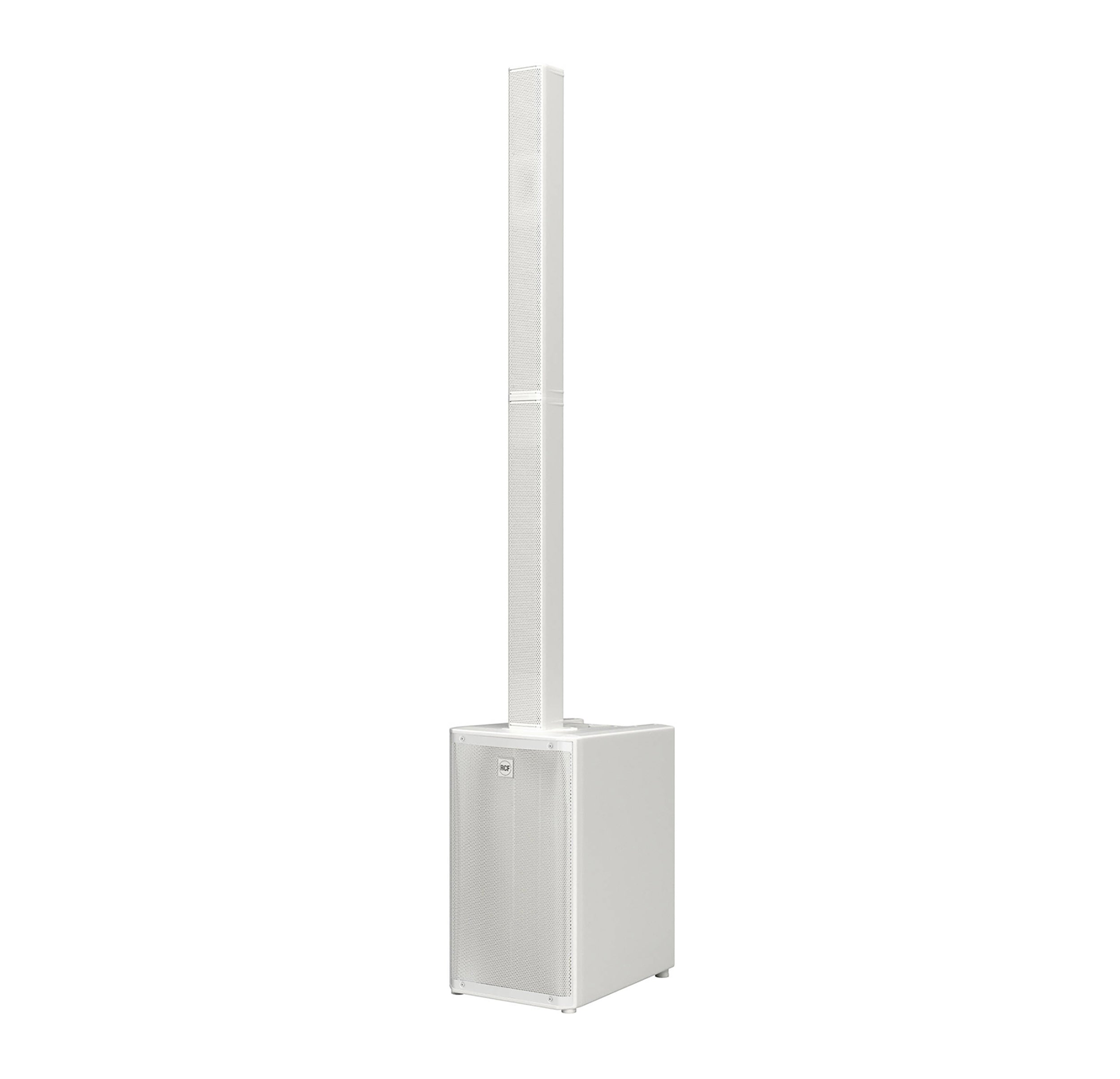

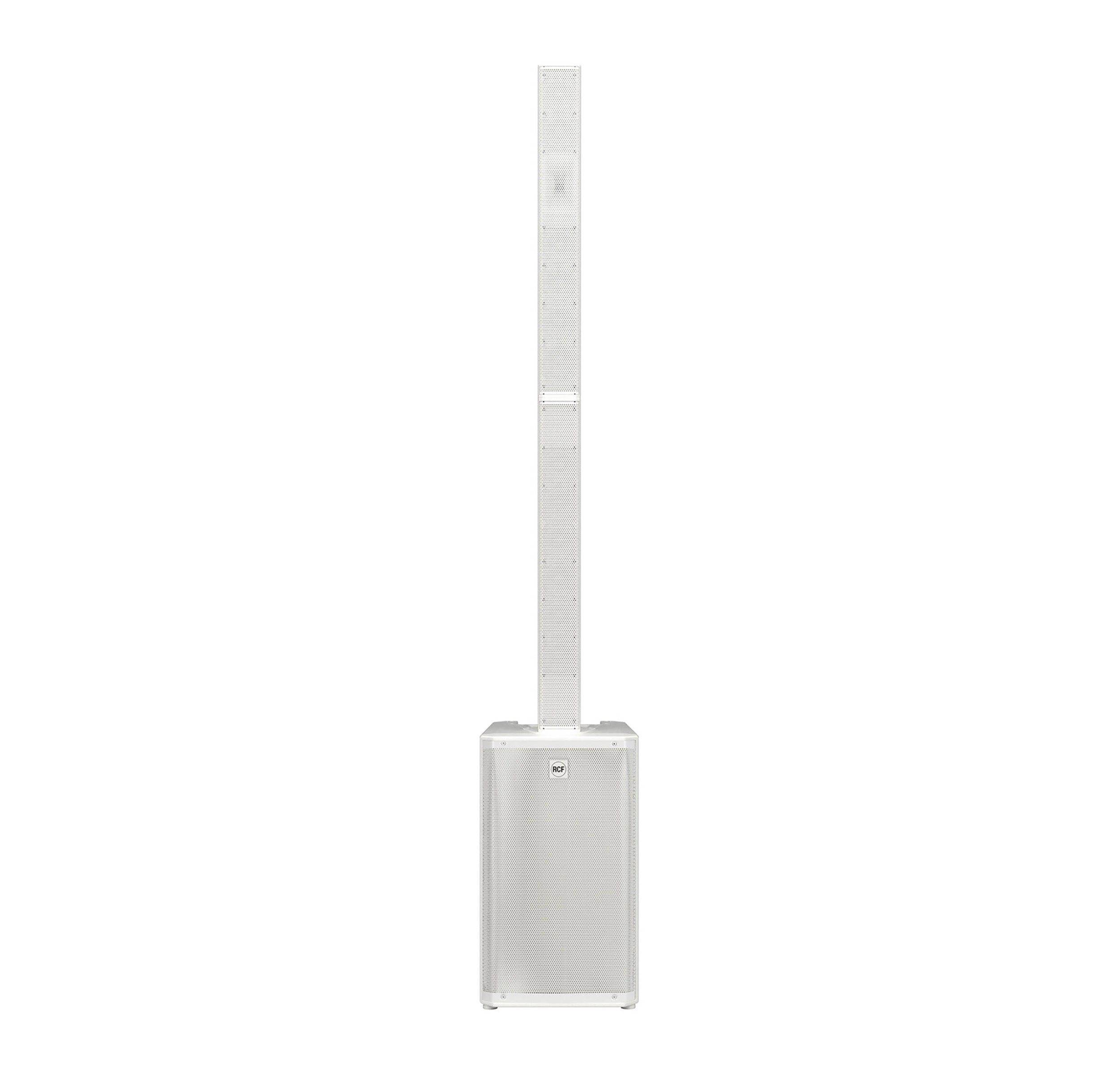

The RCF EVOX J11W is an active, three-way portable column system designed for maximum clarity and power in a compact format. A 1.75” compression driver coupled with a 120° × 40° True Resistive Waveguide ensures wide, consistent coverage, while 12 x 3” full-range transducers and a high-power 12” woofer in a bass-reflex enclosure deliver articulate mids and deep, controlled lows. Driven by a 3500W onboard dual-channel Class-D amplifier, EVOX J11W delivers an impressive 132 dB Max SPL output. Part of the EVOX J Series, it incorporates RCF’s tour-grade technology into a sleek, unobtrusive package that delivers crystal-clear vocals, natural musical response, and effortless deployment for bands, DJs, and live performers.
EVOX J11W is an active, three-way portable column system designed for maximum clarity and power in a compact format. Neutral and minimal, EVOX J11W stays out of the spotlight and simply delivers. Whether used in corporate spaces or at a party, the sound is clean, with high dynamics, vocal clarity, and a fast, controlled low end for both sitting and standing audience. Free-standing elegance, quick setup, and power at the highest level.
The new generation 3500 W Class-D two-channel amplifier delivers up to 2.5X more power than the previous architecture, delivering extremely high sound pressure levels with ultra-fast attack, realistic transient response, and minimal thermal buildup.

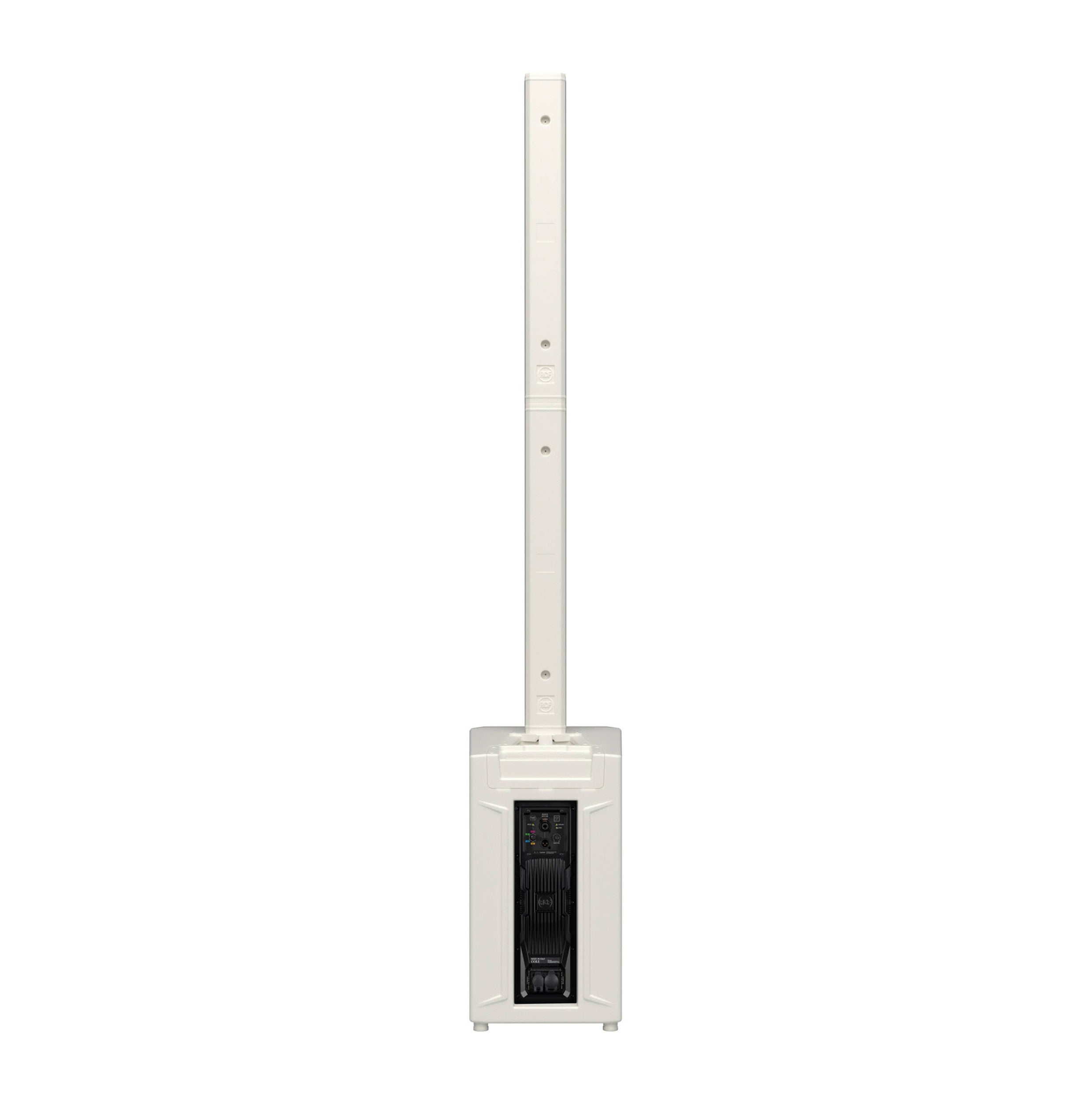

Highly energy-efficient, the J11 requires no cooling fan. The amplifier is mounted on a solid aluminum heat exchanger at the rear of the unit and has no moving parts. Mechanically coupled to the internal frame, the amplifier is securely braced within the cabinet for long-term reliability.
The input stage features a new low-distortion design with an advanced safety limiter that preserves the input signal's character at any level. EVOX J11W amplifier is designed in accordance with EN 62368-1 for maximum safety and feature a switch-mode power supply (SMPS) that combines high efficiency with minimal weight.
Neodymium compression driver (1.75” voice coil, Kapton dome) with a True Resistive Waveguide (TRW) for a resonance-free load and constant, 120° X 40° coverage.
The forward radiation of the array of 12x3” neodymium drivers, combined with the centered waveguide, delivers a balanced point-source response.
12” RCF transducer provides deep, controlled low frequencies, ideal for bass-heavy music and high-energy performances.
Product Specifications:
Frequency Response: 37 Hz – 20,000 Hz
Max SPL @ 1 m: 132 dB
Horizontal Coverage Angle: 120°
Vertical Coverage Angle: 40°
Color: White
Compression Driver: 1 × 0.75” neo diaphragm, 1.75” voice coil
Full-Range Drivers: 12 × 3.0” neo, 1.0” voice coil
Woofer: 1 × 12”, 2.5” voice coil
Input Signal: Balanced / Unbalanced
Input Connectors: Combo XLR / Jack
Output Connectors: XLR
Input Sensitivity: +4 dBu
Crossover Frequencies: 160 Hz / 1800 Hz
Protections: Thermal, RMS
Limiter: Soft Limiter
Controls: Volume, Presets (Linear/Live, Club, Voice)
Total Power: 3500 W Peak
High Frequencies: 1500 W Peak
Low Frequencies: 2000 W Peak
Cooling: Convection
Power Connections: Powercon TRUE1 TOP IN/OUT
Standard Compliance: CE Compliant
Cabinet Material: PP Composite
Handles: 1 × Top Handle
Pole Mount: Quick-fit socket with aluminum stand mount
Grille: Steel
Product Weight: 29 kg / 63.93 lb.
Product Dimensions(H × W × D): 89.96 × 15.75 × 18.11 in
Shipping Weight: 35 kg / 77.16 lb.
Shipping Dimensions(H × W × D): 26.61 × 17.76 × 22.87 in
