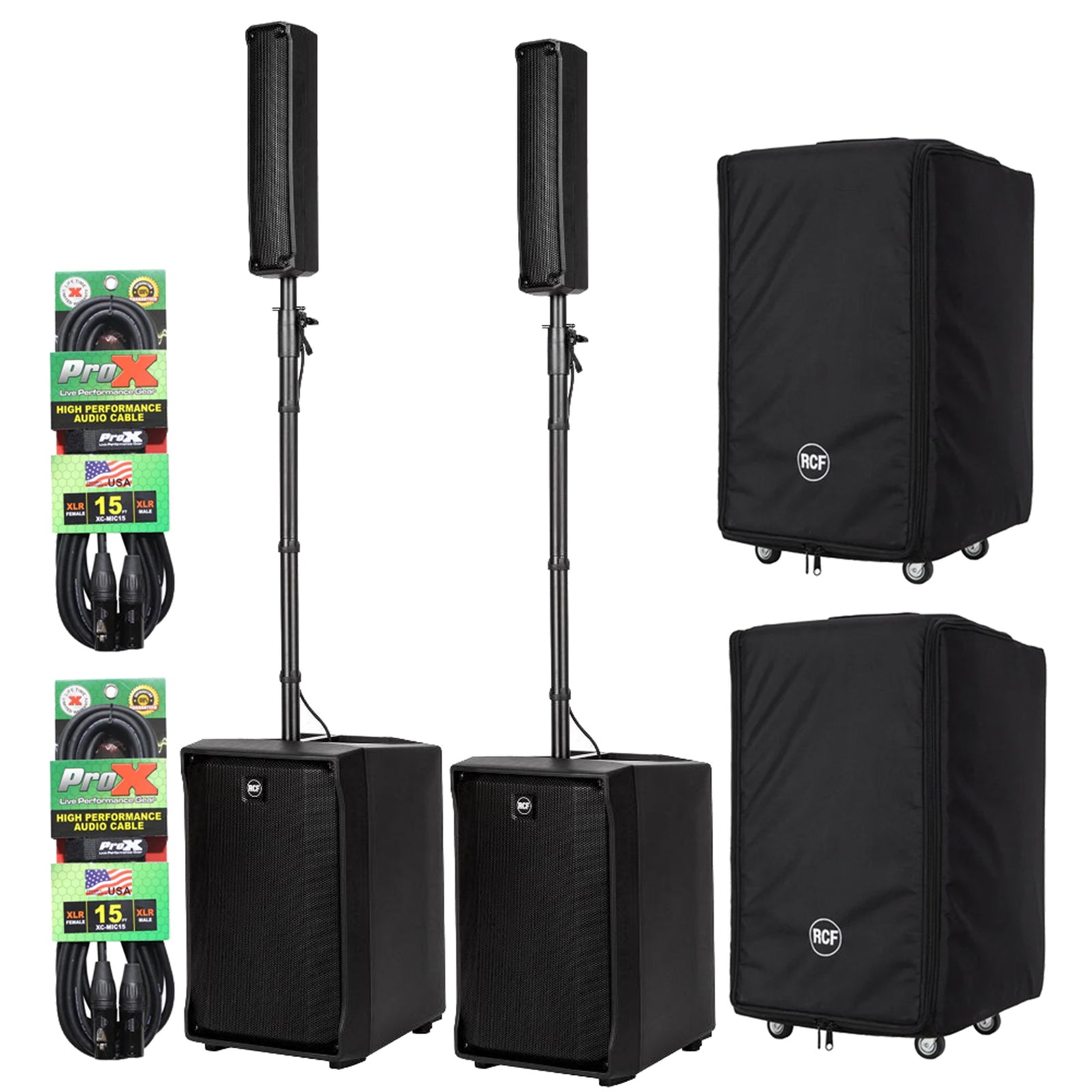

RCF EVOX-J8 Portable PA System Speaker Package with Protective Cover and Microphone Cable

This DJ package includes the RCF EVOX-J8, a 1400W Black portable PA system featuring a 12" woofer and eight 2" full-range drivers for wide 120° x 30° coverage and powerful, clear sound—ideal for live performances, parties, and events. The package also comes with the RCF COVER-WH-EVOX J8/JMIX8, a padded protective cover with built-in wheels, a telescopic handle, and storage pocket for easy and safe transport. Completing the setup is the ProX XC-MIC15, a professional-grade XLR cable with 93% braided OFC copper shielding for clear, reliable audio connections - perfect for touring and stage use.

This DJ Package Includes,

• 2 RCF EVOX-J8, Composite Active Portable PA System - Black
• 2 RCF Protective Cover for EVOX J8 and JMIX8 with Wheels
• 2 ProX XC-MIC15 Balanced XLR3-F to XLR3-M High Performance Microphone Cable - 15 Feet

2 RCF EVOX-J8, Composite Active Portable PA System - Black

The RCF EVOX-J8 Composite Active Portable PA System - Black is designed to deliver powerful sound projection for musicians, presenters, and DJs in clubs, parties, and live stage applications. Class-D amplification pumps 1400W peak (700W RMS) through a 12" high-excursion woofer and eight 2" full-range drivers, resulting in a frequency response of 40 Hz to 20 kHz. The system design produces a 120° horizontal by 30° vertical coverage pattern.

Connectivity includes XLR and 1/4" inputs and an XLR output. The subwoofer and satellite components interconnect via speakON. Switchable equalization presets and input sensitivity allow easy tonal optimization. Integrated DSP processing with FiRPHASE technology enhances clarity and transparency without inducing problematic latency.

The polypropylene composite cabinet minimizes weight and can be easily transported via the built-in carry handle. The adjustable pole mount offers simple height positioning of the satellite unit, which conveniently stores in the subwoofer enclosure. One speakON cable and a power cord are included with the EVOX J8.

FiRPHASE Technology

RCF speakers are designed by using FiRPHASE, a proprietary and advanced FIR filtering technology, conceived for delivering transparent sound, clarity, and ideal stereo images to the listener. The FiRPHASE algorithm optimizes dynamics, amplitude, and phase patterns while maintaining minimum system latency.

Complementary Components

The ultra-compact, full-range 2" RCF drivers are capable of handling high SPL and power with reliable sound performance. The high-excursion 12" RCF woofer extends to 40 Hz while offering quick and precise punch. The bass-reflex port design avoids air turbulence and reduces distortions. The EVOX design features constant directivity coverage of 120° horizontal by 30° vertical, providing an optimal coverage pattern. The vertical array is progressively shaped to guarantee consistent sound coverage from the first row to the last.

Class-D Amplification

RCF's Class-D power amplifier technology packs performance gain with high efficiency into a lightweight solution. EVOX amplifier delivers ultra-fast attack, realistic transient response, and impressive audio performance. The amplifier features a solid mechanical aluminum structure, which not only stabilizes the amplifier during transportation, but also aids in heat dissipation. The EVOX amplifier utilizes a switch-mode power supply section in order to produce maximum output and minimum transportation weight.

Switchable EQ

Switch between two different EQ presets—Boost and Flat. The Boost preset slightly emphasizes the bass response for low-volume applications and playback of music. The Flat preset yields a linear response ideal for amplifying a live mix. The amplifier has a built-in limiter circuit to prevent clipping or overdriving the transducers.

Mic/Line Switch

A useful Mic/Line switch offers simple input sensitivity selection. When used for speech, the Mic setting allows to use a microphone directly with the speaker. Set the selector to Line when using the speaker for live music or playback.

Status LEDs

Three status LEDs—Limiter, Signal, and Status— are provided for monitoring the system

Product Specifications:

Speaker Configuration: 1x 2-Way Speaker Column with Subwoofer

Amplifier Power Rating:

Total:

1400 W Peak

700 W RMS

LF:

1000 W Peak

500 W RMS

HF:

400 W Peak

200 W RMS

Amplifier Class: Class-D

HF Driver: 8x 2" / 5.1 cm

HF Voice Coil: 1" / 2.5 cm

LF Driver: 1x 12" / 30.5 cm Woofer

LF Voice Coil: 2.5" / 6.4 cm

Crossover: 220 Hz

Dynamic Processing: Soft Limiter

Frequency Response: 40 Hz to 20 kHz

Maximum SPL: 128 dB

Coverage Angle: 120° H x 30° V

Input Sensitivity: +4 dBu / -2 dBu

Protections: RMS, Thermal

Audio I/O:

1x XLR 3-Pin Female (Signal Type Unspecified) Input

1x 1/4" TS Balanced (Signal Type Unspecified) Input

1x XLR 3-Pin Male Link Output

1x speakON NL2 Link Output

Construction Material: Metal Grille, Polypropylene

Environmental Protection: No

Product Weight: 52.5 lb. / 23.8 kg

Product Dimensions: 24.5 x 15.7 x 18.1" / 62.3 x 40 x 46 cm

Shipping Weight: 64 lb.

Shipping Dimensions (LxWxH): 27 x 23.4 x 18"

2 RCF Protective Cover for EVOX J8 and JMIX8 with Wheels

The RCF COVER-WH-EVOX J8/JMIX8 is a durable protective cover designed for the EVOX J8 and JMIX8 sound systems. It features built-in wheels and a retractable telescopic handle for effortless transport. The padded cover shields your system from dust, scratches, and minor impacts, while a zippered closure ensures a secure fit. A large exterior pocket provides convenient storage for cables and accessories, making it an essential companion for mobile DJs, musicians, and live performers.

Product Specifications:

Type: Protective Cover with Wheels

Transport Options: Built-in wheels, retractable handle

Exterior Dimensions (W x H x D): 25.6 x 20.9 x 16.9" (65 x 53.1 x 42.9 cm)

Weight: 15.2 lbs (6.9 kg)

Shipping Weight: 16.6 lbs (7.5 kg)

Shipping Dimensions (L x W x H): 25.6 x 16.1 x 12.5" (65 x 41 x 31.8 cm)

2 ProX XC-MIC15 Balanced XLR3-F to XLR3-M High Performance Microphone Cable - 15 Feet

The ProX XC-MIC15 is ideal for professional touring and live sound applications where a device with an XLR output needs to be connected to a device with an XLR input. 93% braided OFC Copper Compact shield to reduce noise and protect pure sound transfer. Compact cable diameter to decrease eddy currents. Bending & Twisting are no match for our high-performance tour-grade audio cables. They're designed to provide years of dependable sound reproduction and outlast every other cable on the market! Complete Coil technology demands consistent weave tolerances to create precise accuracy and detailed clarity. This is the most important part of the design and greatly affects performance.

Fits: XLR3-M TO XLR3-F.

Product Specifications:

Shipping Dimension: 13.00"L x 12.00"D x 5.00"H

Shipping Weight: 9.00 lbs
