Description

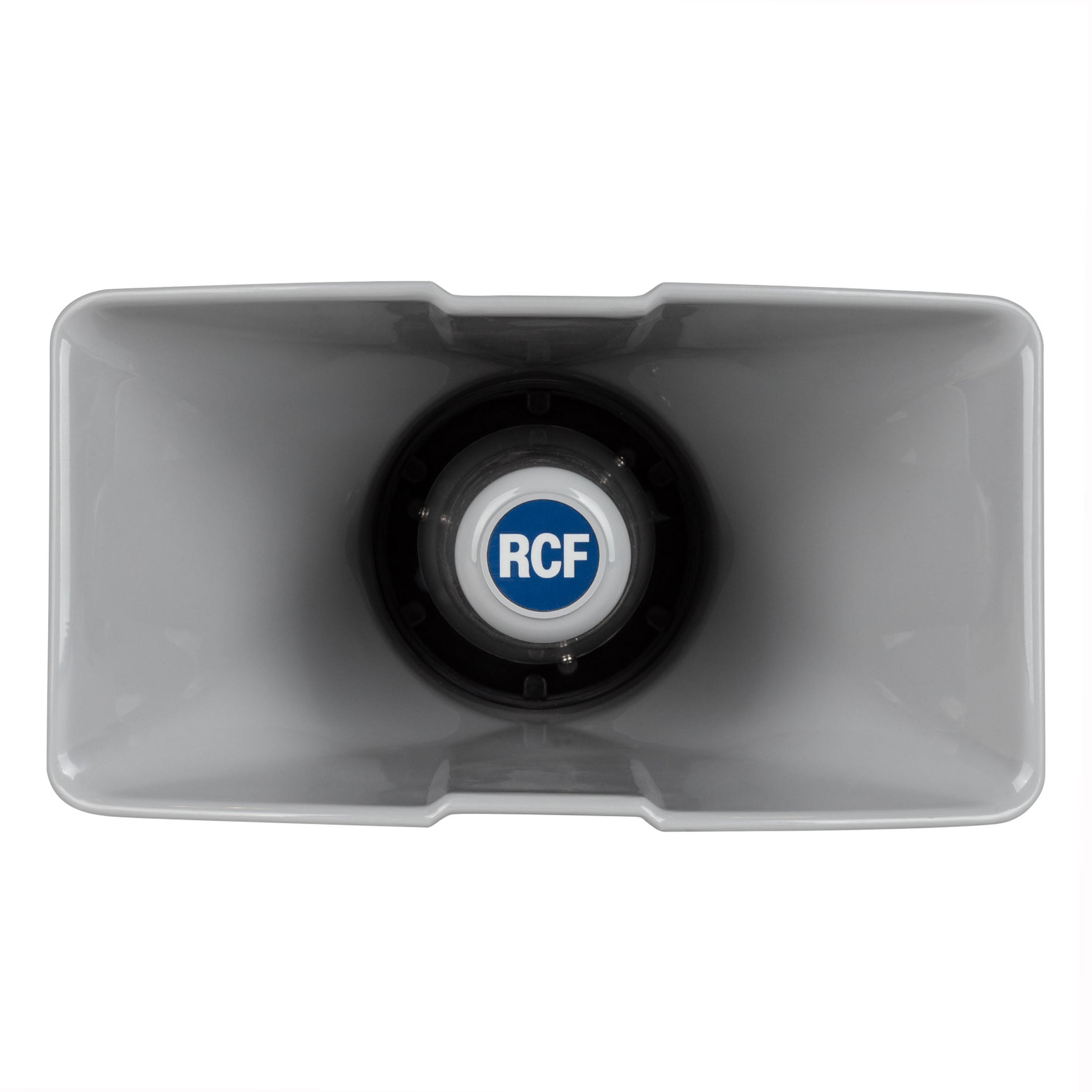

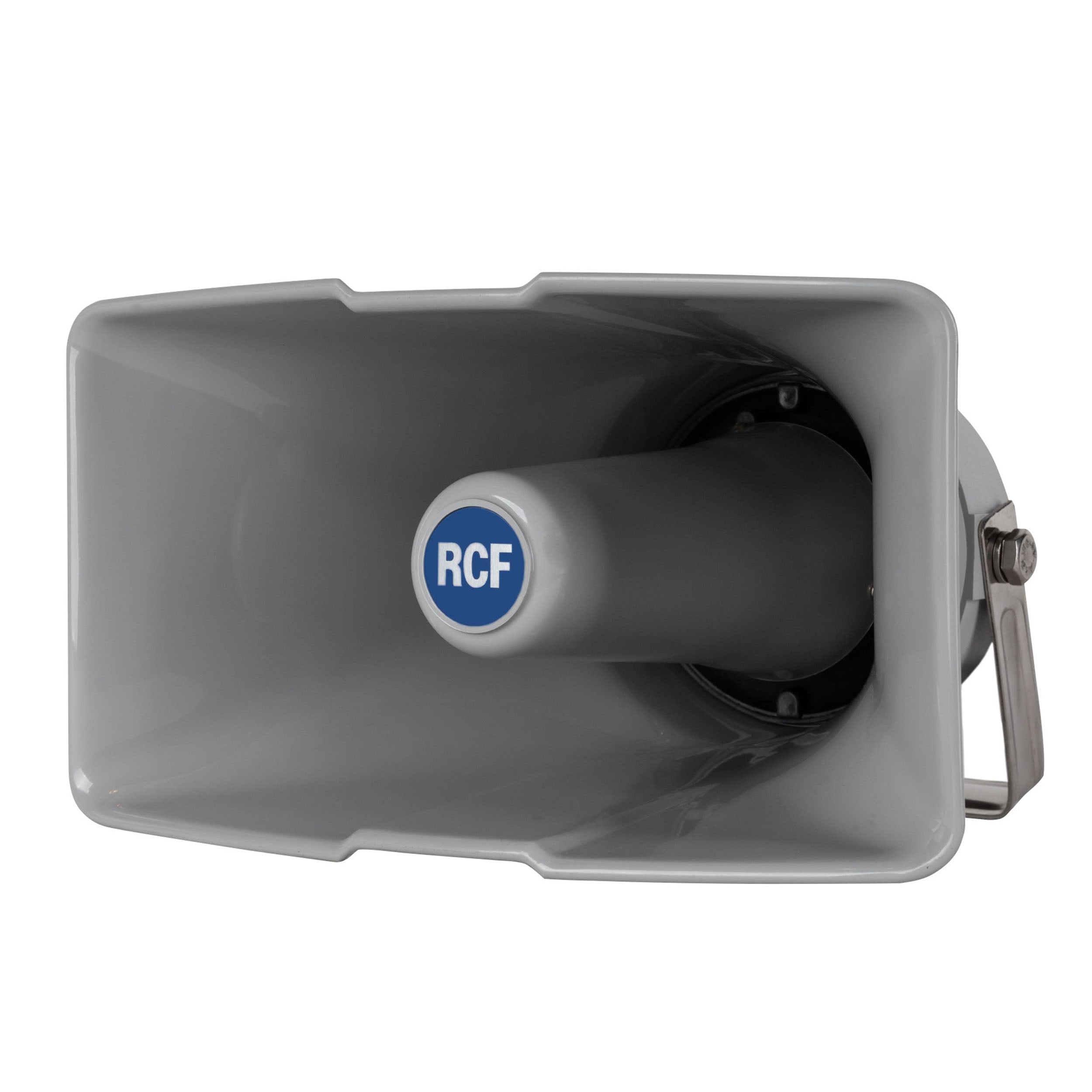

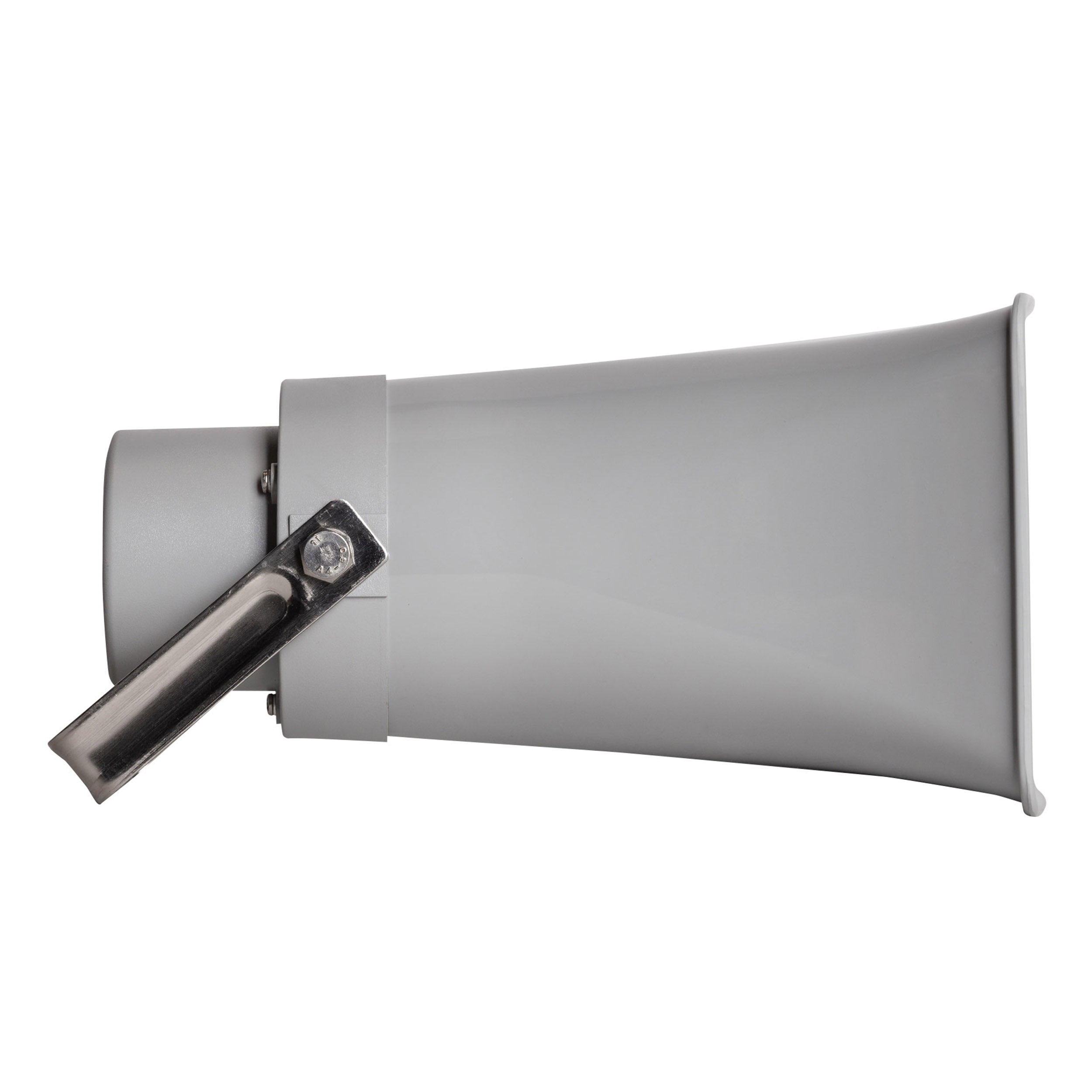

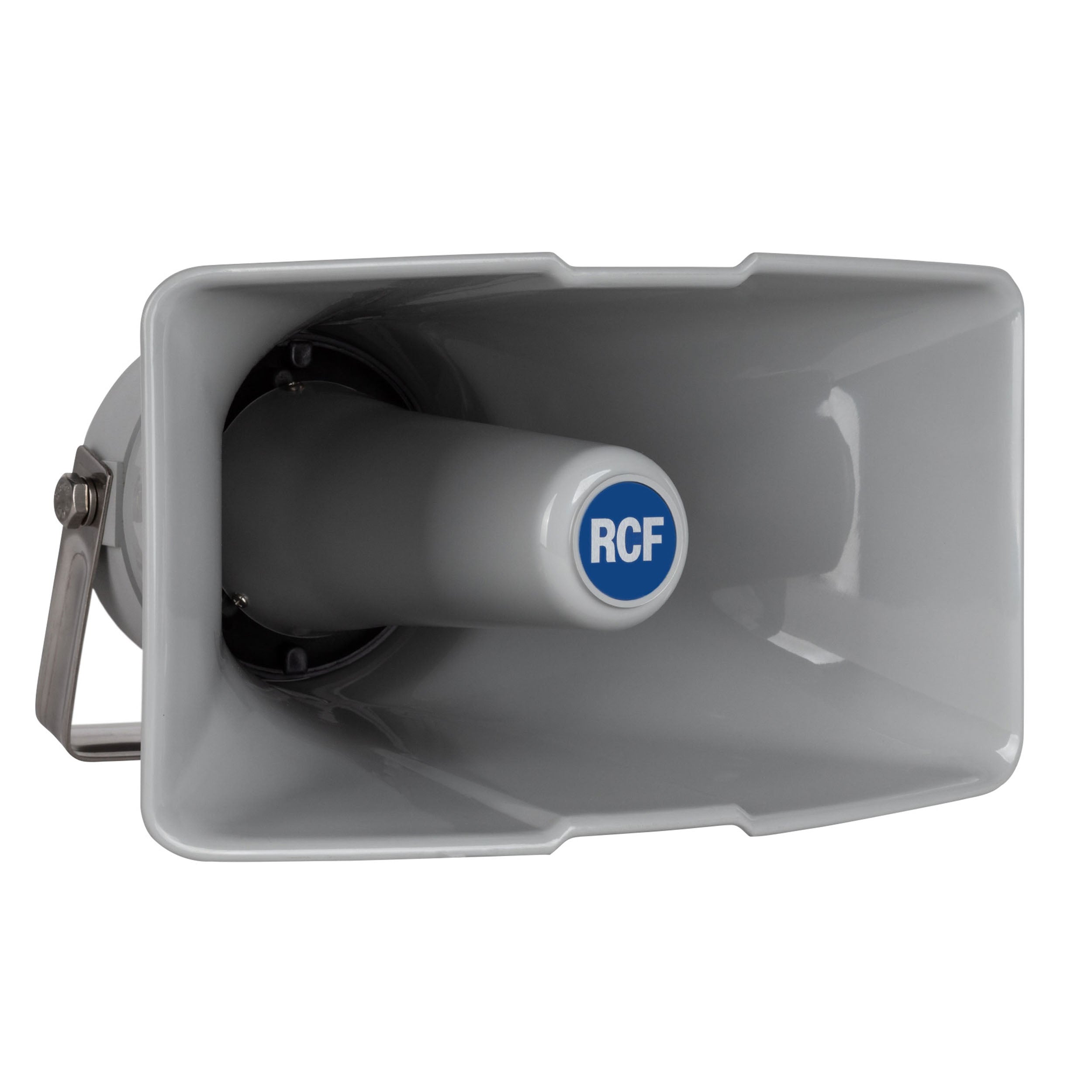

The RCF HD 3216T is a compact, lightweight, and watertight horn speaker designed for high-efficiency sound reinforcement in both indoor and outdoor environments. Engineered for excellent speech intelligibility and low distortion, it delivers clear and focused audio performance for public address and emergency notification applications.

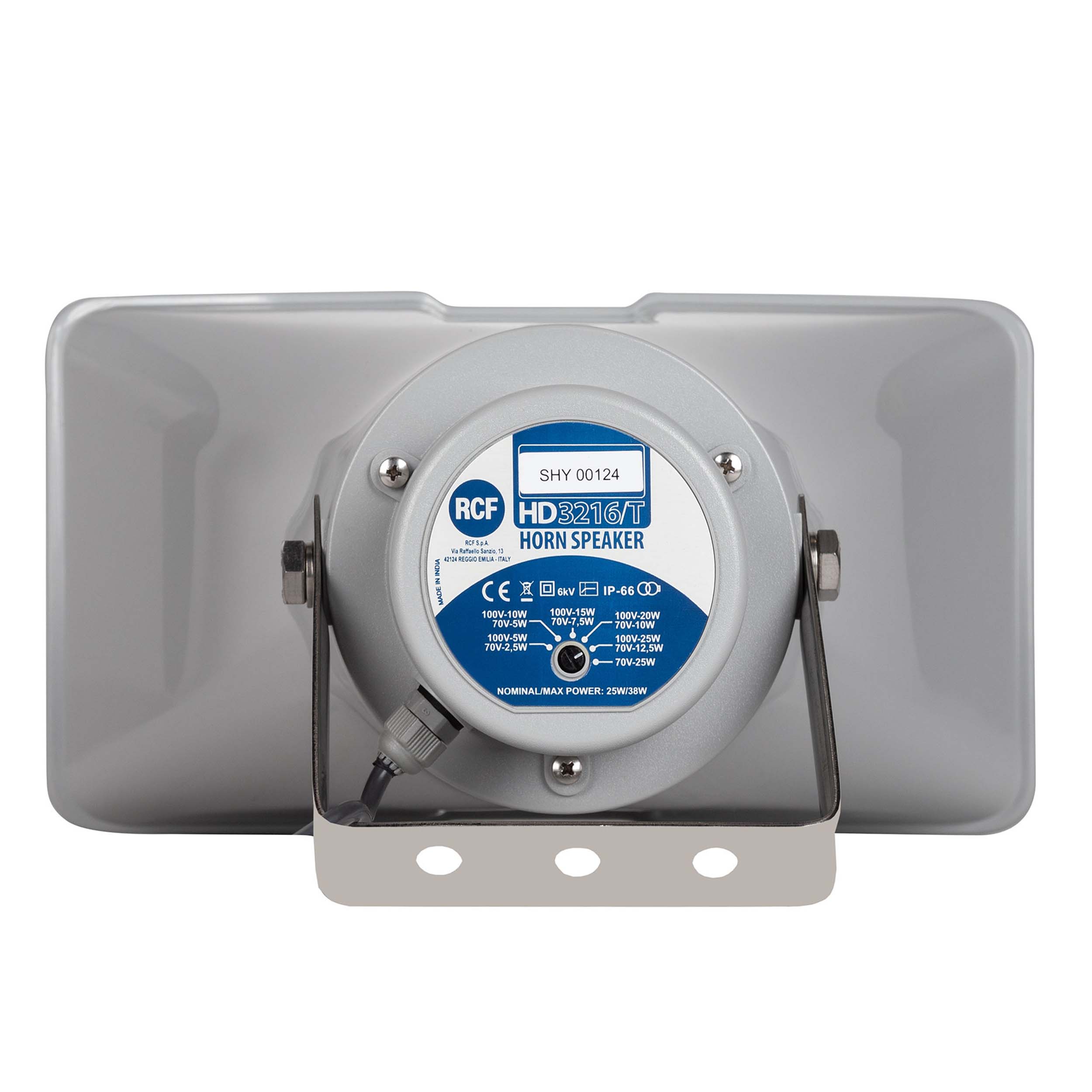

Equipped with a built-in line transformer, the HD 3216T supports both 70V and 100V constant voltage systems. The multitap power selector located on the rear cover allows convenient power adjustment, while the integrated hi-pass filter protects the driver from out-of-range low frequencies for reliable and consistent operation.
Built for demanding environmental conditions, the HD 3216T features IP66-rated construction for dependable performance in temperatures ranging from -25°C to +70°C. Its UV-stabilized, auto-extinguishing UL-HB ABS plastic housing, stainless-steel mounting hardware, and RAL 7035 grey finish ensure long-lasting durability and dependable outdoor performance.
Product Specifications:
Frequency Response: 250 Hz – 10 kHz (-10 dB)
Max SPL: 122 dB @ 1m
Horizontal Coverage: 130°
Vertical Coverage: 60°
Sensitivity: 108 dB
Impedance: 8 Ohm
Power Handling: 25 W
Peak Power Handling: 100 W Peak
HF Driver: 1 × 1.5" Compression Driver
Input/Output: Cable
Constant Voltage Support: 70/100 V
Power Taps: 25W (400 Ohm), 20W (500 Ohm), 15W (667 Ohm), 10W (1000 Ohm), 5W (2000 Ohm), 2.5W (4000 Ohm)
IP Rating: IP66
Compliance: CE Certified
Cabinet Material: ABS
Mounting Hardware: Stainless Steel U Bracket
Product Weight: 5.51 lbs
Product Dimensions (L × W × H): 12.68 × 12.2 × 6.89
Shipping Weight: 6.83 lbs
Shipping Dimensions (L × W × H): 7.09 × 12.99 × 15.35 inches
