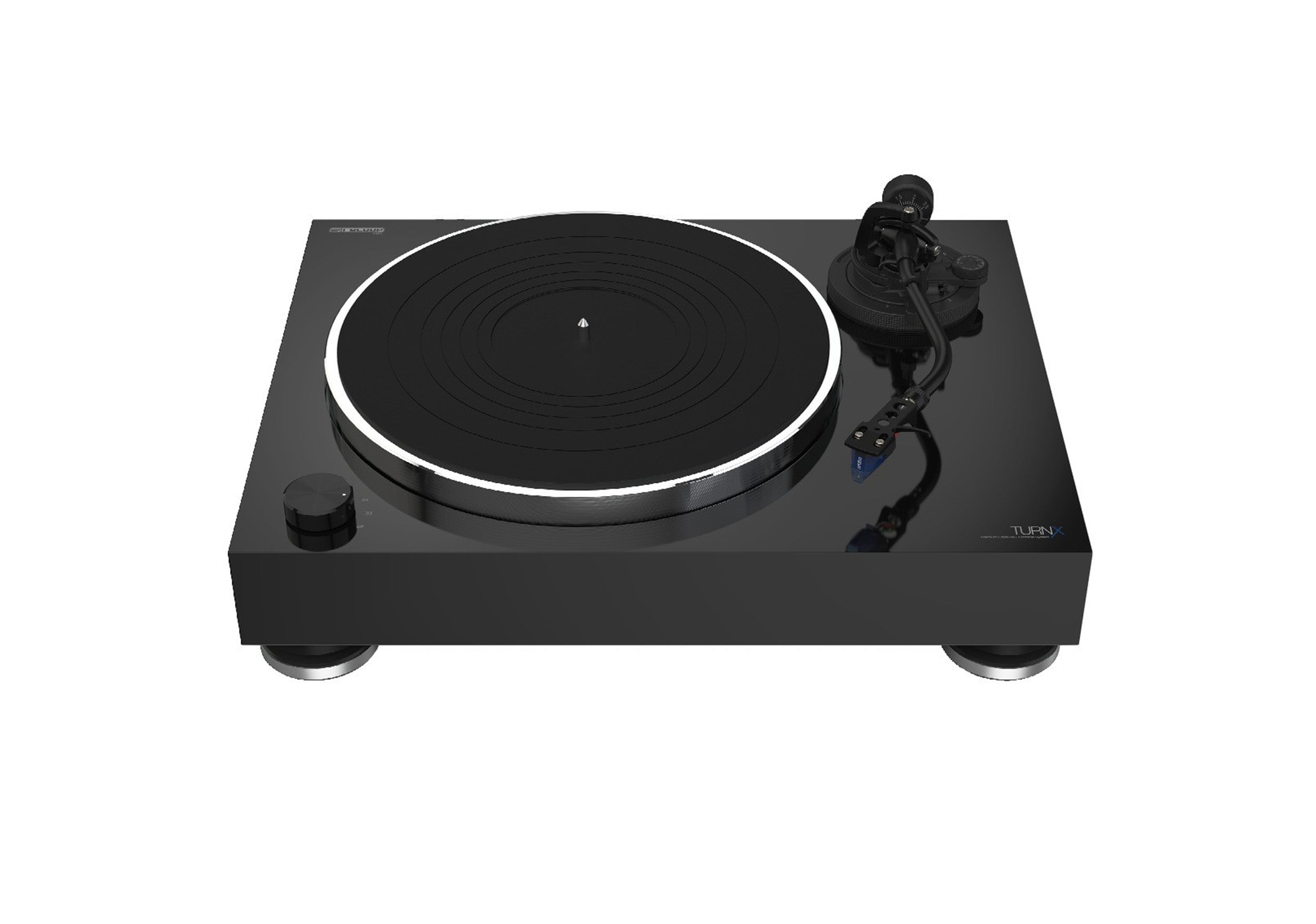

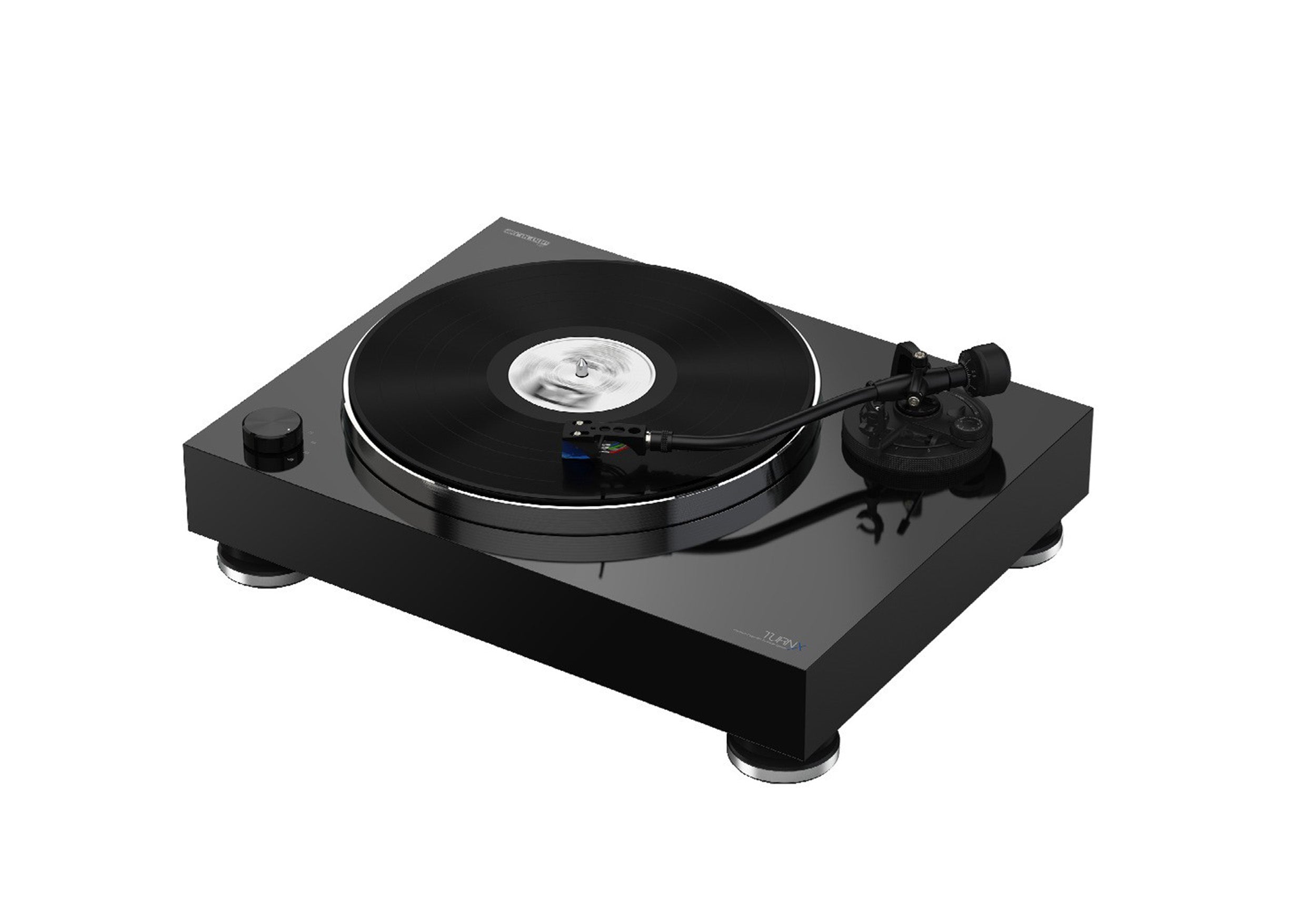

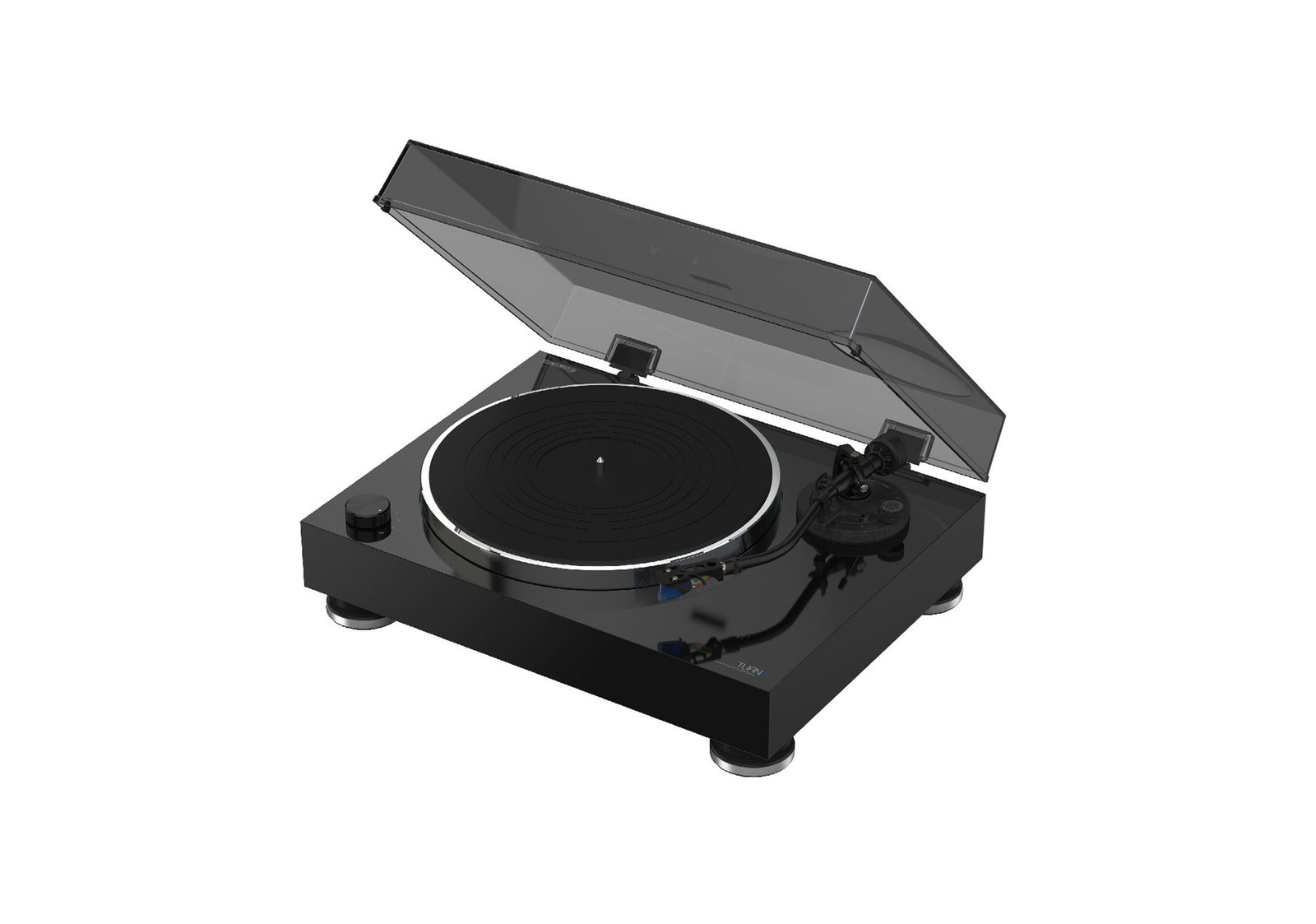

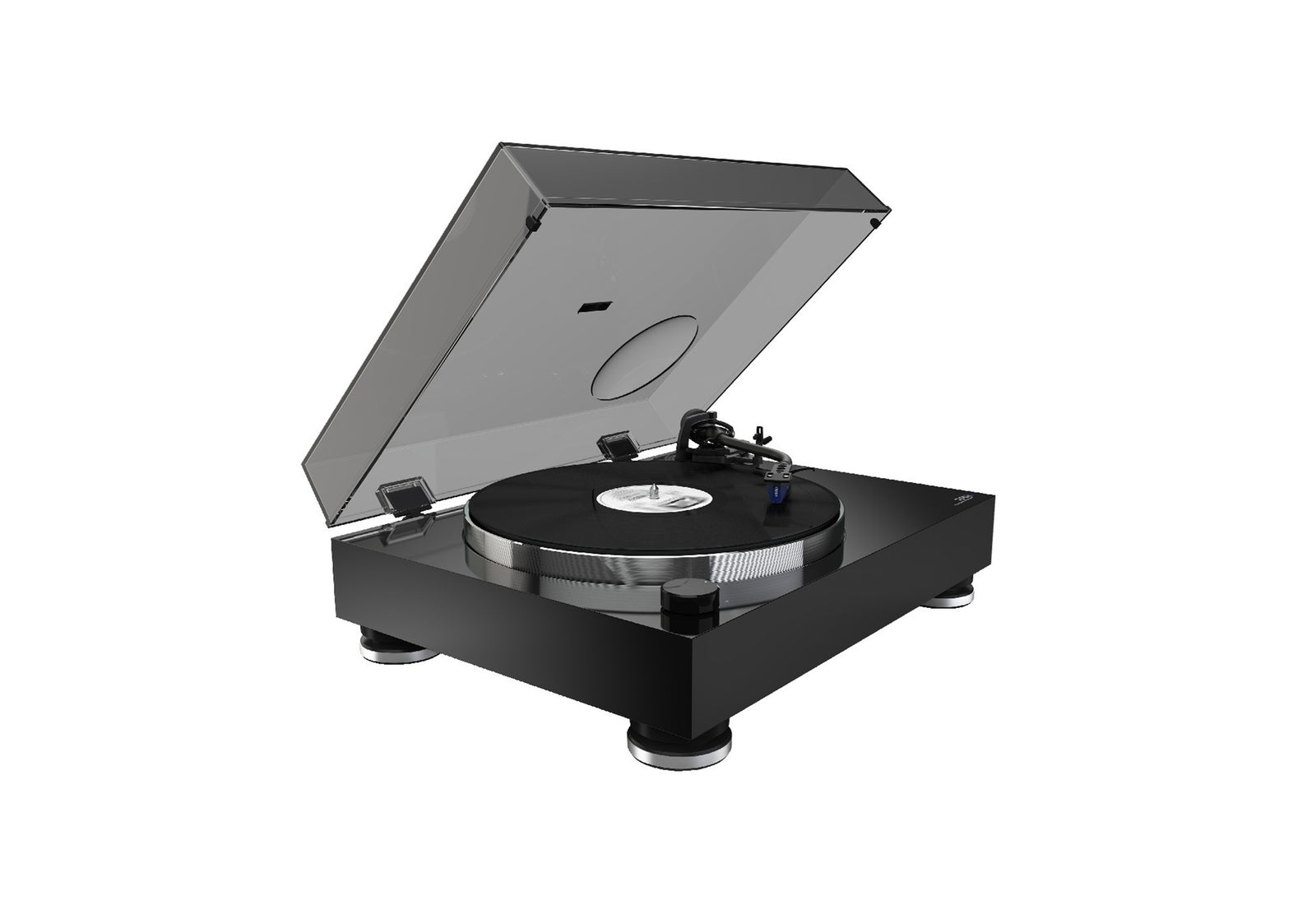

Reloop TURN-X Premium HiFi Quartz-Controlled Turntable with Ortofon 2M Blue

The Reloop TURN X is a premium, quartz-controlled HiFi turntable engineered for uncompromising audio fidelity and precision performance. Featuring a super high-torque direct drive DC motor, the TURN X offers ultra-stable rotation and minimal wow and flutter, ensuring perfect playback for audiophiles and professionals alike.

Designed with Precision from The Outset

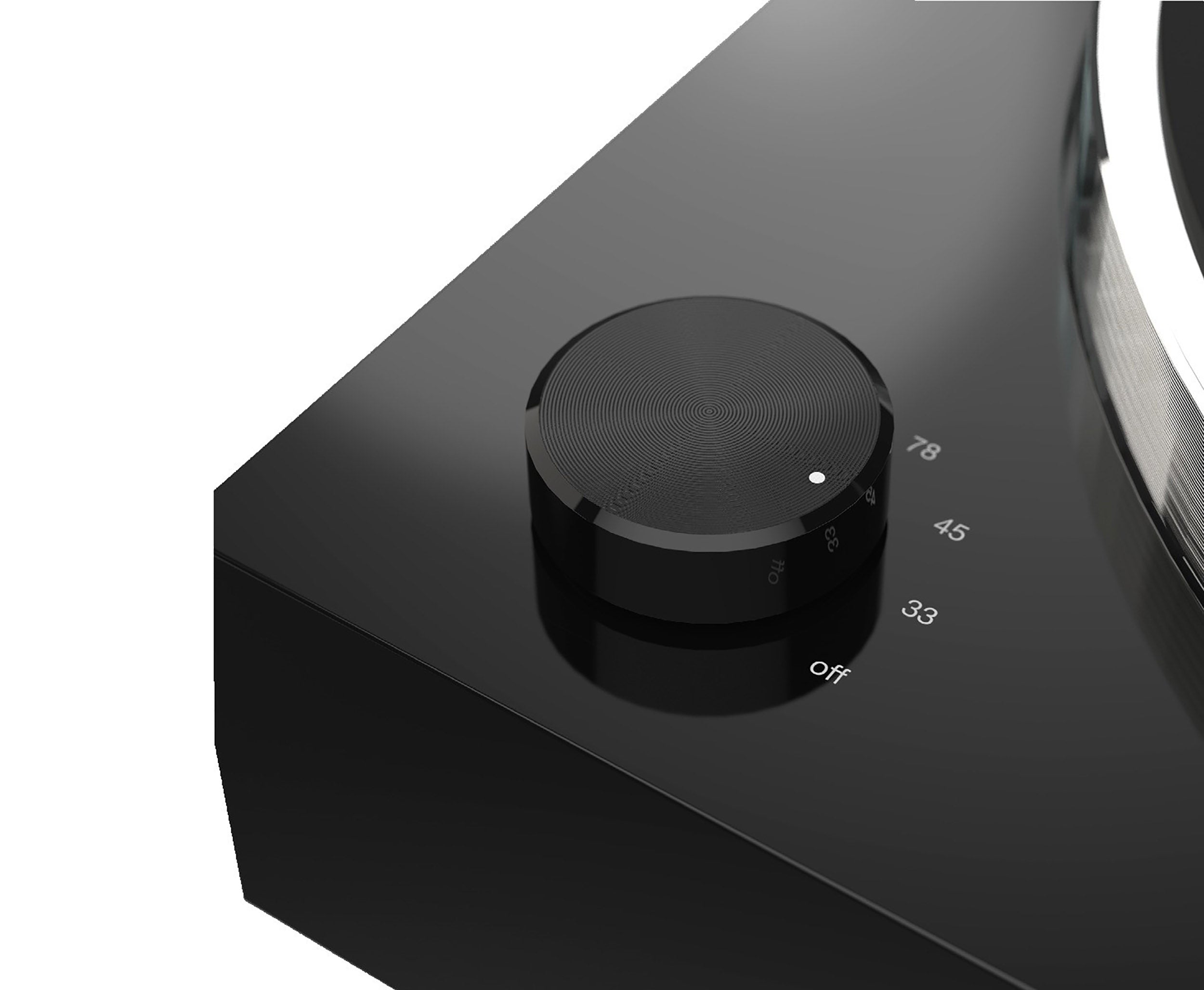

The Turn X's direct-drive DC motor offers incredibly accurate and consistent speeds. The high torque ensures lightning-fast start-up times and minimal variances of just +/-0.03%. The Turn X excels when operated in full manual mode, where its electronic brake and rotary switch for smooth starting and stopping, which also doubles as a speed selector (33, 45 and 78 RPM), shine.

Balance Perfection

A solid aluminium block supports the record player's precision-machined die-cast platter. Its hefty 2.1 kg, 332 mm diameter and 22.5 mm thickness ensure smooth, even movement. The damping rubber coating on the back of the turntable and the rubber mat provide excellent isolation properties and minimise vibrations.

Audiophile Tonearm

The statically balanced S-shaped tonearm can be adjusted in height to change the cartridge's azimuth (the angle at which the needle approaches the record) and the record's vertical tracking angle (VTA). The tonearm design guarantees free and fluid movement and optimum cartridge performance.

Crystal Clear Sound Quality

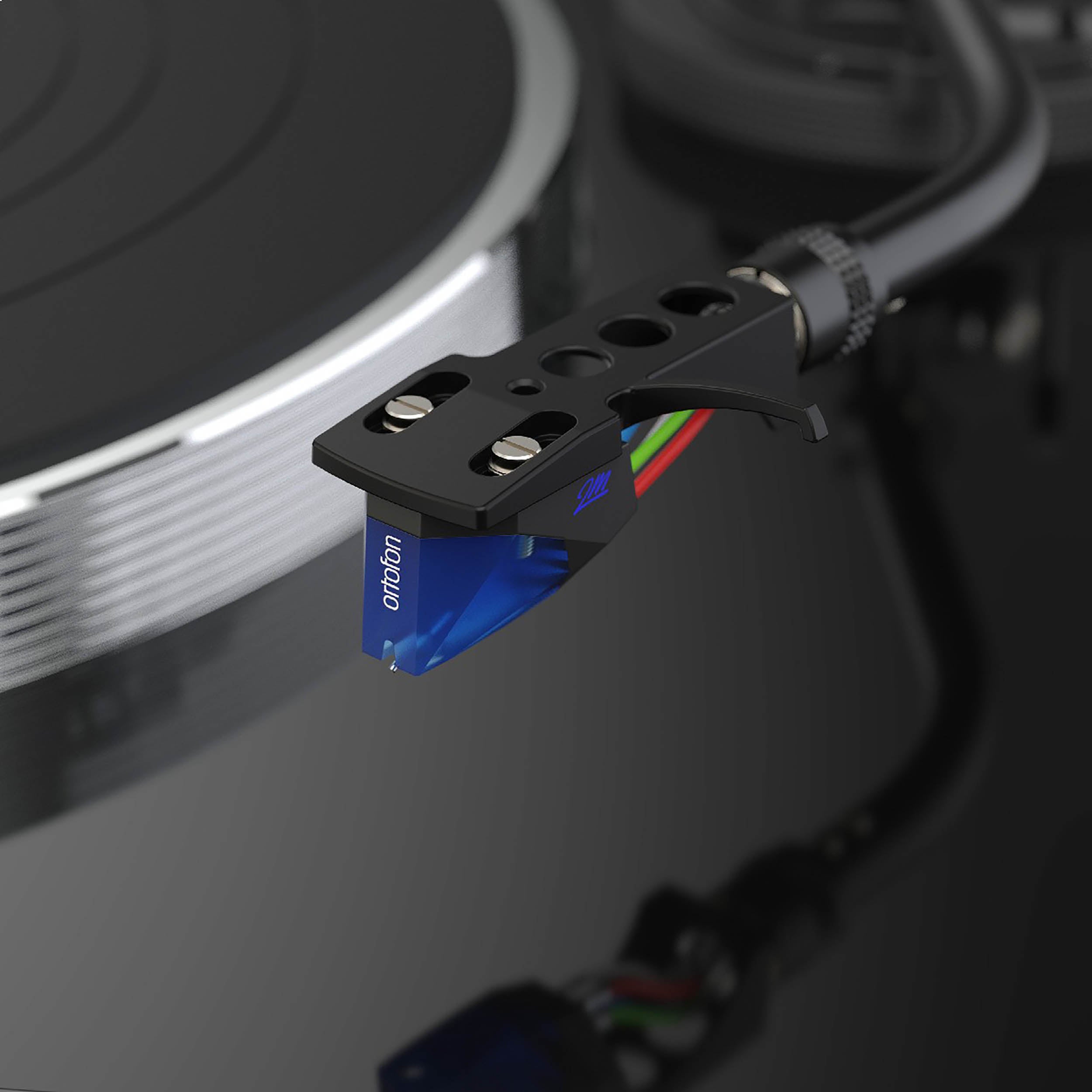

The Turn X has a high-quality Ortofon 2M Blue cartridge pre-installed, ensuring excellent dynamics and sound resolution to satisfy even the most discerning audiophiles. Another highlight: The universal SME connector enables a quick and easy cartridge system change if required.

Design Without Compromise

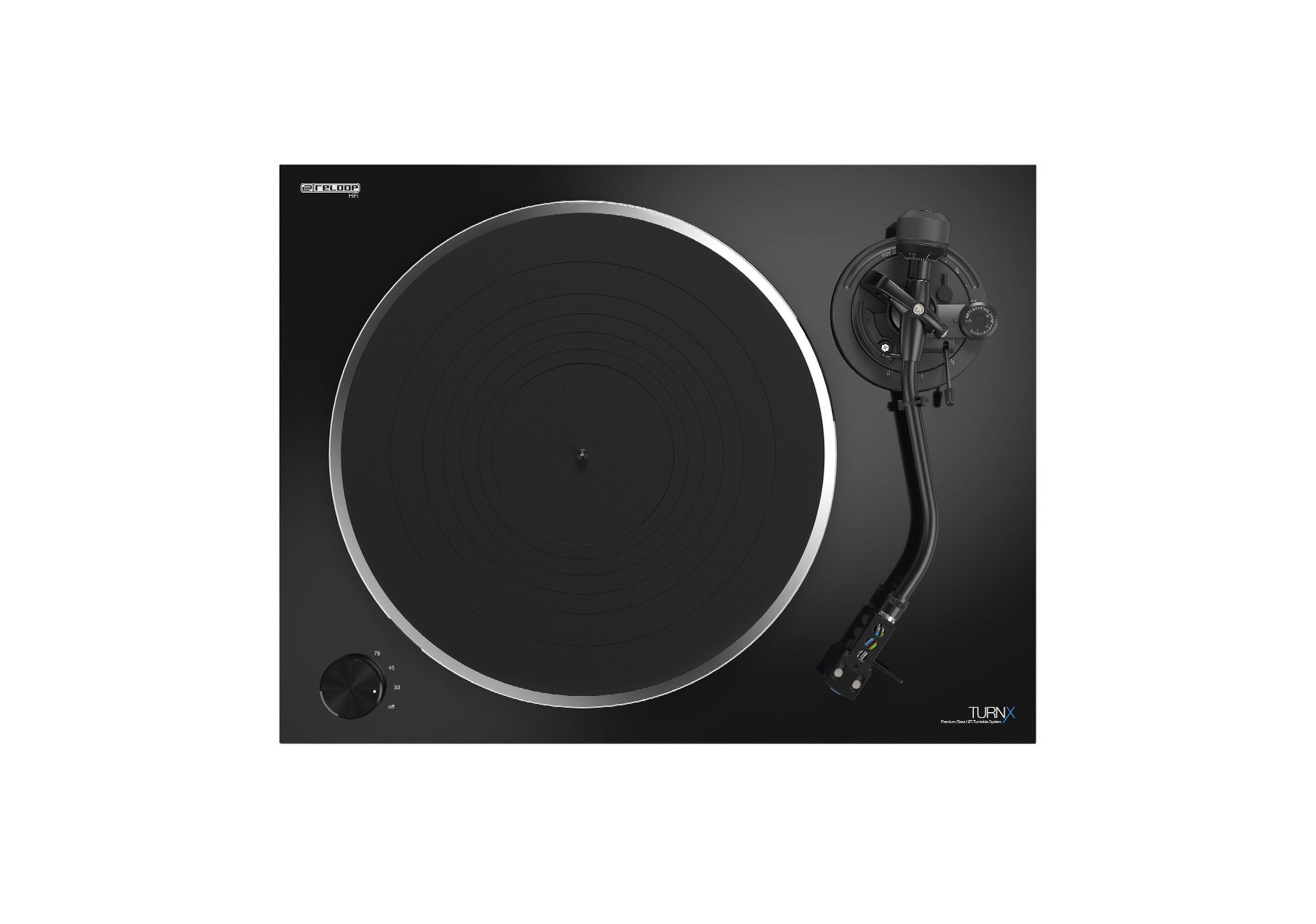

In addition to meeting the exacting demands of vinyl enthusiasts, the Reloop Turn X is a true visual showpiece. The record player's sleek design, sophisticated one-button control, and classy piano lacquer finish make it a real eye-catcher.

Sound and Nothing but Sound

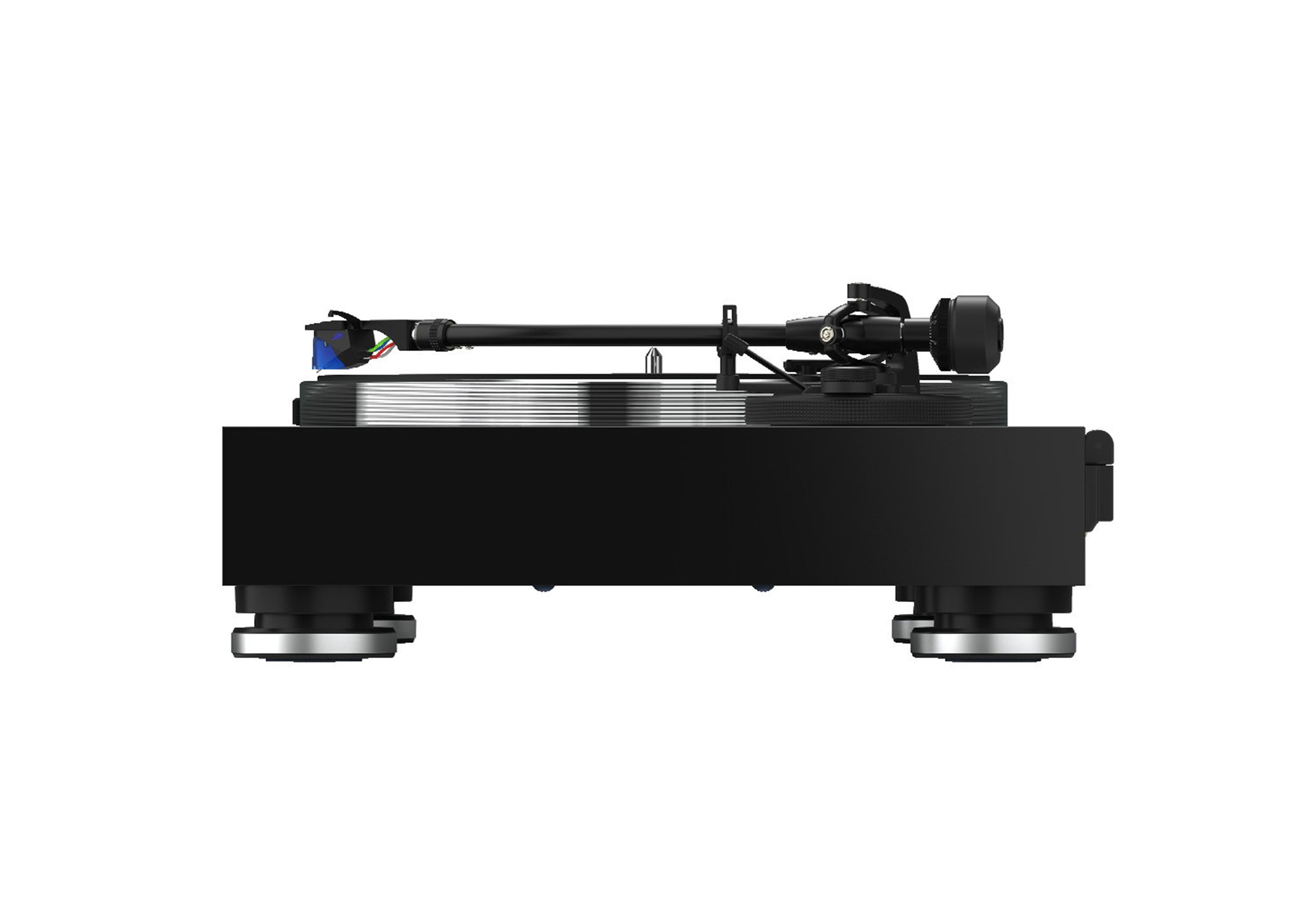

The turntable's solid MDF chassis is exceptionally sturdy and robust, keeping unwanted resonances at bay from the outset. As a bonus, the Turn X is effectively decoupled thanks to the height-adjustable isolator feet.

Attention to Detail

Last but not least, the Turn X features a gold-plated high-resolution phono output and a gold-plated ground connector for optimum signal transfer and corrosion resistance. Interference is reduced even further by the power switch's ultra-low noise insulation.

Product Specifications:

Type of turntable: Direct drive, fully manual

Drive: Quartz driven upper-torque direct drive with precision rotation

Motor: DC Motor, 16-Pole, 3-Phase, brushless

Rotation speeds: 33 1/3, 45 & 78 RPM

Starting Torque: More than 4500 g/cm

Start-up time / rpm change: Less than 0.3 sec.

Wow and Flutter: Less than 0.1% WRMS (JIS WTD)

S/N Ratio: More than 60dB (DIN-B)

Breaking System: Electronic brake

Turntable Platter: Aluminium die-cast

305 mm diameter

Weight: 2.1 kg

Tonearm Section:

Type: Static balanced S-Shape

Effective Length: 230 mm

Overhang: 15 mm

Tracking Error Angle: Less than 3 degrees

VTA Adjustment Range: 0-6 mm

Applicable Cartridge Weight: 17 – 25 g (incl. Headshell)

Anti-Skating Range: 0-3 g

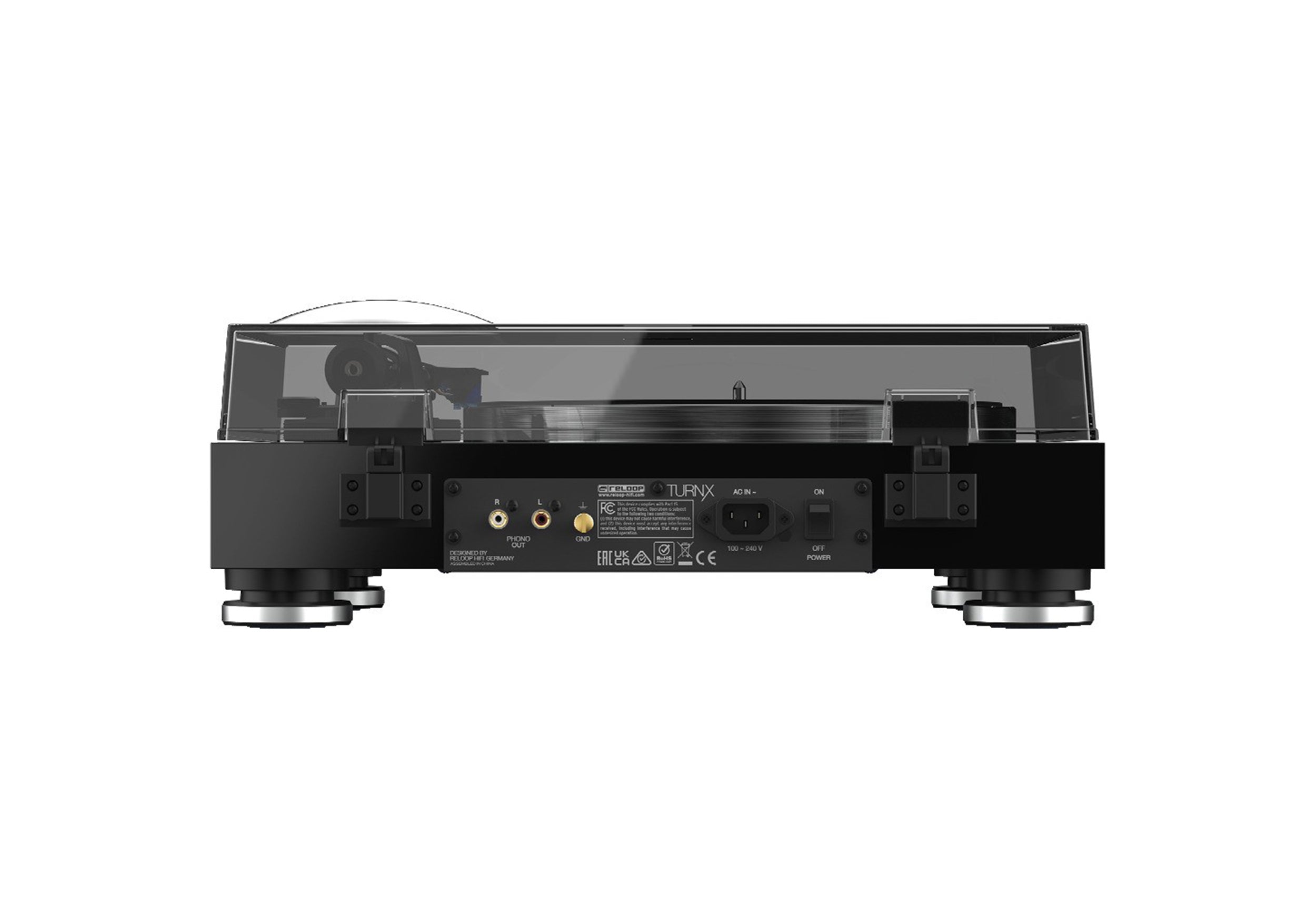

Terminals: 1x PHONO Out (gold-plated), 1x GND Earth Terminal

Cartridge:

Type of cartridge: Ortofon 2M Blue

Output voltage at 1000 Hz, 5cm/sec.: 5.5 mV

Channel balance at 1 kHz: 1.5 dB

Channel separation at 1 kHz: 25 dB

Channel separation at 15 kHz: 15 dB

Frequency response: 20-20.000 Hz + 2 / - 1 dB

Tracking ability at 315Hz at recommended tracking force: 80 µm

Compliance, dynamic, lateral: 20 µm/mN

Stylus type: Elliptical

Stylus tip radius: r/R 8/18 µm

Tracking force range: 1.6-2.0 g (16-20 mN)

Tracking force, recommended: 1.8 g (18 mN)

Tracking angle: 20°

Internal impedance, DC resistance: 1.3 kOhm

Internal inductance: 700 mH

Recommended load resistance: 47 kOhm

Recommended load capacitance: 150-300 pF

Cartridge colour, body/stylus: Black/Blue

Cartridge weight: 7.2 g

General:

Power Supply: AC IN 100~240V, 50/60 HZ

Power consumption: 3W

Weight: 22 lbs.

Shipping Weight: 28?lbs.

Shipping Dimensions (LxWxH): 19.1 x 17.7 x 9.8"
