Description

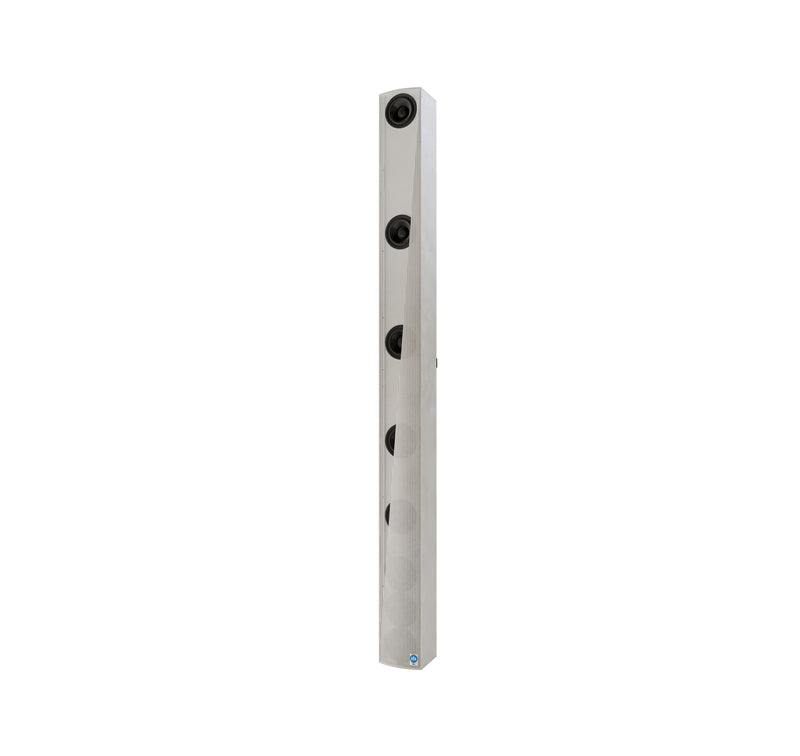

The Renkus Heinz IC16-8-RN, Digitally Steerable Line Array Loudspeaker Systems ICONYX technology gives sound system designers the power to create a system to cover even the most problematic spaces. Up to four steerable beams can be individually shaped and aimed from a single IC16-8-RN column using the powerful software-controlled DSP.
Multichannel audiophile amplifiers power arrays of purpose-designed coaxial transducers, each with its own triple tweeter high frequency array. This triple tweeter “array within an array” design reduces the distance between HF sources for greatly improved high frequency performance with consistent, broad horizontal dispersion.
Product Specifications:
Sensitivity: 1.4 V (for rated power output)
Max SPL: 130 dB peak, (100 dB @ 100 Ft. (30.5 meters)
Power Consumption: Idle 0.5 A (120 V) / 0.25 A (240 V)
1/8 Power: 1.1 A (120 V) / 0.6 A (240 V) (onset of limiting)
1/3 Power: 2.9 A (120 V) / 1.6 A (240 V) (hard limiting)
Horiz Dispersion: 150° up to 3 kHz; 120° above 3 kHz
Vert. Opening Angles: 20°, 25° and 30°
Vert. Aiming Angle: Adjustable from -10° to +10°
Typical Throw: 100 Ft. (30 meters)
Beam Control: Effective down to 400 Hz
System Latency: 8ms analog input to outputPreset 0
No. Transducers: 3 coaxial transducers, each having triple tweeters
5x 4″ LF/MF Transducers progressively spaced
No. Amp Channels: 8
Transducers: Coaxial with a 4” woofer and triple 1” tweeters, RH model SSL4-7; 25 W RMS, 50 W pgm
Inputs: Analog Audio 2 balanced inputs on Phoenix ConnectorsAES/EBU Phoenix ConnectorRJ45 connector for Ethernet Control
Computer Controls: Gain, Mute, On/Standby, Input SelectionCompression8-Band Parametric EQShelving &Rolloff FiltersDelayPreset Configuration Selection
Status Indicators: PowerSignalOverdriveThermalMuteInput PadPreset Configuration Selection Readout
Hanging Method: 2-point hinges or Metric M6 thread eye-bolts
Enclosure: Extruded Aluminum with perforated steel grille
Shipping Weight: 51 lbs.
Shipping Dimensions: 6 x 7 x 74 inches
Available In: White, Black and Custom Color
