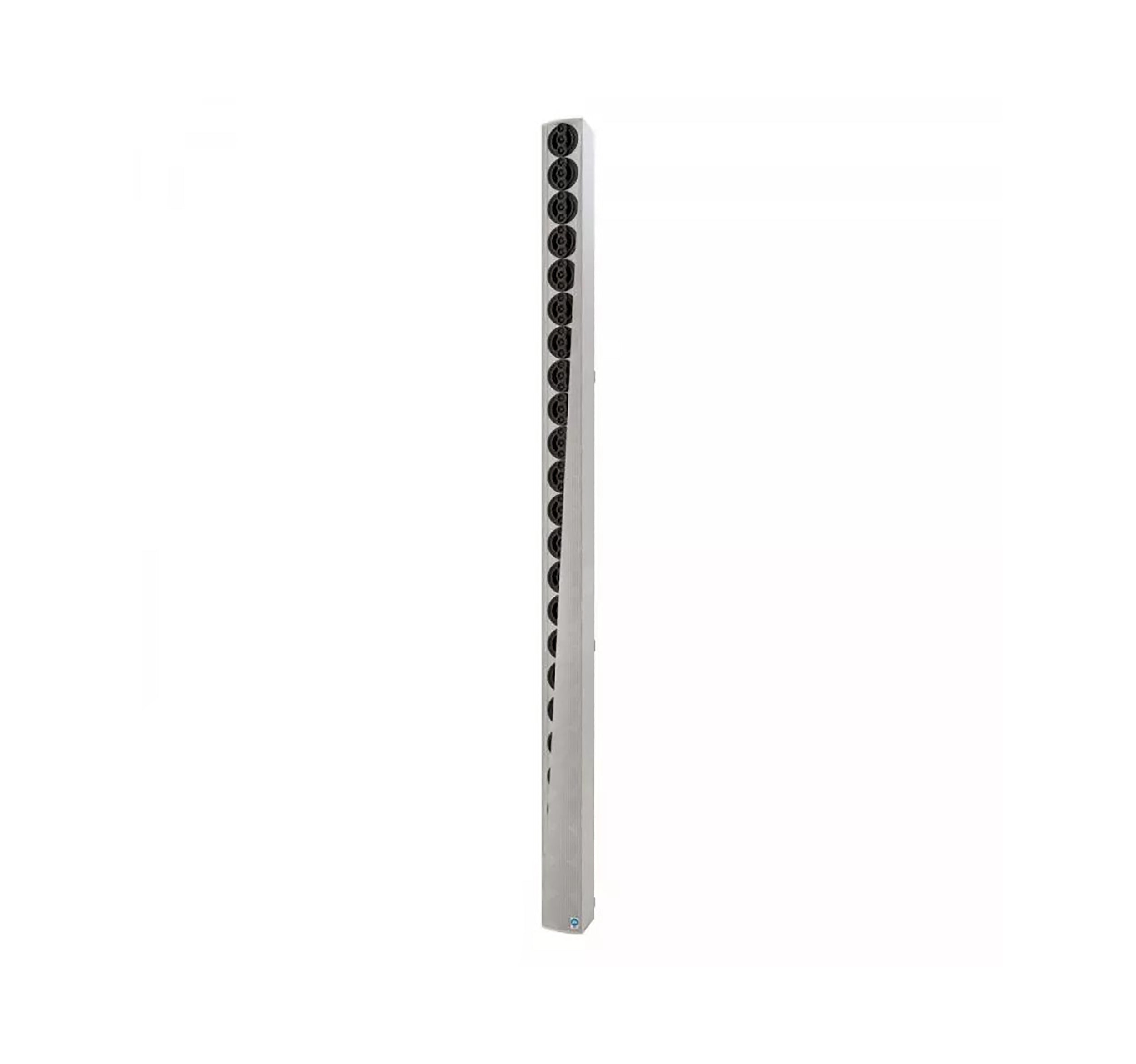

Renkus-Heinz IC24-RD-CC Digitally Steerable Line Array Speaker System

The Renkus Heinz IC24-RD-CC, Digitally Steerable Line Array Loudspeaker System ICONYX technology gives sound system designers the power to create a system to cover even the most problematic spaces. Up to 12 steerable beams can be individually shaped and aimed from a single IC24-RD-CC column using the powerful software-controlled DSP.

Multichannel audiophile amplifiers power arrays of purpose-designed coaxial transducers, each with its own triple tweeter high frequency array. This triple tweeter “array within an array” design reduces the distance between HF sources for greatly improved high frequency performance with consistent, broad horizontal dispersion

Product Specifications:

Sensitivity: 1.4 V (for rated power output)

Freq. Range: 80 Hz to 20 kHz

Max SPL: 137 dB peak, (107 dB @ 100 Ft. (30.5 meters)

Power Consumption: Idle - 1.5 A (120 V) / 0.75 A (240 V)

1/8 Power: 2.9 A (120 V) / 1.5 A (240 V) (onset of limiting)

1/3 Power: 7.8 A (120 V) / 4.0 A (240 V) (hard limiting)

Horiz. Dispersion: 150° up to 3 kHz - 120° above 3 kHz

Vert. Opening Angle: 5°, 10° and 15°

Vert. Aiming Angle: Adjustable from -30° to +30°

Typical Throw: 195 Ft. (60 meters)

Beam Control: Effective down to 250 Hz

System Latency: 8ms analog input to outputPreset 0

No. Transducers: 24 coaxial trasnsducers, each having triple tweeters

No. Amp. Channels: 24

Finish: Custom Color

Transducers: Coaxial with a 4” woofer and triple 1” tweeters, RH model SSL4-7; 25 W RMS, 50 W Pgm

Inputs:  Analog Audio 2 balanced inputs on Phoenix ConnectorsAES/EBU - Phoenix ConnectorDual RJ45 connectors for Ethernet Control

Computer Controls: Gain, Mute, On/Standby, Input SelectionCompression8-Band Parametric EQShelving & Rolloff FiltersDelayPreset Configuration Selection

Status Indicators: PowerSignalOverdriveThermalMuteInput PadPreset Configuration Selection Readout

Hanging Method: 3-point hinges or Metric M6 thread eye-bolts

Enclosure: Extruded Aluminum with perforated steel grille

Shipping Weight: 108 lbs.

Shipping Dimensions: 8 x 6 x 111 inches
