Description

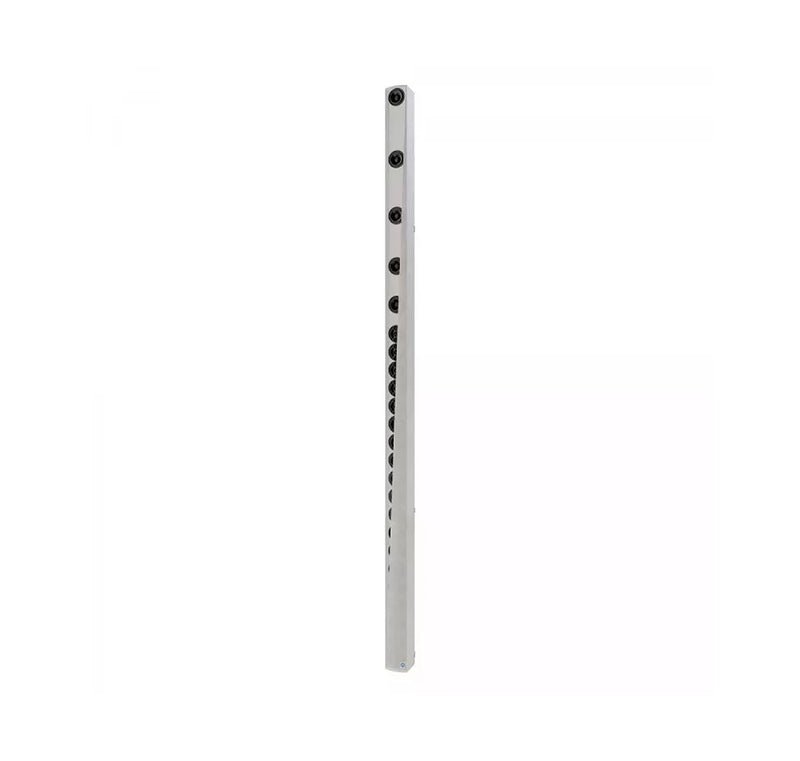

The Renkus Heinz IC32-24-RN digitally Steerable Line Array Loudspeaker Systems ICONYX technology gives sound system designers the power to create a system to cover even the most problematic spaces. Up to 12 steerable beams can be individually shaped and aimed from a single IC32-24-RN column using the powerful software-controlled DSP.
Multichannel audiophile amplifiers power arrays of purpose-designed coaxial transducers, each with its own triple tweeter high frequency array. This triple tweeter “array within an array” design reduces the distance between HF sources for greatly improved high frequency performance with consistent, broad horizontal dispersion.
Product Specifications:
Sensitivity: 1.4 V (for rated power output)
Freq. Range: 80 Hz to 20 kHz (-10 dB)
Max SPL: 137 dB peak, (107 dB @ 100 Ft. (30.5 meters)
Power Consumption: Idle - 1.5 A (120 V) / 0.75 A (240 V)
1/8 Power: 2.9 A (120 V) / 1.5 A (240 V) (onset of limiting)
1/3 Power: 7.8 A (120 V) / 4.0 A (240 V) (hard limiting)
Horiz. Dispersion: 150° up to 3 kHz; 120° above 3 kHz
Vert. Opening Angles: 5° and 10°
Vert. Aiming Angle: Adjustable from -30° to +30°
Typical Throw: 270 Ft. (80 meters)
Beam Control: Effective down to 200 Hz
System Latency: 8ms analog input to outputPreset 0
No. Transducers: 19 4″ coaxial transducers, each having triple tweeters
5 4″ LF/MF Transducers progressively spaced
No. Amp. Channels: 24
Transducers: Coaxial with a 4” woofer and triple 1” tweeters, RH model SSL4-7; 25 W RMS, 50 W Pgm
Inputs: Analog Audio - 2 balanced inputs on Phoenix ConnectorsAES/EBU - Phoenix ConnectorRJ45 connector for Ethernet Control
Hanging Method: 3-point hinges or Metric M6 thread eye-bolts
Enclosure: Extruded Aluminum with perforated steel grille
Shipping Weight: 144 lbs.
Shipping Dimensions: 7 x 6 x 148 inches
Available In: White, Black and Custom Color
