Description

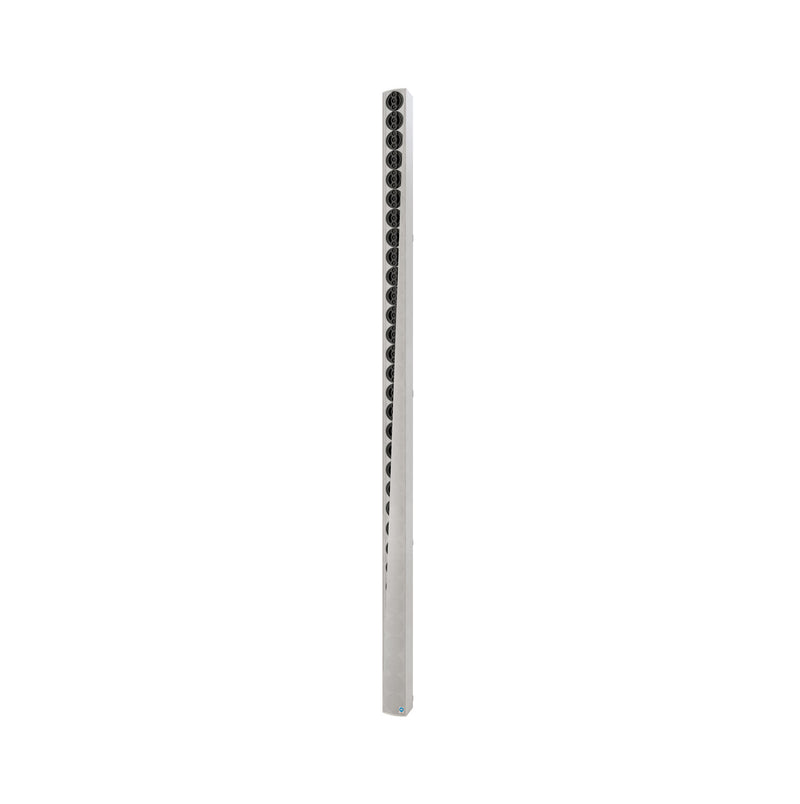

The Renkus Heinz IC32-RN, Digitally Steerable Line Array Loudspeaker Systems ICONYX has now been installed in thousands of projects worldwide, from LAX International Airport in Los Angeles to the Great Hall of the People in Beijing, China. Truly the most flexible, powerful and architecturally seamless, Digitally Steerable Column Array on the market Iconyx brings intelligible sound to even the most demanding acoustic environments.
Product Specifications:
Sensitivity:1.4 V (for rated power output)
Freq. Range:80 Hz to 20 kHz (-10 dB)
Max SPL:139 dB peak @, (109 dB 100 Ft. (30.5 meters))
Power Consumption:Idle - 2.0 A (120 V) / 1.0 A (240 V)
1/8 Power:3.8 A (120 V) / 2.0 A (240 V) (onset of limiting)
1/3 Power:10.1 A (120 V) / 5.3 A (240 V) (hard limiting)
Horiz. Dispersion:150° up to 3 kHz - 120° above 3 kHz
Vert. Opening Angles:5° and 10°
Vert. Aiming Angle:Adjustable from -30° to +30°
Typical Throw:270 Ft. (80 meters)
Beam Control:Effective down to 200 Hz
System Latency:8ms analog input to outputPreset 0
No. Transducers:32 coaxial transducers, each having triple tweeters
No. Amp. Channels:32
Transducers:Coaxial with a 4” woofer and triple 1” tweeters, RH model SSL4-7; 25 W RMS, 50 W Pgm
Hanging Method:3-point hinges or Metric M6 thread eye-bolts
Enclosure:Extruded Aluminum with perforated steel grille
Shipping Weight: 144 lbs.
Shipping Dimensions: 7 x 6 x 148 inches
Available In:White, Black and Custom Color
