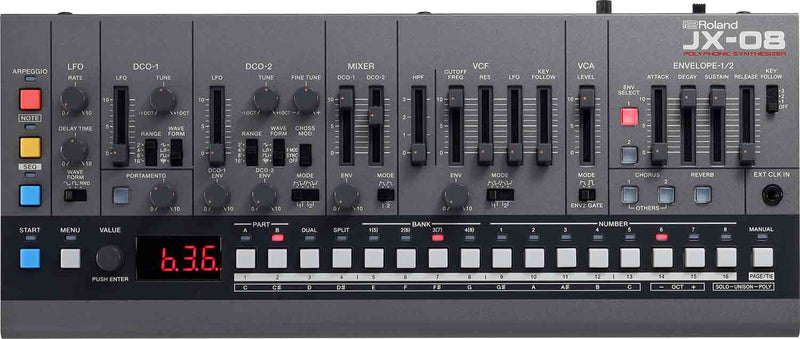

Roland JX-08 Boutique Sound Module

The Roland JX-08 reintroduces the unique sound of this sought-after classic in stunning detail, coupled with powerful new effects, a polyphonic sequencer, and more. And to enhance your creative flow, there’s a full panel of hands-on controls derived from the companion PG-800 programmer unit for the original hardware. In 1985, Roland’s innovative JX-8P took hybrid synthesis a step further with a compelling new analog-digital voice. The instrument was instantly embraced by top session players, who forever embedded its warm pads, shimmery chorus, and crystalline textures into the era’s most popular tracks.

Classic Sound Modernized

While the original design of the JX-8P is retained in this modern version, we’ve added a range of updates that take the experience to another level. Explore the 100-plus new patches tuned for contemporary styles, or use the onboard controls to design your own sounds. And with expanded polyphony, two-part multitimbral capability, and dual/split modes, there’s even more room to stretch out your sonic ideas. Once you’ve found your zone, store your creations for easy recall using any of the 256 preset slots.

Music That Moves.

Once you’ve locked in your patches, fire up the two-part polyphonic sequencer and start programming leads, basslines, or basic chords to sync with other pieces in your electronic ensemble. And to bring some animated movement to your sounds, tap into motion recording and the onboard arpeggiator to make your musical lines dance.

Grab Your Keys Hit the Road

The compact JX-08 fits just about anywhere and is easily controlled from a master keyboard or computer DAW. It can run on standard AA batteries for hours of uninhibited jamming, and there’s also a built-in speaker for on-the-go sound monitoring. Add a DK-01 Boutique Dock for a polished look and three convenient tilt positions, or grab a K-25m Keyboard Unit to create a fully self-contained, portable instrument.

Product Specification:

Type: Desktop Synthesizer and Sequencer

Analog/Digital: Digital

Pads: 16 x Multi-function buttons

Polyphony: 20 notes

Presets: 32 x Original JX-8P Presets, 111 x Factory, 113 x User

Oscillators: 2 x DCO

Waveforms: Sawtooth, Square, Pulse, Noise

Envelope Generator: 1 x ADSR

LFO: 1 x LFO (sine, square, random)

Filter: Highpass

Effects Types: 3 x Chorus, 4 x Delay, 2 x Phaser, 2 x Pitch Shifter, Overdrive, Fuzz, Bit Crusher, Lo-Fi

Arpeggiator: Yes

Sequencer: 2-part, 8-note per part, 64-step, 128 patterns

Analog Inputs: 1 x 1/8" (mix in)

Analog Outputs: 1 x 1/8"

Headphones: 1 x 1/8"

MIDI I/O: In/Out/USB

Other I/O: 1 x 1/8" (clock in)

USB: 1 x USB-C

Power Supply: USB bus power / 4 x AA batteries (included)

Height: 1.87"

Width: 11.81"

Depth: 5.06

Weight: 2 lbs. (with batteries)
