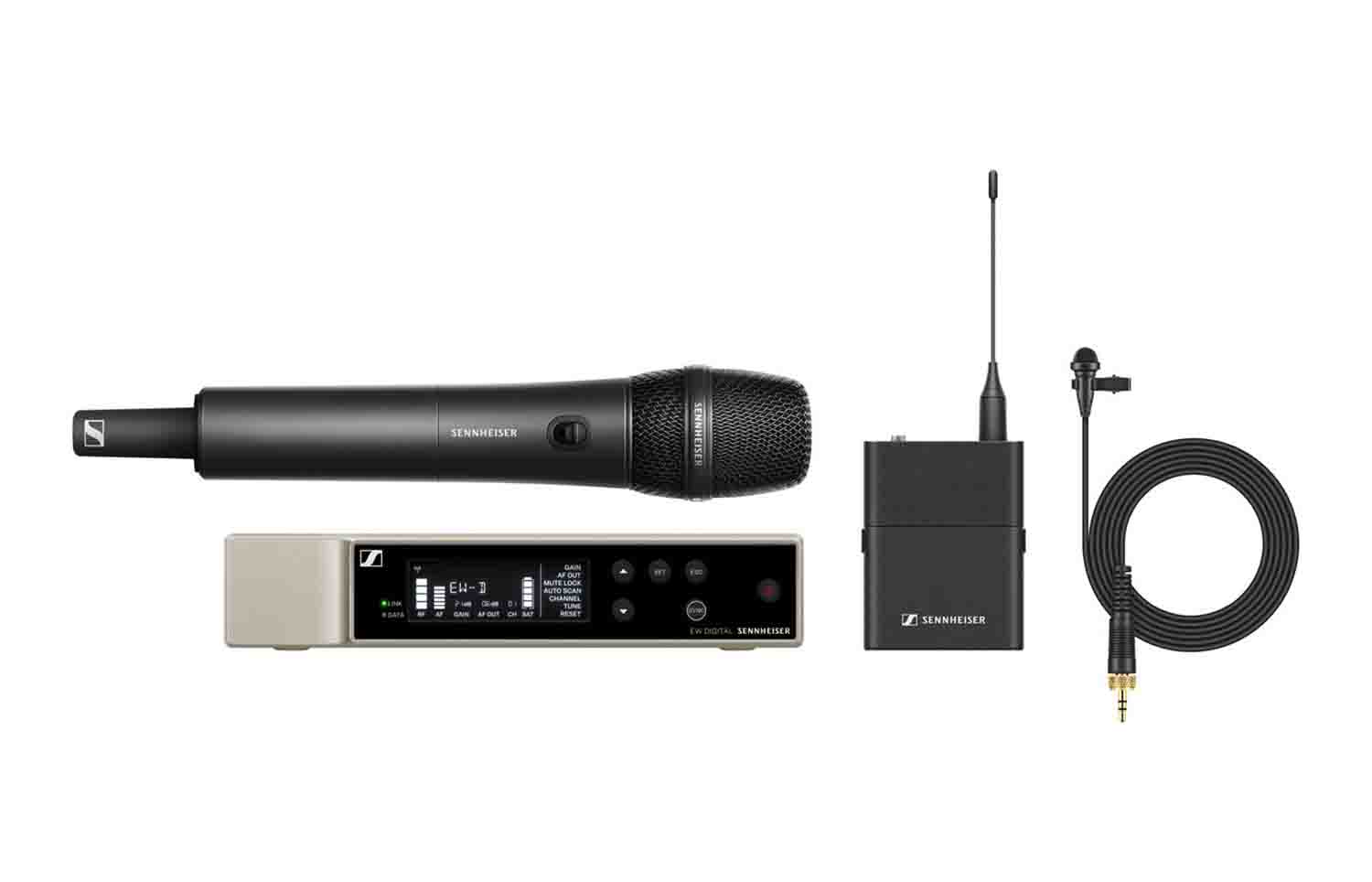

Sennheiser EW-D ME2/835-S SET (Q1-6) Digital Wireless Combo Microphone System - 470.2 to 526 MHz

The Sennheiser EW-D ME2/835-S SET (Q1-6) is a Digital Wireless Combo Microphone System 470.2 to 526 MHz. Digital transmission operating in the UHF spectrum greatly enhances range, reliability and scalability. Lithium-Ion battery pack (sold separately) delivers up to 12 hours of operation (up to 8 hours of operation with 2x provided AA batteries).

Raising the Bar

Evolution Wireless Digital breaks the boundaries by providing more dynamic range than any wireless system currently on the market. Automatically securing the most reliable signal in a matter of seconds and scalable up 90 channels thanks to 56 MHz of tuning bandwidth, it’s easy to see why this wireless system is in a class of its own.

Equidistant Spacing Simpler Than It Sounds

Evolution Wireless Digital features an equidistant tuning grid previously only found in our flagship Digital 6000 and Digital 9000 wireless systems. Quality components with exceptional linearity eliminate intermodulation between EW-D transmitters, allowing frequencies to be equally spaced every 600 kHz alongside each other. This simplifies frequency coordination for wireless beginners and seasoned professionals alike and contributes to the system’s scalability and impressively high channel count.

An Engineer in Your Pocket

The power of Bluetooth Low Energy puts full control right in the palm of your hand with the Sennheiser Smart Assist app. Take advantage of a remarkably fast automated setup, mobile access to every system setting and the added benefit of remote monitoring, all from the convenience of your Android or iOS device. Save time, save energy and perform with confidence.

What's in the Box

EW-D EM rack receiver

EW-D SK bodypack transmitter

EW-D SKM-S handheld transmitter

ME 2 lavalier microphones

MMD 835 microphone module

MZQ 1 microphone clamp

2-rod antennas

Power supply with country adapters

Rackmount set

4 rubber feet

Quick guide

Safety guide

Manufacturer declaration sheet

Product Specifications:

Configuration: MMD835 Handheld, ME2 Lavalier

System Analog/Digital: Digital

System Frequency Range: 470.2-526 MHz

System Operating Range: 328 ft. Line-of-sight

System Frequency Response: 20Hz-20kHz

System Microphone Included: Yes

Microphone Type: Handheld Dynamic, Lavalier Condenser

Microphone Polar Pattern: Handheld Cardioid, Lavalier Omnidirectional

Microphone Max SPL: 130dB SPL (lav), 154dB SPL (handheld)

Microphone Size: 10.6" x 2"

Microphone Frequency Response: 50Hz-18kHz

Microphone Cable Length: 5.2 ft.

Microphone Self Noise: 32dB

Transmitter Form Factor: Handheld, Bodypack

Transmitter Dynamic Range: 134dB

Transmitter Mute Feature: Yes

Transmitter Battery Type: 2 x AA or Rechargeable Battery pack

Transmitter Battery Life: 8 hours (AA), 12 hours (rechargeable)

Transmitter Dimensions: 10.6" x 2" (handheld), 2.5" x 3.1" x 0.8" (bodypack)

Receiver Antenna Type: Detachable

Receiver Type: Rackmount (kit included), Table Top

Receiver Rackmountable: Yes

Receiver Rack Spaces: Half-rack

Receiver Front Panel Display: Yes

Receiver Displays: OLED

Receiver Outputs: 1 x XLR, 1 x 1/4"

Receiver Dimensions: 7.4" x 1.7" x 8.3"

Receiver Weight: 2.2 lbs.
