Description
The Sennheiser EW-DX EM 2 is a professional, half-rack, dual-channel digital wireless receiver engineered for demanding live sound, broadcast, and installed A/V environments. Built into a rugged all-metal chassis, it is designed for both tabletop use and rackmount installations using the included mounting kit. Fully compatible with EW-DX SK bodypack, EW-DX SKM handheld, and EW-DX TS tabletop transmitters-and backward-compatible with EW-D systems-the EW-DX EM 2 offers a flexible and future-ready wireless solution for portable rigs and permanent setups alike.
Operating in the UHF band, the EW-DX EM 2 delivers exceptional wireless reliability with an extended range of up to 330 feet and an expansive 80 MHz tuning bandwidth providing access to up to 3,200 frequencies. Intelligent Switching Diversity continuously compares signals from dual antennas to ensure clean, uninterrupted audio, while the equidistant tuning grid eliminates complex frequency coordination. For high-density environments, Link Density Mode enables operation of up to 269 simultaneous microphone channels, and AES-256 encryption ensures secure, interference-free transmission even in challenging RF conditions.

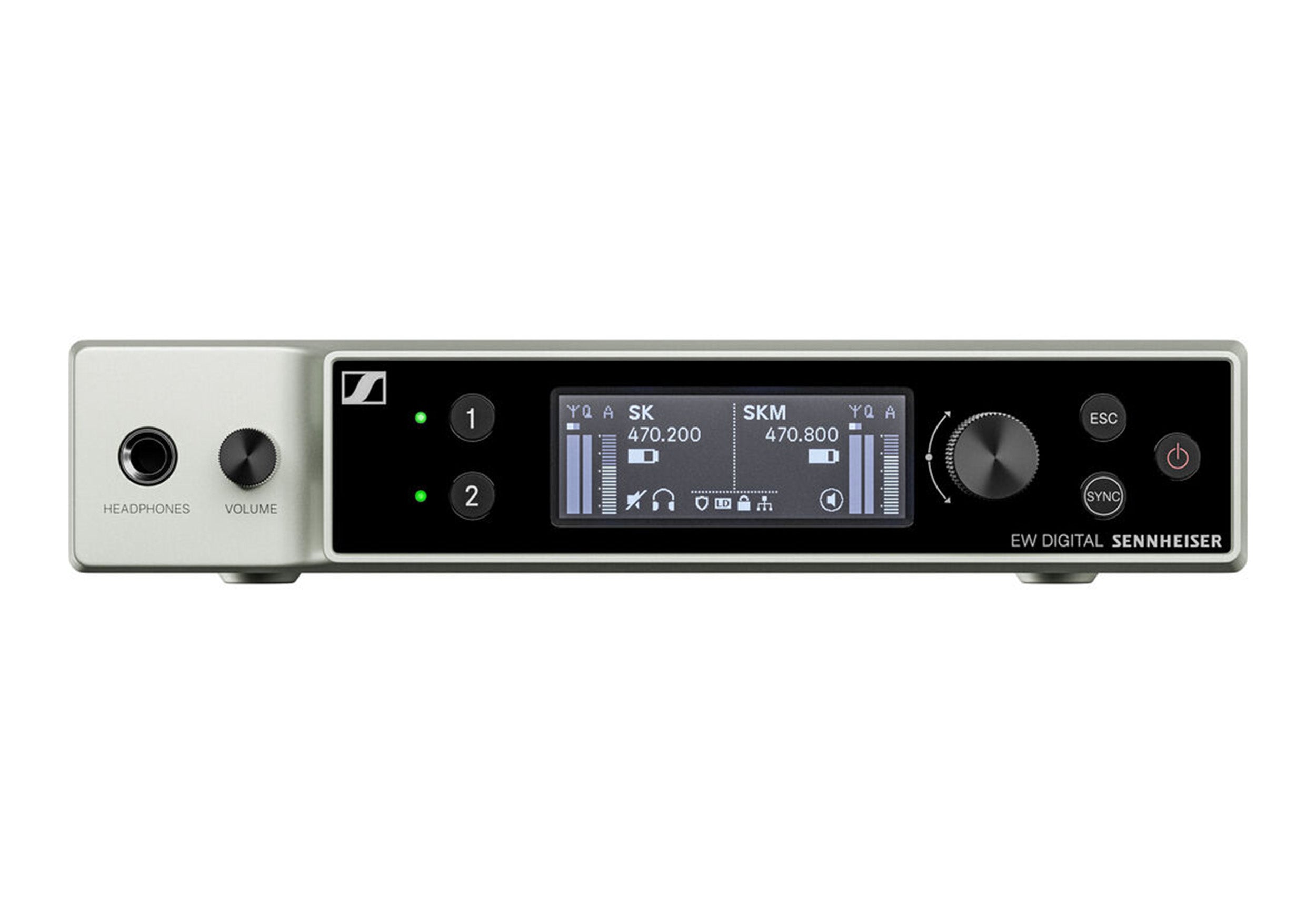

Designed for speed and ease of use, the receiver features intuitive front-panel controls and dual high-contrast OLED displays showing RF levels, audio output, and transmitter battery status. Bluetooth connectivity allows remote pairing, syncing, and configuration via the Smart Assist mobile app, while Sennheiser Control Cockpit and Wireless Systems Manager software provide powerful network-based monitoring, frequency coordination, and system management. With balanced XLR and unbalanced 1/4" outputs, expandable antenna options, and full compatibility with professional RF accessories, the EW-DX EM 2 is a robust, scalable wireless receiver built for modern production workflows.
Product Specifications:
Wireless Technology: Digital UHF
Diversity: Yes
Max Operating Range: 328.1 ft / 100 m (Line of Sight)
Receiver Type: 1x Tabletop / Rack-Mountable
Number of Audio Channels: 2
Included Transmitters: No
Microphone Type: No microphone included
Included Charging Case: No
RF Frequency Band: Q1–9: 470.2 to 550 MHz
Number of RF Channel Frequencies: 3200
Max Transmitters per Band: 269
Dynamic Range: 134 dB
Latency: 1.9 ms
Encryption: AES 256
Built-In Recorder: No
Mobile App Compatibility: Yes
Supported Platforms: Android and iOS
App Name: Smart Assist
Mounting Options: Rackmount with included rack ears 1U
Antenna: 2x removable BNC

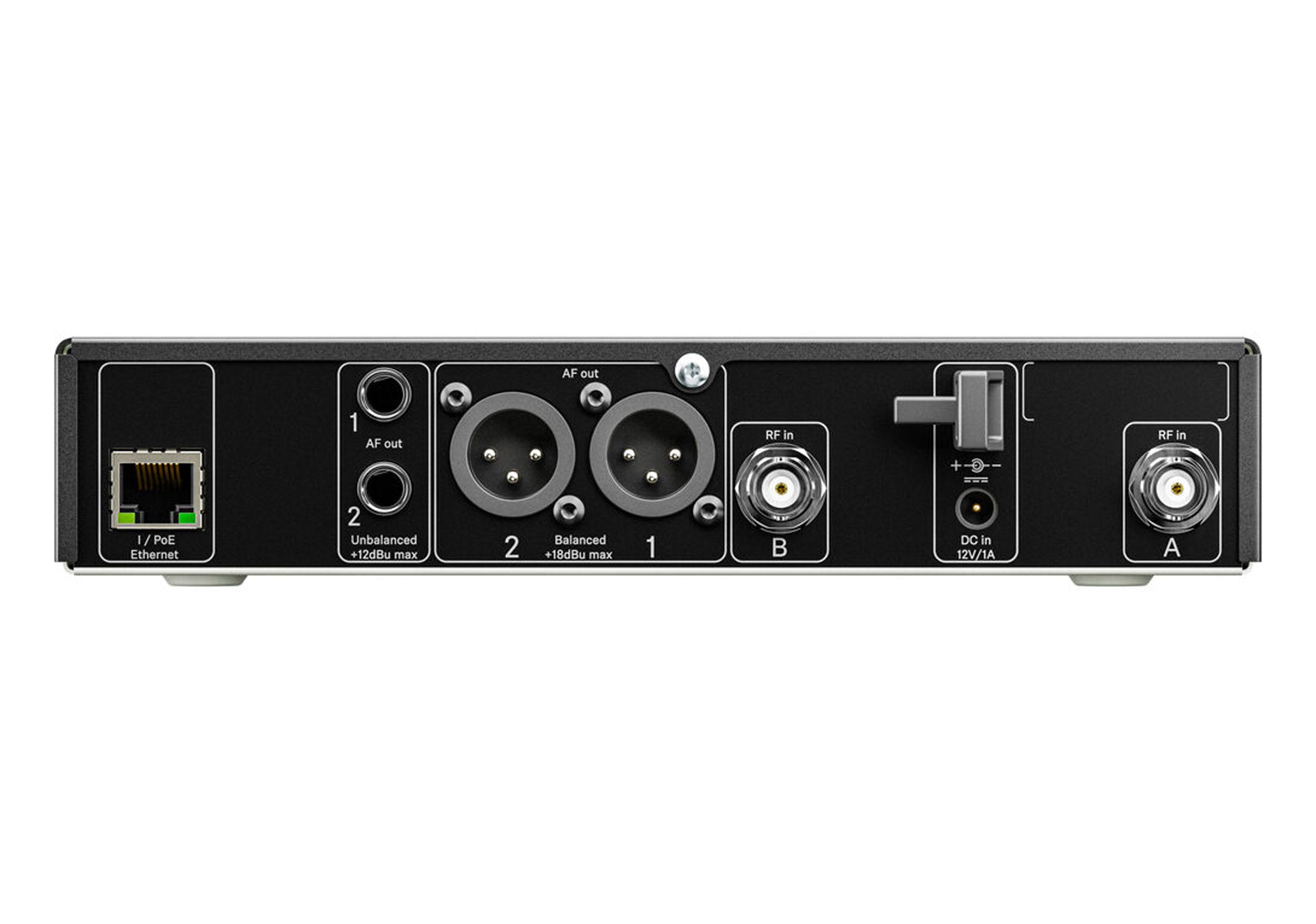

Audio Outputs: 2x 1/4" TRS unbalanced, 2x XLR 3-pin balanced
Network I/O: 1x RJ45
Frequency Response: 20 Hz to 20 kHz +3 dB
Display: LCD non-backlit
Power Requirements: AC/DC power adapter, PoE
AC/DC Power Adapter: 11 to 13 VDC included
Input Power: 100 to 240 VAC 50/60 Hz
Environmental Resistance: No
Product Weight: 2.20 lbs / 1.0 kg without antennas
Product Dimensions (L x W x H): 8.3 x 7.4 x 1.7 in
