Shure 712P AL-V Ecosystem DJ Package Including 1 MXA710-2FT Linear Microphone, 1 P300-IMX Audio Processor, 2 MXN5W-C Ceiling Loudspeaker + 2 Tile Bridge

Elevate your audio experience with the Shure 712P AL-V Ecosystem DJ Package, designed for seamless integration into professional spaces. This powerful bundle includes one MXA710-2FT Linear Array Microphones, delivering clear, focused voice capture for conferences or events. Paired with the P300-IMX Audio Processor, it ensures advanced DSP processing, including echo cancellation and noise reduction, for crystal-clear communication. The package is completed with two MXN5W-C Ceiling Loudspeakers and matching tile bridges, offering exceptional sound quality and easy installation in any space.

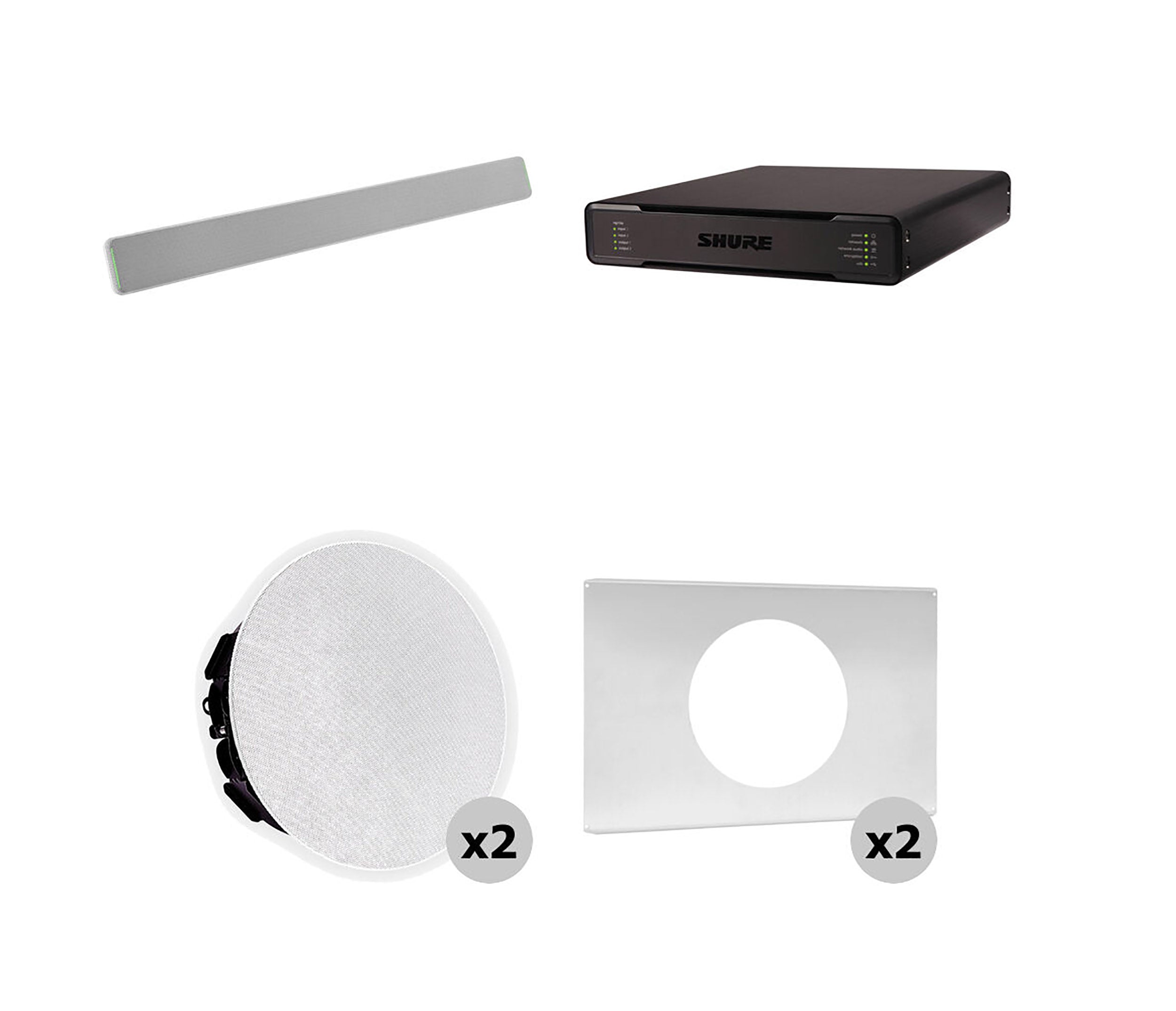

This DJ Package Includes,

• 1 Shure MXA710AL-2FT, 2 Feet Microflex Advance Linear Array Microphone - Aluminum
• 1 Shure P300-IMX, IntelliMix Audio Conferencing Processor for Seamless Collaboration
• 2 Shure MXN5W-C Networked Ceiling Loudspeaker
• 2 Shure A-MXN5-TB Tile Bridge for MXN5-C Microflex

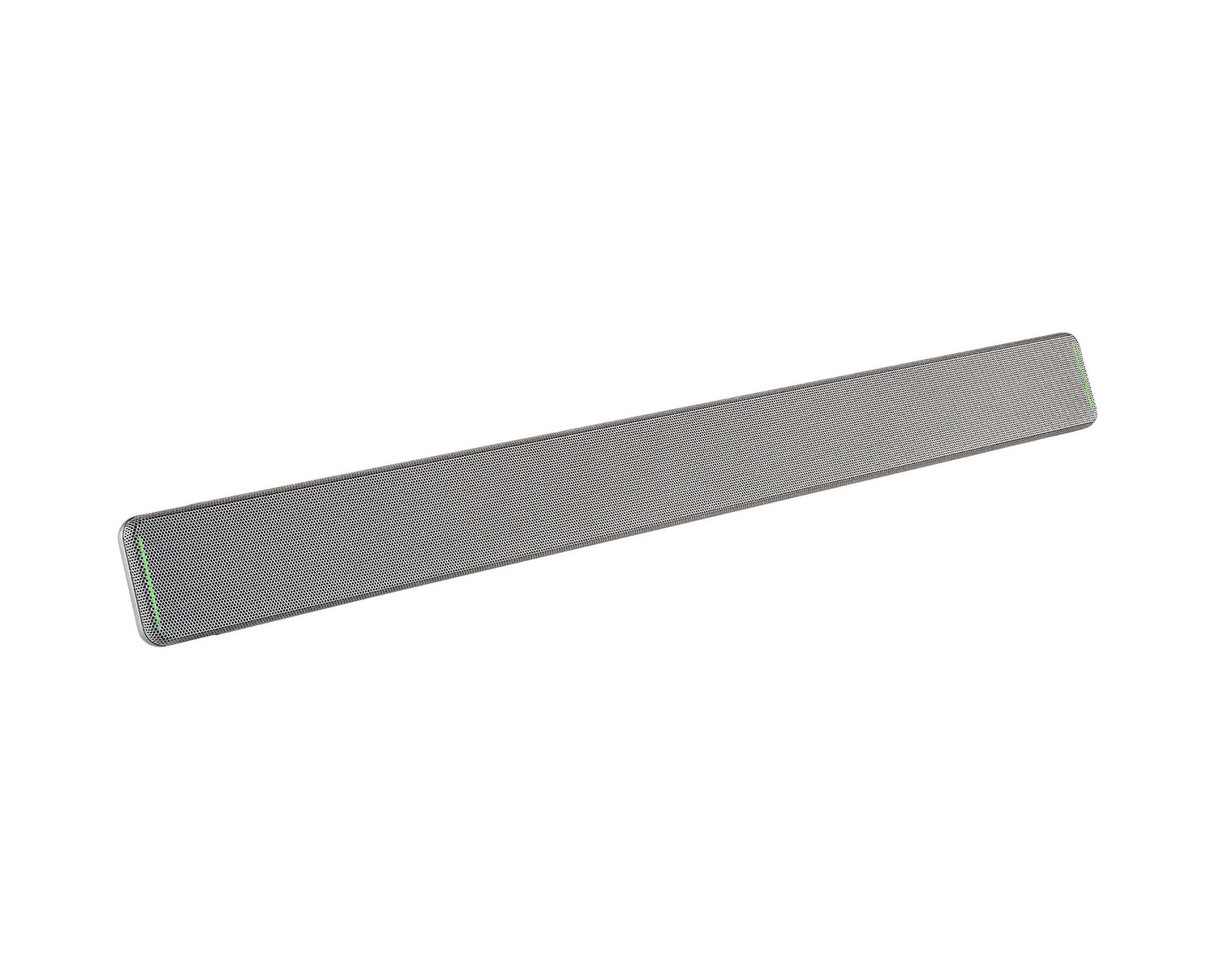

1 Shure MXA710AL-2FT, 2 Feet Microflex Advance Linear Array Microphone - Aluminum

The Shure MXA710AL-2FT, 2 Feet Microflex Advance Linear Array Microphone with a aluminum finish and a sleek design that's well suited to today's modern workspaces, the 2' Shure MXA710 linear array microphone is easy to install and delivers high-quality audio capture for AV conferencing. The versatile, linear form factor can be placed on the wall, ceiling, or tabletop, and a single cable provides Power over Ethernet (PoE) and Dante networking for audio and control data transfer. Built-in proprietary IntelliMix DSP and Autofocus technology provides all the processing needed for echo- and noise-free audio in small spaces, while the unit can be used with the Intellimix P300 DSP (available separately) or Intellimix Room software-based DSP for larger spaces with additional components.

Collaboration Re-Imagined

This 2' version of the MXA710 uses Steerable Coverage to optimize pick up from 50 built-in MEMS microphones over 4 lobes combined with onboard IntelliMix digital signal processing to capture every voice clearly and intelligibly. IntelliMix DSP includes automatic mixing, acoustic echo cancellation, noise reduction, and automatic gain control. Autofocus technology fine-tunes each lobe position in real time, even if meeting participants lean back or stand up. A single cable supplies power (PoE) and transfers data; Dante and AES67 audio networking protocols are supported.

The default room coverage template enables quick and easy lobe optimization for wall, ceiling, or table installations. The microphone delivers intuitive, programming-free LED mute sync functionality with leading third-party software codecs solutions including Zoom Rooms, Microsoft Teams, Cisco, and Skype for Business when connected to the IntelliMix P300 or ANIUSB-MATRIX Audio Network Interface (both available separately). Offering unprecedented flexibility to meet varying room requirements from small to large, the MXA710 provides premium audio capture at scale that’s easier than ever to configure with Shure Designer software. Shure Audio Encryption can be enabled when used with the IntelliMix P300 Audio Conferencing Processor or Shure Audio Network Interfaces (both available separately), which utilize AES-256 encryption to protect confidential content. Shure Designer System Configuration software provides easy setup and configuration for larger rooms. SystemOn Audio Asset Management software allows for remote management and troubleshooting.

Product Specifications:

Compatibility: Shure Microflex Advance

Audio I/O: 1x RJ45 Input/Output

Mobile App Compatible: No

Power Source: PoE

Power Consumption: 10 W (Maximum)

Environmental Resistance: Dust-Resistant (IP5X)

Certifications: CE, UL2043, IEC60529

Operating Temperature: 20 to 104°F / -6 to 40°C

Storage Temperature: -20 to 165°F / -28 to 73°C

Mounting: Back - Multiple Keyholes and Screw Holes

Color: Aluminum

Product Dimensions: 25 x 2.4 x 0.9" / 636 x 60 x 22.1 mm

Product Weight: 2 lbs. / 0.9 kg

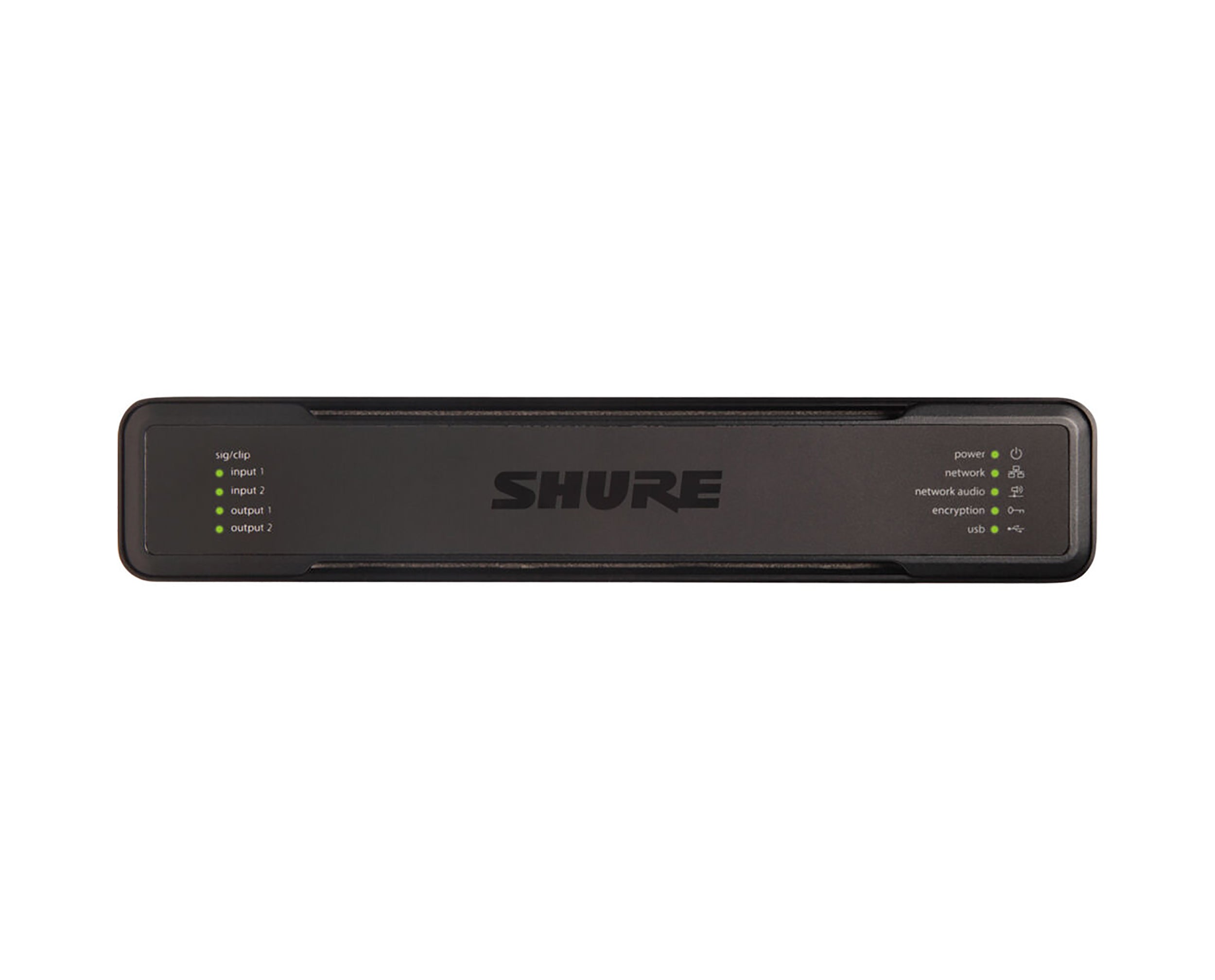

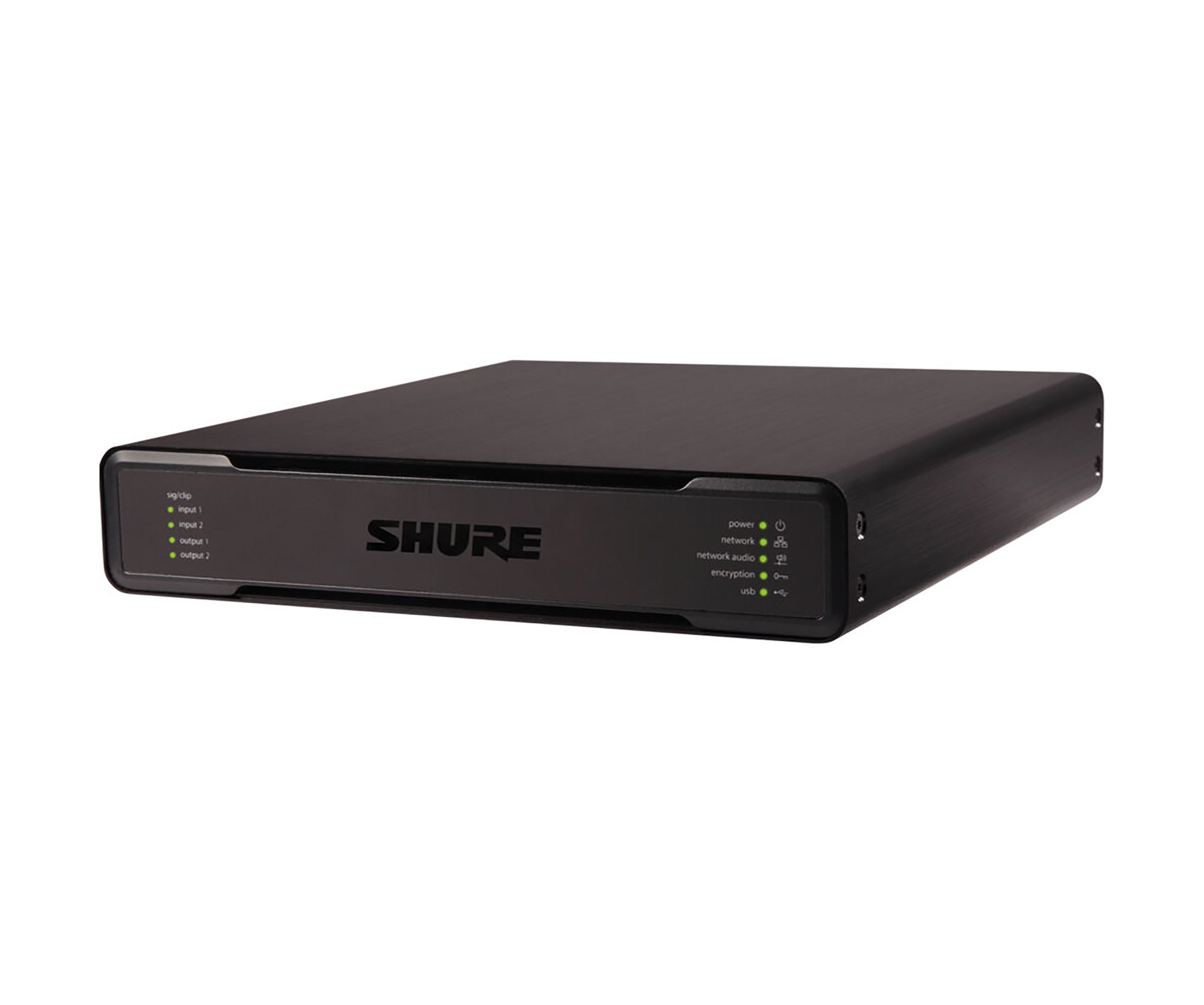

1 Shure P300-IMX, IntelliMix Audio Conferencing Processor for Seamless Collaboration

The Shure P300-IMX IntelliMix Audio Conferencing Processor is designed to work with the Microflex Wireless (MXW) system to deliver eight channels of acoustic echo cancellation, DSP-processing, and level control for conference rooms and meeting spaces. The processor supports Microflex wireless microphones while also offering versatile input and output connectivity options that allows users to incorporate loudspeakers, computers, mobile devices, and other audio components.

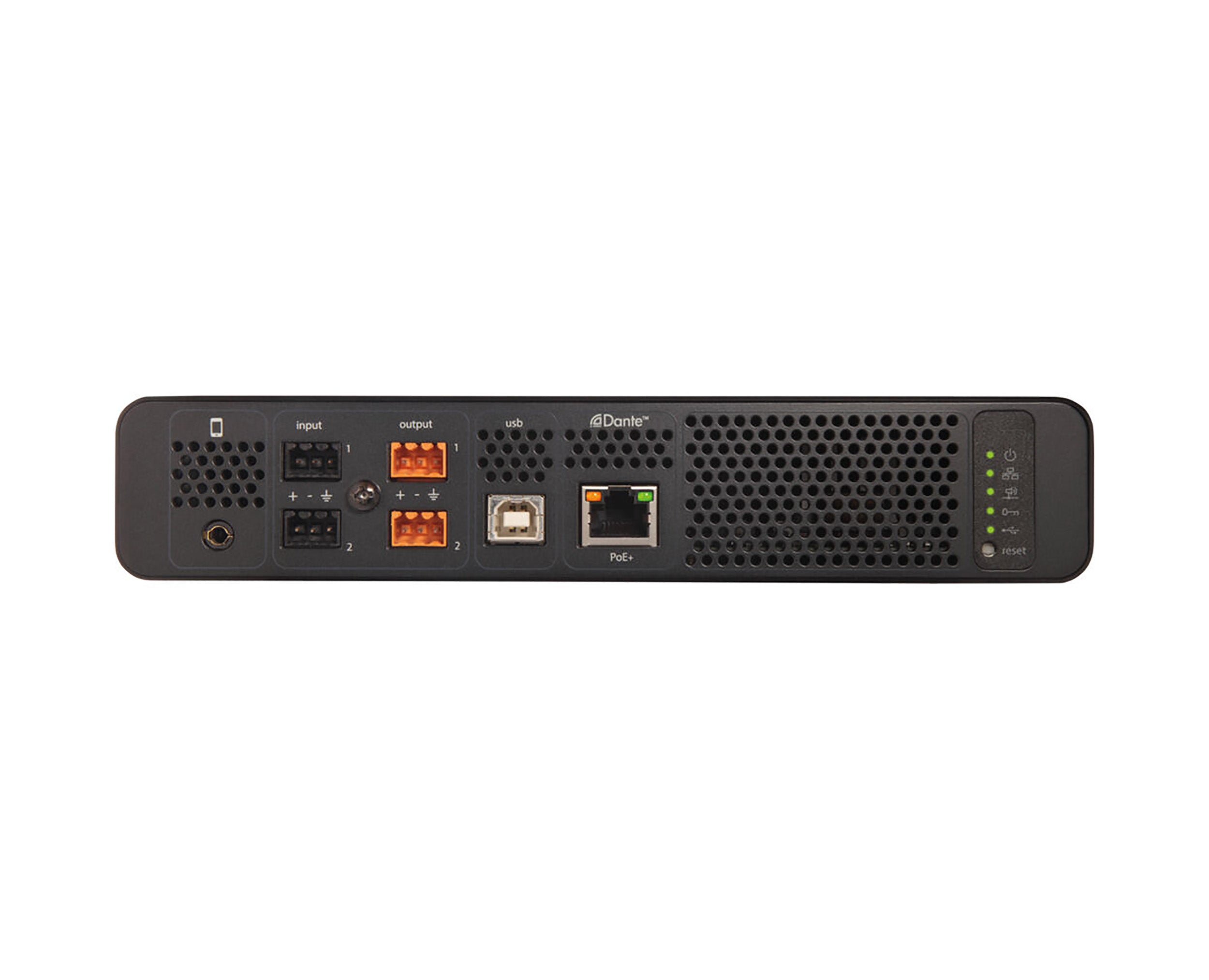

The P300 provides Dante (10 in/8 out), and to connect analog devices, the unit provides two 3-pin block connector inputs and two 3-pin block connector outputs along with a 3.5mm input jack for mobile devices. The USB Type-B port lets you connect computers and other USB devices, while the RJ45 port supplies the unit with power and connects it to other access points in the conference system network.

Clear Audio for Conferences, Panels, and Meetings:

Streamline the audio experience for every discussion. Fixed architecture provides simple setup, requiring less DSP programming and commissioning time. Multiple connectivity options allow for seamless integration with Shure conferencing microphones, laptops, and even mobile devices. Easy, rackless mounting enables quick, compact integration behind a display, under a table, or in a credenza.

Clever Operation:

Intuitive, programming-free LED mute sync functionality with leading third-party software codecs including Zoom Rooms, Microsoft Teams and Skype for Business.

Scale Up:

Easily add a presenter mic or control additional zoned loudspeakers with onboard matrix mixing for sound reinforcement applications

Connect with Confidence:

Driverless USB audio connection to PCs for soft codecs. Analog I/O for hard codecs. 3.5 mm connection to mobile phones to bridge a remote caller. Design projects offline with Designer System Configuration Software for simple project management. Seamlessly compatible with Microflex Advance and Microflex Wireless conferencing microphones for a complete Shure ecosystem.

Meet In Confidence:

Shure Audio Encryption utilizes AES-256 technology to protect confidential content.

Product Specifications:

Frequency Response: 20 Hz to 20 kHz (+1, -1.5 dB)

Dante Digital Audio:

Sampling Rate: 48 kHz

Bit Rate: 24 Bit

USB Audio:

Sampling Rate: 48 kHz

Bit Rate: 24 / 16 Bit

Latency

Firmware 4.1 and Newer:

Dante 1-8 In to Dante Out (AEC enabled): 15.4 ms

Dante 1-8 In to Dante Out (AEC disabled): 8.7 ms

Dante 9-10 In to Dante Out: 3.4 ms

Analog In to Analog Out: 3.8 ms

Firmware 3.1 and Older:

Dante 1-8 In to Dante Out (AEC Enabled): 12.5 ms

Dante 1-8 In to Dante Out (AEC Disabled): 5.8 ms

Dante 9-10 In to Dante Out: 1.8 ms

Analog In to Analog Out: 2.2 ms

Acoustic Echo Cancelling:

Tail Length: Up to 300 ms

Analog Connections:

Block Connectors:

Dynamic Range (20 Hz to 20 kHz, A-Weighted, Typical) - Analog to Dante: 113 dB, Dante to Analog - 117 dB

Equivalent Input Noise (20 Hz to 20 kHz, A-Weighted, Input Terminated with 150 Ohms):

Line -86 dBV, Aux -98 dBV

Total Harmonic Distortion at 1 kHz, 0 dBV Input, 0 dB Analog Gain: <0.05%

Common Mode Rejection Ratio (150-Ohm Balanced Source @ 1 kHz): > 50 dB

Input Impedance: 9.6 Kilohms

Input Clipping Level: Line +27 dBV, Aux+15 dBV

Output Impedance: 80 Ohms

Output Clipping Level: Line +20 dBV, Aux +0 dBV, Mic -26 dBV

Mobile:

Connector: 1/8" / 3.5 mm

Pin Assignments: Tip - Audio Input (Left), Ring 1 - Audio Input (Right), Ring 2 - Ground
Sleeve: Audio Output (To Phone)

Dynamic Range (20 Hz to 20 kHz, A-Weighted, Typical): Analog to Dante: 99 dB, Dante to Analog - 90 dB

Total Harmonic Distortion (at 1 kHz, 0 dBV Input, 0 dB Analog Gain): <0.05%

Input Impedance:  3.7 Kilohms

Input Clipping Level: +4 dBV

Output Impedance: 1.4 Kilohms

Output Clipping Level (Output Terminated with 2.2 Kilohms): -20 dBV

General:

Analog Input:

2 x 3-Pin Block Connector (Active Balanced)

1 x 1/8" / 3.5mm TRRS Input

Control Software: Shure Designer

Analog Output:

2 x 3-Pin Block Connector (Impedance Balanced)

USB:

USB 2.0, Type B

Single Port Carries 2 Input and 2 Output Channels (Summed Mono)

Network Connection:

1 x RJ45

10 x Dante Inputs

8 x Dante Outputs

Networking

Cable Requirements: Cat 5e or Higher (Shielded Cable Recommended)

Polarity: Non-Inverting, Any Input to Any Output

Power Requirements: 802.3 at Type 2 (PoE Plus), Class 4

Power Consumption: 17.5 W, Maximum

Thermal Dissipation

Maximum: 17.5 W (60 BTU/Hr)

Typical: 14.6 W (50 BTU/Hr)

Operating Temperature Range: 20 to 122° F / -6.7 to 50° C

Storage Temperature Range: -20 to 165° F / -29 to 74° C

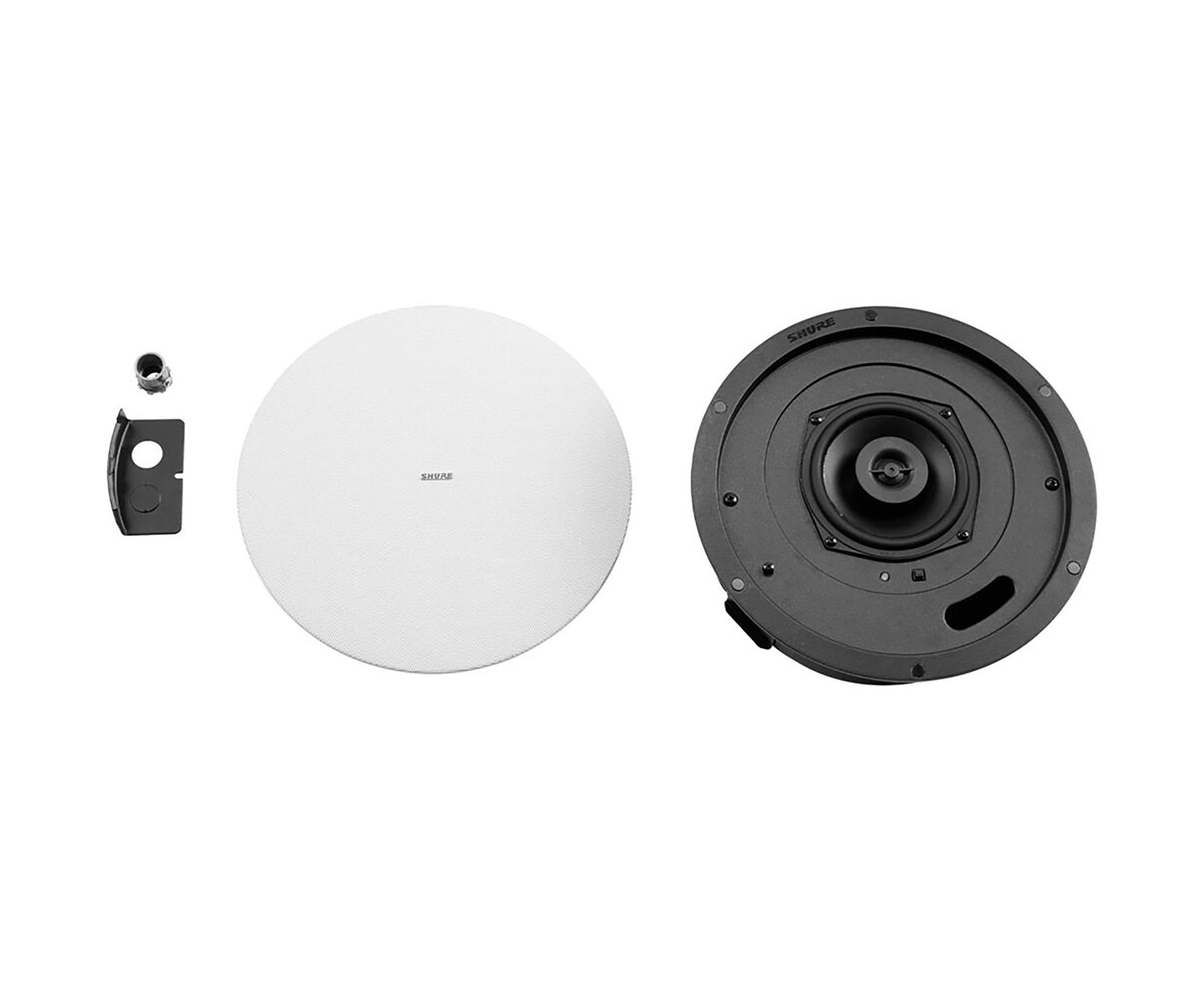

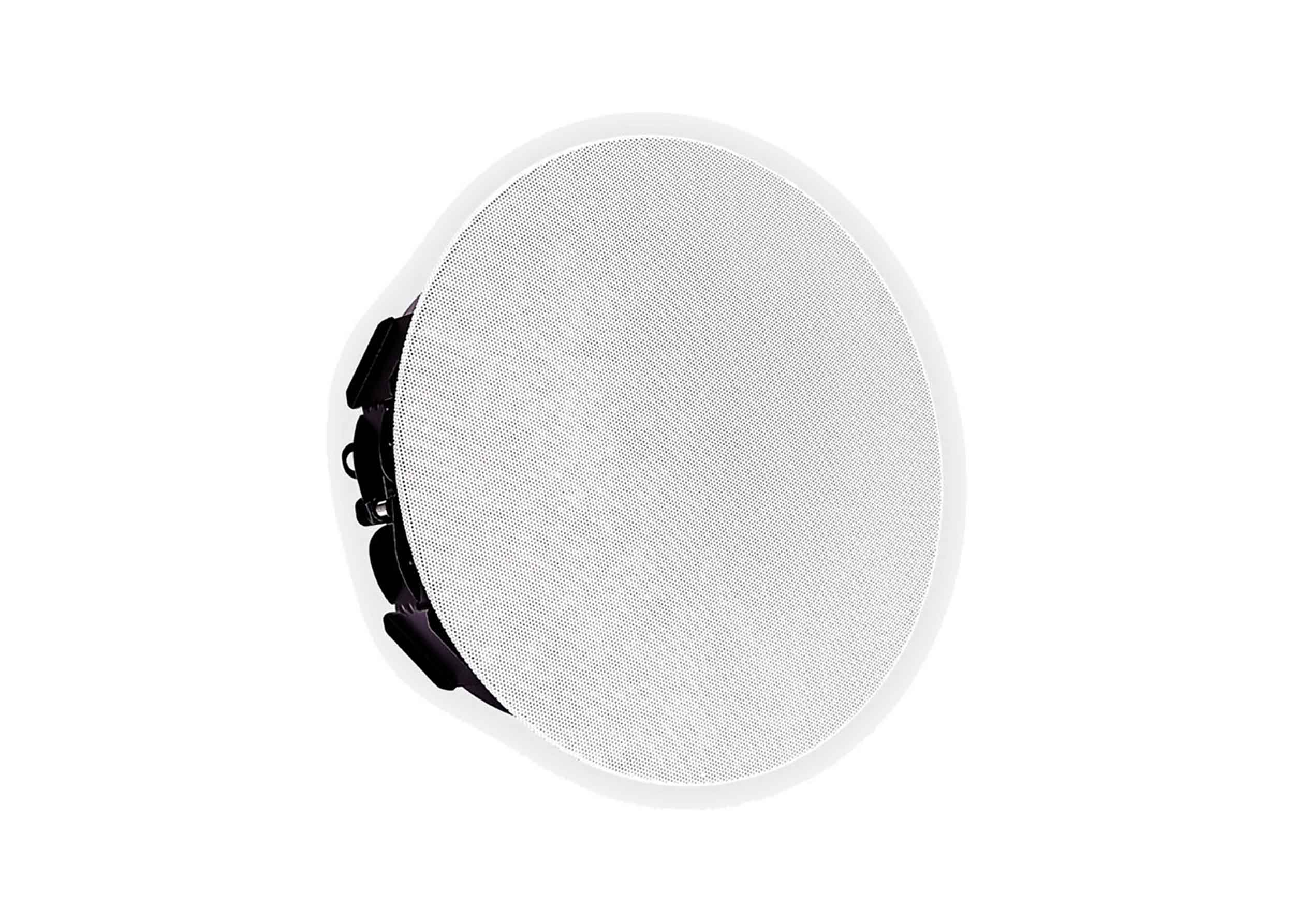

2 Shure MXN5W-C Networked Ceiling Loudspeaker

The Shure MXN5W-C Provides high-quality speech reproduction for AV conferencing applications. PoE-enabled with a low-profile design optimized for easy installation in drop ceiling configurations. Deployed and controlled via software, this networked loudspeaker does not require a separate amplifier or outboard DSP. Integrates seamlessly with Shure’s ecosystem of networked hardware and software for a complete audio solution.

The Microflex MXN5W-C Networked Ceiling Loudspeaker provides high-quality speech reproduction for AV conferencing applications. Gone is the need for a separate amplifier or an outboard DSP, the PoE-powered MXN5 is the ideal loudspeaker solution when used as part of a Shure networked conferencing audio system. Combined with Microflex Advance Array Microphones and IntelliMix DSP, the full Shure networked systems ecosystem delivers premium audio performance with unmatched ease of deployment, with the added confidence of Shure Audio Encryption and Dante Domain Manager compatibility.

Loudspeaker Technical Elements

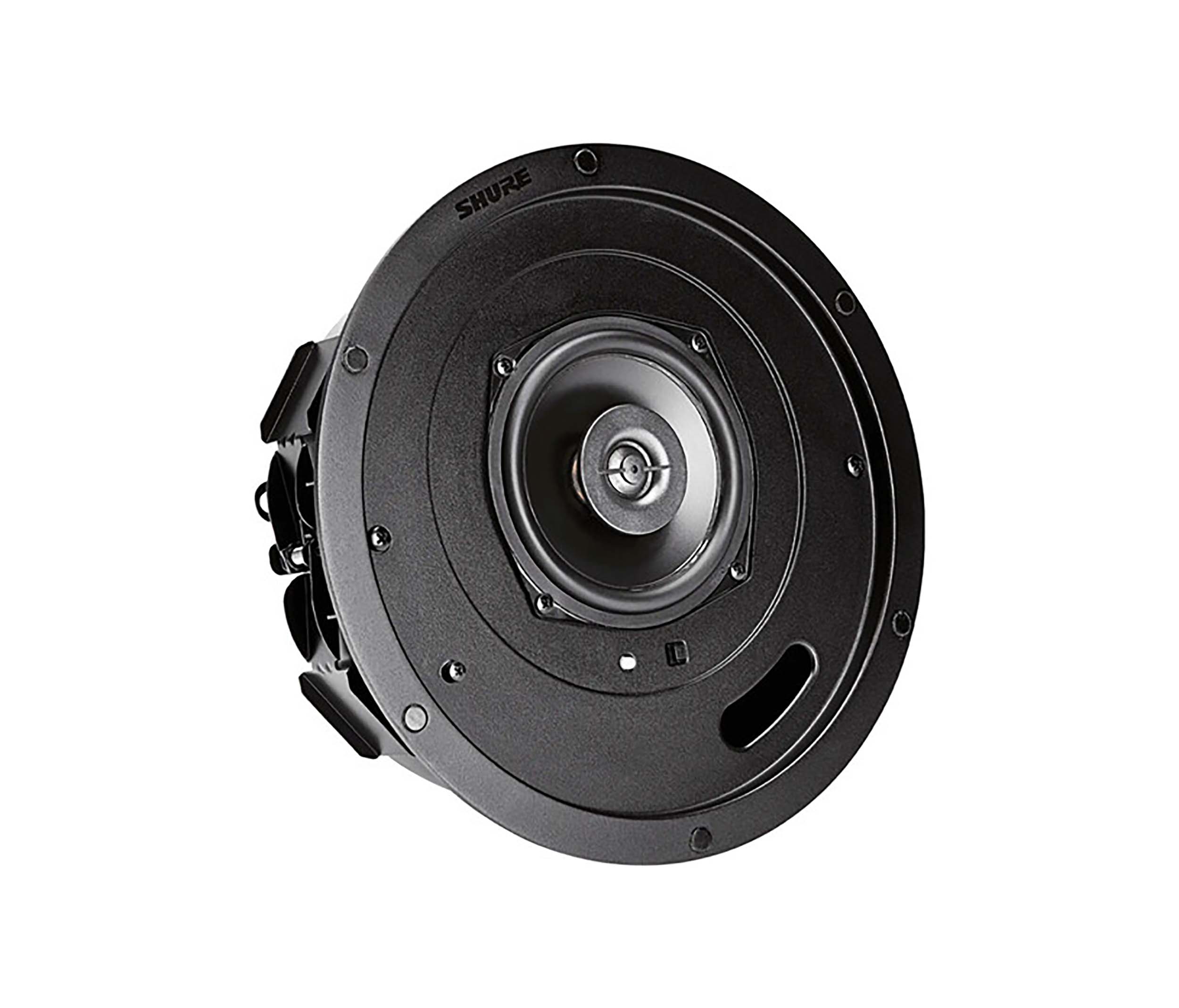

Pre-tuned frequency response optimized for voice intelligibility in AV conferencing applications. Low-profile, shallow-can design compatible with most drop ceiling installations. 2-way driver system with 5.25 in (13.3cm) woofer. PoE/PoE+ enabled, eliminating the need for an outboard amplifier. Integrated Shure DSP Utilities: EQ, delay, limiter, and signal/tone generator. 2 Dante inputs and 1 Dante output.

Clean Design Elements

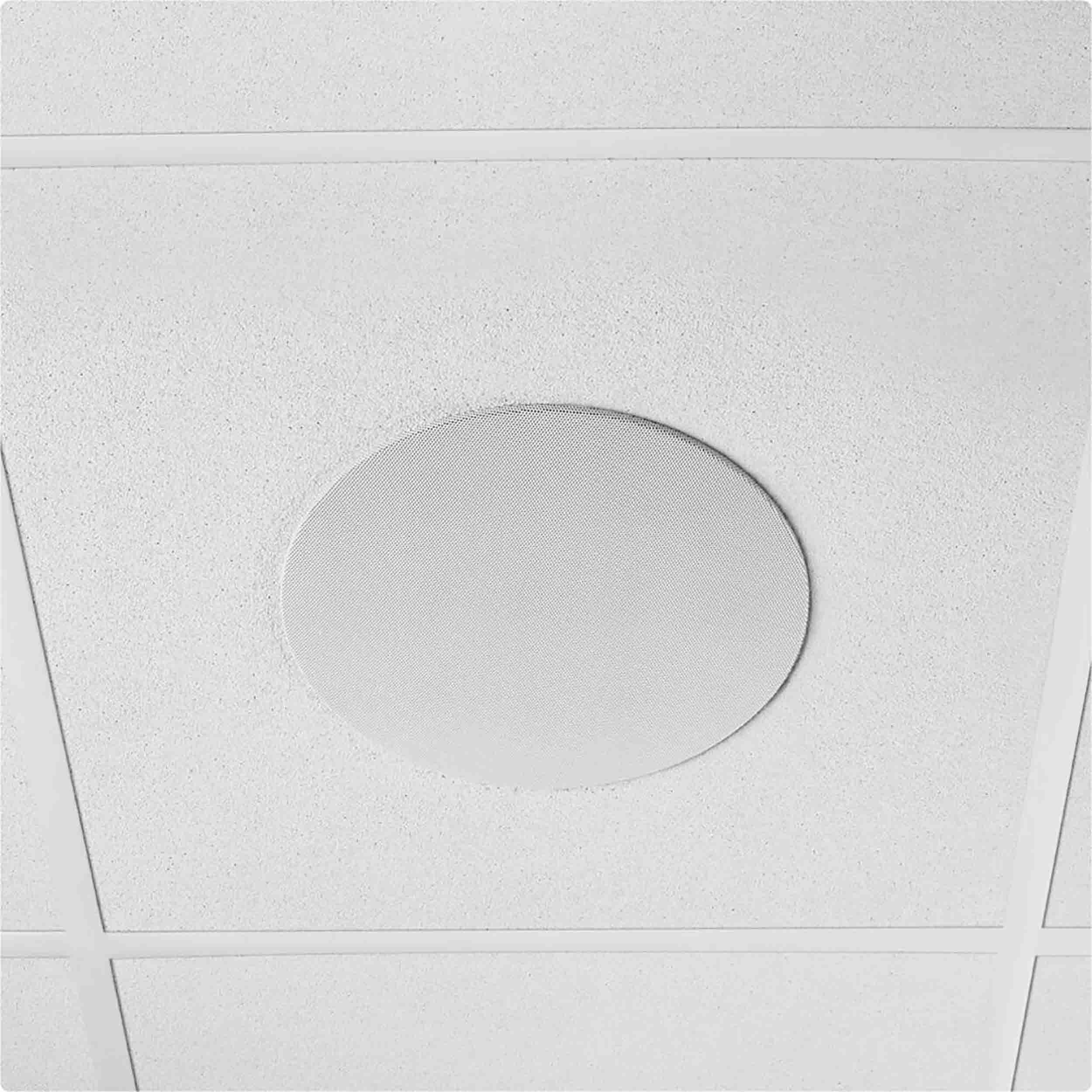

Aesthetic design subtly blends into drop ceiling environments. Removable magnetic and paintable grille seamlessly covers the entire loudspeaker. Removable magnetic Shure logo. UL 2043 plenum rated. Tile bridge or New Construction Bracket accessories for quick and easy mounting.

Product Specification:

Crossover Channel Qty: 2-way

Frequency Response: 120 - 20000 hertz

Max Output Level (Max SPL): 98 decibels

Enclosure Design: Bass reflex

Amplifier: Integrated

Connectivity Technology: Wired

Recommended Placing: Ceiling tile mountable

Detachable Grilles: Yes

Connector Type: 2 x Dante input (RJ-45), Dante output (RJ-45)

Length: 14”

Width: 14”

Height: 6.2”

Weight: 9.35 lbs.

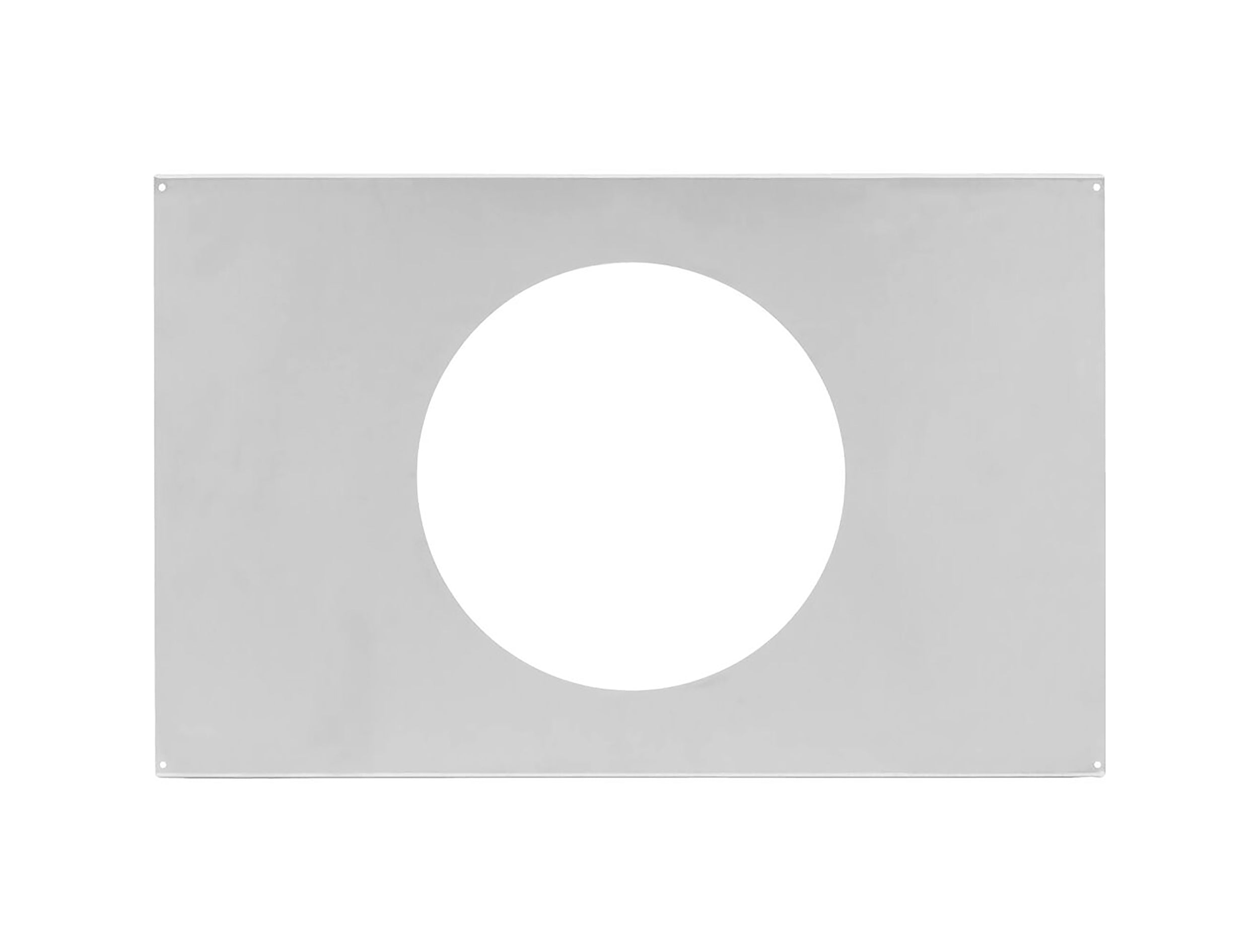

2 Shure A-MXN5-TB Tile Bridge for MXN5-C Microflex

The Shure A-MXN5-TB is tile bridge for MXN5-C Microflex networked loudspeaker. A-MXN5-TB Tile Bridge allows for quick and easy drop ceiling installation of the MXN5-C Networked Loudspeaker.

Product Specification:

Length: 24.2”

Width: 16”

Height: 0.8”

Weight: 3.75 lbs.
