Description

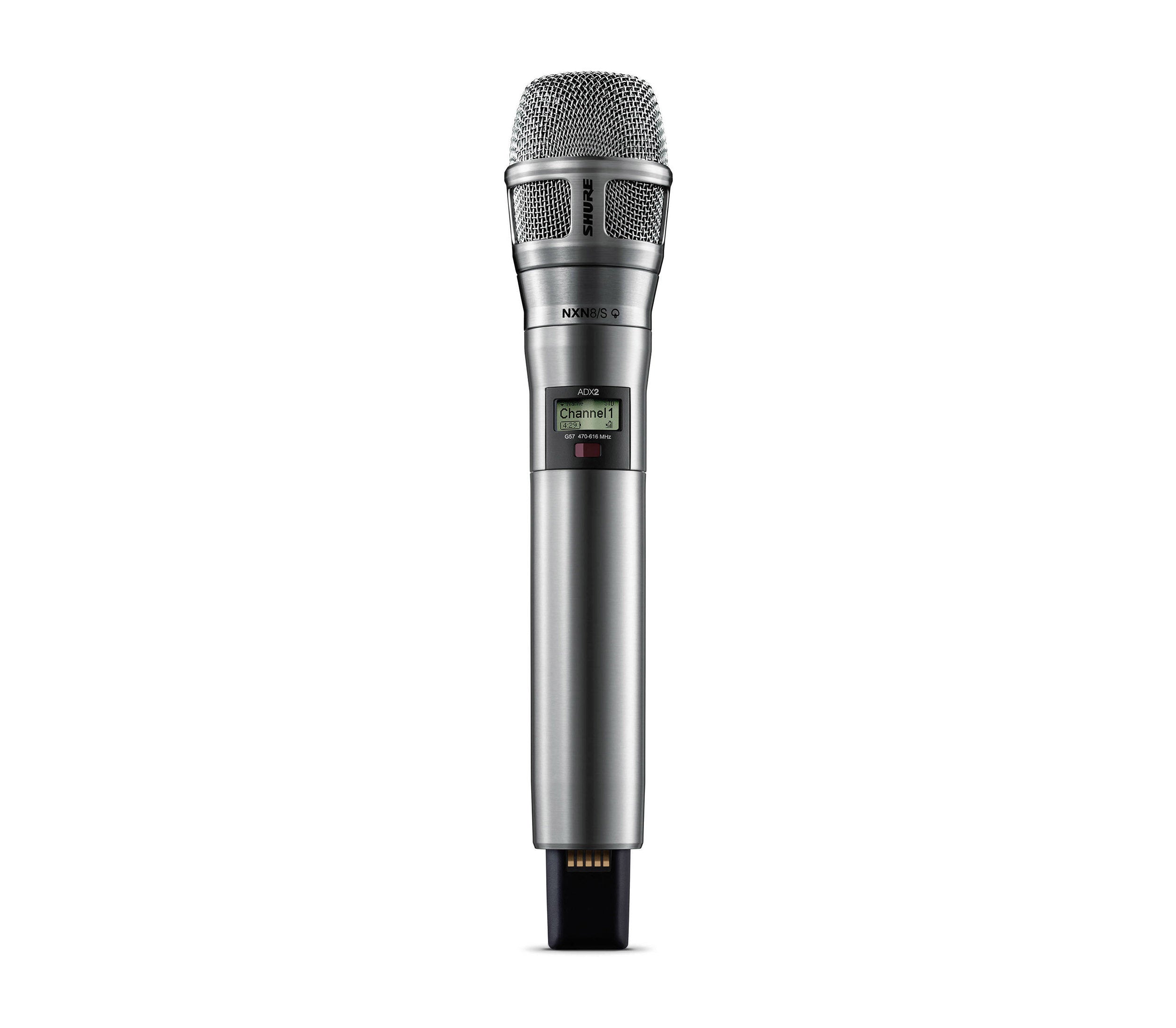

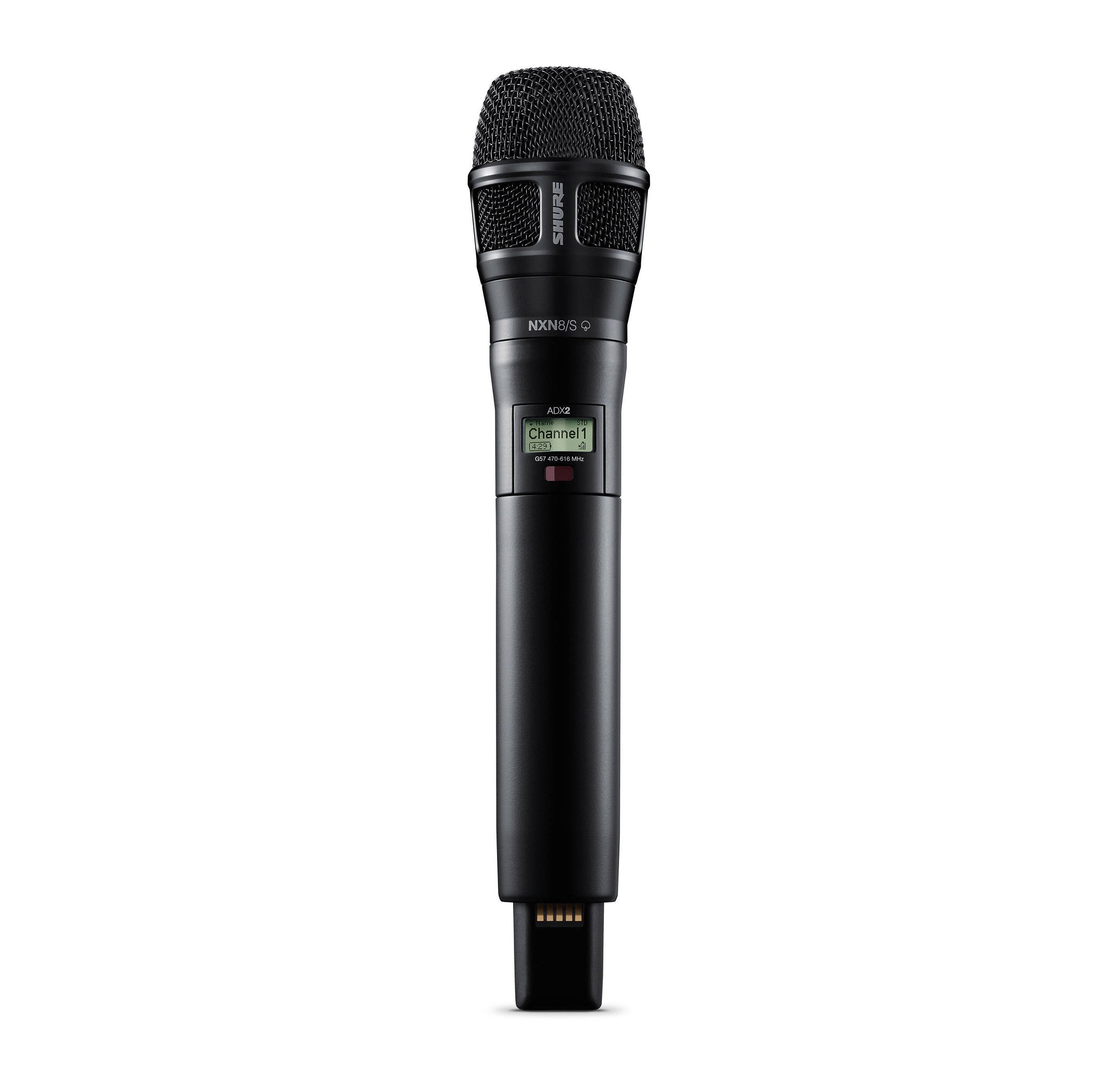

The Shure ADX2N8S is a digital handheld wireless microphone transmitter compatible with Axient Digital series receivers. It is ShowLink-enabled for automatic interference avoidance and real-time remote control of parameters. The ADX2/N8S comes equipped with a Nexadyne 8/S dynamic supercardioid capsule, featuring an innovative Revonic dual-transducer design that uses two separate, but interdependent sets of diaphragms, voice coils, and magnets. This unique technology gives this dynamic mic a condenser-like clarity with a crisp, yet natural high-end and plenty of detail—allowing vocalists to worry less about mic technique and instead focus on delivering powerful performances. The supercardioid polar pattern delivers tight directionality, high gain before feedback, and enhanced rejection of off-axis sound.
The transmitter operates in an ultrawide 140 MHz UHF bandwidth. It provides up to 9 hours of operation on an SB920A rechargeable battery, with a transmission range up to 330' and a selectable 2/10/40mW RF output power. With a durable, moisture-resistant, lightweight aluminum case, the ADX2/N8S transmitter delivers pristine audio quality, mission-critical RF performance, AES 256-bit encryption for secure transmission, and advanced rechargeability options, making it ideal for high-profile sound-reinforcement applications.
Product Specifications:
RF Frequency Band: 470 to 608 MHz / 614 to 616 MHz
RF Bandwidth: 140 MHz
Frequency Step Size: 125 kHz (Minimum)
RF Channel Scanning: Auto-Scan
Max Operating Range: 328.1' / 100 m (Line of Sight)
Latency: 2 to 2.9 ms (Selectable)
Encryption: AES 256
Modulation: Proprietary
Transmitter Type: Handheld
RF Output Power: 2 / 10 / 40 mW
Included Cable Connector: No
Pad: 12 dB
Muting: Mute Switch
Audio Input Level: 145 dB
Auto-Level Control: Yes
Gain Range: -12 to +21 dB (3 dB Steps)
Signal Processing: No
Sync Method: IR
Antenna: 1x Internal (Handheld)
Battery Type: 1x Rechargeable (Included, Replaceable)
Approx. Battery Life: 9 Hours (Lithium)
USB/Lightning I/O: No
Display & Indicators: 1x LCD (Battery Status, Channel, Group, Signal Strength)
Housing: Aluminum
Operating Temperature: 0 to 122°F / -17 to 50°C
Storage Temperature: -20 to 165°F / -28 to 73°C
Dimensions: 2 x 10" / 51 x 254 mm
Weight: 11.9 oz / 338 g (without Batteries)
Microphone:
Microphone Type: Handheld Capsule
Sound Field: Mono
Capsule: Dynamic
Polar Pattern: Supercardioid
Frequency Range: 50 Hz to 20 kHz
Sensitivity: -51 dB
Output Connector: No
Shipping Weight: 2.19 lb.
Shipping Dimensions (LxWxH): 13.9 x 6.6 x 4.8"
