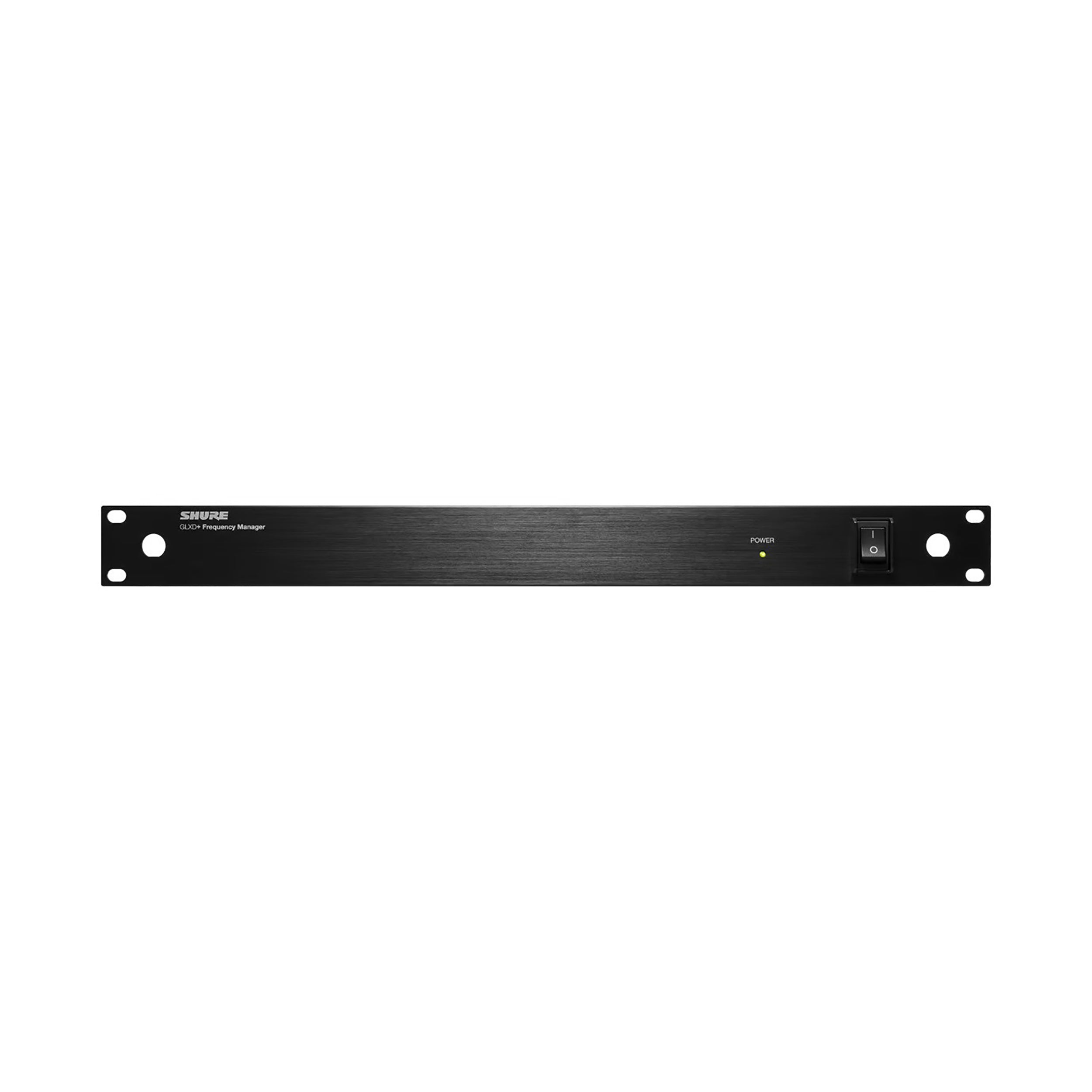

Shure GLXD+FMZ3/LC Dual Band Frequency Manager

The Shure GLXD+FM Dual Band Frequency Manager connects up to six GLXD4R+ receivers together, providing solid and reliable RF performance in demanding multi-channel applications. The GLXD+FM Dual Band Frequency Manager connects up to six GLXD4R+ receivers together, providing solid and reliable RF performance in demanding multi-channel applications. The channel count can go up to 11 simultaneous systems in typical environments and up to 16 under optimal conditions, with flexible antenna distribution options.

Ready-To-Go. Every time. Automatically.

Provides automatic dual band frequency management to a linked receiver community for improved RF performance and increased channel count

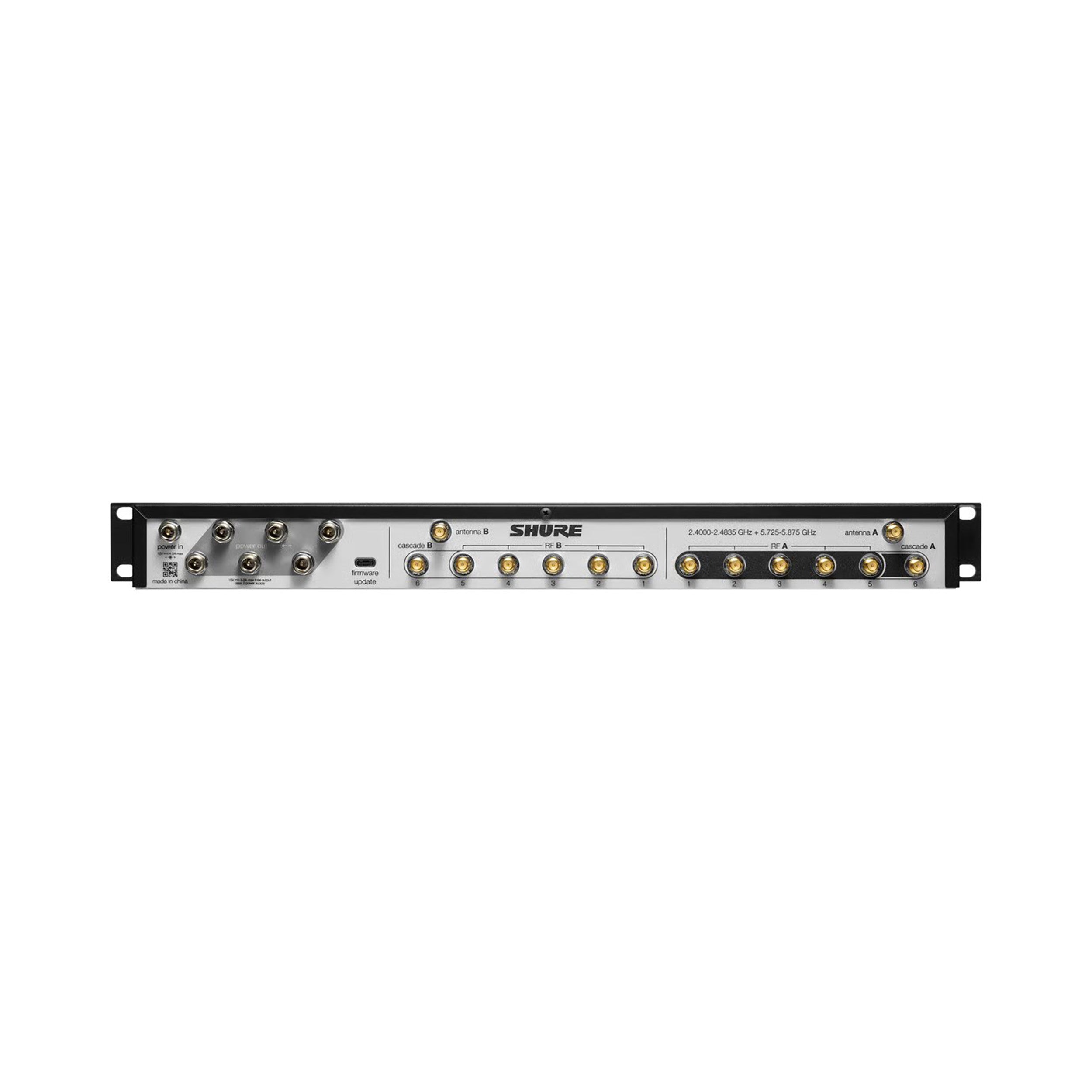

Link up to 6 individual rack receivers via RF ports for traditional antenna distribution

Daisy-chain cascade connection allows up to 3 Frequency Managers linked as a single managing unit for 16 receivers

Intelligent frequency management quickly identifies the best frequencies

Identifies and assigns optimal frequencies to receiver/transmitter pairs

In case of interference, automatically and seamlessly transitions to backup frequencies

Provides power to the GLXD4R+ receivers, eliminating need for power strips or multiple outlets

Globally‐unlicensed 2.4GHz frequency band and 5.8 GHz frequency band

What’s In the Box:

In the Box

1 AC Power Cable

1 Rack-mount Hardware Kit

6 Pairs of RSMA Cable to connect to GLXD4R+ Receivers

Product Specifications:

Compatibility: Shure GLX-D+ GLXD4R+ Receiver

Inputs/Outputs:

USB I/O: 1 x USB-C Female Input

RF Input:

Connector Type: Reverse SMA

RF Frequency Range: 2400 to 5850 MHz

Receiver Port Isolation: 35 dB, Typical

Impedance: 50 Ohms

Maximum Antenna Input Power: -10 dBm

Maximum Receiver Port Input Power: +15 dBm

RF Output:

Connector Type: Reverse SMA

RF Frequency Range: 2400 to 5850 MHz

Output Intercept Point: 48 dBm, Typical

Impedance: 50 Ohms

Reverse Isolation Output to Input: 35 dB, Typical

Gain, Input to any Output Port: -3 to 0 dB

Power:

Power Source: AC Adapter with Power Brick (Included)

DC Input Power : 15 VDC

Operating Current: 3.8 A (Maximum)

Mounting:

Front: 2x Rackmount

Color: Black

Material of Construction: Metal

Dimensions: 19 x 7.5 x 1.7" / 482.6 x 189.8 x 43.9 mm

Weight: 3.8 lb / 1735 g

Shipping Weight: 8.215 lb

Shipping Dimensions (LxWxH): 23.1 x 16.7 x 3.9"
