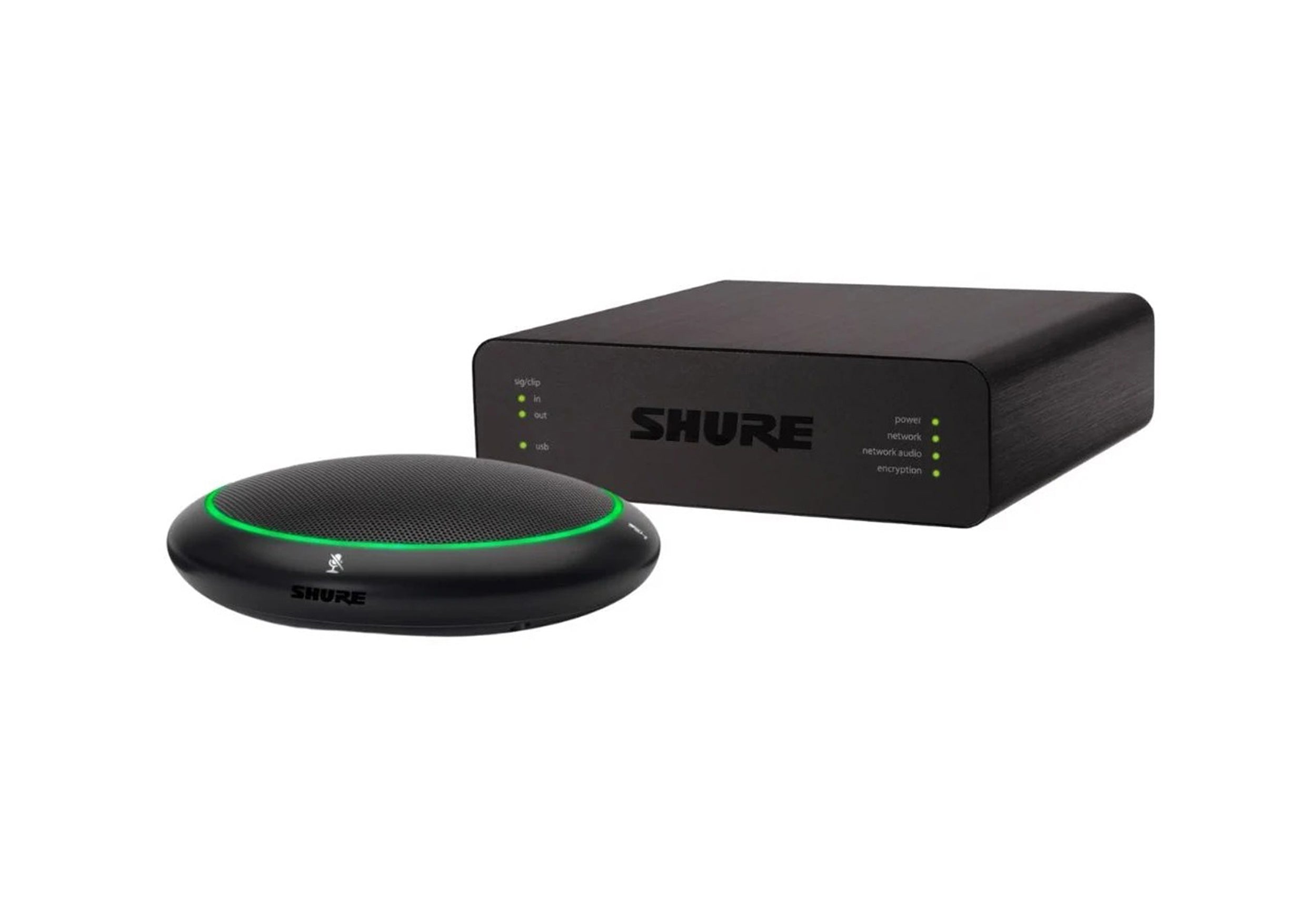

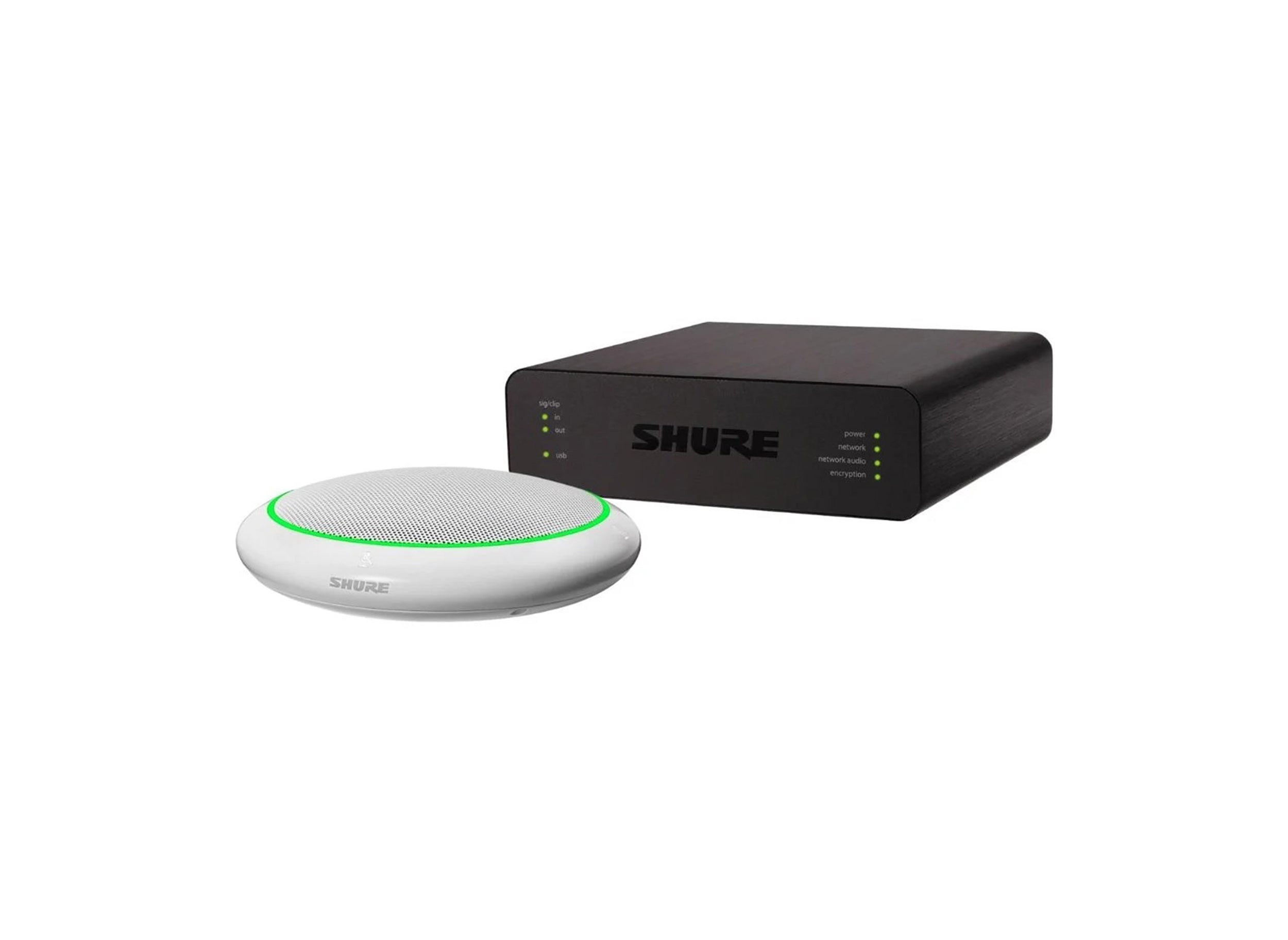

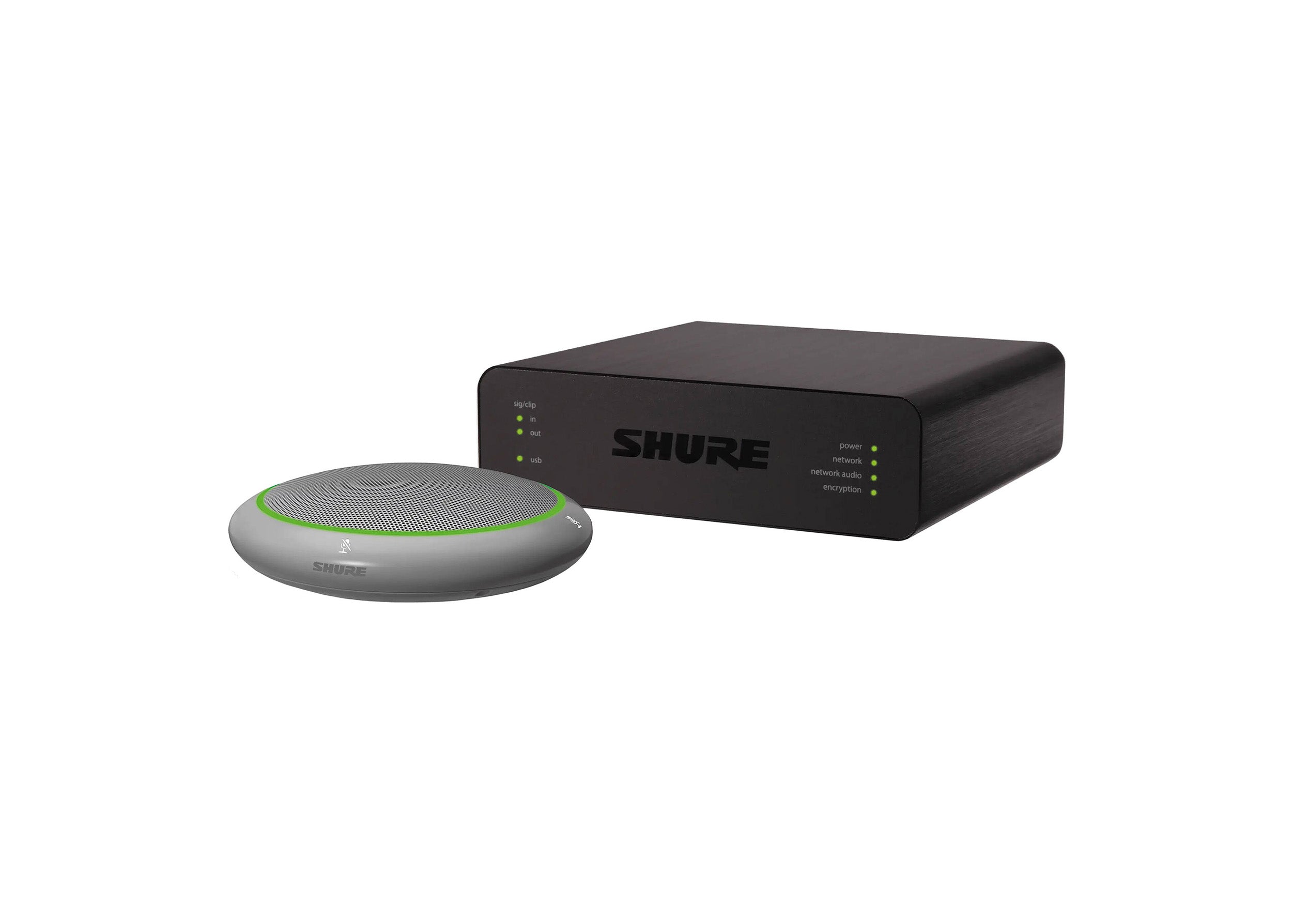

Shure MXA310 and ANIUSB-MATRIX AV Conferencing Bundle

The Shure Microflex Advance MXA310 Table Array Microphone combined with the ANIUSB-Matrix Audio Network Interface delivers premium conferencing audio with flexible signal routing and versatile connectivity options. This perfectly paired microphone and interface together significantly improves the quality of conference calls by leveraging the processing built into Shure microphones, like Automatic Mixing and EQ, while using the acoustic echo cancellation and noise reduction provided by hardware or software codecs.

The ANIUSB-MATRIX connects easily to a computer running soft codecs like Skype for Business or BlueJeans, or to other all-in-one collaboration devices equipped with a USB or analog audio interface.

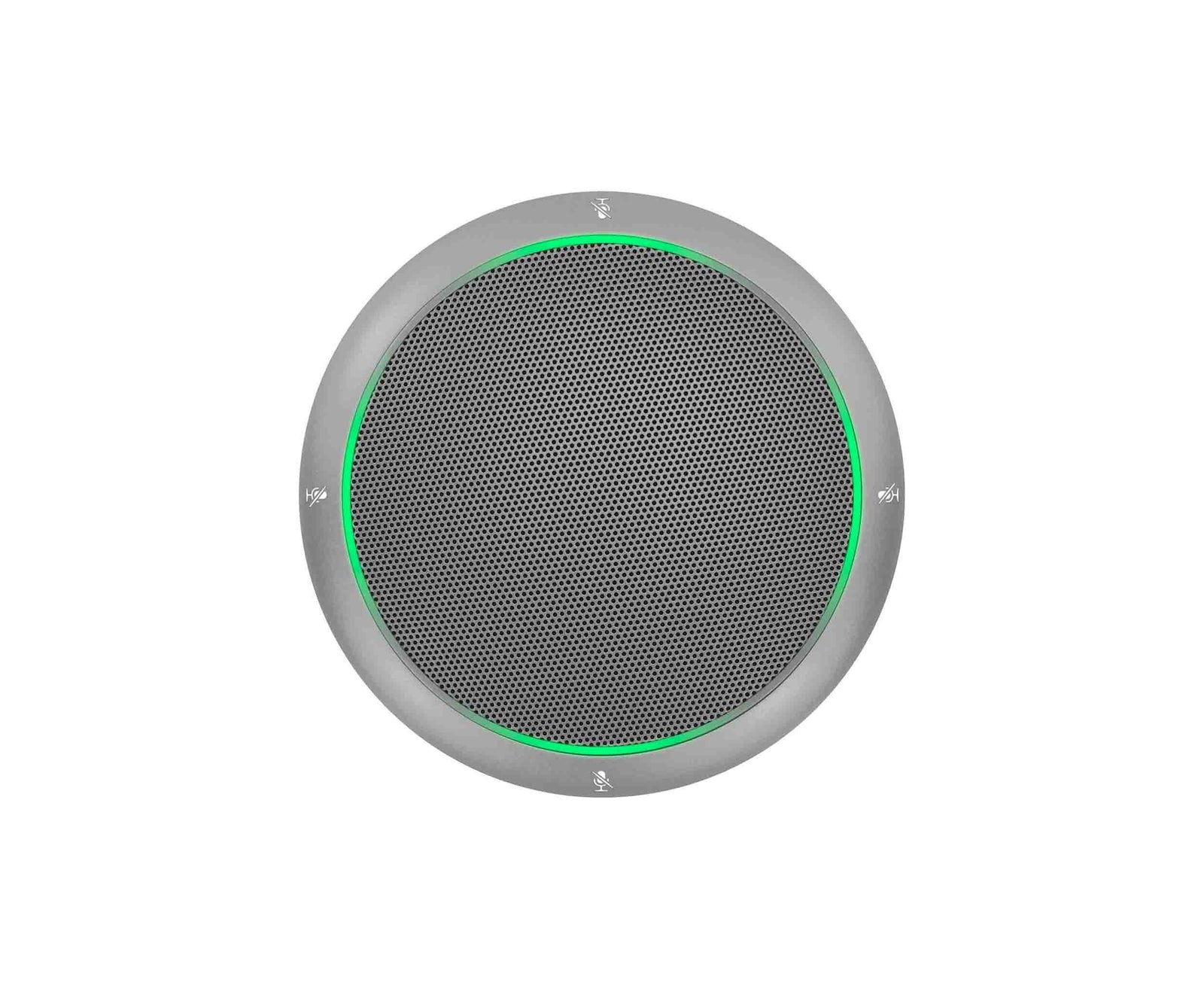

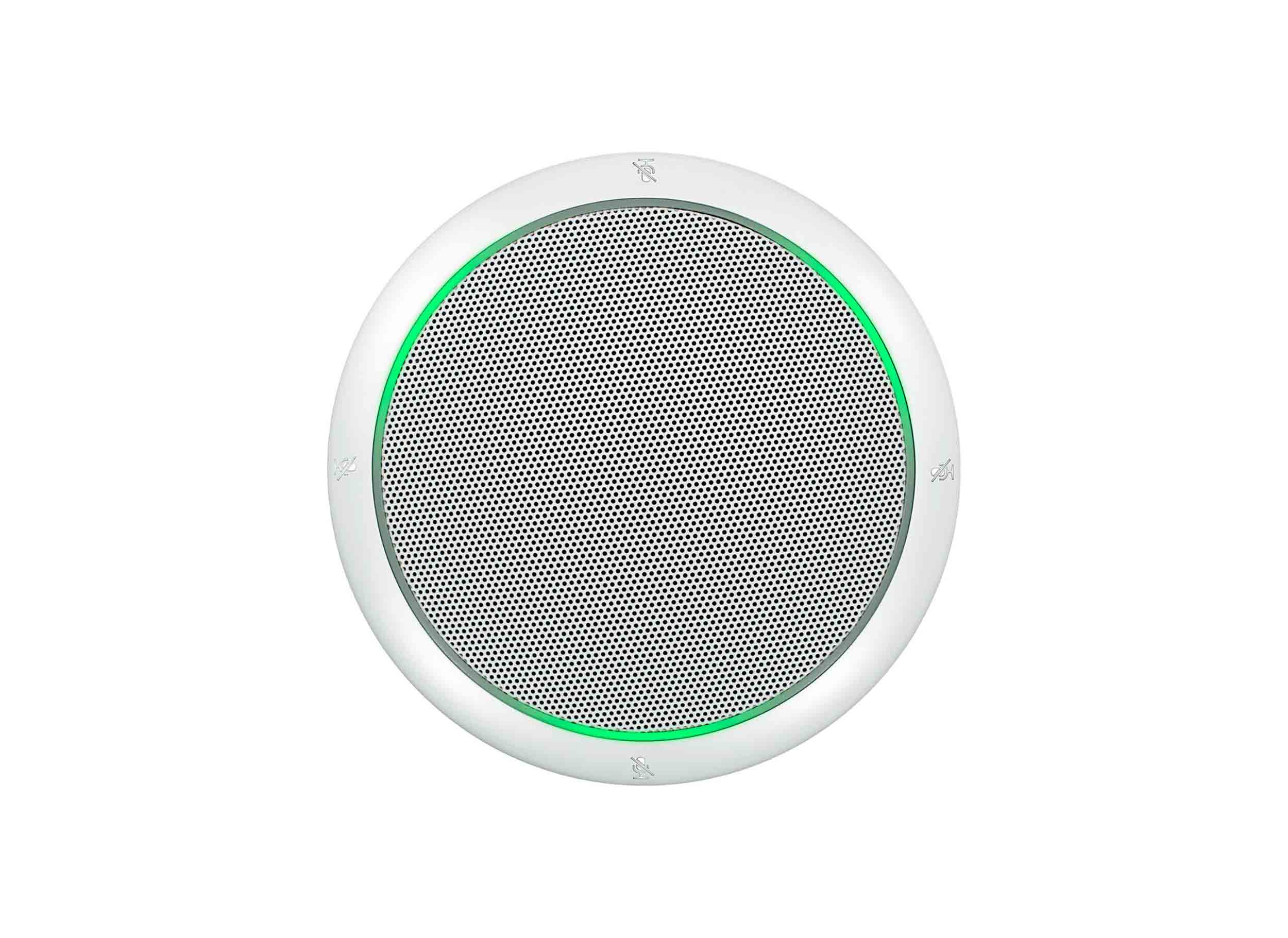

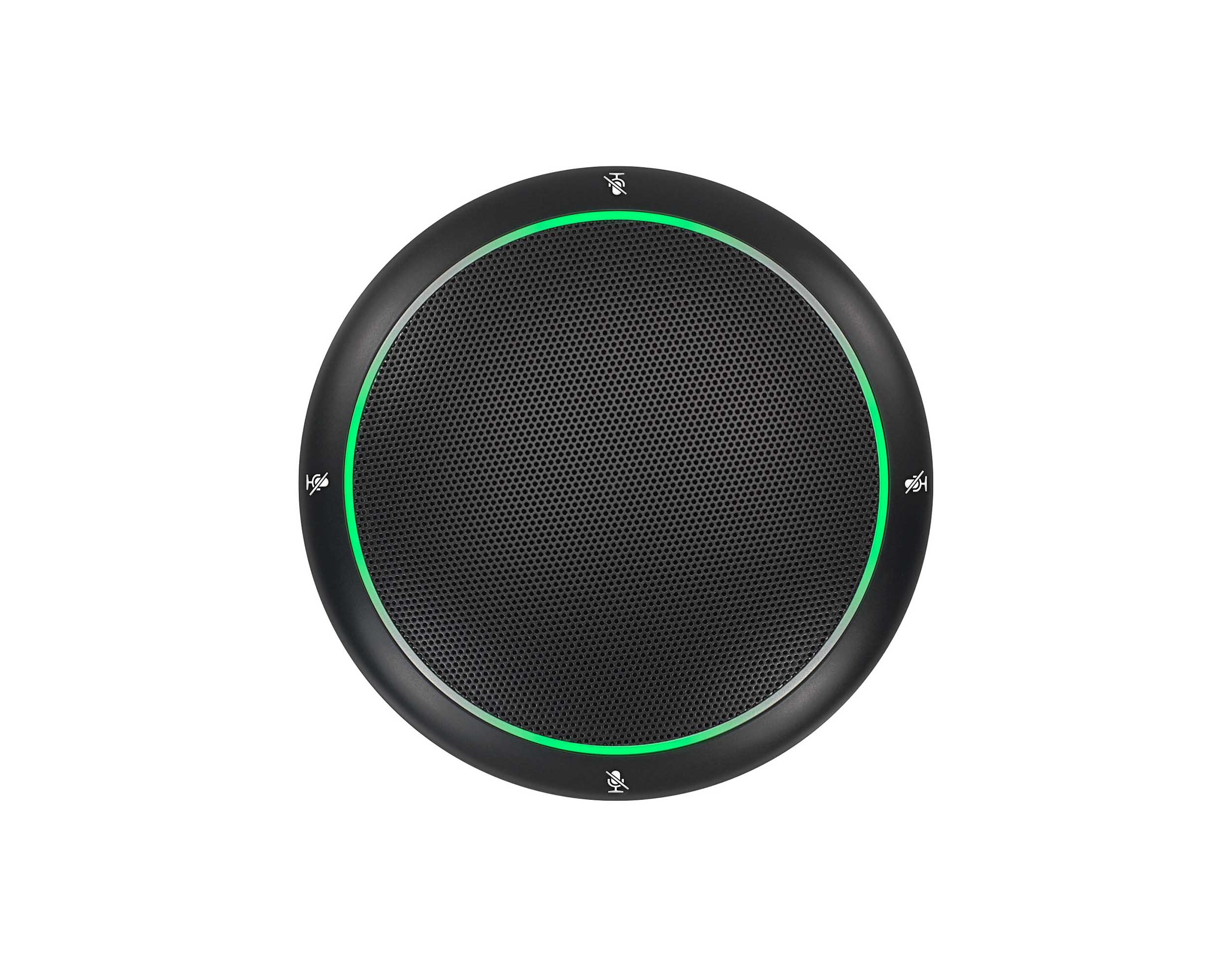

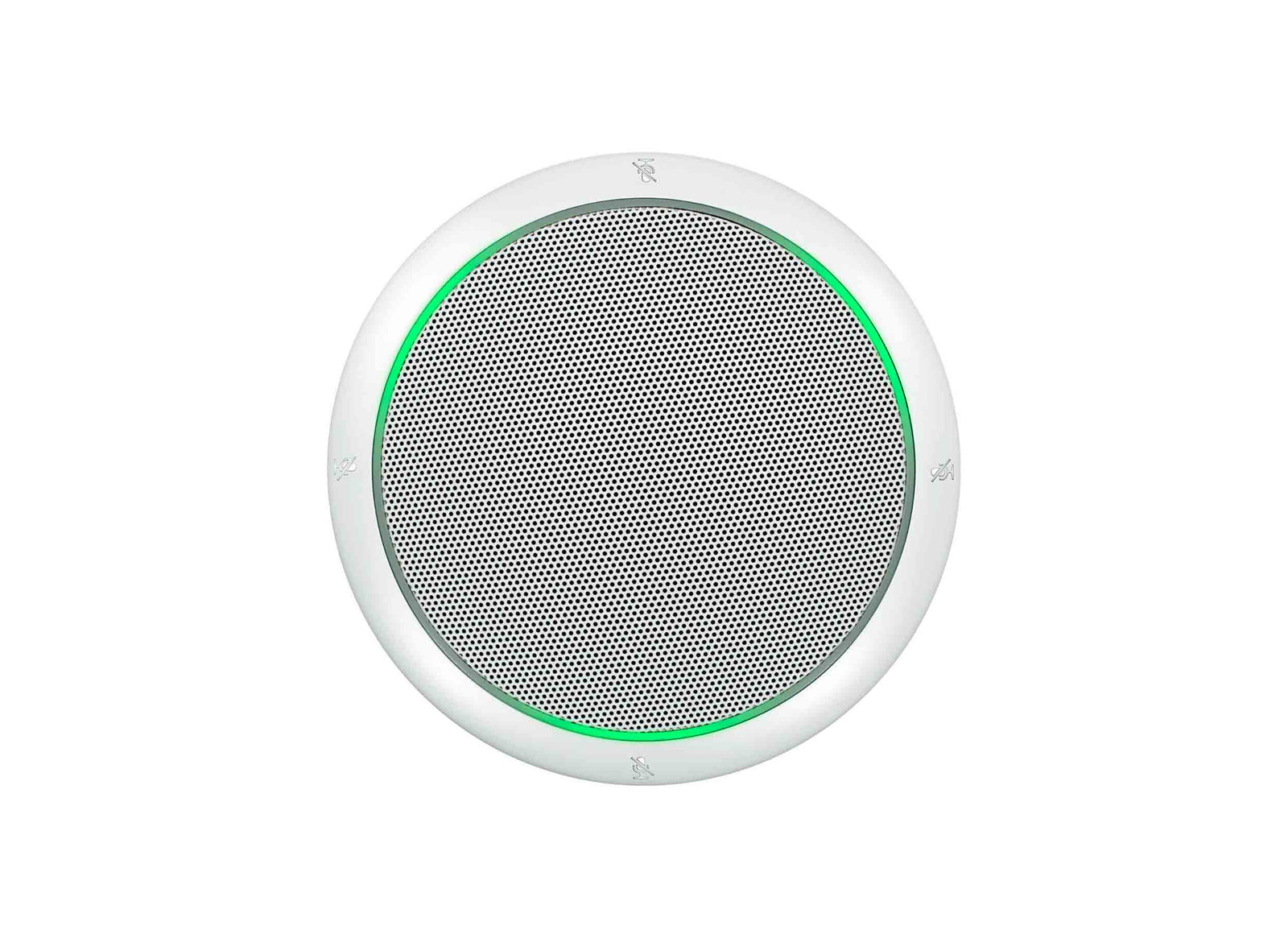

Shure MXA310 Microflex Advance Table Array Conferencing Microphone

The MXA310 from Shure is a tabletop array microphone is designed to integrate smartly into any conference or meeting space, including boardrooms, huddle rooms, and multipurpose areas. A powerful feature set, including Steerable Coverage, multiple pickup patterns, auto-mixing, and more ensures speech is captured accurately and intelligibly, while the configurable color LED shows mute and channel statuses. The elegant, low-profile design requires only a single connecting cable and discreetly integrates into your room with two permanent mounting options: either on the table with the included hardware or via the A310-FM flush mount (available separately).

Focused Conversation

With Shure's Steerable Coverage technology delivering precise pickup over 4 independent lobes along with built-in automatic mixing and adjustable EQ, the MXA310 captures every voice with pinpoint accuracy—anywhere in the room.

Office HVAC systems can add overpowering background noise to the call; the unique toroid polar pattern only captures table-level sound, helping to reduce unwanted distractions from fan or HVAC noise.

Additional pickup patterns include omnidirectional, cardioid, supercardioid, hypercardioid, and bidirectional—all steerable to any angle in 15-degree increments.

Built-in CommShield technology provides immunity from RF interference.

Shure Network Audio Encryption can be enabled when used with the IntelliMix P300 Audio Conferencing Processor or Shure Audio Network Interfaces, which utilize AES-256 technology to protect confidential content.

Seamless Integration, Easy Operation

The MXA310 connects to the vast ecosystem of Shure and third-party networked audio devices via Dante or AES67, with just one Ethernet cable for power (PoE), control, and audio.

Four discrete audio channels and an additional automix channel are delivered over a single network cable.

Dante digital audio coexists safely on the same network as IT and control data or can be configured to use a dedicated network.

The microphone supports control strings for third-party preset controllers, including Crestron and AMX.

All parameters are configured via a browser-based control software, with intuitive control of polar patterns, templates, and presets for quick setup for any meeting space requirement.

Programmable capacitive-touch mute switches ensure simple user operation. Mute switch modes include Toggle, Push-to-Talk, Push-to-Mute, and Disable.

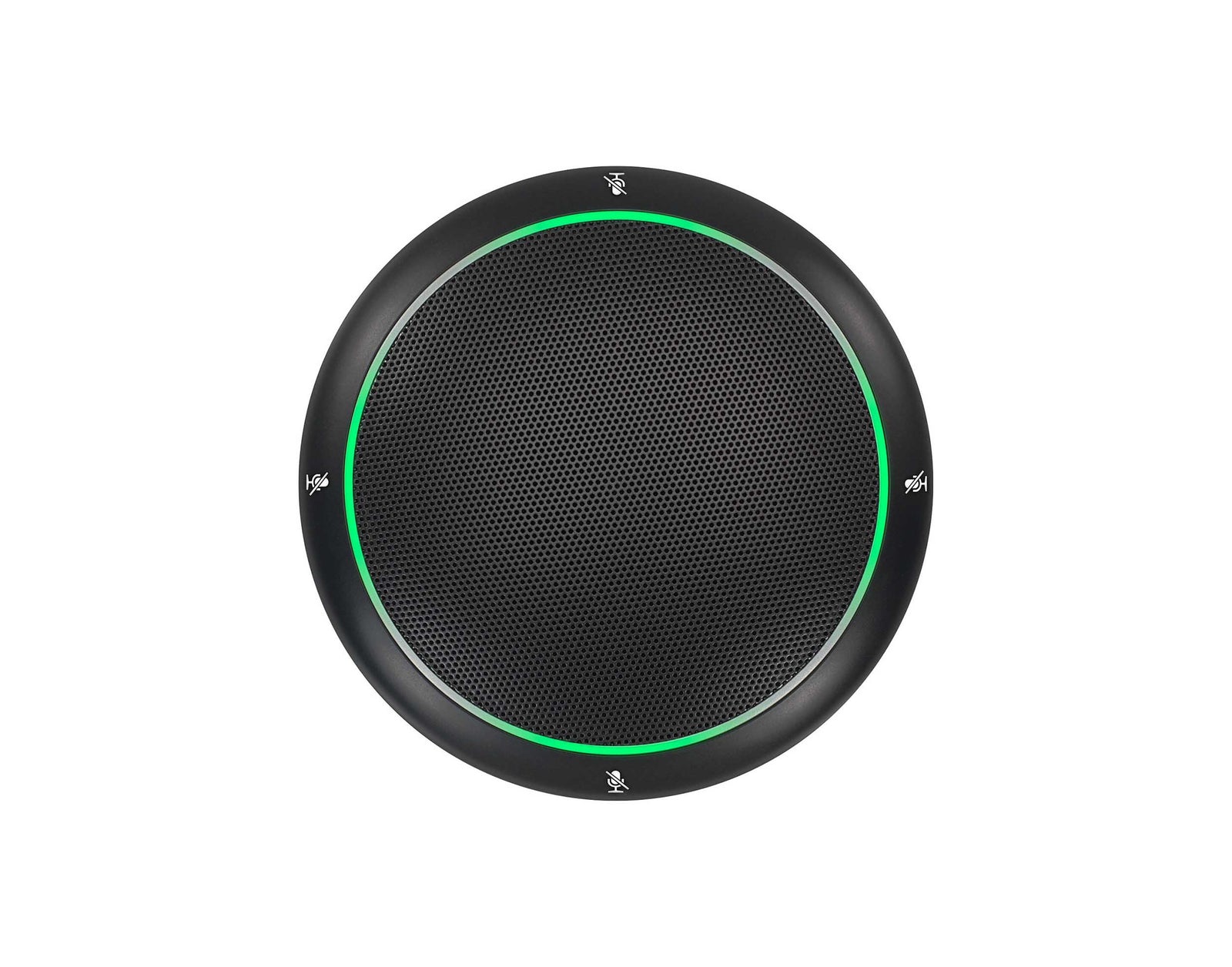

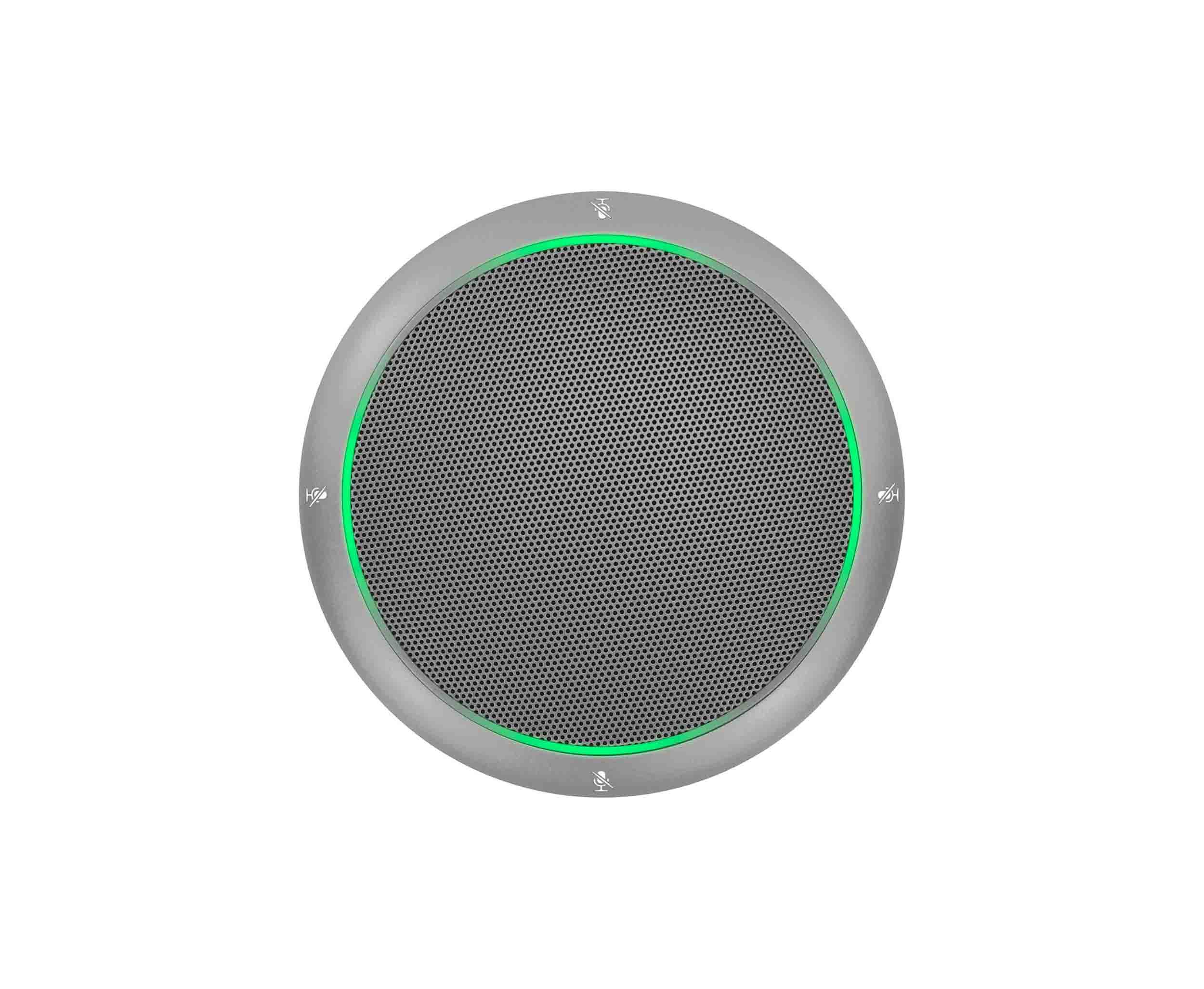

A configurable multicolored LED light ring displays mute status and displays lighted segments during setup to confirm coverage areas and auto mix settings.

The mic features programming-free LED mute sync with leading software conferencing solutions including Zoom Rooms, Microsoft Teams, and Skype for Business when used with IntelliMix P300 or ANIUSB-MATRIX (both available separately).

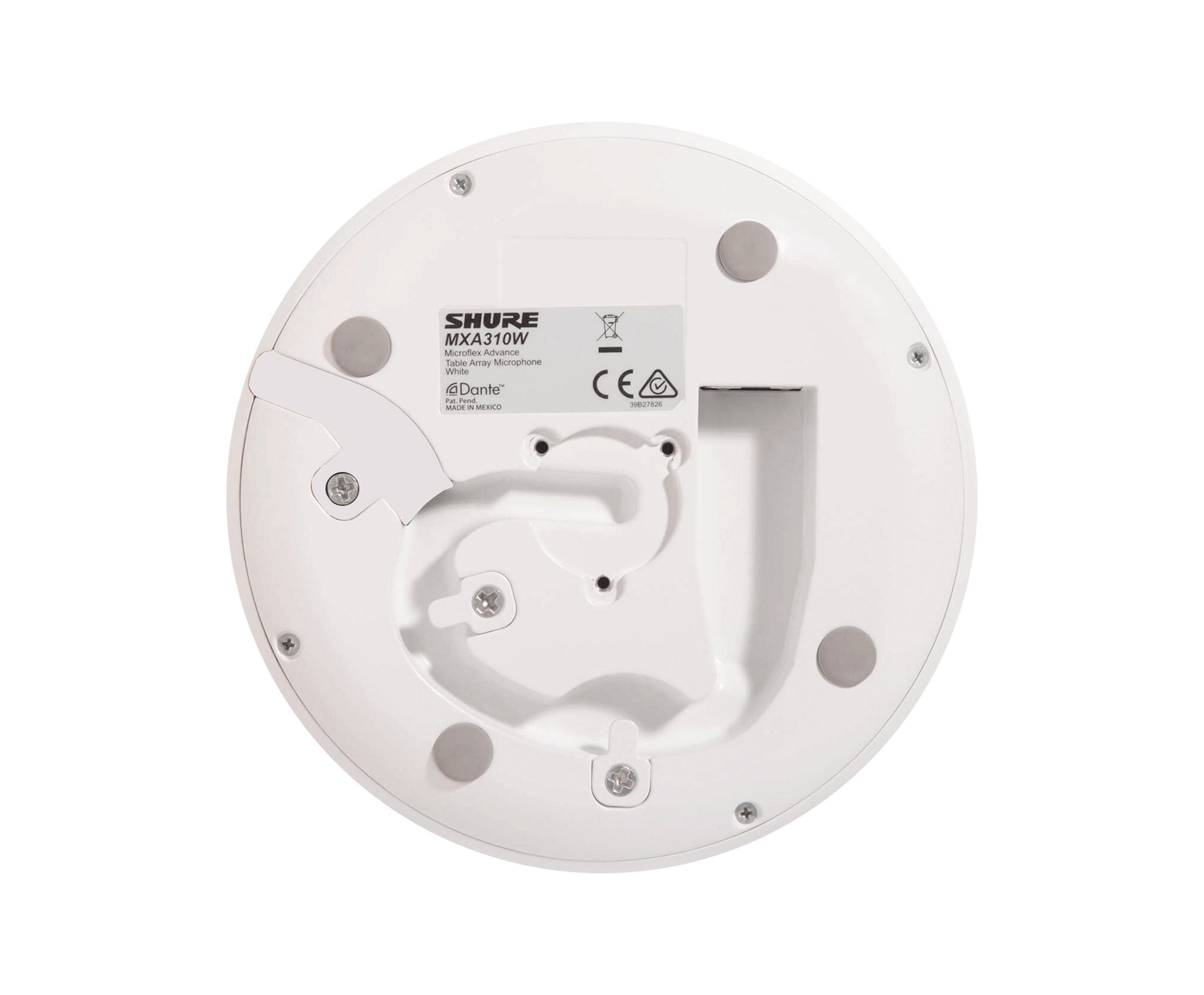

Cable exit along or through a table allows for easy retrofitting of previous Shure MX396/MX395 boundary microphone installations.

Certification Required

Shure requires completion of their certification program tailored for both existing and prospective customers in the integrated systems market to purchase this item. The certificate is also required to purchase the following products:

MXA710 Linear Array Microphone

MXA901 Conference Ceiling Array Microphone

MXA902 Ceiling Array Microphone and Loudspeaker

MXA920 Ceiling Microphone Array

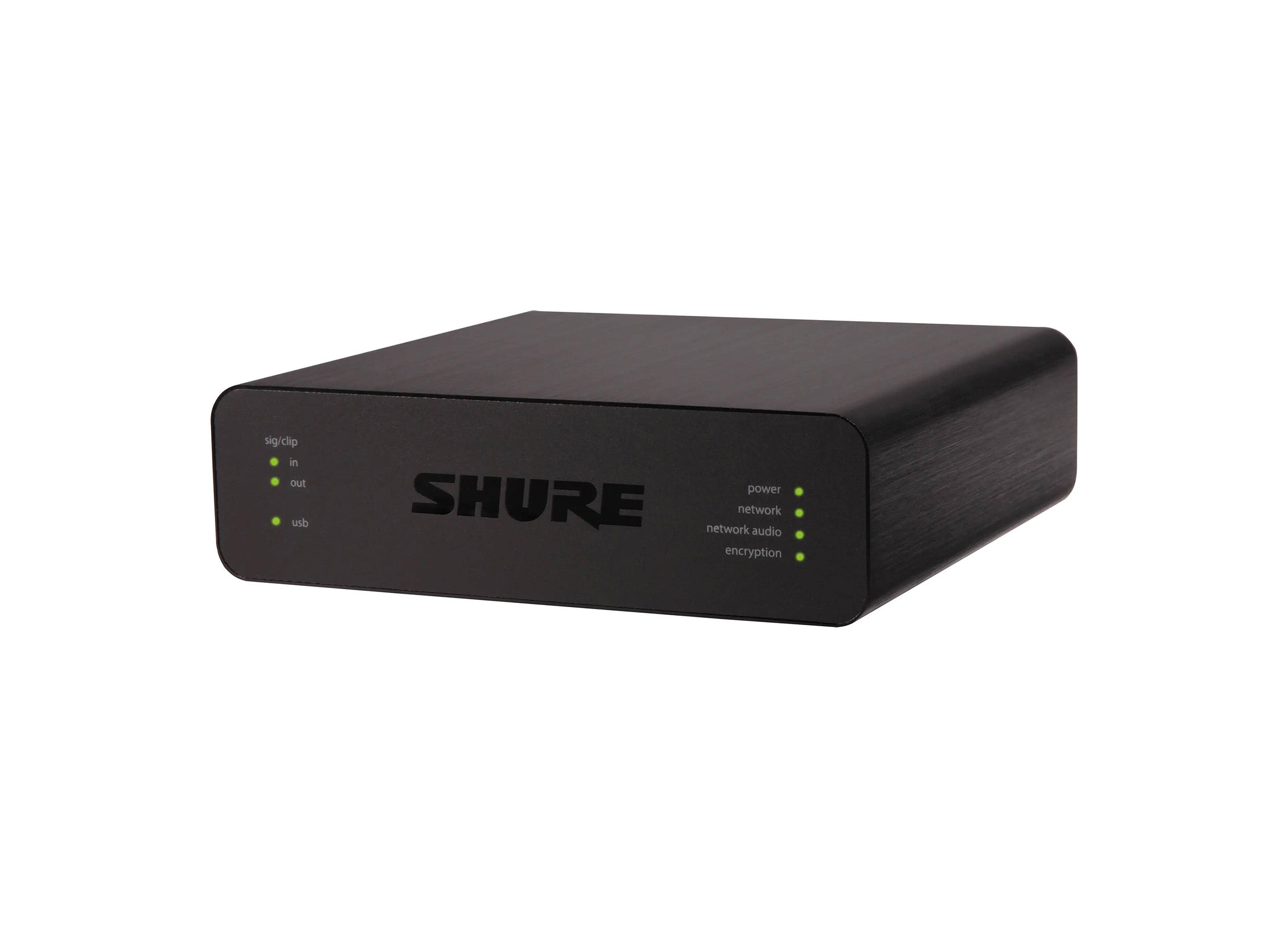

Shure ANIUSB-MATRIX USB Audio Network Interface

The ANIUSB-MATRIX USB Audio Network Interface from Shure is designed for audio/video conferencing installations in small- and medium-size meeting rooms. It can be used to connect 4 Microflex Advanced or Microflex Wireless microphone channels via Dante (4 in/2 out), and provide analog connectivity to a room audio/video conferencing system or a PC-based A/V conferencing application via USB (1 in/out).

An internal matrix mixer offers flexible routing, allowing users to route any input to any output. A 4-band parametric EQ filter is also available on the analog and USB outputs. The ANIUSB-MATRIX is compact and easy to mount without an equipment rack.

Product Specifications:

Shure MXA310 Microflex Advance Table Array Conferencing Microphone

Compatibility: Shure Microflex Advance MXA910 / Microflex Advance MXA920 / Microflex Advance MXA710 / Microflex Advance MXA310 / IntelliMix P300 / IntelliMix Room Software / ANIUSB-MATRIX / MXN5-C / MXA Network Mute Button

Polar Pattern: All Channels Independently Adjustable Cardioid, Hypercardioid, Supercardioid, Toroid, Omnidirectional, Bidirectional

Control: HTML5 Browser-Based

Frequency Response: 100 Hz to 20 kHz

Digital:

AES67 or Dante Digital Output

Channel Count: 5 Total Channels (4 Independent Transmit Channels, 1 Automatic Mixing Transmit Channel)

Sampling Rate: 48 kHz

Bit Depth: 24

Sensitivity: -21 dBFS/Pa (at 1 kHz, -15 dB Gain Setting)

Maximum SPL: 115.2 dB SPL (1 kHz at 1% THD, -15 dB Gain Setting)

Signal to Noise Ratio:

Cardioid: 75 dB

Toroid:67 dB

(Ref. 94 dB SPL at 1 kHz, -15 dB Gain Setting)

Latency: <1 ms (Not Including Dante Latency)

Noise Level:

Cardioid: 19.2 dB SPL-A

Toroid: 26.8 dB SPL-A

(-15 dB Gain Setting)

Dynamic Range: Cardioid: 96 dB

Toroid: 90 dB

(-15 dB Gain Setting)

DSP:

Per Channel: Equalizer (4-Band Parametric), Mute, Gain ( 140 dB Range)

System: Automatic Mixing, Low-Cut Filter ( -12 dB/Octave at 150 Hz)

Inputs / Outputs:

Audio I/O: 1x RJ45 Dante Output

Power:

Power Source: PoE

Power Consumption: 4 W (Maximum)

Environmental:

Certifications: CANICES-3 (B)/NMB-3(B), FCCPart 15, CE

Operating Temperature: 20 to 104°F / -6 to 40°C

Storage Temperature: -20 to 165°F / -28 to 73°C

Physical:

Mounting: Bottom: 1x Surface Mount

Dimensions: 5.3 x 5.3 x 1.4" / 13.4 x 13.4 x 3.6 cm

Weight: 12.8 oz / 362 g

Shure ANIUSB-MATRIX USB Audio Network Interface

Inputs (Analog): 1 x 3-pin block connector (active balanced)

Outputs (Analog): 1 x 3-pin block connector (impedance balanced)

USB Connection: 1 x USB 2.0, Type-B

Dante Connection:

1 x RJ45

Channel Count: 4 inputs, 2 outputs

Polarity: Non-inverting, any input to any output

Power Requirements: Power over Ethernet (PoE), Class 0 (PoE Plus compatible)

Power Consumption: 6.5 W maximum

Application Control: HTML5 browser based

Operating Temperature Range: 20 to 104°F (-6.7 to 40°C)

Storage Temperature Range: 20 to 165°F (-29 to 74°C)

Thermal Dissipation:

Maximum: 6.8 W (23.0 BTU/hr)

Typical: 6.0 W (20.8 BTU/hr)"

Audio:

Frequency Response: 20 Hz to 20 kHz +1, -1.5 dB

Dante Audio Flows: Sampling Rate: 24-bit/48 kHz

USB Audio: 16-, 24-bit/44.1, 48 kHz

Latency: Does not include Dante latency

Analog to Analog: 0.98 ms

Analog to Dante: 0.39 ms

Dante to Analog: 0.72 ms

Dante to Dante: 0.14 ms

Dynamic Range:

20 Hz to 20 kHz, A-weighted, typical

Analog to Dante: 113 dB

Dante to Analog: 117 dB

Equivalent Input Noise:

20 Hz to 20 kHz, A-weighted, input terminated with 150 Ohms

Line: -86 dBV

Aux: -98 dBV

Total Harmonic Distortion (THD): <0.05% @ 1 kHz, 0 dBV input, 0 dB analog gain

Common Mode Rejection Ratio: >70 dB, 150 Ohms balanced source @ 1 kHz

Impedance: 10.6 kOhms

Input Clipping Level:

Line: +27 dBV

Aux: +15 dBV

Output Clip Level:

Line: +20 dBV

Aux: 0 dBV

Mic: -26 dBV

Digital Signal Processing (DSP):

Per Channel: Equalizer (4-band Parametric, Analog and USB output channels only), Mute, Limiter, Gain (140 dB range)

System: Matrix mixer

Networking: Cat 5e or higher (shielded cable recommended)

Dimensions: 1.6 x 5.5 x 5.0" (4 x 14 x 12.8 cm)

Weight: 1.5 lb (672 g)

Shipping Weight: 4 lbs.

Shipping Dimensions (LxWxH): 20 x 13 x 8”
