Shure P3TRA215TWP, PSM300 Twin Pack Pro Ideal Monitoring Solution

The Shure PSM 300 Twin-Pack Pro Wireless In-Ear Monitor Kit is a professional-grade monitoring solution designed for live performances, theater productions, rehearsals, and houses of worship. This kit provides performers with reliable, high-quality wireless audio with 24-bit digital audio clarity and 300-foot transmission range, ensuring seamless monitoring on stage.

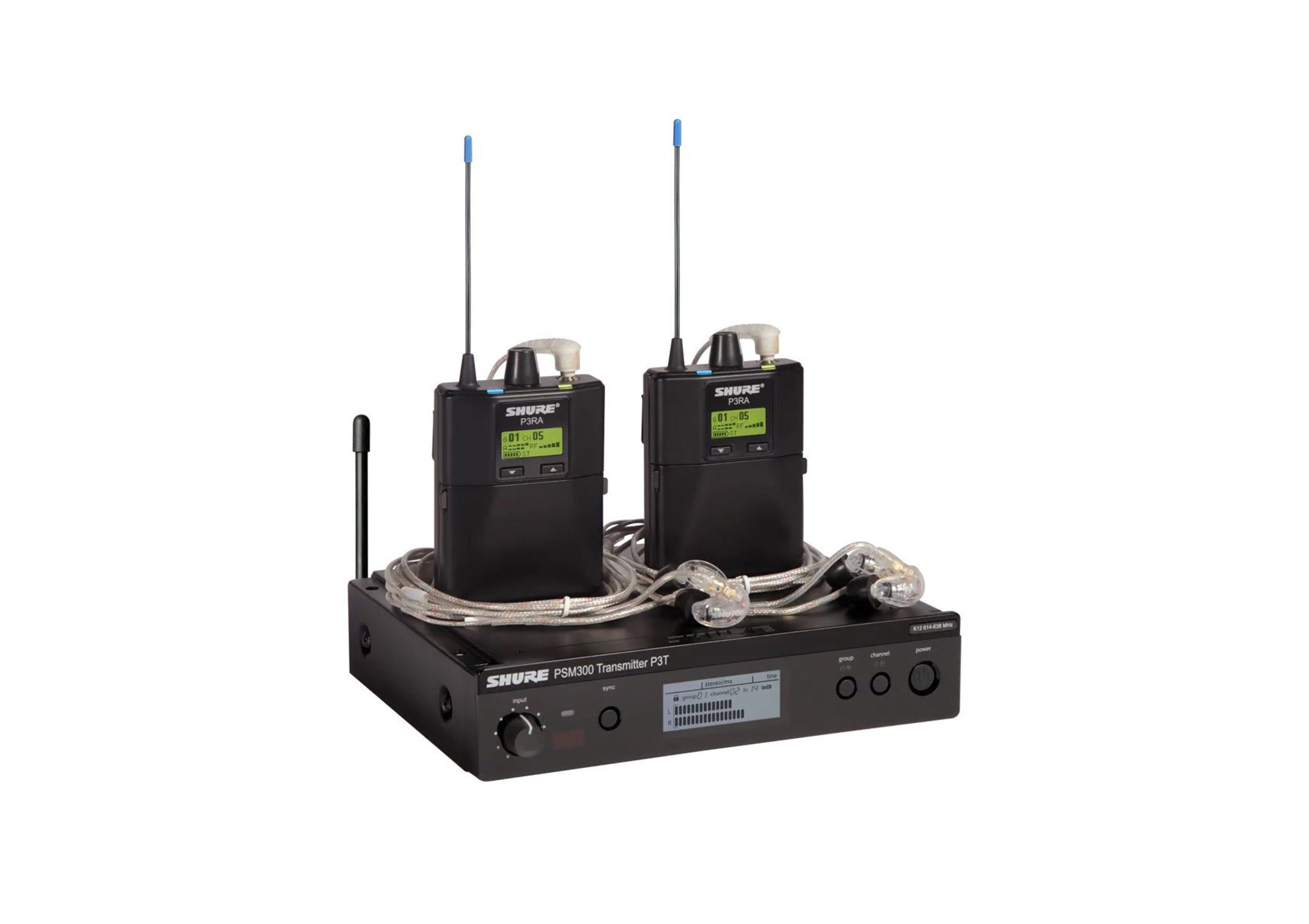

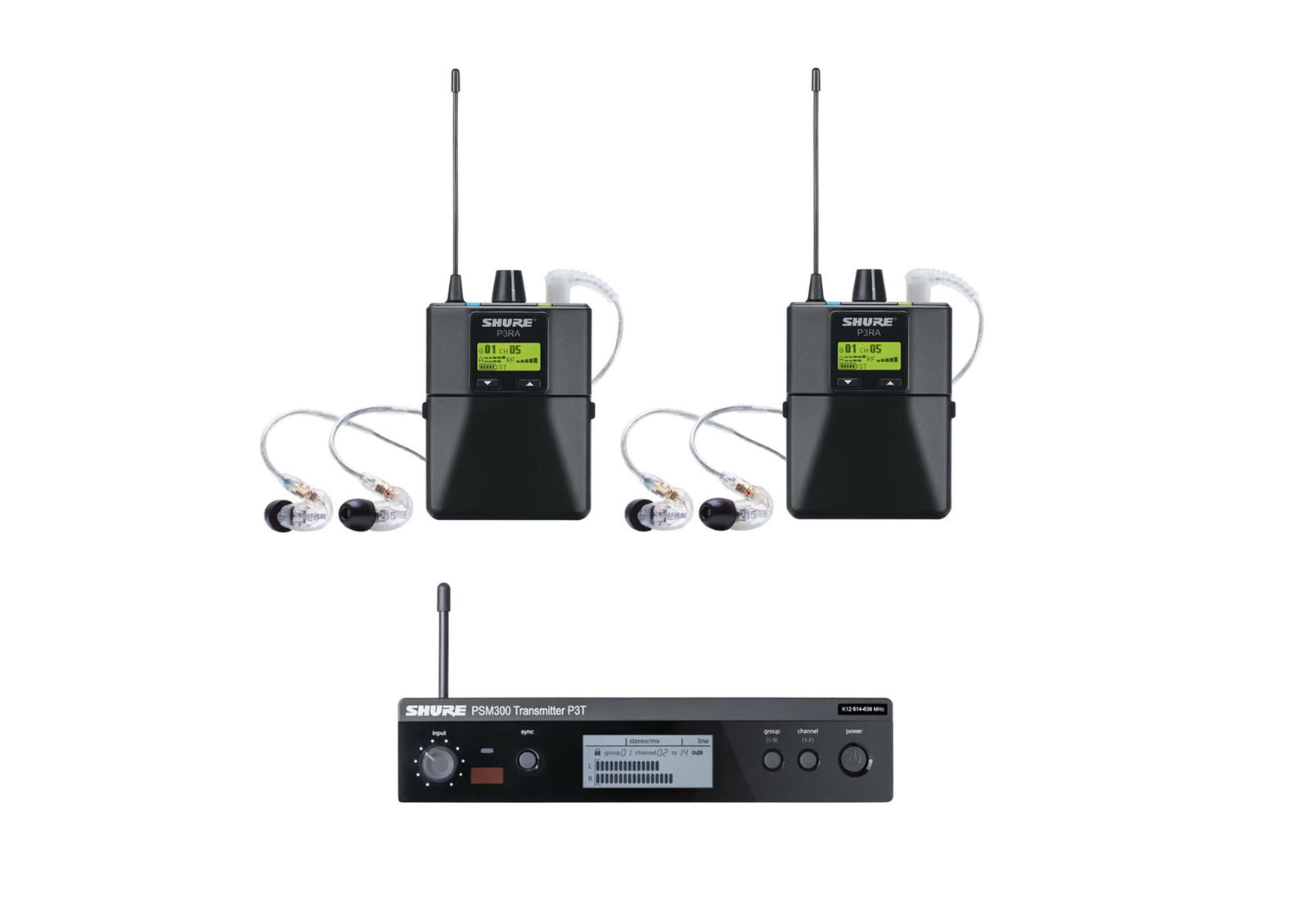

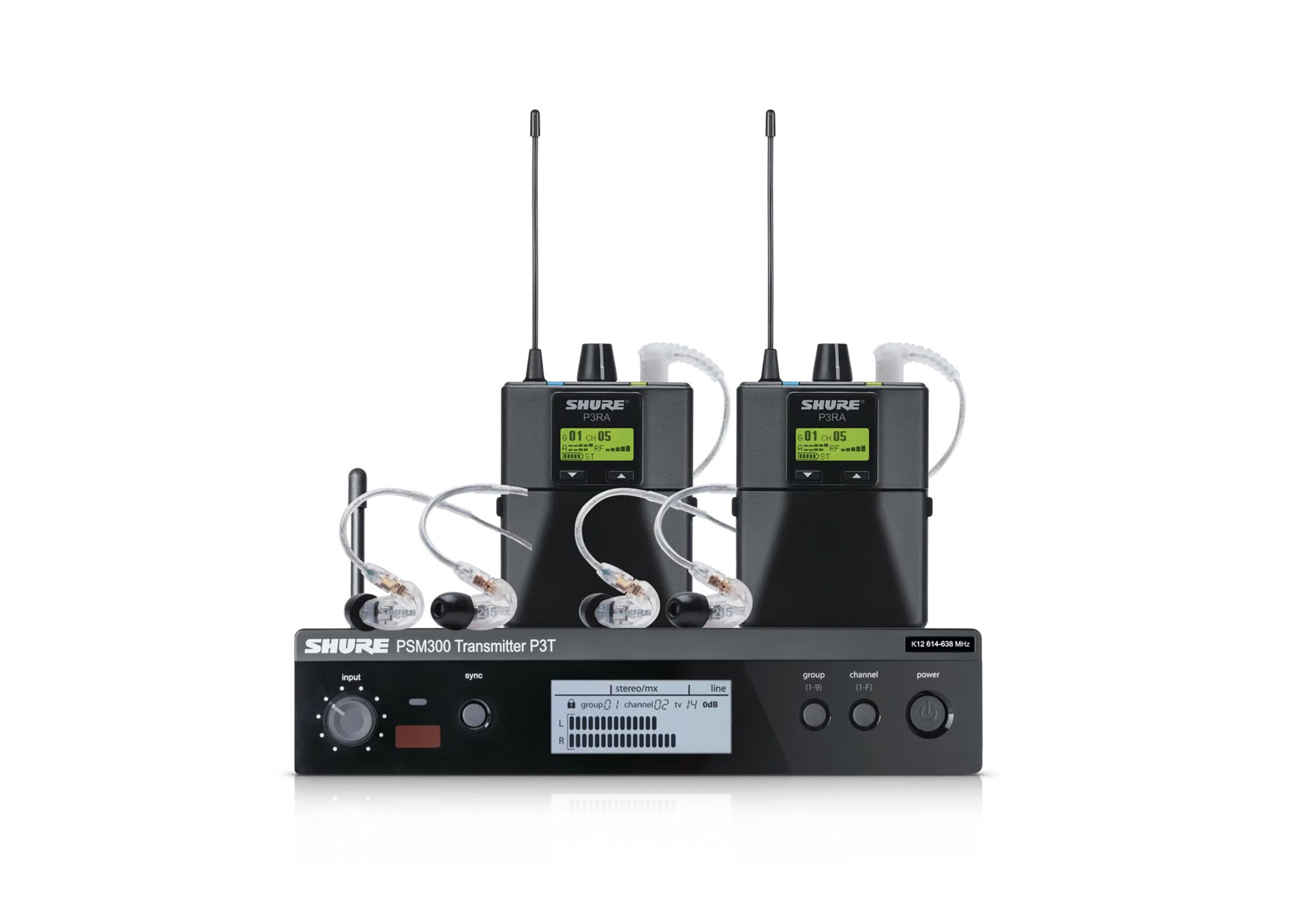

The system includes a Shure P3T wireless transmitter, two P3RA wireless bodypack receivers, and two Shure SE215 sound-isolating earphones. The P3T transmitter offers easy front-panel controls, balanced inputs and loop outputs, one-touch sync, and adjustable output power for a strong and clear wireless signal. The P3RA bodypack receivers provide detailed stereo monitoring, Mix Mode for custom mixing, a 2-band EQ, and power-saving features for extended battery life. They are built with a rugged aluminum body for durability and reliability in demanding environments.

The Shure SE215 earphones deliver clear, natural audio with deep bass and up to 37 dB noise isolation for an immersive listening experience. Their detachable MMCX cables, formable over-ear wires, and custom-fit ear tips provide a comfortable, secure fit for long performances.

Additional accessories include a 1/4 wave antenna, BNC bulkhead adapter and cable, power supply, four AA batteries, six pairs of flex sleeves (S, M, L), two drawstring pouches, and two zipper bags for the receivers. With its reliable wireless performance, robust construction, and versatile connectivity, the Shure PSM 300 Twin-Pack Pro is an ideal solution for performers who need consistent, high-fidelity in-ear monitoring.

Product Specifications:

RF Output Power: 10, 20, 30 mW (Varies by region)

RF Output Impedance: 50 Ohms (Typical)

Transmission Range: 300' (90 m)

Audio Input:

Connector Type: 1/4" TRS (6.35 mm)

Polarity: Tip positive with respect to ring

Configuration: Electronically balanced

Impedance: 40 kOhms (Actual)

Nominal Input Level: Switchable, +4 dBu, -10 dBV

Maximum Input Level: +4 dBu: +22 dBu, -10 dBV: +12.2 dBu

Pin Assignments: Tip = Hot, Ring = Cold, Sleeve = Ground

Phantom Power Protection: Up to 60 VDC

Audio Output:

Connector Types: 1/4" TRS (6.35 mm)

Configuration: Electronically balanced

Impedance: Connected directly to inputs

General:

Antenna: 1/4 wave, detachable

Power Requirement: 12 to 15 VDC, 260 mA maximum

Receiver Unit:

Frequency Range: H20: 518-542 MHz

RF Sensitivity: Active: 2.2 μV (at 20 dB SINAD)

Image Rejection: > 90 dB

Adjacent Channel Rejection: > 60 dB

Intermodulation Attenuation: > 50 dB

Blocking: > 60 dB

Audio Output Power: 80 mW per output (1 kHz at < 1% distortion, peak power, at 32 Ohms)

Minimum Load Impedance: 16 Ohms

Headphone Output: 1.8" (3.5 mm), stereo

Continuous Battery Life:

4 to 5.5 hours with AA batteries

5.5 to 7 hours with SB900 battery (Available separately)

Earphones:

Wearing Style: Dual Wired Earbud with Behind-Ear Cabling

Earpiece Design: In-Ear (Intra-Aural)

Open/Closed-Back: Closed-Back

Sound Field: Stereo

Number of Drivers: 1 per Earpiece

Driver Type: Dynamic

Impedance: 17 Ohms

Active Noise Cancellation: No

Frequency Response: 22 Hz to 17.5 kHz

Sensitivity: 107 dB SPL/mW at 1 kHz

Built-In Controls: No

Built-In Mic: No

Connectivity:

Audio Connector: 1x 1/8" / 3.5 mm TRS Right-Angled

Cable Design: Detachable / Straight

Audio Connector to Earpiece: MMCX

Cable Length: 3.81' / 1.16 m

Physical:

Color: Clear

Environmental Resistance: No

Shipping Information:

Shipping Weight: 6.48 lbs.

Shipping Dimensions (LxWxH): 18.3 x 14.9 x 3.8"
