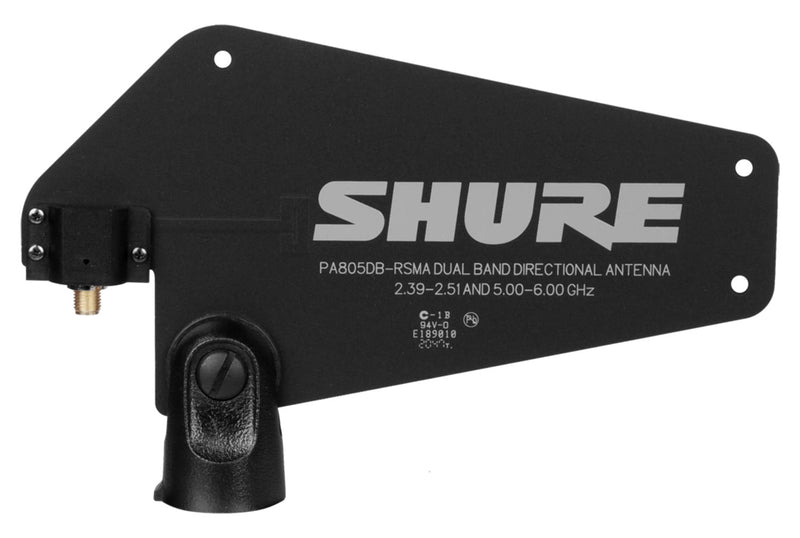

Shure PA805DB-RSMA Passive Dual Band Directional Antenna

Save 31%
UPC: 042406694933 MPN:PA805DB-RSMA
Sale price$284.00 Regular price$411.23
In stock (7 units), ready to be shipped

In stock, Ready to ship

Shop with Confidence

  • Additional 1 Year Warranty Free when you shop with us
  • 2 Day Shipping is Free or heavily discounted on most items
  • Price match guarantee

Signature required for all deliveries/shipments for your security.

Call us for package deal pricing, we're happy to help.

Our online prices are always honored instore guaranteed.


The Shure new PA805DB-RSMA Dual Band Passive Directional Antenna improves in up to 8dB the reception of half-rack GLXD4R+ receivers and of the GLXD+FMDB Dual Band Frequency Manager. Improved filtering of interference from 2.4 and 5.8GHz sources deliver 24dB front-to-back rejection ratio of off-axis signals.

Product Specification:

Frequency Range: <2:1 Voltage Standing Wave Ration (VSWR) 2050 to 5850 MHz

Antenna Gain: At 2.45 GHz, Typical 8 dBi

Beam Width: 3 dB Horizontal Beam Width, 100°

Efficiency: At 2.45 GHz, Typical 89%

Impedance: 50 Ohms

Polarization: Linear

Front-to-Back Ratio: At 2.45 GHz, Typical 24 dB

Connector Type: Reverse SMA

Package Weight: 1.1 lb

Box Dimensions (LxWxH): 10.6 x 9.9 x 2.2"
