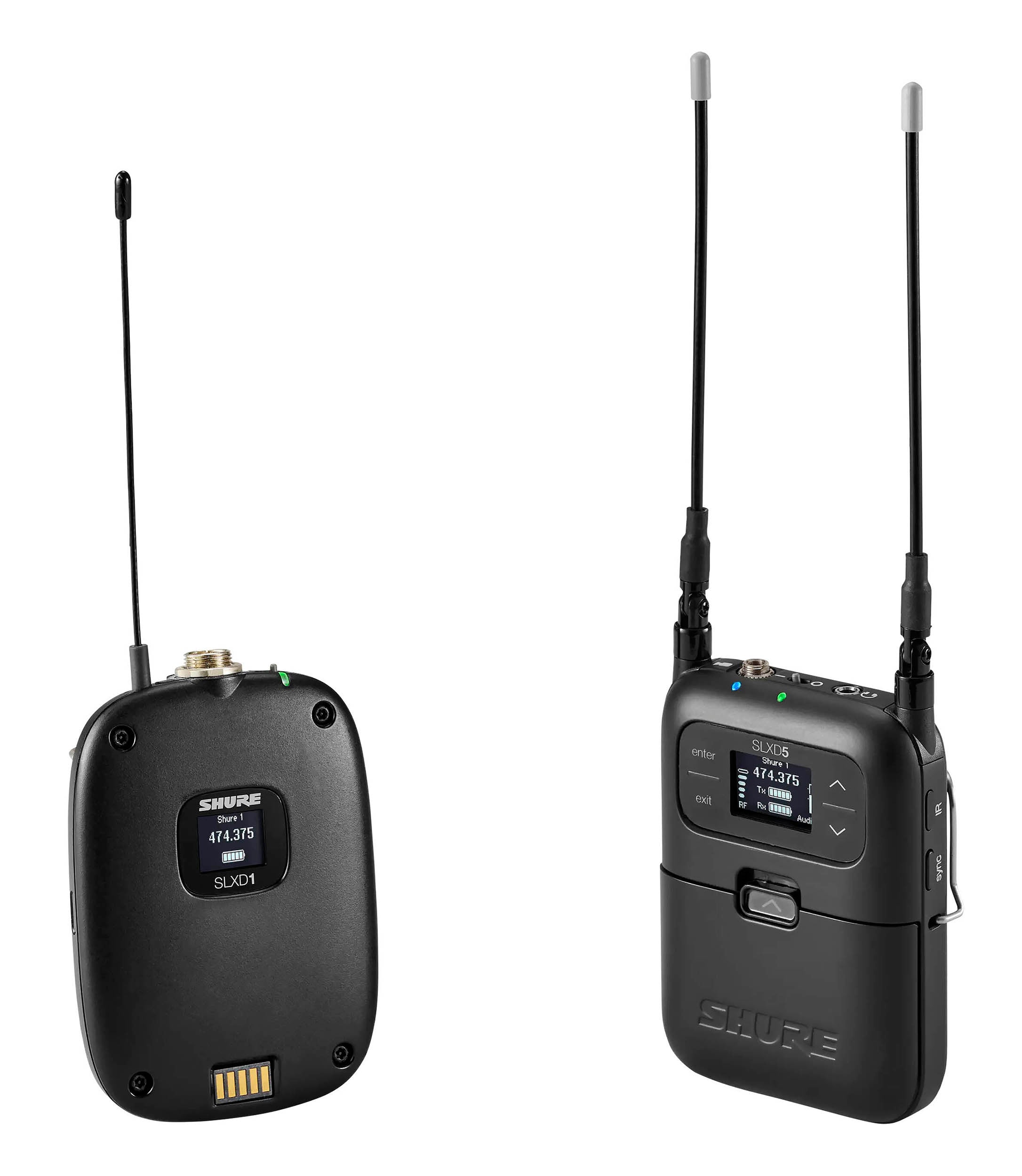

Shure SLXD15/85-G58 Portable Digital Wireless Bodypack System

The Shure SLXD15/85 offers videographers, journalists, documentary makers, and content producers a reliable wireless lavalier microphone system that delivers crystal-clear digital sound quality while also being quick and easy to set up, even if you're using multiple mics on set. Built around a rugged, single-channel receiver that can be camera-mounted or used in an audio bag, the system offers a comprehensive feature set that ensures professional-sounding, broadcast-ready results for demanding filmmakers and creators. This configuration includes a bodypack transmitter and a WL185 cardioid lavalier microphone.

Product Specifications:

Wireless Technology: Digital UHF

Number of RF Channel Frequencies: 1760

Included Transmitters: 1x Bodypack with Microphone

Diversity: True Digital Diversity

RF Frequency Band: G58: 470 to 514 MHz

RF Bandwidth: 44 MHz

Frequency Step Size: 25 kHz

RF Channel Scanning: Auto-Scan

Max Operating Range: 328' / 100 m

Max Transmitters per Band: 32

Built-In Recorder: No

Timecode Support: Yes

Mobile App Compatible: No

Sample Rate/Resolution: 24-Bit

Latency: 3.2 ms

Dynamic Range: 118 dBA (Typical)

Encryption: No

THD: <0.02 %

Receiver Type: Camera-Mount

Mounting Options: Shoe-Mount (with Included Hardware)

Antenna: 2x 1/4 Wave Flexible Whip, Fixed (Front-Mount)

Number of Audio Channels: 1

Audio I/O:

1x 1/8"" / 3.5 mm TRS Female Balanced Mic/Line Output

1x 1/8"" / 3.5 mm TRS Female Unbalanced Headphone Output

Phantom Power Protection: No

Frequency Response: 20 Hz to 20 kHz +1/-2 dB (Dependent on Mic)

Network I/O: No

USB/Lightning Connectivity: 1x USB-C Female (Bus Power, Charging)

USB Class-Compliant: No, USB Charging/Power Only

Spurious: Rejection: >75 dB

Power Requirements: Battery, Bus Power (USB)

Battery Type:

2x AA (Included)

1x Shure SB903 (Not Included)

Approx. Battery Life: 5.5 Hours

Housing: Aluminum

Operating Temperature: 0 to 122°F / -17 to 50°C

Storage Temperature: -20 to 165°F / -28 to 73°C

Transmitter Type: Bodypack with Microphone

RF Output Power: 1 / 10 mW

Audio I/O: 1x TA4/Mini-XLR 4-Pin Male Unbalanced Input (Locking)

Pad: No

Muting: Off/On Switch

Audio Input Level: 8.2 dBV (Max)

Auto-Level Control: No

Gain Range: 0 +21 dB

Signal Processing: No

Frequency Response: 20 Hz to 20 kHz

Sync Method: IR

Antenna: 1/4 Wave External, Fixed

Power Requirements: Battery

Battery Type:

2x AA (Included)

1x Shure SB903 (Not Included)

USB/Lightning I/O: No

Display & Indicators: LCD (Battery Status, Channel, Group)

Housing: ABS, Plastic

Operating Temperature: 0 to 122°F / -17 to 50°C

Storage Temperature: -20 to 165°F / -28 to 73°C

Microphone Type: Lavalier

Color: Black

Sound Field: Mono

Capsule: Electret Condenser

Polar Pattern: Cardioid

Frequency Range: 50 Hz to 17 kHz

Equivalent Noise Level: 28 dB A-Weighted

Maximum SPL: 130.5 dB SPL

Impedance: 1800 Ohms

Sensitivity: -45.5 dBV/Pa

CMRR: No

Dynamic Range: 102.5 dB

Output Connector: 1x TA4F/Mini-XLR 4-Pin Female Unbalanced

Cable Length: 4' / 1.22 m

Operating Voltage: 1.5 to 10 V

Shipping Weight: 2.34 lbs

Shipping Dimensions (LxWxH): 16.3 x 8.1 x 3.2"
