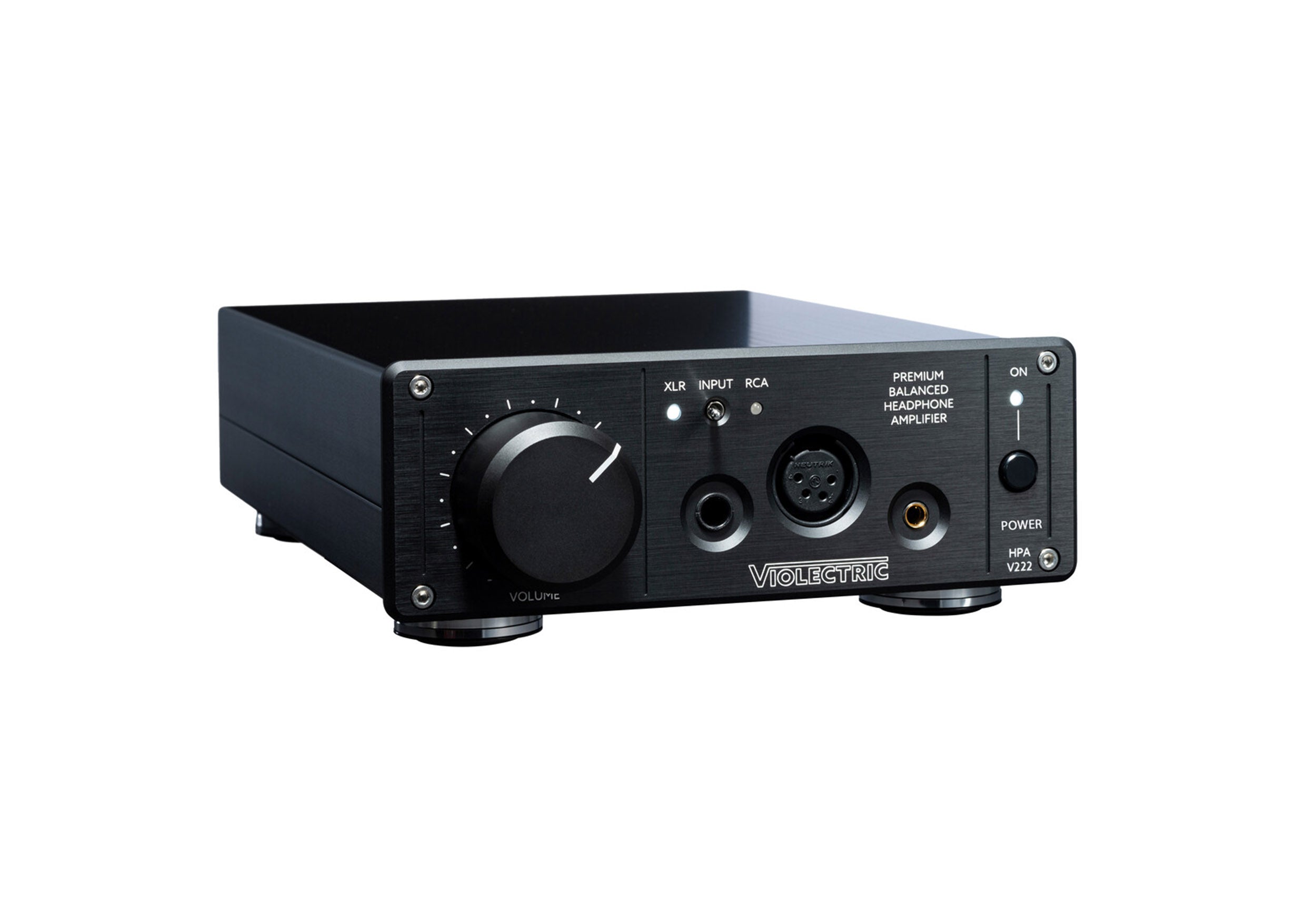

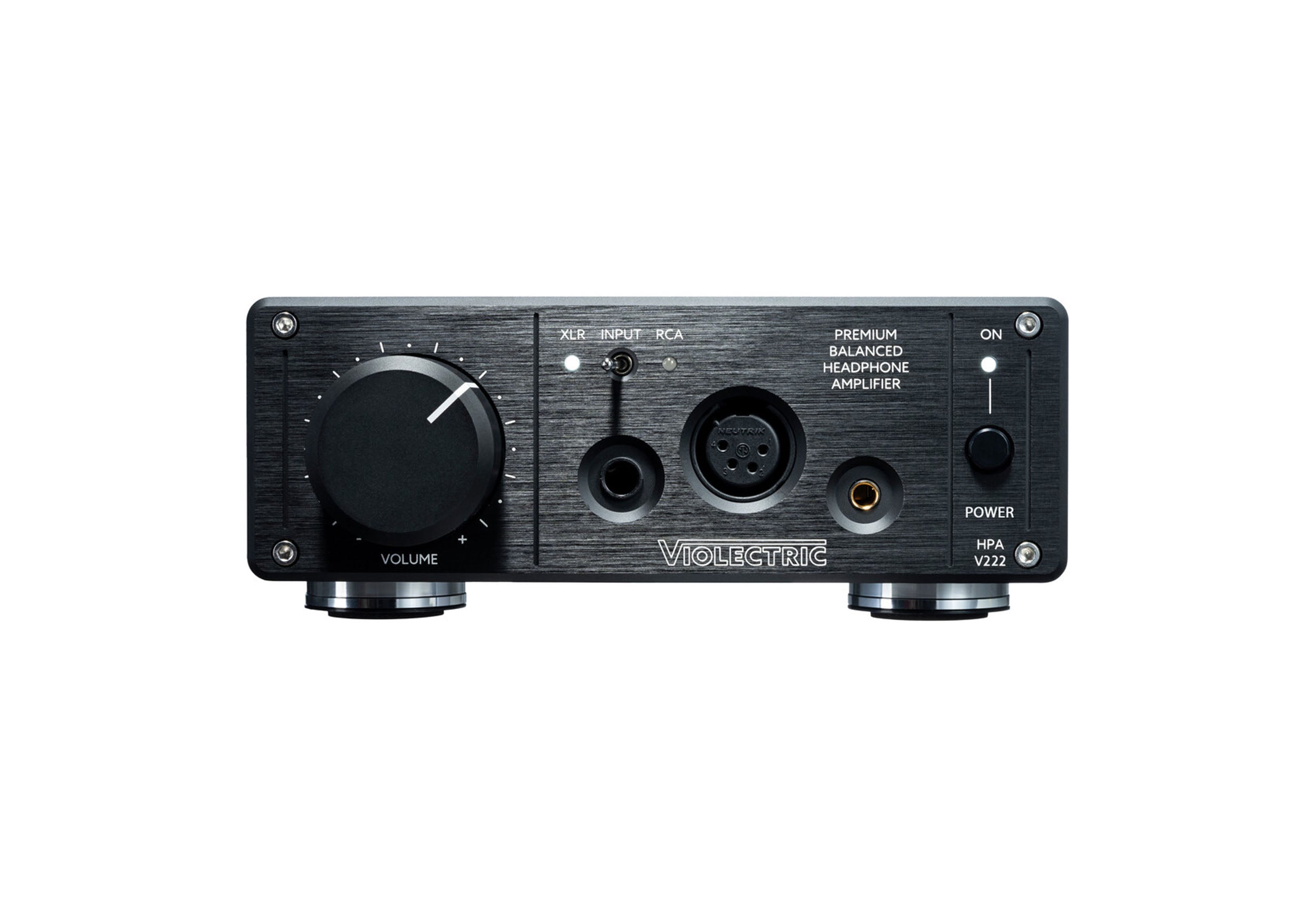

Violectric HPA-V222 Headphone Amplifier

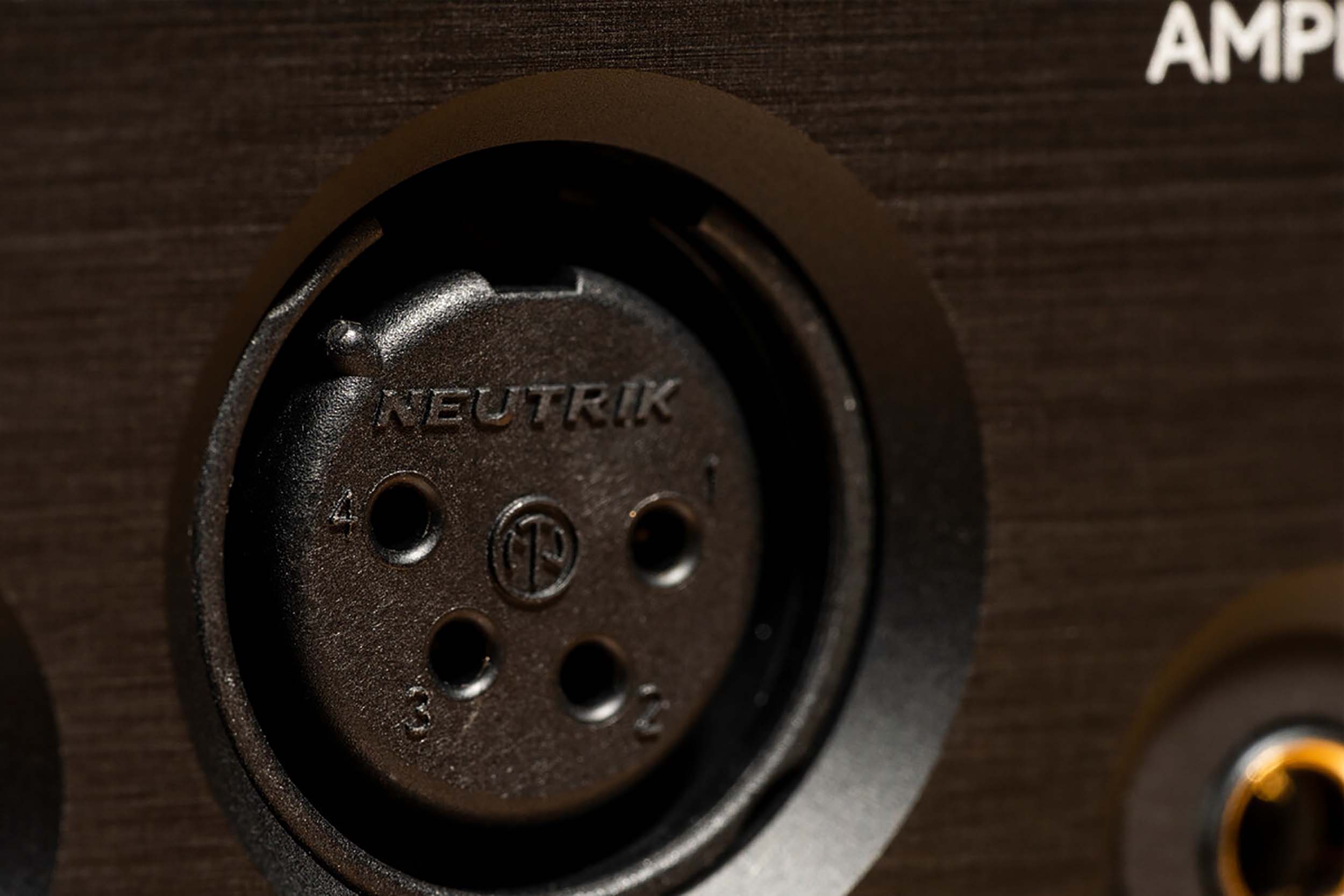

The Violectric HPA-V222 Headphone Amplifier has a fully balanced output stage with four output stage circuits. This allows it to drive balanced wired headphones with perfect electronic signal separation. It has both a balanced 4-pin XLR socket and a 4.4 mm Pentaconn on the front. An additional 6.3 mm jack output drives classic headphones asymmetrically.

Convenient Switching Between Sources

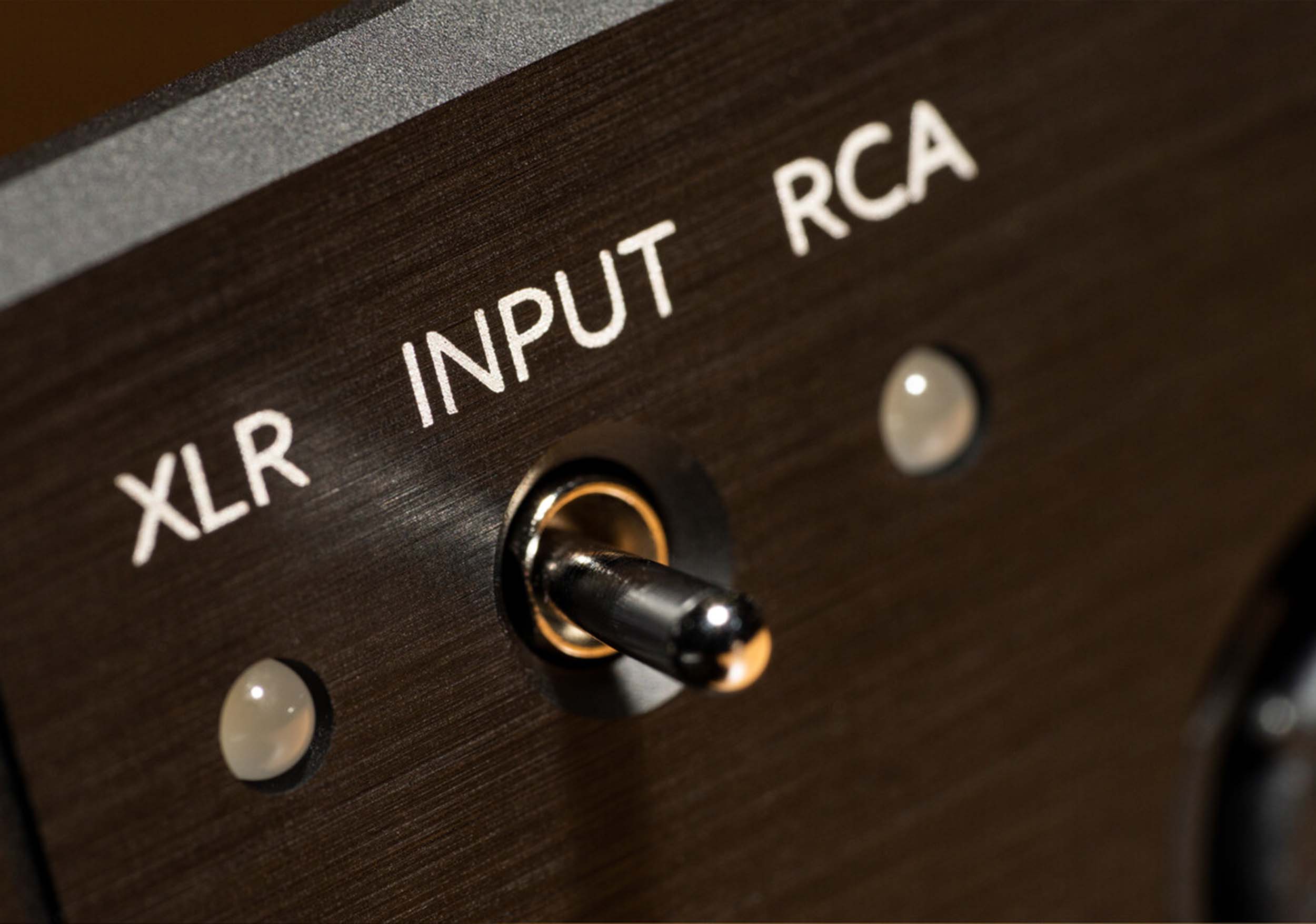

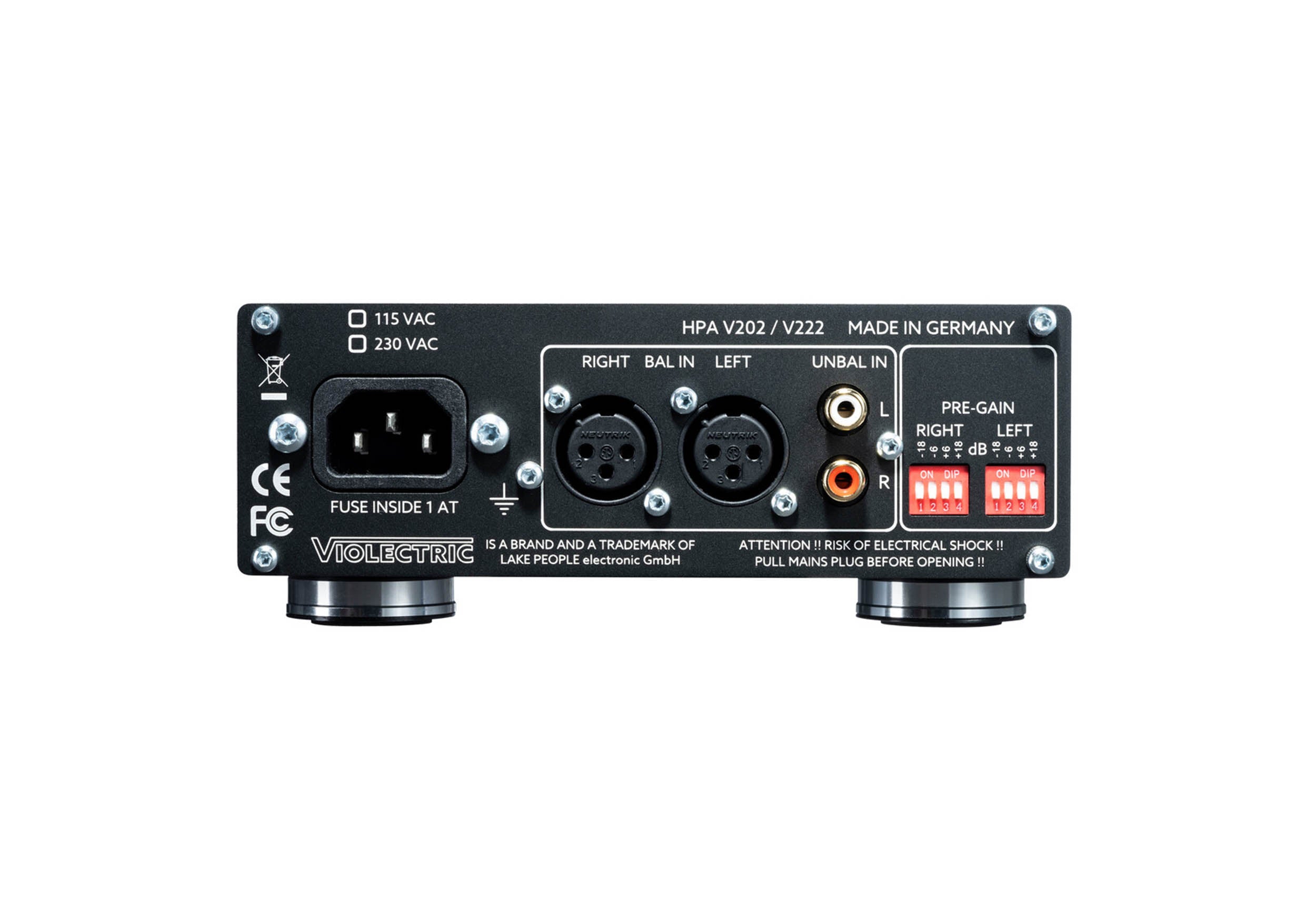

The Violectric HPA V222 is equipped with 2 stereo inputs - balanced via XLR and unbalanced via RCA - on the rear of the device. This allows you to connect 2 independent playback devices such as streamers, CD players, etc. directly to the headphone amplifier and use it as a preamplifier.

Balanced Headphone Output

 When listening to music via loudspeakers, you are part of the auditorium. When listening via “normal” headphones, you take the place of the conductor. When listening with “balanced” headphones, you are part of the orchestra.

If headphones are operated symmetrically, the channel separation is increased even further. Balanced headphones usually have a 4-pin XLR connection or a Pentaconn plug.

True balanced operation requires a great deal of effort in the form of four built-in power amplifiers.

PRE-GAIN

7-way adjustable amplification for optimum adaptation to all sources and headphones (Backside, -18, -12, -6, 0, +6, +12, +18 dB).

The headphone amplifier is positioned between the music source and the headphones. The source can have different levels of power and the headphones can have different levels of sensitivity.

The Violectric PRE-GAIN serves to compensate for these differences and to optimize the headphone amplifier for every conceivable combination. This results in minimal noise, the lowest distortion factor and the best channel balance.

Superior Sound Reproduction

The Violectric DHA V222 has been carefully engineered to maintain fidelity in its purest form. The advanced audio technology ensures high-resolution and distortion-free sound reproduction across the entire frequency spectrum.

Whether you want to explore subtle nuances in your music or create precise mixes, this headphone amplifier allows you to hear every detail clearly.

Violectric's Unique Technology

Lowest Noise - through very low internal gain. This makes the amplifier's own noise inaudible.

High output voltage - due to an internal 50-volt operating voltage. Therefore, ideally suited for high-impedance headphones.

High output power - thanks to powerful amplifiers that can deliver far more power than even the most demanding headphones require. Therefore, ideally suited for headphones with low impedances and magnetostats.

High damping factor - due to the lowest output impedance. Therefore, ideally suited to drive even the most difficult headphones without interference. The advantage for an uncompromising frequency response.

Violectric - The Brand for Music Lovers

Violectric brings decades of expertise and the uncompromising quality standards of professional Lake People products to the world of hi-fi - with passion! Music lovers all over the world rave about the seamless integration into their systems: from a convenient and versatile input section to precisely adjustable gain control and digital interfaces with first-class converter technology at broadcast level - no wish remains unfulfilled here.

The entire Violectric portfolio impresses with intuitive operability that is otherwise only known from professional audio technology. And there are no compromises when it comes to quality: Every single component is carefully selected to guarantee maximum sound fidelity.

However, Violectric not only stands for outstanding technology, but also for timeless elegance. The products are integrated into an elegant, high-quality housing and fit perfectly into any sophisticated hi-fi setup. For audiophile perfectionists who don't want to compromise, the Niimbus series offers the ultimate - both visually and technically at the very highest level.

Product Specifications:

Number of Headphone Channels: Single Channel

Recommended Headphone Impedance: 16 to 600 Ohms

Headphone Output Power:

1500 mW into 16 Ohms

2200 mW into 32 Ohms

2800 mW into 50 Ohms

3500 mW into 100 Ohms

1800 mW into 300 Ohms

900 mW into 600 Ohms

EQ: No

Display: No

Connectivity:

Analog Audio I/O:

2x XLR 3-Pin Balanced Line Input (1 Stereo Pair)

2x RCA Coaxial Unbalanced Line Input (1 Stereo Pair)

1x 4.4 mm Unbalanced Headphone Output

1x 1/4"" Unbalanced Headphone Output

Digital Audio I/O: No

USB I/O: No

Performance:

Frequency Response: 5 Hz to 250 kHz

Gain/Trim Range: -18 dB to +18 dB (in 6 dB Steps, Pre-Gain)

Maximum Input Level: +21 dBu

Dynamic Range: 131 dB (A-Weighted)

Impedance:

Inputs: 10 Kilohms

Headphone Outputs: 0 to 25 Ohms (Unbalanced)

Balanced Headphone Outputs: 0 to 5 Ohms

THD+N:

< -100 dB / < 0.001%

< -102 dB / < 0.0008%

Noise: < -100 dBu (A-Weighted)

Crosstalk: -100 dB (at 1 kHz)

Damping Factor:

100 at 50 Ohms (Balanced)

200 at 50 Ohms (Unbalanced)

Compatibility:

Mobile App Compatible: No

Mobile Device Compatibility: No

Power:

Power Requirements: AC Input

AC Input Power: 115 to 230 VAC, 50 / 60 Hz

Dimensions: 9.9 x 6.7 x 2.6" / 252 x 170 x 65 mm

Shipping Weight: 6.065 lbs.

Shipping Dimensions (LxWxH): 13.8 x 10 x 6"
