Description

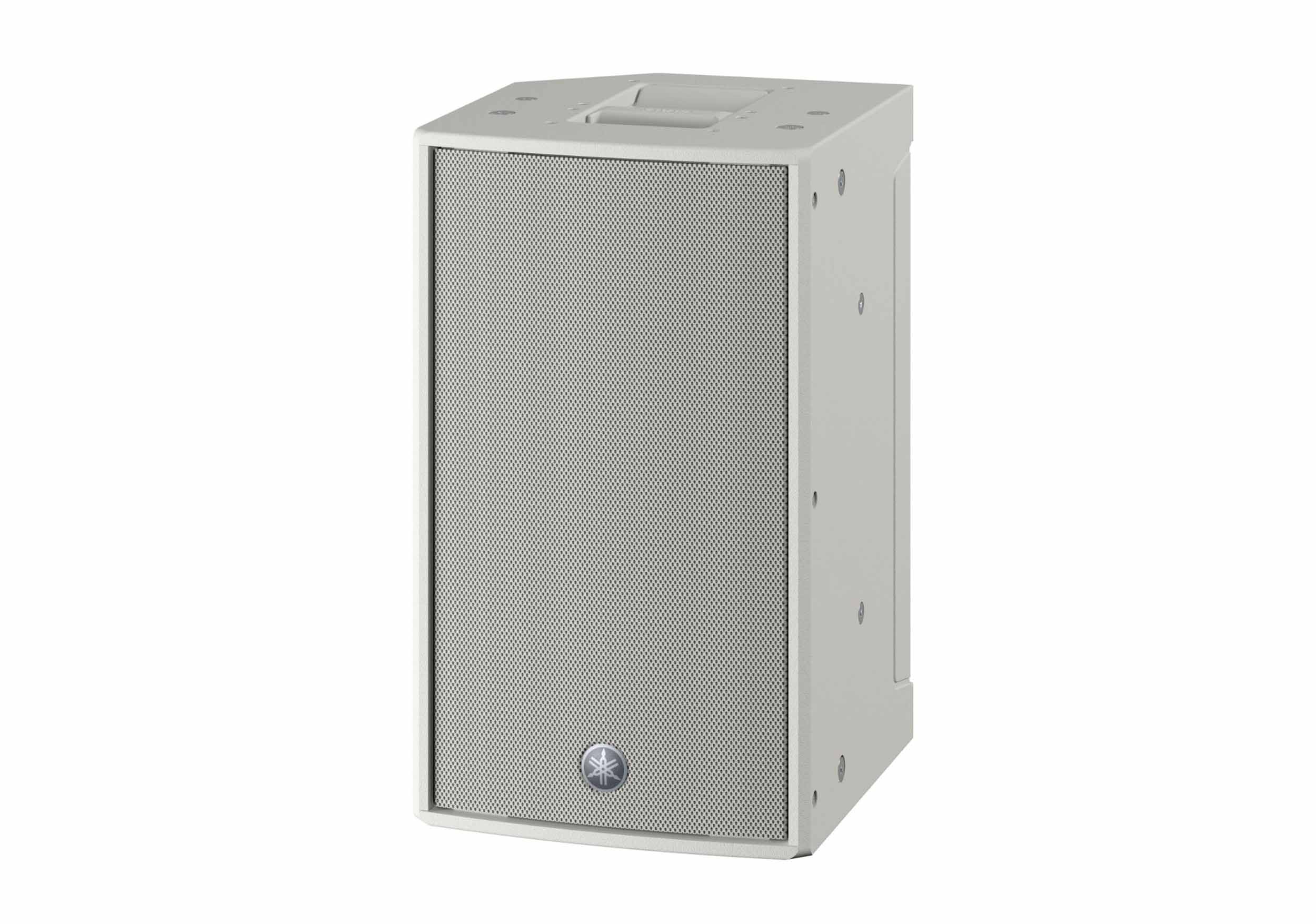

The Yamaha CZR10W (White) is a compact, high-performance 2-way loudspeaker designed to deliver powerful output and exceptional sound clarity in a portable yet rugged enclosure. Ideal for live performances and fixed installations alike, it excels in environments ranging from outdoor festivals and live bands to club DJs, providing impressive low-frequency response and articulate highs from a lightweight, easy-to-deploy cabinet.
Equipped with a 10" low-frequency driver and a 2" high-frequency compression driver, the CZR10W features Yamaha’s proprietary Wide Dispersion CD Waveguide horn for consistent coverage and smooth sound across the listening area. With high power handling of up to 700W (PGM) and bi-amp capability, it offers the headroom and flexibility needed for demanding professional applications, including use as a floor monitor.
Built for the road, the CZR10W (White) features a durable plywood enclosure finished in a premium Polyurea coating for long-lasting protection. Practical design elements such as a dual-angle pole socket, rotatable horn, and optional U-bracket rigging options allow for highly flexible placement, while the rugged white finish ensures a professional look suitable for any stage or installation.
Product Specifications:
Speaker Type: 2-way Speaker, Bass-reflex
Color: White
Frequency Range (-10 dB): Passive 43 Hz–20 kHz; Normal 46 Hz–20 kHz; FOH 43 Hz–20 kHz
Coverage Area: H90° × V60° Rotatable Constant Directivity Horn
Floor Monitor Angle: 50°
LF Component: 10" Cone, 3" Voice Coil, Neodymium Magnet
HF Component: 2" Voice Coil, 1" Throat Compression Driver, Titanium Diaphragm, Neodymium Magnet
Crossover: 2.5 kHz
Power Rating (NOISE): Passive 350 W; Bi-amp LF 350 W, HF 50 W
Power Rating (PGM): Passive 700 W; Bi-amp LF 700 W, HF 100 W
Power Rating (PEAK): Passive 1400 W; Bi-amp LF 1400 W, HF 200 W
Nominal Impedance: Passive 8 Ω; Bi-amp LF 8 Ω, HF 16 Ω
SPL Sensitivity (1 W, 1 m, on axis): Passive 95 dB; Bi-amp LF 95 dB, HF 108 dB
Peak SPL (Calculated): Passive 127 dB; Bi-amp LF 127 dB, HF 131 dB
I/O Connectors: SpeakON NL4MP ×2 (Parallel)
Handle: Aluminium Die-cast, Top ×1, Side ×1
Pole Socket: Ø35 mm ×2 (0° or −7°)
Rigging: M10 ×8, M8 ×2
Options: Bracket UB-DZR10H/V; Cover SPCVR-DZR10
Product Weight: 14.0 kg / 30.9 lbs.
Product Dimensions (L × W × H): 13.6" × 12.4" × 21.1"
