Description

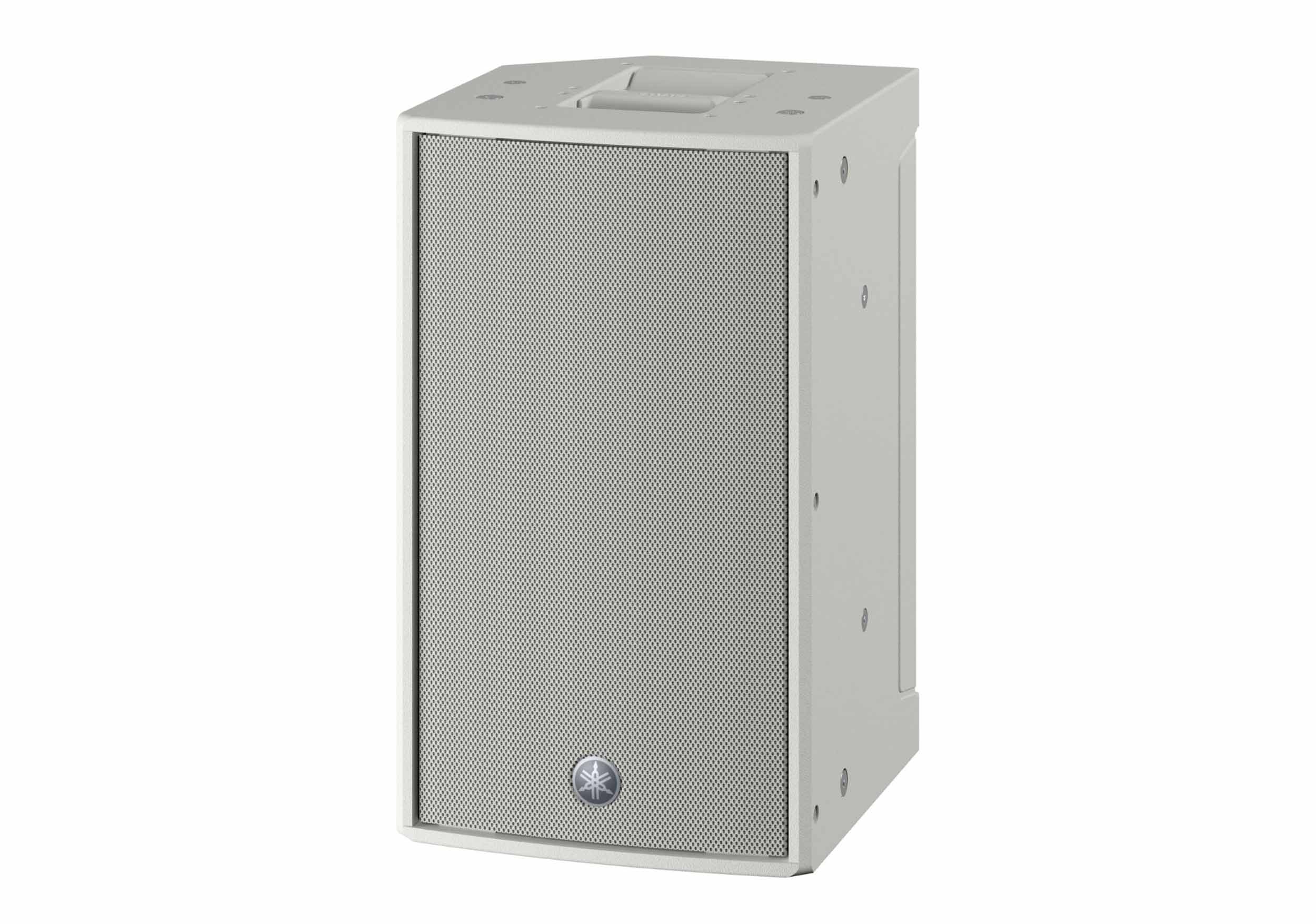

The Yamaha DZR10W (White) is a 2-way bi-amped powered loudspeaker designed to deliver professional-grade audio in a compact, lightweight cabinet. Featuring a 10" low-frequency driver and a 2" high-frequency compression driver, it produces a maximum 137 dB SPL with a full 44 Hz–20 kHz frequency range. This combination ensures clear, dynamic sound for a variety of applications, from live performance to portable sound reinforcement.
Advanced DSP & High-Definition Audio:
Equipped with 96 kHz DSP and Advanced FIR-X tuning, the DZR10W minimizes phase distortion while providing high-resolution, low-latency sound. Yamaha’s proprietary digital processing allows precise control of crossover, EQ, and time alignment, ensuring consistent clarity and imaging at all volume levels. Users can easily adjust PEQ, delay, routing, and load presets via the intuitive LCD display for ultimate system flexibility.
Intelligent Dynamic Control & Protection:
The DZR10W features D-Contour multi-band dynamic processing, maintaining natural and musical sound even at high output levels. Combined with highly reliable protection circuits, the speaker safeguards both the amplifier and transducers against overload or damage. A dedicated floor monitoring setting allows the DZR10W to function efficiently as a stage monitor without compromising sound quality.
Durable, Flexible, and Road-Ready:
Built in a rugged plywood cabinet with premium Polyurea coating, the DZR10W is designed for reliability on the road. A rotatable horn and multiple rigging options, including UB-DZR U-brackets, provide flexible mounting and positioning. Optional accessories like the SPCVR-DZR10W cover further protect the speaker during transport, making it a versatile solution for professional audio applications.
Product Specifications:
Speaker Type: 2-way, Bi-amped Powered Speaker, Bass-reflex
Frequency Range (-10dB): 44Hz - 20kHz
Coverage Area: H90° x V60° (Rotatable)
Components:
LF: 10" Cone, 3" Voice Coil, Neodymium magnet
HF: 2" Voice Coil, 1" Throat Compression Driver, Titanium diaphragm, Neodymium magnet
Crossover: 1.8kHz (FIR-X)
Sampling Frequency Rate: 96kHz and FIR Filter
A/D D/A Converters: 96kHz AD/DA
Maximum Output Level (1m; on axis): 137dB SPL *1
Power Rating:
Dynamic: 2000W; Burst (20ms): 1100W
Continuous: 950W

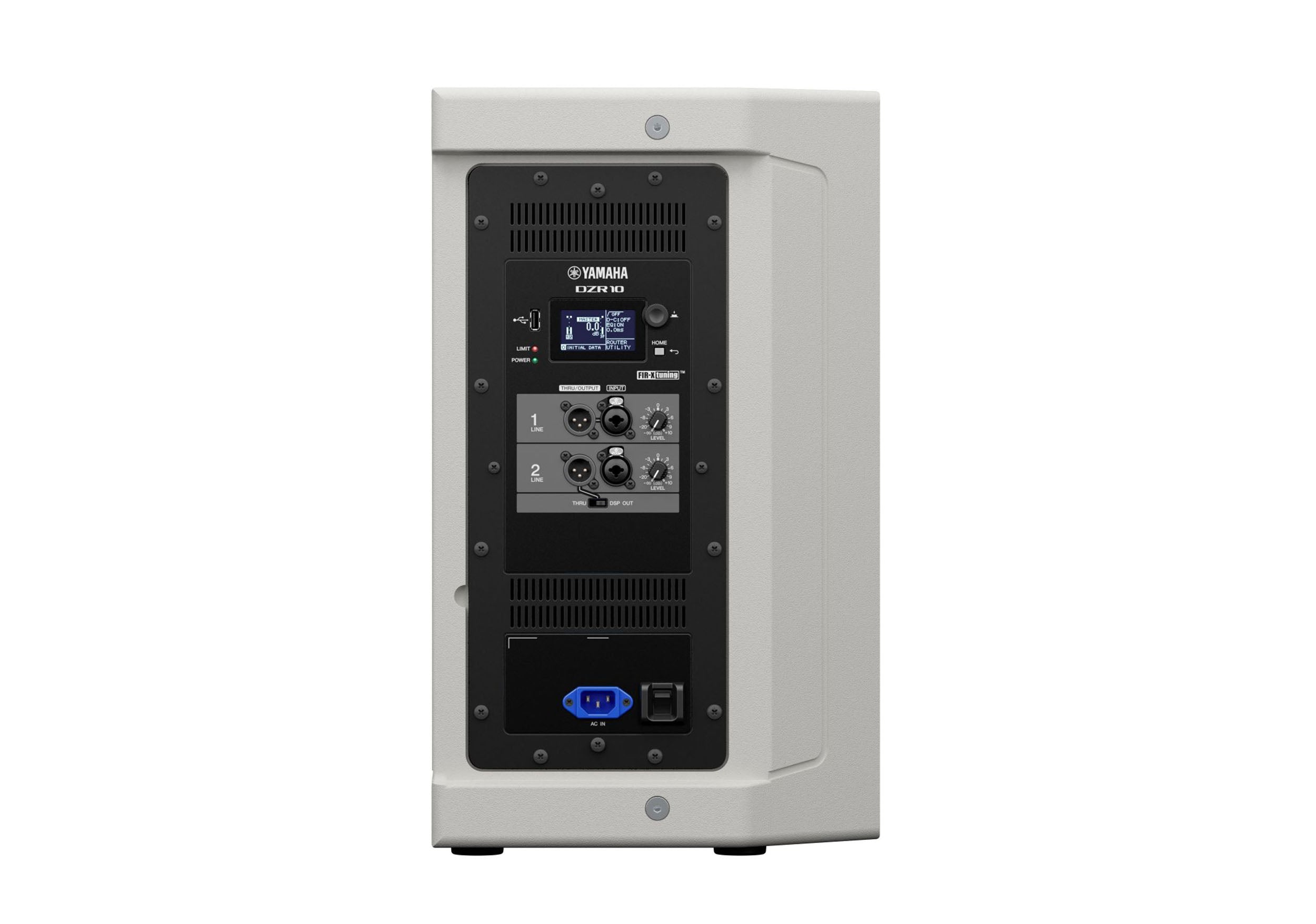

I/O Connectors:
Analog IN: Combo x2
Analog OUT: XLR3-32 x2
Others: USB2.0 Host 5V 500mA for USB memory DATA storage/load
AC: IEC AC inlet x1 (V-Lock)
Amplifier Class: Class-D
Cooling: Fan cooling, Variable speeds
Power Consumption: 45W (Idle), 150W (1/8)
Handle: Aluminium die-cast, Top x1, Side x1
Rigging: M10 x8, M8 x2
Floor Monitor Angle: 50°
Pole Socket: Φ35 mm x2 (0° or -7°)
Product Weight: 39.5lbs / 17.9kg
Product Dimensions (L × W × H): 13.6" × 12.4" × 21.1"
