Description

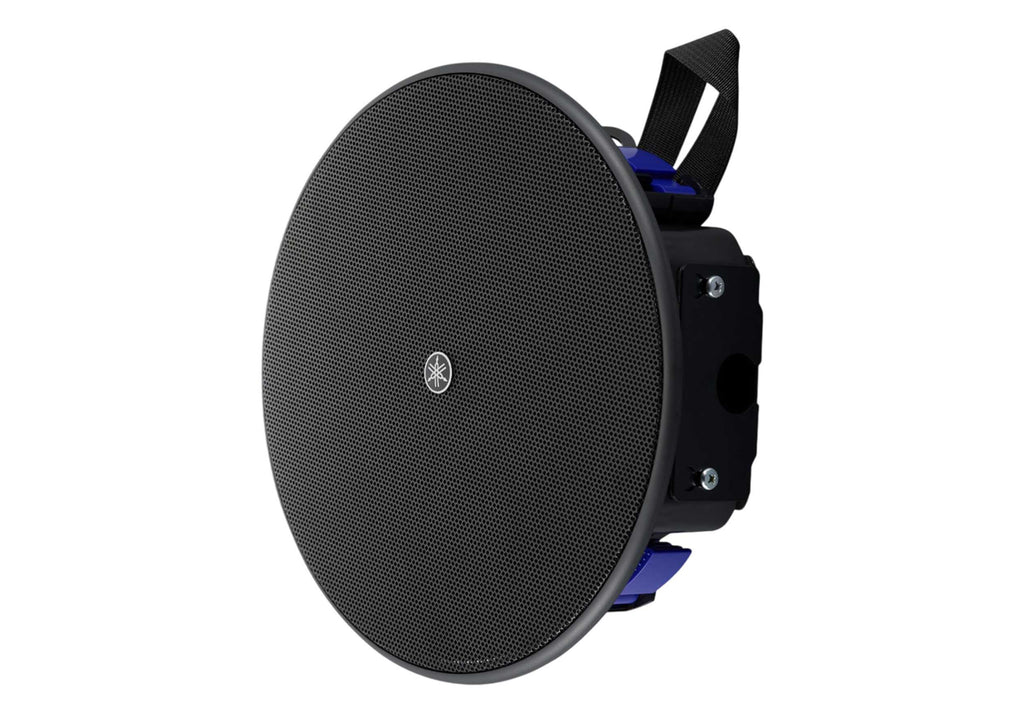

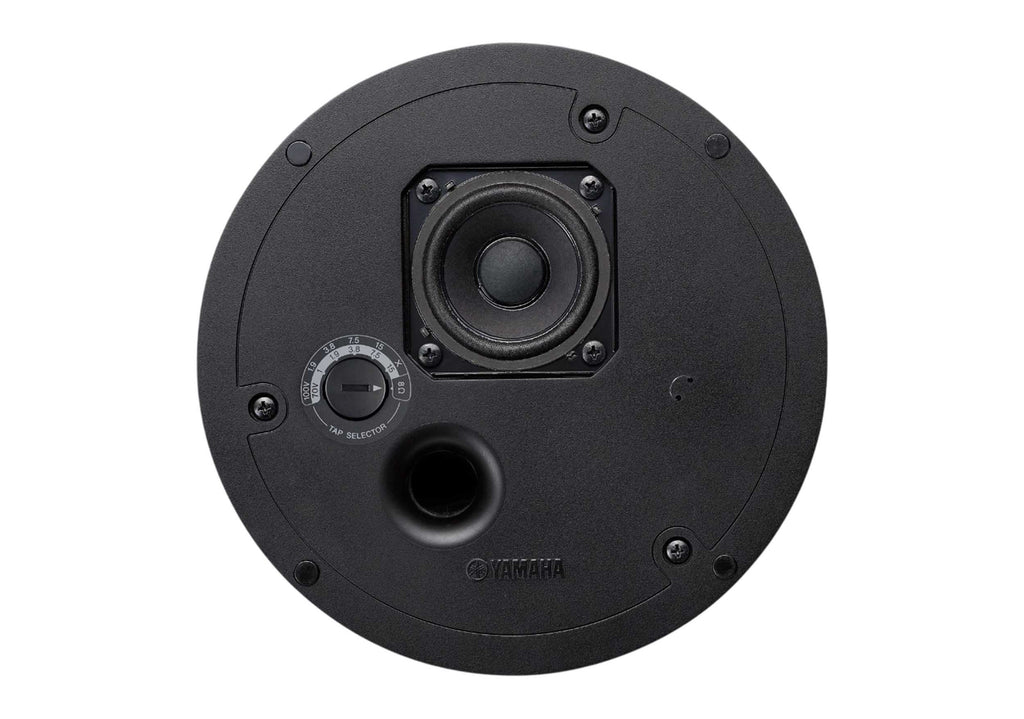

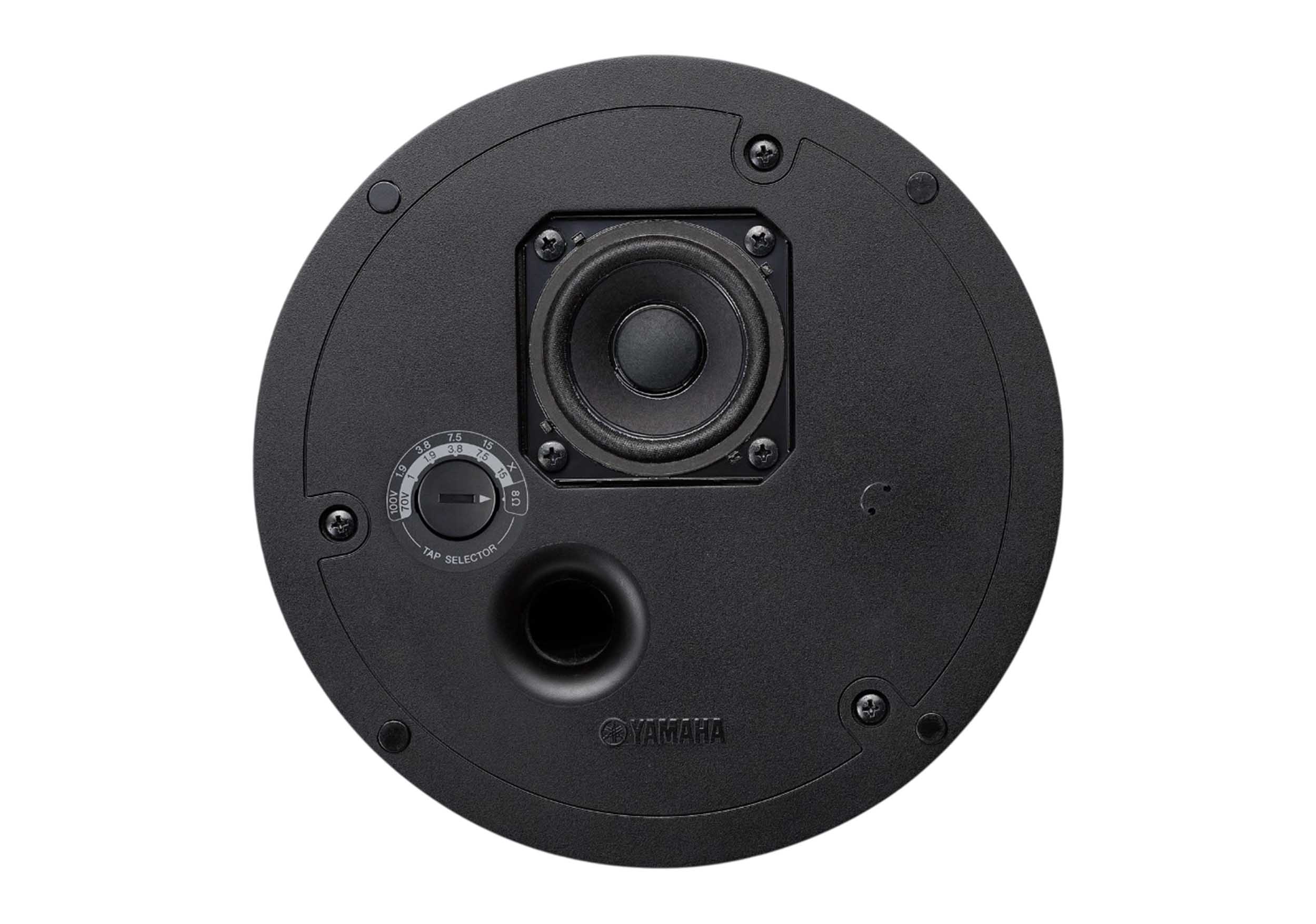

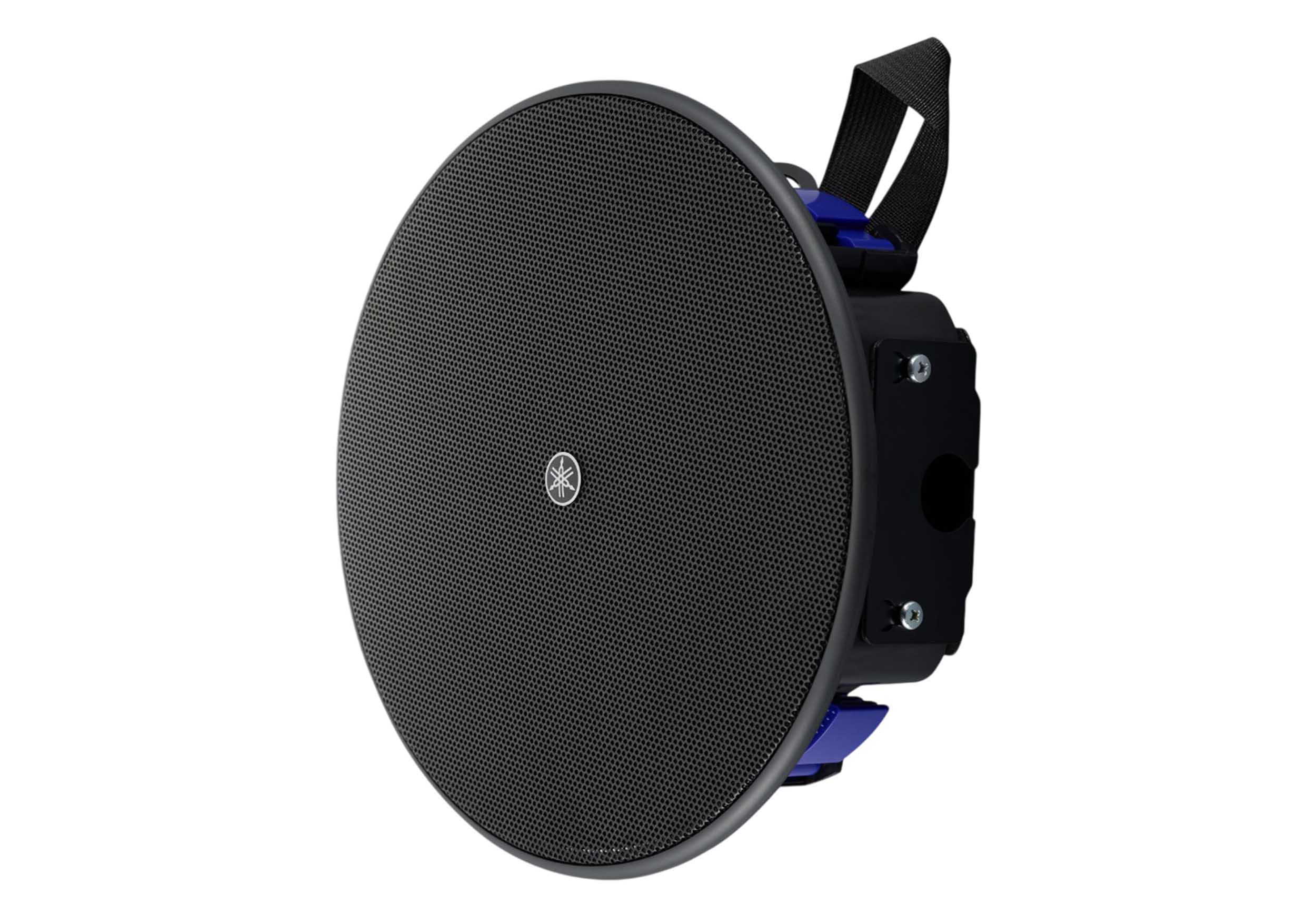

The Yamaha VXC2FB is a 2.5" full-range, low-profile ceiling speaker engineered specifically for high-quality background music in commercial environments. Designed with an ultra-slim back can and a newly developed speaker unit, it delivers refined, natural sound reproduction while fitting easily into ceilings where depth is limited. Optimized for balanced performance even at low volume levels, the VXC2FB enhances the atmosphere of restaurants, cafés, retail spaces, hotels, museums, and similar venues where consistent, unobtrusive audio is essential.

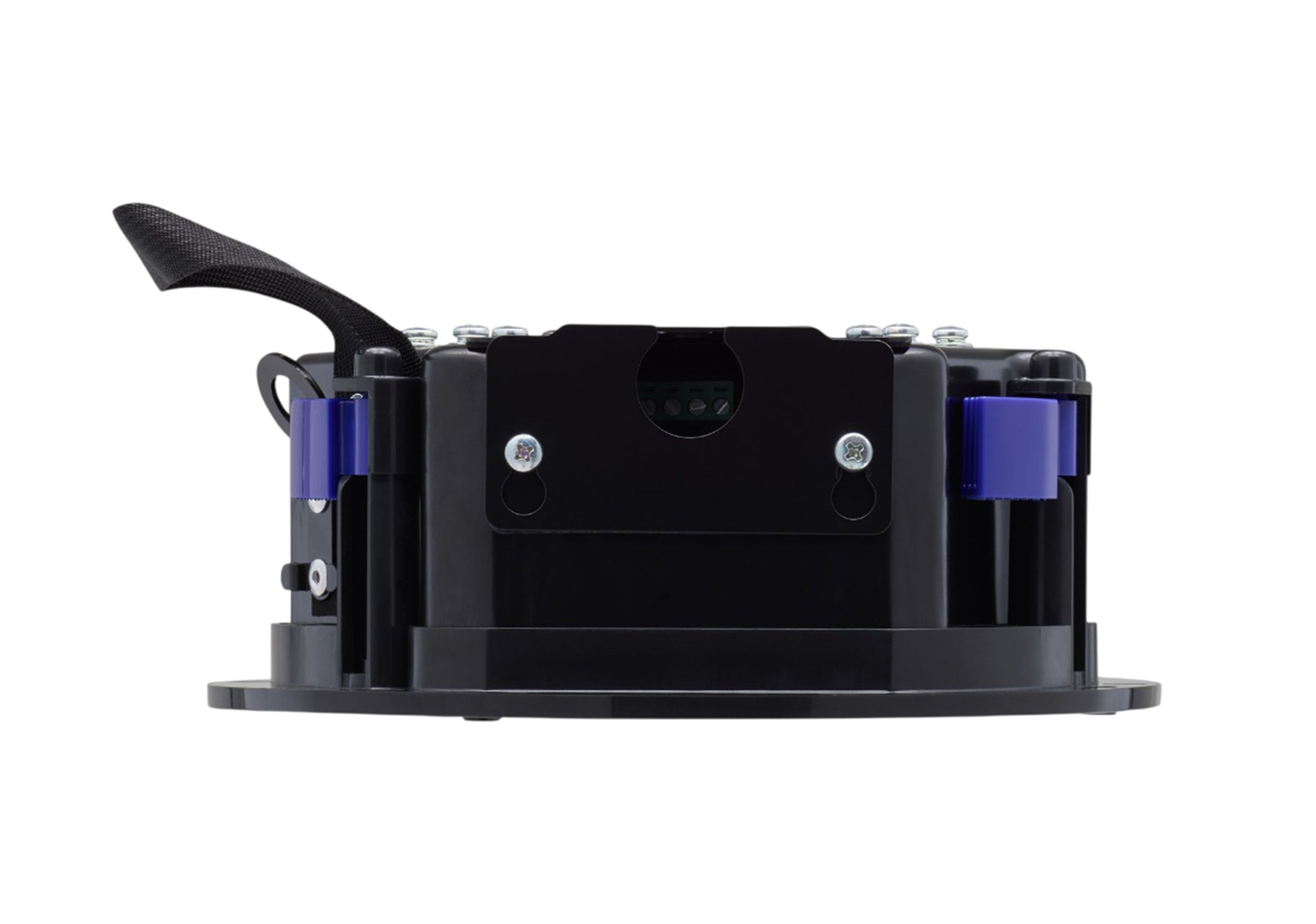

Built for maximum installation flexibility, the VXC2FB supports both low-impedance and high-impedance operation, allowing system designers to adapt to a wide range of applications without additional inventory. Its lightweight construction, built-in carrying band, and anti-drop safety features make installation safer and more efficient, especially when working overhead. Double-threaded speaker clamp screws enable faster tightening, while the shallow enclosure allows installation in ceilings with strict space constraints.

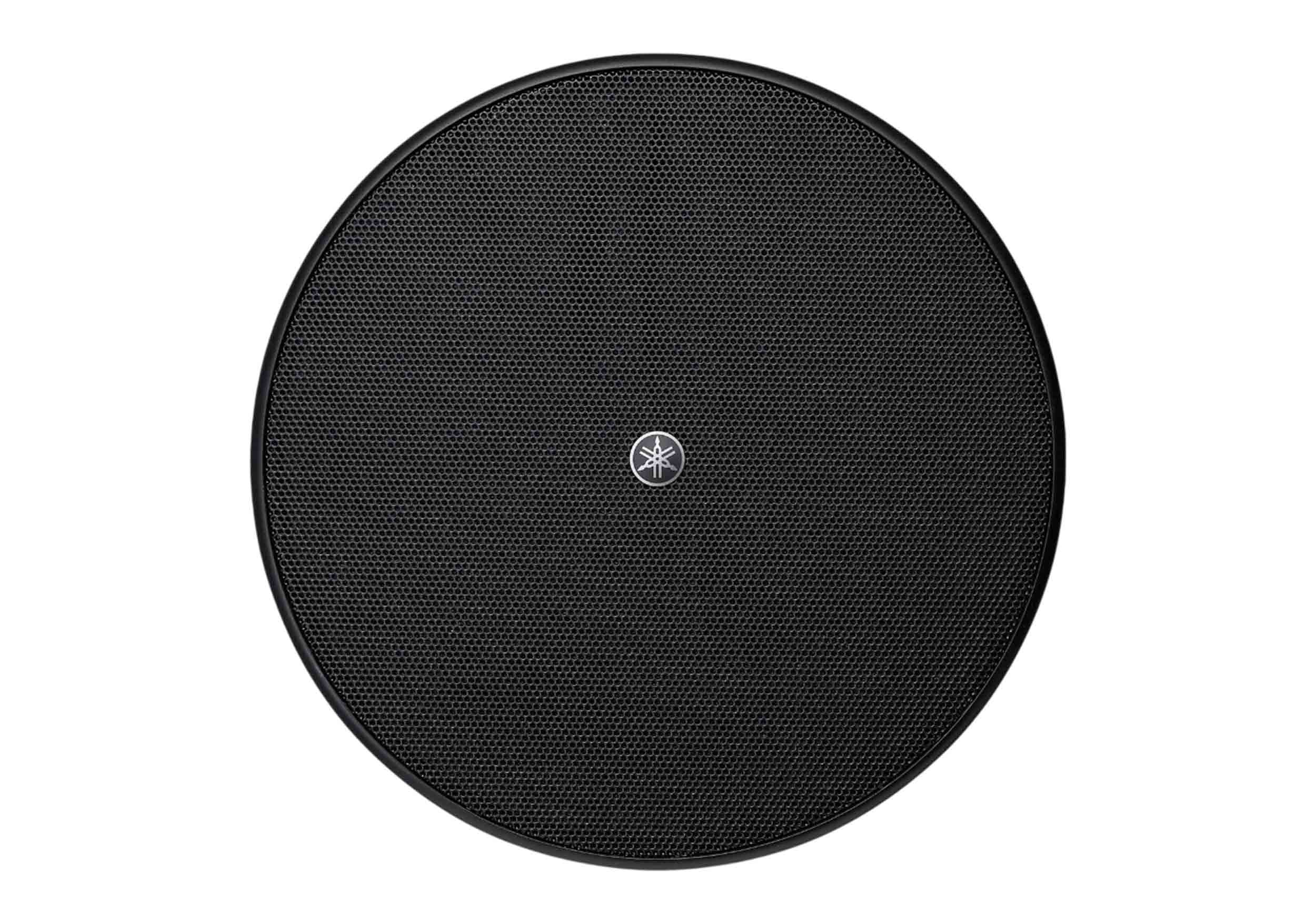

Attention to detail extends to the speaker’s clean, architectural appearance. The black magnetic grille attaches securely while remaining easy to remove, and it can be painted to match interior décor if required. Designed to combine superior music reproduction with smart mechanical design, the Yamaha VXC2FB offers a reliable, professional ceiling-speaker solution that balances performance, safety, and ease of installation in modern commercial spaces.
Product Specifications:
Speaker Type: Full range, bass reflex
Frequency Range (-10 dB): 67 Hz – 20 kHz (Half-space: 2π)
Nominal Coverage: 160° conical (Half-space: 2π)
Components: 2.5" full-range unit
Power Rating (Noise): 15 W
Power Rating (PGM): 30 W
Power Rating (Peak): 60 W
Nominal Impedance: 8 Ω
Transformer Taps (100 V): 15 W, 7.5 W, 3.8 W, 1.9 W
Transformer Taps (70 V): 15 W, 7.5 W, 3.8 W, 1.9 W, 1 W
Sensitivity (1 W / 1 m, on axis): 86 dB SPL (Half-space: 2π)
Peak SPL (Calculated): 104 dB SPL (1 m)

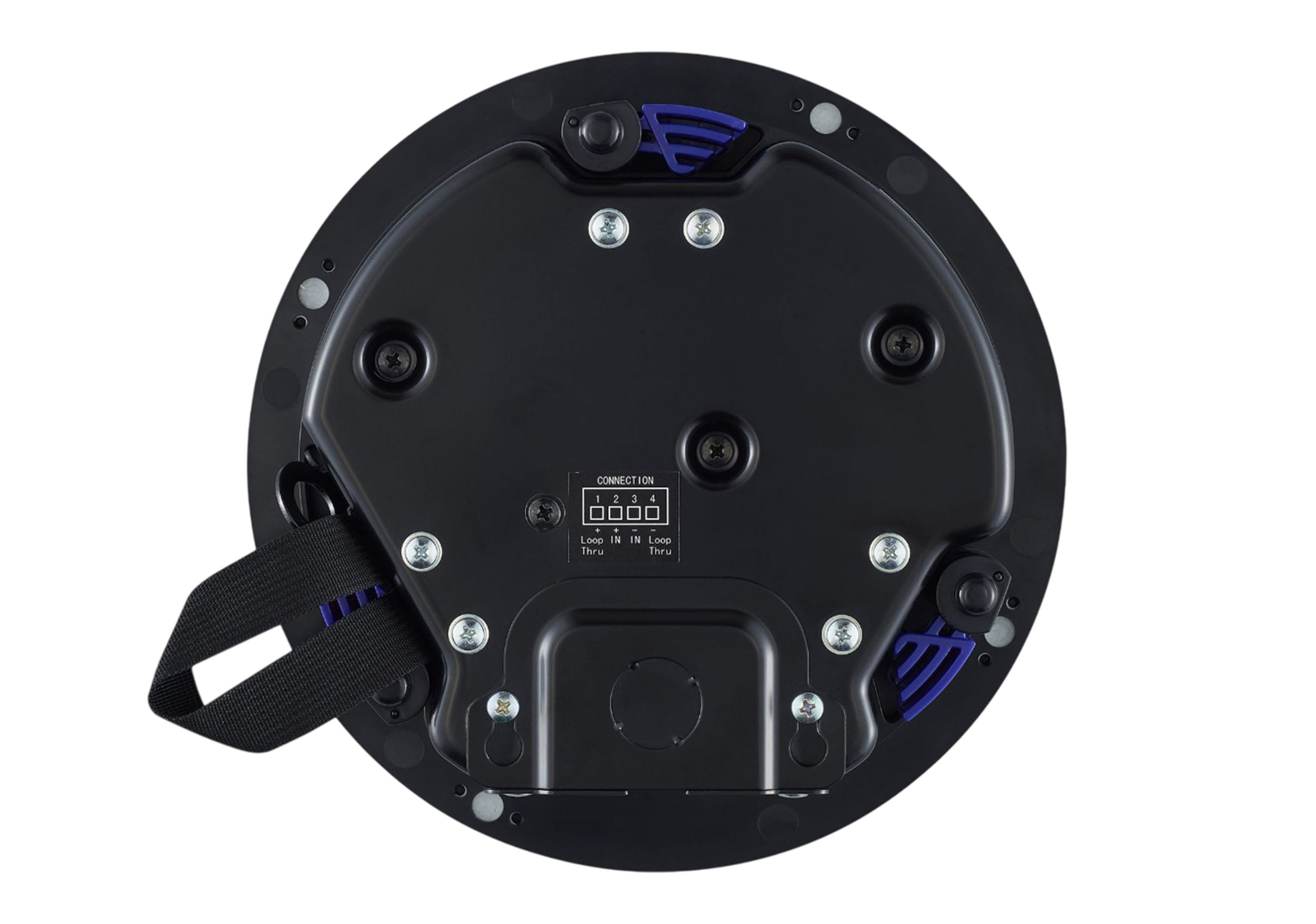

I/O Connectors: Euroblock (4-pin) × 1 (input +/-, loop-thru +/-)
Protection Circuit: Full-range power limiting to protect network and transducers
Finish: VXC2FB Black (approx. Munsell N3)
Cutout Size: Ø186 mm (Ø7-5/16 in)
Required Ceiling Board Thickness: 5 mm - 37 mm
Product Weight: 3.7 lbs / 1.7 kg
Product Dimensions (L × W × H): 8.9” × 8.9” × 3.5”
