Description

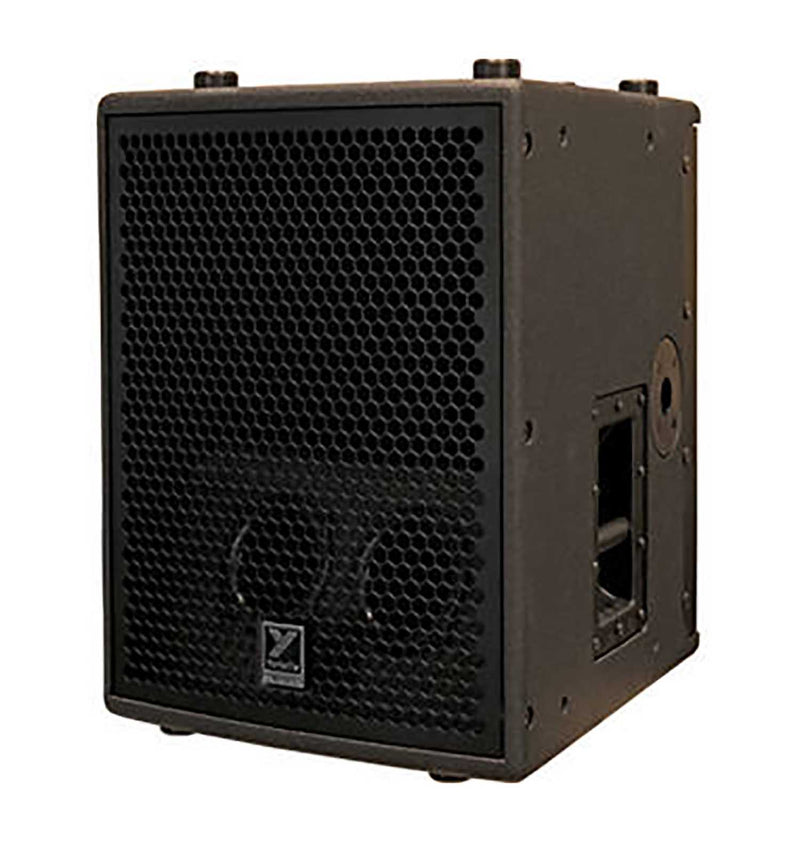

The Yorkville Sound SA102 full-range powered cabinet is a smaller, lighter and more portable addition to the Synergy Array Series. Providing a reduced footprint without sacrificing sonic integrity, the SA102 is ideal for medium to large venues, outdoor festivals and inclined seating theatres. The SA102 paired with the SA115S subwoofer creates the ultimate point source system built to power stages of all sizes, easy to lift and configure, and grow with you.
Product Specification:
System Type: Active Full-Range Powered Speaker
Active or Passive: Active
Power Rating (Watts): 1200 Watts Program (2400 Watts Peak)
Biampable: Biamp
Measured Max SPL (C-Weighted, Max Hold): 127 dB Cont. 133 dB Peak
Frequency Response (Hz +/- 3dB): 60Hz-18k
Dispersion (°H x °V): 30x45 Asymmetrical (7 Up, 38 Down)
Crossover Frequency (Hz): 750Hz
Cabinet Configuration: Patented Synergy Horn and Paraline Lens Technology
Driver Configuration: 1x10" LF Woofer, 1xHF Compression Driver
HF Driver(s): 4" Diaphragm/Voice Coil, Neo
HF Power Rating (Watts): 120 watts Program, 240 watts Peak
HF Impedance (Ohms): 8 ohm Load
HF Protection: Peak and Average Limiting
LF Driver(s): 1x10" Neo Woofer with 3" Voice Coil
LF Impedance (Ohms): 2 ohm Load
LF Protection: Excursion, RMS
HF Power Amplifier (Watts): 300 watts Program, 500 watts Peak
HF Amplifier Type: 3-Tier Class H
LF Power Amplifier (Watts): 900 watts Program, 1600 watts Peak
LF Amplifier Type: Class D
Cooling Scheme: Convection
Power Cable: Removable Locking Powercon True Input and Loop Thru Output
Power Switch: Yes
Power Consumption: 200VA
Inputs: 1 XLR, 2 x XLR Loop
Input Sensitivity (Vrms Sine): Line in 1.4 at center, 0.56 at max
Level Controls: Volume
EQ Controls: HF Boost select, Fullrange/Sub switch
LED Indicators: Power, Limit, Clip
Enclosure Materials: Multiply 15mm Birch Plywood
Standard Rigging Hardware: 1/4-20 Eyebolts (4 Top, 4 Bottom)
Stacking Feature: Interlocking UHMW Feet (Top and Bottom)
Covering / Finish: Paint
Dimensions (DWH xbackW, inches): 21.250 x 17.375 x 22.750 x 6.750
Dimensions (DWH xbackW, cm): 54 x 45 x 58 x 17
Weight (lbs/kg): 69/31.3
