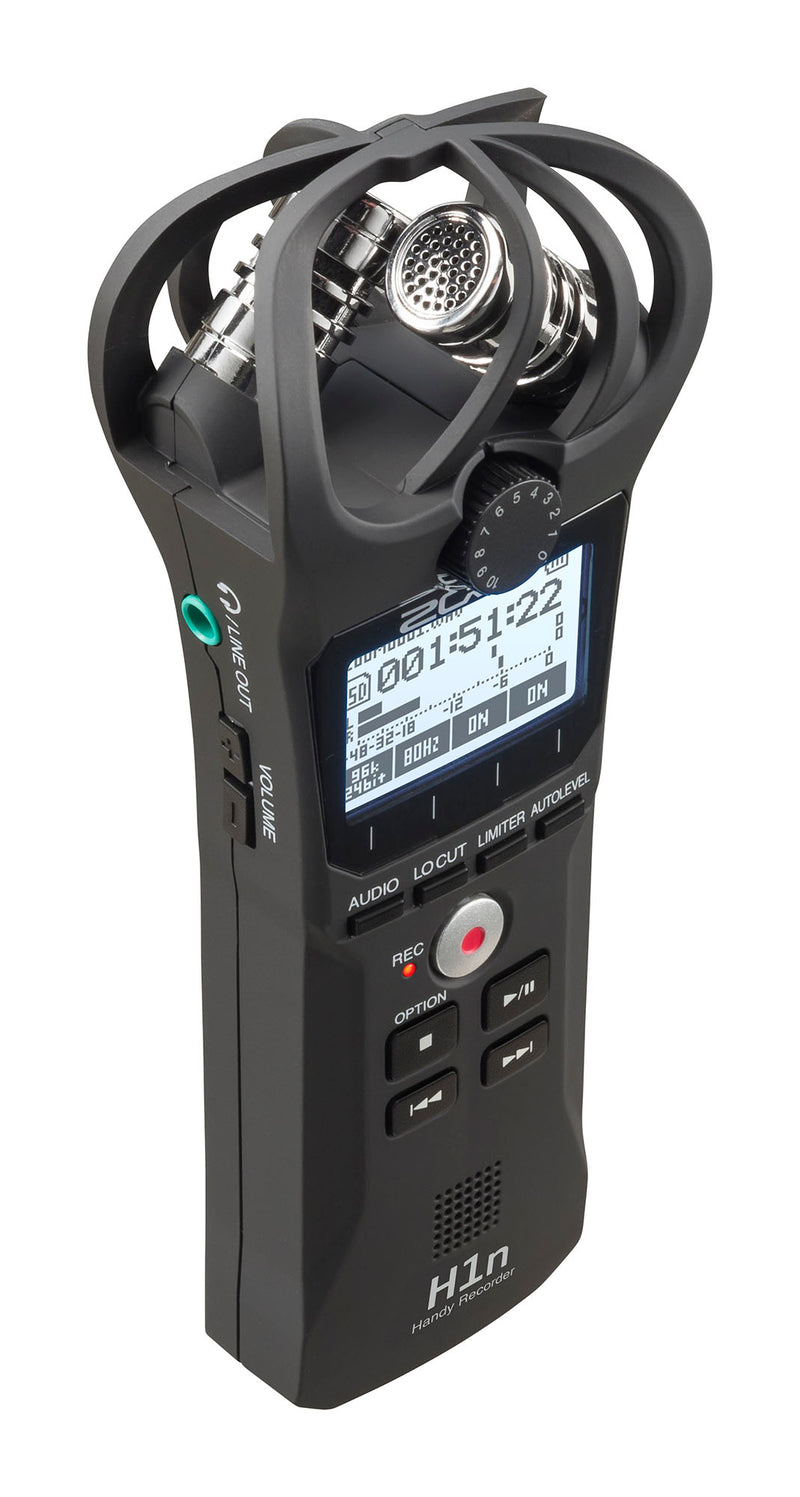

Creators everywhere are using Zoom Handy Recorders to capture sound and sample audio like never before. The new H1n is the ultimate take-anywhere recorder for every creator’s gear bag.
Zoom Your Audio Anywhere and Everywhere:
The H1n X or Y microphones capture high quality stereo sound, supporting up to 24 bit audio at sampling rates of 44.1, 48, or 96 kHz in WAV and various MP3 formats.
New Controls:
With the H1n, we’ve redesigned the user experience. One-touch button controls make it simple to record songs, audio-for-film, lectures, podcasting, and more. And it's new monochromatic 1.25” LCD display is easy to read even in the brightest lighting conditions.
Distortion-Free Recording:
An advanced onboard limiter offers a distortion-free signal up to 120 dB SPL, cleanly recording the loudest of bands.
Unlimited Overdubbing:
The overdub function lets you add layers of audio, allowing for richer and fuller sounding recordings.
Transcription Made Easy:
The H1n's Playback Speed Control lets you transcribe music, interviews and other types of recordings without altering the pitch.
The Connections You Need:
A ⅛" stereo mic/line input lets you record with your external microphones or other sound sources, and supplies plug-in power (2.5 volts). Connect headphones via the ⅛" headphone output with dedicated volume control. You can also use the H1n's built-in speaker to listen to your recordings. The H1n's USB port provides a digital output of the stereo mix and allows data to be sent to and from your computer. It also allows the H1n to be used as a USB microphone and a microSD card reader.
Free Recording Software:
The Zoom H1n comes with free download licenses for Steinberg’s Cubase LE music production software and WaveLab LE audio editing software.
Product Specifications:
Simultaneous playback tracks: 2.
Simultaneous recording tracks: 2.
Functions: Lo-cut Filter, Limiter, Test Tone, Slate-Tone, Voice Emphasize, Filter, Playback Position Skipping, Playback Speed Control, A-B Repeat, Auto REC Level, Marker, Auto-Record, Pre-Record, Self-Timer, Overdubbing
Recording formats: WAV: 44.1 kHz/16-bit, 48 kHz/16-bit, 48 kHz/24-bit, 96 kHz/24-bit.
A/D conversion: 24-bit, 128x oversampling.
D/A conversion: 24-bit, 128x oversampling.
Signal processing: 32-bit.
Recording media: microSD/microSD HC cards (Class 4 or higher, up to 32 GB.
Display: 1.25" monochrome LCD (96 × 64).
Built-in stereo mic: Unidirectional condenser, 90° XY stereo format Gain: dB to +39 dB Maximum sound pressure level: 120 dB SPL.
Inputs: 1/8" stereo phone jack Rated input level: dB to -39 dBm Input impedance: 2 kΩ Plug-in power supported (2.5 V).
Built-in speaker: Built-in 500 mW mono speaker, Output impedance: 8 Ω.
Outputs: 1/8" stereo phone jack (combined line/headphones) Rated output level: 20 mW + 20 mW into 32Ω load Output impedance: 10 kΩ or more.
USB: Micro USB port, Mass storage class operation: USB 2.0 high speed, Audio interface operation: 44.1/48kHz sampling rate, 16-bit depth, 2-in/2-out Transfer method: asynchronous.
Power requirements: 2 AAA batteries (alkaline, nickel-metal-hydride rechargeable,
or lithium) AC adapter (ZOOM AD-17): DC 5V/1A USB bus power.
Battery life (alkaline batteries): Approximately 10 hours (continuous recording time using the built-in mic, 44.1 kHz/16-bit).
Dimensions: 1.9 in (W) x 5.4 in (D) x 1.2 in (H) 50 mm (W) × 137.5 mm (D) × 32 mm (H).
Weight: 0.13 lbs / 60 g (without batteries).
