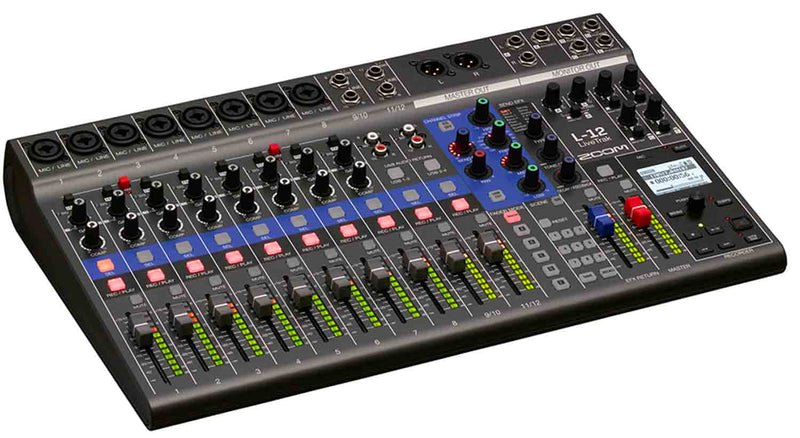

Open Box: Zoom LiveTrak L-12, 12 Channels Mixer With 12 Track Playback

With the LiveTrak L‑12, you can finally mix, record, and monitor with a single piece of gear. It is the only digital console that lets you mix your live performance and record up to 12 discrete channels all while providing five individual custom headphone mixes.

Effortless Live Mixing:

LiveTrak 12 discrete channels (eight mono plus two stereos) have a 3-band mid-parametric EQ and 16 built-in send effects. Its eight mono channels also have a dedicated compressor. With all these controls plus its 12-segment LED metering, the L-12 offers just what you need for intuitive mixing.

Record Everything, Remix Anywhere:

LiveTrak lets you record 12 discrete tracks up to 24-bit/96 kHz WAV audio to an SD card while simultaneously mixing your live show. Tracks are recorded pre-EQ and effects, so

they can be transferred to your favorite DAW for further mixing and editing.

Five Custom Monitoring Mixes:

Each of LiveTrak's five monitor outputs provides a unique mix, so every performer can create and save a mix that’s tailored to their preferences. Its headphone amplifier delivers volume that stands up in any live environment without the need for a separate headphone monitoring setup.

USB Connectivity for Your DAW:

LiveTrak is also a 14-in/4-out USB audio interface with flexible routing options, offering unlimited possibilities. Class-compliant mode, which enables connection with iOS devices, is also supported.

Open box is like new condition and furthermore Open box is covered by the full manufacturer warranty.

Product Specifications:

Form Factor: Desktop

Number of Tracks: 14

Maximum Simultaneous Tracks: 12x Recording

Display: LCD (Backlit)

Maximum Sampling Rate: 48 kHz / 24-Bit

Number of Microphone Inputs: 8

Built-In Microphone: No

Meters: 12-Segment LED

Sample Pads: No

High-Pass Filter: 75 Hz, 12 dB/Octave

EQ: No

EQ Parameters:

High: ±15 dB at 10 kHz (Shelving)

Mid: ±15 dB at 100 Hz to 8 kHz (Semi-Parametric)

Low: ±15 dB at 100 Hz (Shelving)

Built-In Effects: 16x Effect (Type Unspecified)

Analog Audio I/O:

8x Combo XLR-1/4"" TRS Balanced/Unbalanced Mic/Line Input

2x Stereo RCA Unbalanced Line Input

2x XLR 3-Pin Balanced Main Output

2x 1/4"" TRS Monitor Output

5x 1/4"" TRS Headphone Output

4x 1/4"" TS Unbalanced Line Output

Phantom Power: 48 V

Digital Audio I/O: No

Host Connection: 1x USB-A (Class-Compliant)

Host Connection Protocol: USB 2.0

USB (Non-Host): 1x USB-B (USB 2.0)

Sync I/O: No

Network I/O: No

MIDI I/O: No

Wireless: No

Frequency Response:

20 Hz to 20 kHz +0/-1 dB (at 44.1 kHz)

20 Hz to 40 kHz +0/-3 dB (at 96 kHz)

Maximum Input Level: Mic/Line:

0 dBu for 0 dBFS (without Pad, Mono)

+26 dBu for 0 dBFS (with Pad, Mono)

Line Inputs: +16 dBu (Stereo)

Maximum Output Level: Main Outputs: +14.5 dBu

Monitor Outputs: +14.5 dBu"

Headphone Output Power: 10 mW per Channel into 60 Ohms (Max)

Impedance:

Inputs:

10 Kilohms

Outputs:

100 Ohms

XLR Inputs:

3 Kilohms

1/4"" Inputs:

10 Kilohms

Hi-Z Inputs:

1 Megohm

EIN: 128 dB (IHF-A, +60 dB Gain, 150-Ohm Source)

Supported Media: USB Hard Disk Drive

Media/Memory Card Slot: Single Slot: SD/SDHC/SDXC

OS Compatibility: No

Mobile App Compatible: No

Mobile Device Compatibility: iPod Touch

Power Requirements: AC Input

AC Input Power: Not Specified by Manufacturer

AC/DC Power Adapter: 12 VDC at 2 A (Included)

Operating Humidity: 0.9

Operating Temperature: 32 to 104°F / 0 to 40°C

Storage Temperature: 32 to 104°F / 0 to 40°C

Certifications: CE

Dimensions: 17.5 x 11.1 x 2.8" / 445 x 282 x 70.5 mm

Weight: 5.6 lb / 2.5 kg

Shipping Weight: 8.25 lbs

Shipping Dimensions (LxWxH): 21.25 x 13 x 4.5"
