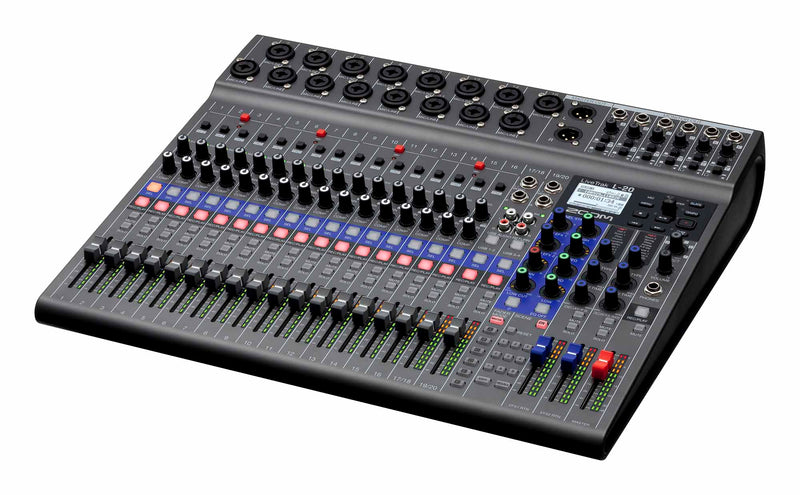

Open Box: Zoom LIVETRAK L-20, 20 Channel Mixer with Multi Track Recorder

The L-20 combines a digital mixer with 20 total input channels (16 mono and 2 stereo), a multitrack recorder that can simultaneously record up to 22 tracks, and a 22-in/4-out USB audio interface. Compact

and lightweight, this digital mixer is easy to transport and can even be used with PA systems for live performances in rehearsal studios, cafés, and other small venues.

High-quality mic preamps: The L-20 has high-quality mic preamps built-in for 16 channels. The high-quality analog inputs, which can provide +48V phantom power, have a −128dBu EIN rating and +60dB maximum input gain. In addition, channels 1 and 2 also support Hi-Z input, while channels 3 to 16 have PAD functions (26dB attenuation), enabling them to accept high levels of input.

6 MONITOR OUT Channels: In addition to the MASTER OUT, the L-20 also has 6 MONITOR OUT channels. The MONITOR OUT mixes can be set separately for each output, enabling different mixes to be sent to individual performers. Moreover, they support output to both headphones and monitor speakers.

Digital mixer that can be operated intuitively: Opening menus is not necessary with the L-20. Every mixer parameter can be controlled with knobs and keys just like an analog mixer. Each channel has a 3-band EQ, and the mono channels have compressor functions. The mixer also includes high-quality send effects. In addition, up to 9 mixer status scenes can be saved in the unit.

Recorder can simultaneously record 22 tracks and play 20 tracks: The L-20 can simultaneously record every channel and the master fader stereo signal output for a total of 22 tracks. Since the recorded data is saved in 16/24-bit, 44.1/48/96kHz WAV format, the files can easily be copied to a computer and used in a DAW. In addition, overdubbing and punching in/out can be done as expected with a multitrack recorder.

22-in/4-out USB audio interface: The L-20 can be used as a 22-in/4-out USB audio interface. The signals from each input and the master fader output can be recorded in a DAW. In addition, signals output from a computer can also be assigned to a stereo channel. Class-compliant mode, which enables connection with iOS devices, is also supported.

Product Specifications:

Inputs:  Mono (MIC/LINE): 16 , Stereo (LINE): 2

Output: MASTER OUT: 1 , MONITOR OUT: 6 , PHONES: 1

Recording format: WAV 44.1/48/96 kHz, 16/24-bit, mono/stereo

Recording media: 4 GB – 32 GB SDHC cards (Class 10 or higher) , 64 GB – 512 GB SDXC cards (Class 10 or higher)

Equivalent input noise: Actual measurements: −128dB EIN (IHF-A) at +60dB/150Ω input

Display: LCD with backlight (128×64 resolution)

Power: AD-19 AC adapter (DC12V 2A)

Power consumption: 24 W maximum

External dimensions: 445 mm (W) × 388.4 mm (D) × 82.6 mm (H)

Weight: 3.71 kg
